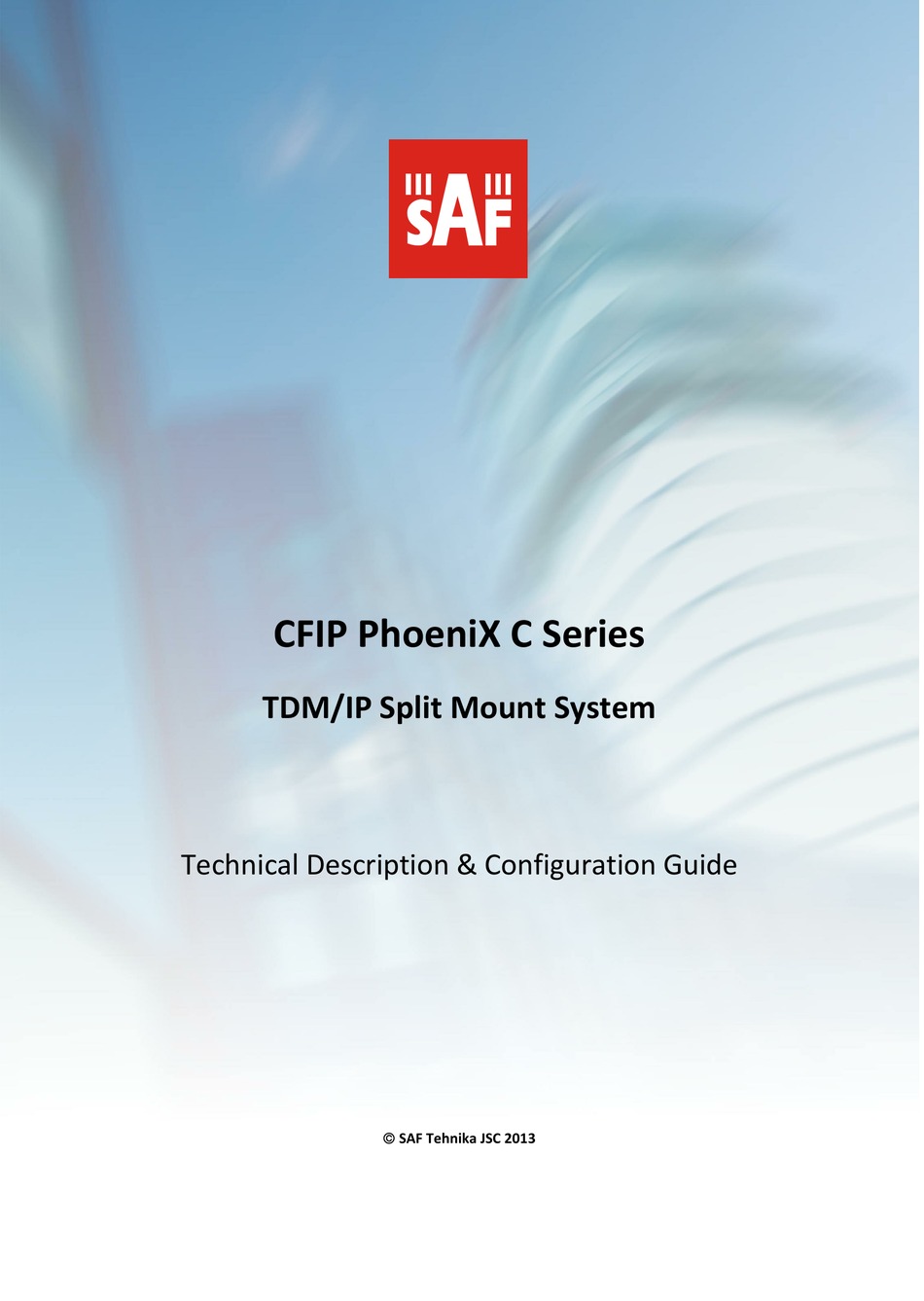

CFIP PhoeniX C Series
TDM/IP Split Mount System
Technical Description & Configuration Guide
 SAF Tehnika JSC 2013
1
CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 •
© SAF Tehnika JSC 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFIP PhoeniX C and is the answer not in the manual?

Questions and answers

Summary of Contents for SAF CFIP PhoeniX C

  • Page 1 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description & Configuration Guide  SAF Tehnika JSC 2013 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 2: Table Of Contents

    Surge suppressors ........................... 44 Grounding kit ..........................44 N plug to N jack right angle adaptor for Indoor unit ..............44 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 3 ETH VLAN settings .......................... 81 ETH SyncE ............................82 ETH Advanced settings ........................83 Advanced Port settings ........................87 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 4 ANAGEMENT YSTEM ........................... 139 ISCELLANEOUS ............................139 CCESSORIES ABBREVIATION LIST ........................140 SAF TEHNIKA JSC CONTACTS ......................141 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 5: Chapter 1 - Basic Information

    CFIP Phoenix C is a universal IDU designed for split-architecture high-performance Point-to-Point (PtP) digital microwave links with adjustable data rate from 10 up to 730 Mbps. It can be connected to SAF CFIP Phoenix ODUs. The whole system is designed especially for network operators interested in IP based transports and backhaul infrastructure.

  • Page 6: Chapter 2 - Technical Description

    IF. The resulting converted signal is together with management channel carried via the coaxial cable to the CFIP Phoenix C indoor unit (IDU). The signal is demodulated inside the IDU, followed by recovery of user data and management data intended for communication with ODU. As a source of user data can be used a signal for/from the Gigabit Ethernet ports or EMM modules connected over SFP module.

  • Page 7: Indoor Unit (Idu)

    Indoor Unit (IDU) The basic function of the CFIP Phoenix C Indoor Unit is the data multiplexing and at the same time it is the digital modem of the whole system. Both of these functions are easily configurable by software.
  • Page 8 Lights – Ethernet link detected Flashes – data activity (Rx/Tx) at appropriate port No light – no Ethernet link CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 9: Block Diagram Of The Cfip Phoenix C Indoor Unit

    CPU. This block (CPU) is also accessible via management interfaces and allows the user to perform all the settings both locally and remotely trough the IP interface in the CFIP Phoenix C IDU. The function of Packet Processor is specific in dependence on selected design. Generally, Packet Processor uses priority scheme which ensures that data at the internal port ETH 4 are processed with the highest priority whereas data at the internal port ETH 1 with the lowest priority.

  • Page 10: Block Diagram Of Design Single

    Block diagram of design SINGLE The main application in design SINGLE is a transmission of a single data stream over air. CFIP Phoenix C IDU is configured into this mode by means of IDU management. Packet Processor function can be simply explained in Figure 5.

  • Page 11: Block Diagram Of Design Multi

    Disadvantages A bit lower throughput comparing to design SINGLE when just one traffic stream is configured at IDU. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 12: Block Diagram Of Design Protected

    Protection is solved by means of Modem Card. Packet Processor function for Slave Unit can be simply explained in Figure 8. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 13 1+1 protection in all modes HSB, SD, FD also with interface redundancy. Disadvantages Two units must be used for protection mode. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 14: Block Diagram Of Design Aggregate

    Aggregation is solved by means of Aggregation Block inside Packet Processor. Packet Processor function for Slave Unit can be simply explained in Figure 10. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 15 This mode can be used as an alternative to protected mode, when one Ethernet channel is used (no hitless). Disadvantages Two units must be used for aggregate mode. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 16: Idu Block Scheme In Terms Of Ip

    IDU block scheme in terms of IP The following Figure 11 depicts a simplified block diagram of the CFIP Phoenix C IDU in terms of IP management. Figure 11: Detailed block diagram of IP management scheme The processor itself performs the function of an IP router. The individual IP frames routing is based on standard routing rules, in this case on static routing.

  • Page 17: Outdoor Unit (Odu)

    BNC connector where the measured DC voltage [mV] is directly proportional to the level of Received Signal Strength (RSSI). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 18: Odu For License Frequency Bands

    BNC connector for measurement of Received Signal Strength (RSSI). Next to the BNC connector is located grounding screw. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 19 Attaching the ODU to the antenna is done with an integrated waveguide transition (Microwave adapter) and it is mechanically realized with four flexible clips. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 20: Odu Technical Specifications

    Strong -75.5 -74.5 -73.5 -74.5 -74.5 -75.5 -76.5 Strong -72.5 -70.5 -70.5 -70.5 256QAM Weak -66.5 -67.5 -63.5 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 21 4QAM +19/+27 +19/+25 16QAM +18/+26 +18/+24 32QAM +17/+25 +17/+23 64QAM +15/+23 +15/+21 128QAM +15/+23 +15/+21 256QAM +12/+20 +12/+18 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 22 38 GHz UBR84 UBR100 UBR140 UBR220 UBR320 N-type UBR260 Max. Power SP: 13-27 W; HP: 21-39 W consumption CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 23: External Multiplexer Modules

    Device CFIP-16E1/T1-EXT (External Multiplexer Module) provides E1/T1 extension for Indoor Units of CFIP Phoenix C product line. The CFIP-16E1/T1 module enables multiplexing up to 16 E1 / T1 circuits. The multiplexer features a basic unit with 16 x E1/T1 built-in ports and 2 x SFP 1000Base-SX ports. The compact, simple to configure, and easily scalable design can provide up to 64 x E1/T1 solution or enables cascading with other extension devices CFIP (e.g.

  • Page 24: Led Indicators On The Cfip-16E1/T1-Ext - System Status

    POWER – indication that EMM is under power (green LED) Lights – power ON No light – power OFF CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 25: Led Indicators On The Cfip-16E1/T1-Ext - Port Status

    IDU and subsequently is packed into standard Ethernet frame for transmission over the network. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 26: Up To 64 E1/T1 External Multiplexer Application

    The configuration of all CFIP external modules is performed from GUI of Indoor Unit (set-up of basic mode E1/T1, add/drop multiplexer, backup). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 27: 1+1 Application With Cfip-16E1/T1-Ext

    1+1 application with CFIP-16E1/T1-EXT The combination of 1+1 protected scheme with extension module CFIP-16E1/T1-EXT. Add-drop multiplexer application CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 28: Management And Configuration Examples Of Cfip-16E1/T1-Ext

    After selecting particular EMM module and pressing on “Change card without apply”, appropriate EMM module’s configuration menu will be displayed: CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 29: Technical Specification Of Cfip-E1/T1-Ext Module

    HDB3 for E1 mode, B8ZS for T1 mode Speed 2.048 Mbps for E1 mode, 1.554Mbps for T1 mode CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 30 ETSI EN 300 019, Part 1-2, Class 2.3 Power EN 300 132-2 EN 55022 class B, EN 61000-4-2,3,4,5,6,8,11 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 31: Extension Module Cfip-Asi-Ext

    IDU in add/drop configuration – -48 VDC – power supply connector, + pole is grounded inside the device – Grounding connector CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 32: Led Indicators On The Cfip-Asi-Ext - System Status

    – Blink – incoming ASI signal – No light – no ingress signal detected General application with CFIP-ASI-EXT CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 33: Cfip-Asi-Ext Cascading

    IDU according to default priority scheme. The port SFP2 on CFIP-ASI-EXT can be optionally connected into slave IDU for possibility to change slave/master mode of IDUs. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 34: Management And Configuration Examples Of Cfip-Asi-Ext

    After selecting particular EMM module and pressing on “Change card without apply”, appropriate EMM module’s configuration menu will be displayed: CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 35 ASI Rx port (Local Ch1-4) can be chosen. This setting is available in Tx mode only CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 36: Cfip-Asi-Ext Technical Specifications

    Item Parameter Value Mechanical Dimension [w x h x d] 224mm x 44mm x 134mm Weight 1,3 kg CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 37: Extension Module Cfip-Asi-Ext With Time Synchronization Interface (Tsi)

    The source of precise time synchronization can be altered by means of GPS. It requires active external antenna with gain app. 25dB. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 38 GPS ant – The connector for external GPS antenna. This is optional and only for cases when there is needed GPS signal as source of precise time. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 39: Led Indicators On The Cfip-Asi&Tsi-Ext - Master

    SYNC LED – LED is ON when the IDU-Extension Module Time Sync is in OK state STATUS LED – LED is ON when TSI status is OK, LED blinks during warning state CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 40: Connection Scheme Of The Link With Cfip-Asi&Tsi-Ext Modules

    The configuration and status of the module can be found in web GUI in Ports/ETH Timing management menu: Timing configuration and status example for Master device CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 41 PSREF unstable – this message will be displayed in case when the Timing module detects inaccurate source signal (accuracy worse than 10e-8); CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 42: Antennas

    (Flexible waveguide is not included in the antenna shipment by default. Suitability of antennas from other suppliers must be consulted with the manufacturer in advance). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 43: Accessories

    50 m (each 50 m for long cables) and on the cable at the building entrance. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 44: Ethernet Cable With Rj-45 Connectors

    N plug to N jack right angle adaptor for Indoor unit R/A adaptor is a recommended accessory for connecting the coaxial cable to CFIP Phoenix C IDU unit under 90° angle. We recommend to use only brand-name R/A adaptors eg. Rosenberger, Telegartner, Amphenol.

  • Page 45: Chapter 3 - Installation

    ODU by 180 upwards, it is vertical polarization. Horizontal polarization is turned by 90 relative to vertical polarization CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 46: Mounting Odu To Antenna

    Attachment is performed with fastening 4 latches to the antenna adapter noting polarization (Figure 23-Figure 24). Figure 23: Fastening the ODU to the antenna noting polarization CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 47: Idu Installation

    Two IDUs in one slot of 19" cabinet – 2x short brackets, 1x Dual IDU mount kit. Use short brackets from each IDU standard delivery, Dual IDU mount kit is an optional accessory (Figure 26). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 48: Cabling Installation

    Similarly, properly ground the IDU unit to the rack cabinet. Figure 27: DC connector pinout for IDU CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 49: Grounding

    For the initial configuration, use PC with Ethernet interface or with the USB port (for introduction see chapter Cabling installation on page 38). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 50: Pc Setup With Lan Adapter

    Follow with the next step described in the figure below for computer IP settings. Figure 29: PC IP LAN setup – local network connection CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 51: Pc Setup With Usb Adapter

    By default each IDU has from the factory the same IP address for USB port (USB IP address). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 52: Basic Link Set Up

    The IDU login window appears as in Figure 32. There you must insert: Login "admin" Password "secret" Figure 32: LOGIN window CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 53: Gui Basics

    A button. The REFRESH button is used for standard refreshing of information on GUI page. Figure 33: Overview of GUI window CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 54: Ip Setting

    Informations from remote units cannot be displayed when this step is skipped. Next IP settings can be applied during complete link configuration. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 55: Basic Radio Settings

    Modulation Limit = 256_56000_01 - set the modulation to the most sensitive in assigned BW (56MHz in our case) ACM = off - adaptive modulation function should be off CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 56: Antenna Alignment

    Figure 37: Pinout of RSSI connector on ODU Typical Received Signal Level Voltage for licensed bands is described in Figure 38. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 57: The Functional Test

    For that, it is again necessary to connect your PC and check the basic radio parameters. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 58: Obtaining The Basic Link Information

    (according to chapter Figure 35: IP setting confirmation Basic radio settings on page 55) and MSE level must be checked again before such test. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 59: Connection Of External Equipment

    REMOTE. Connection of external equipment Microwave system CFIP Phoenix C is equipped with Gigabit Ethernet ports. At the same time it is possible to insert the standard SFP modules into the free SFP slots which allow to connect external modules EMM or additional Gigabit Ethernet equipment.

  • Page 60: Connecting Gigabit Ethernet Port

    The SFP module should be inserted before IDU power-up, but can be plugged also when system is under power. Appropriate Fiber Optic cable with LC connectors must be used for CFIP Phoenix C IDU and EMM interconnection (usually 0.5 m long cable is adequate).

  • Page 61: Chapter 4 - Link Configuration

    After proper configuration of the computer's network connection a Web browser could be launched. Enter the secondary IP address of the CFIP Phoenix C IDU, that is 10.10.10.10 into the address bar of the Web browser (example for connection over LAN 3 port). After entering this address, the login window appears, see Figure 32.

  • Page 62: General System Configurations

    Figure 47: Initial Protection configuration– GUI page „General / Protection By default the protection mode is „off” after a change into this design. This prevents any possible CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 63 (unmuted) or in standby/nonfunctional mode (muted). – Device Status – This value shows alarm status of appropriate units. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 64: Aggregation Scheme Settings

    – This selection configures slave mode for aggregation scheme. This aggregation mode uses the highest priority channel ETH 4 for data transmission over slave link. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 65: Basic Link Info

    It is recommended to fill-in the table with complete link identification. This will be helpful for next system description. Such configuration is accessible from WEB GUI page „General / Info” in Figure 49. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 66: Date And Time

    This will be helpful especially for alarm event and log analysis. The configuration is accessible from GUI page „General / Date” in Figure 50. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 67: Access Rights

    Access Rights It is possible to monitor and manage the microwave link CFIP Phoenix C after the login into the system only, both locally and remotely. In dependence on the login level (after entering a Login and a Password) the relevant access rights are automatically granted to the user, which affect the scope of the management capabilities for the microwave link.
  • Page 68 PASSWORD – 1-15 characters The valid characters are letters, numbers and special symbol “_”. Login names must be different for CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 69: Alarms Configurations

    The set-up of a concrete alarm threshold values for a specific alarm IDs. Actual value is then compared with such defined alarm threshold level values. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 70 No alarm = Actual modem FER value is lower than the FER threshold defined in the same CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 71 No alarm = all internal HW blocks work properly. Warning = one or more internal HW blocks indicate abnormal function. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 72: Radio Configurations

    (when communication with remote side is in operation). LOCAL RANGE column states the range of applicable values, if such limitations exists for specific parameter. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 73 RxLevel (ATPC RxL) is received at the remote terminal (hitless regulation). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 74 Capacity – real data throughput. Modulation name coding is described in the next example. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 75: Advanced Radio Settings

    – TxIF modulated signal is presented at IF output from IDU (default). off – Carrier signal with frequency 350 MHz is presented at IF output. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 76: Port Configurations

    (see chapter Advanced system configuration on page 97) before starting any port settings. Each design type uses different port configuration scheme according to the description in chapter Block diagram of the CFIP Phoenix C Indoor Unit on page 9. Therefore the next explanation is done individually for each design type.

  • Page 77: Basic Port Settings - Design Multi

    Other two traffic channels are connected directly to SFP PHYs, so no ETH switch is the part of such LAN interconnection. Traffic channel ETH 4 has the highest priority inside the packet processor structure. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 78: Basic Port Settings - Design Protected

    SFP 2) are automatically disabled (DOWN) at slave unit (Figure 59). This prevents from the multipath Ethernet loops. The same ports are also disabled when protection mode is configured into “off” mode. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 79: Basic Port Settings - Design Aggregate

    ETH-1 at master unit are reserved for the aggregation function, next two channels ETH-2,3 can be used for next independent traffic streams (Figure 60). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 80 ETH channels (ETH 1-3) is available for next independent data sources. Figure 61: Ports setting in AGGREGATE Slave mode CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 81: Eth Vlan Settings

    Port Group – This parameter defines a separate MAC address table domains inside the internal switch and defines also the group of ports which can communicate to each other. Only the ports CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 82: Eth Synce

    „synchronized” side of the same link. This configuration is available on GUI page „Ports / ETH SyncE” (Figure 63). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 83: Eth Advanced Settings

    ETH advanced GUI page (Figure 64) is dedicated to additional ETH configurations which extend the basic functions of the internal ETH switch (Jumbo Frames, extended QOS, ..). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 84 The assigned initial frame priority is then used for replacing of frame's PRI bits in 802.3ac VLAN tag section, when the frame is egress tagged. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 85 Queues 1,0 are served only when Q3 and Q2 are empty. strict 3210 – Strict priority for all queues. Lower priority queues are served only when higher CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 86 The next possible function of this variable is a definition and/or replacement of QOS priority information based on FPRI_D for frames which are egressed with CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 87: Advanced Port Settings

    AES key input – AES key must be entered for initial key definition or change prior to initiation of AES function. ATTENTION: AES option is not available for design SINGLE. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 88: Ip Configurations

    IDUs and also for correct out-of-band management functionality. Subnet mask is not required for this IP specification. This setting is necessary for Protected and Aggregate designs only. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 89: Static Route And Nat Settings

    NAT records. This is especially required for Out of band type of management access. To edit these parameters noticed above GUI page „IP / Route/NAT” must be selected (Figure 67). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 90 – IP address of destination/remote unit.  port – Port number of service at destination/remote IP. Example: 1080 192.168.4.101:80 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 91: Snmp Settings

    Trap Address 1-3 – Up to three IP addresses can be configured as destination for SNMP trap distribution. Trap message events are configured in the same way as the alarm setting. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 92: Advanced Ip Settings

    Server Type – Two types of time server can be specified for a time synchronization: ntp or rdate. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 93: Maintenance And Advanced System Configuration

    (Figure 70). User can select if a configuration for local unit or both local and remote units is stored. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 94: Configuration Backup And Export

    Select Save Config checkbox in section FILES and press GENERATE. – Press right mouse button on fwconf_xxx_xxx.afw file, and select destination for this file and save CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 95 The alternative and more preferred way is to use out-of- band connection to remote unit by means of NAT function (see chapter Static Route and NAT settings CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 96: Firmware And License Upgrade

    „General / Info” with the new version of description file version.txt Open the folder „Maintenance / Upgrade”, select package checkversions.afw and use the CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 97: Advanced System Configuration

    Design change involves reboot of FPGA and correct hwbase software loading. The setting must be applied by appropriate APPLY button. Possible selections CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 98 REBOOT DEVICE – IDU is restarted after this selection. ATTENTION: Device reboot causes approx. 20 seconds data drop. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 99: Chapter 5 - Configuration Examples

    It is required to know what is a type of customer traffic, especially VLAN configuration at provider and customer side. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 100 100 group1 off DDUUTD Design SINGLE must by selected as the first step in configuration process on both IDUs. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 101 Figure 78: Example 1 – VLAN and Port Group setting at LOCATION 1 Then configure the basic port parameters like Ethernet channel speed and LAN port modes. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 102: Example 2 - Out-Of-Band Mng With Nat

    NAT settings on page 89. Out-of-Band management configuration with NAT is supported by all designs (SINGLE, MULTI, AGGREGATE, PROTECTED). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 103 This example supposes that design SINGLE is selected as default design type. The proper IP address setting must entered but should by applied later together with IP NAT changes (chose Continue button CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 104 IDU must be ensured with similar VLAN configuration in your network otherwise previous VLAN configuration will be returned after 120 seconds). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 105: Example 3 - Out-Of-Band Mng In Separated Channel

    The application example is shown at the Figure 85.The configuration of the most important GUI pages at LOCATION 1 (provider side) is shown at the figures 86 - 89. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 106 It is required to understand NAT configuration techniques. Figure 85: Example 3 – Out-of-Band management based on separated channel CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 107 Such change must be confirmed at the intermediate window by pressing Continue button (the remote access to IDU must be ensured with similar VLAN configuration in your network otherwise previous CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 108: Vlan Configuration

    VLAN is a main application for IDU VLAN functionality. There exists more VLAN modes how to configure the same function with different VLAN scheme. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 109 IDU2 (customer side) Maintenance | Advanced Design single single IP | Address Local IP 10.10.10.10/24 10.10.10.9/24 Remote IP 10.10.10.9 10.10.10.10 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 110 LAN ports and internal MNG port are assigned with just one VLAN, therefore whole data traffic is divided into more separate ETH traffics. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 111 Figure 92: Example 4 – VLAN and Port Groups setting at LOCATION 1 Figure 93: Example 4 – Ports speed setting at LOCATION 1 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 112 Figure 94: Example 4 – VLAN and Port Groups setting at LOCATION 2 Figure 95: Example 4 – Ports speed setting at LOCATION 2 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 113: Example 5 - Advanced Qos Configuration

    All data sources in the same group still share the same capacity. Figure 96: Example 5 – Application with Advanced QOS CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 114 QOS priority definition for each specific VLAN frame. Figure 97: Example 5 – VLAN with QOS PRI setting at LOCATION 1 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 115 QOS discrimination at this side. Figure 99: Example 5 – VLAN with QOS PRI setting at LOCATION 2 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 116: Example 6 - Sync Eth Configuration

    Synchronous clock transfer over packet based system – SyncETH chaining over more links Disadvantages – Not supported in Protection mode CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 117 This example combines SyncE functionality with Out-of-Band management mode in separate ETh channel. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 118 The IDU uses recovered CLK from RF block as the main clock reference for both modem and LAN parts. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 119: Example 7 - Basic 1+1 Hsb/Sd Protection Scheme

    IDU decides what stream will be used for final data demultiplexing. The basic software difference between HSB and SD mode is that in SD mode with CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 120 It is required to understand NAT configuration techniques. Figure 106: Example 7 – 1+1 HSB Protection scheme with NAT management CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 121 It prevents any Ethernet loops or radio interferences during configuration process. Figure 107: Example 7 – Default „Protection off” mode at LOCATION 1 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 122 Figure 109: Example 7 – IP NAT and static route setting at IDU1 – LOCATION 1 Then the basic radio parameters should be configured. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 123 Then Port Groups and Basic Port parameters must be properly configured according to defined connection block scheme. Figure 111: Example 7 – Port Groups setting at IDU1 – LOCATION 1 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 124 (correct interconnection by means of fibre optic cable must ensured). Figure 113: Example 7 – Protection mode selection at IDU1 – LOCATION 1 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 125: Example 8 - Basic 1+1 Fd Protection Scheme

    Disadvantages – Two frequencies must be used. – No protection against data interface part failure at master IDU. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 126 LAN 3 (and USB B) can be used for management connection, ODU transmitter is automatically muted. It prevents any Ethernet loops or radio interferences during configuration process. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 127 Figure 116: Example 8 – IP address setting at IDU1 – LOCATION 1 Then the basic radio parameters should be configured. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 128 Then Port Groups and Basic Port parameters must be properly configured according to defined connection block scheme. Figure 118: Example 8 – Port Groups setting at IDU1 – LOCATION 1 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 129 (correct interconnection by means of fibre optic cable must ensured). Figure 120: Example 8 – Protection mode selection at IDU1 – LOCATION 1 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 130: Example 9 - Advanced 1+1 Protection Scheme

    The most universal protection scheme. – Simple SW reconfiguration from master to slave IDU mode. Disadvantages – Two frequencies must be used. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 131: Example 10 - Ethernet Traffic Aggregation

    2+0 aggregation configuration is similar to function of two parallel links with MULTI design where capacity of traffic channel ETH 1 at master unit is aggregated with capacity of traffic CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 132 Two frequencies must be used or RF signal separation with excellent OMT. Figure 122: Example 10 – 2+0 aggregation with out-of-band management CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 133 Figure 123: Example 10 – IP address setting at IDU1 – LOCATION 1 Then the basic radio parameters should be configured. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 134 IDUs (IDU 1/IDU 3). The slave IDUs are configured automatically (correct interconnection by means of fibre optic cable must ensured). CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 135 The last step is correct configuration of ETH channels on all master and slave units. Figure 127: Example 10 – Port setting at master IDU1 – LOCATION 1 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...
  • Page 136 Figure 128: Example 10 – Port setting at slave IDU2 - LOCATION 1 The Aggregation scheme is properly configured now. CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 137: Chapter 6 - Technical Parameters

    2x SFP 1000Base-SX (proprietary GIGE protocol) EMM-ASI Number of Ports 4xTx / 3xTx&1Rx / 2xTx&2xRx / 1xTx&3xRx / 4xRx CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 138: Network Management System

    Write access Subset of link parameter Security Licenses Time limited / permanent Access levels guest/user/admin with password security CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 139: Miscellaneous

    Surge and power guard, short-circuit protection EN55022, EN55024 Dimensions H x W x D (cm) 3,7 x 6,5 x 16,7 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 140: Abbreviation List

    VTU - table of rules for VLANs W0-3 - names of memories in device (W0 is boot memory) CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

  • Page 141: Saf Tehnika Jsc Contacts

    SAF Tehnika JSC Contacts SAF Tehnika A/S technical support can be reached by: Email: techsupport@saftehnika.com Telephone: +371 67046840 Fax: +371 67046809 CFIP PhoeniX C Series TDM/IP Split Mount System Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2013...

Table of Contents
