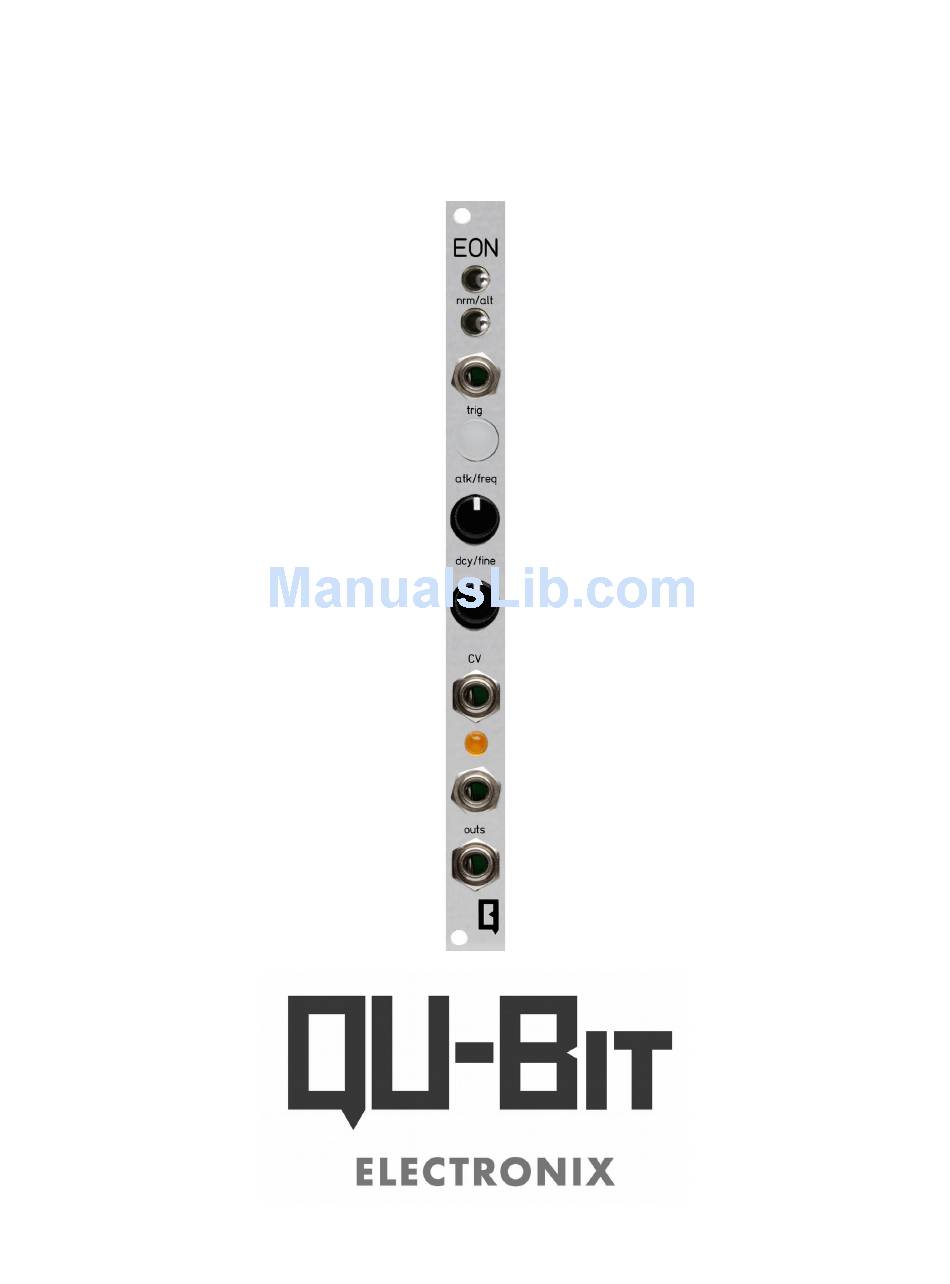

- Page 1 Envelope / Oscillator / Noise Source...
- Page 2 In addition to the three main functions, the EON also has a triangle wave LFO, random gates and cycling envelopes. Packing more features per HP than any module before, the EON is the best way to ,ll any empty spot in your case.
- Page 3 Table of Contents Installation/Speci,cations General Functions Overview Credits...
- Page 4 12 volts. In most systems the negative 12 volt supply line is at the bottom. The power cable should be connected to the EON with the red band facing the bottom of the module.
- Page 6 • When Noise mode is selected and the nrm/alt toggle is in the left position, noise will continuously output. • When the nrm/alt toggle is in the right position, enveloped noise will output when the EON's trig in receives a gate signal or the trig button is pressed. 3. Trig In: Threshold 2.5V •...
- Page 7 4. Trig Button: • Button for triggering linear and exponential envelopes in Envelope mode. • Button for reset of the envelopes when cycling is activated. • When Normal or Alternate Envelope mode is selected, the trig button shows the shape of the envelope. •...
- Page 8 7. CV: • Decay time CV input for linear and exponential envelopes in Envelope mode. ◦ Range: 0V – 8V • 1V/Oct pitch input for square wave oscillator in Normal Oscillator mode. • Quantized semitone pitch input for square wave oscillator in Alternate Oscillator mode.
- Page 9 10. Out 2: • Envelope output when Normal or Alternate Envelope mode is selected. ◦ Range: 0V – 5V (Jumper con,guration 1) ◦ Range: 0V – 10V (Jumper con,guration 2) • Triangle wave LFO when Normal or Alternate Oscillator mode is selected. ◦...
- Page 10 Huge thanks to Stephen McCaul for his support during the development of the EON. Manual written by Collin Russell. www.qubitelectronix.com...
