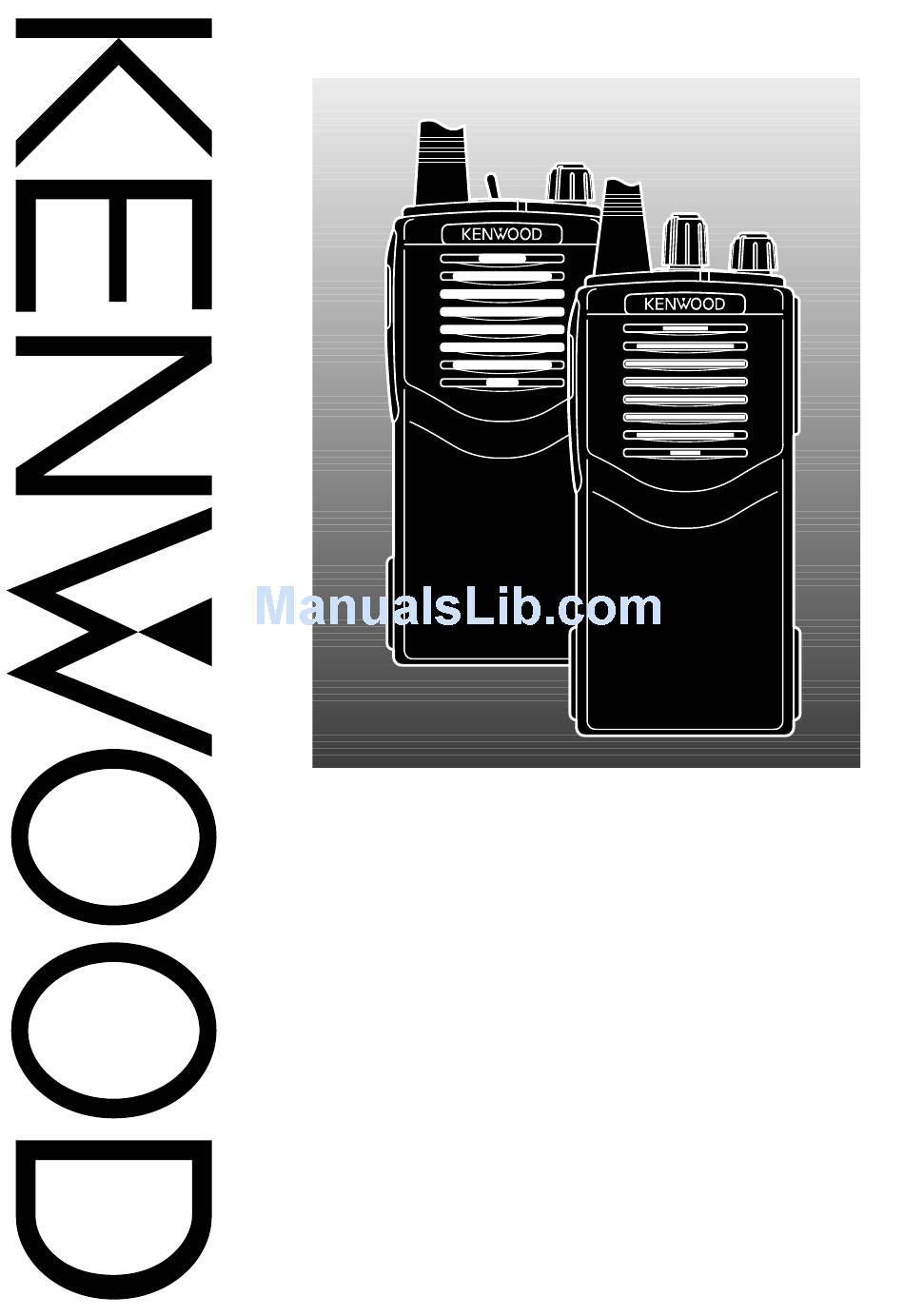

Page 1: Instruction Manual
INSTRUCTION MANUAL VHF FM TRANSCEIVER TK-2102/ TK-2107 UHF FM TRANSCEIVER TK-3102/ TK-3107 KENWOOD CORPORATION © B62-1163-10 (K,M) 09 08 07 06 05 04 03 02 01... - Page 2 THANK YOU! We are grateful for your purchase of this KENWOOD transceiver. We believe this easy-to-use transceiver will provide you with dependable and reliable communications. KENWOOD MEANS WIRELESS Founded more than 50 years ago, KENWOOD’s Car and Home Audio products are in demand around the world.
- Page 3 PRECAUTIONS • Refer service to qualified technicians only. • Do not operate the transceiver or charge a battery pack in an explosive atmosphere (gases, dust, fumes, etc.). • Turn OFF the transceiver while taking on fuel or while parked in a gasoline service station. •...
-
Page 4: Table Of Contents
Installing the Belt Clip ........6 Installing the Cover over the Speaker/ Microphone Jacks.......... 7 Installing the Optional Speaker/ Microphone ... 7 GETTING ACQUAINTED (TK-2102/ TK-3102) ....8 TK-2102/ TK-3102 OPERATION ....... 9 GETTING ACQUAINTED (TK-2107/ TK-3107) ....10 TK-2107/ TK-3107 OPERATION ......11 AUXILIARY FUNCTIONS ........12... -
Page 5: Unpacking And Checking Equipment
UNPACKING AND CHECKING EQUIPMENT Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. Supplied Accessories p i l –... - Page 6 Antenna Antenna Battery charger (TK-2102/ TK-2107) (TK-3102/ TK-3107) (TK-2102/ TK-3102 only) AC adaptor (K market) AC adaptor (M market) (TK-2102/ TK-3102 only) (TK-2102/ TK-3102 only) Speaker/ microphone NiCd battery pack jack cover (KNB-15A) (TK-2102/ TK-3102 only) Belt clip Screw set...
-
Page 7: Preparation
PREPARATION Charging the NiCd Battery Pack The battery pack is not charged at the factory; charge it before use. Initially charging the battery pack after purchase or extended storage (greater than 2 months) will not bring the battery pack to its normal operating capacity. - Page 8 Plug the AC adaptor cable into the adaptor jack located on the rear of the charger. Plug the AC adaptor into an AC outlet. Slide the NiCd battery pack or transceiver with a NiCd battery pack into the charger. • Make sure the battery pack contacts are in contact with the charging terminals.
-
Page 9: Installing/ Removing The Battery Pack
Installing/ Removing the Battery Pack The average life of the supplied KNB-15A NiCd battery pack is 8 hours. Average times are calculated using 5% transmit time, 5% receive time, and 90% standby time. DO NOT SHORT THE BATTERY TERMINALS OR DISPOSE OF THE BATTERY BY FIRE. -
Page 10: Installing The Antenna
Installing the Antenna Screw the antenna into the connector on the top of the Antenna transceiver by holding the antenna at its base and turning it clockwise until secure. Note: The antenna is neither a handle, a key ring retainer, nor a speaker/ microphone attachment point. -
Page 11: Installing The Cover Over The Speaker/Microphone Jacks
Installing the Cover over the Speaker/ Microphone Jacks If you are not using a speaker/ Speaker/ microphone, install the cover microphone jack cover over the speaker/ microphone jacks using the supplied 3 x 6 mm screw. Note: To keep the transceiver water resistant, you must cover the speaker/ microphone jacks with the supplied cover. -
Page 12: Getting Acquainted (Tk-2102/ Tk-3102)
GETTING ACQUAINTED (TK-2102/ TK-3102) Channel switch Antenna Toggle this LED indicator switch to select Lights red while channel 1 or transmitting. channel 2. Lights green while Power switch/ receiving a signal. Volume control Flashes red when Turn clockwise to the battery voltage... -
Page 13: Tk-2102/ Tk-3102 Operation
TK-2102/ TK-3102 OPERATION Switch ON the transceiver by turning the Power switch/ Volume control clockwise. • A beep sounds. Adjust the volume by pressing and holding the Monitor key, then rotating the Power switch/ Volume control. Toggle the Channel switch to select your desired channel. -
Page 14: Getting Acquainted (Tk-2107/ Tk-3107)
GETTING ACQUAINTED (TK-2107/ TK-3107) Channel selector Antenna Rotate to select LED indicator channels 1 ~ 16. Lights red while transmitting. Lights green while Power switch/ receiving a signal. Volume control Flashes red when Turn clockwise to the battery voltage switch ON the is low while transceiver. -
Page 15: Tk-2107/ Tk-3107 Operation
TK-2107/ TK-3107 OPERATION Switch ON the transceiver by turning the Power switch/ Volume control clockwise. • A beep sounds. Adjust the volume by pressing and holding the Monitor key, then rotating the Power switch/ Volume control. Rotate the Channel selector to select your desired channel. -
Page 16: Auxiliary Functions
AUXILIARY FUNCTIONS Time-out Timer The purpose of the Time-out Timer is to prevent any single person from using a channel for an extended period of time. If you continuously transmit for 10 minutes, the transceiver will stop transmitting and a tone will sound. -
Page 17: Monitor
Monitor When no signals are present, the squelch on the transceiver automatically mutes the speaker so you will not hear background noise. To manually deactivate the squelch, press and hold the Monitor key. This is useful when you want to adjust the volume level, or when you need to hear a weak signal. -
Page 18: Optional Accessories
OPTIONAL ACCESSORIES You can use the following accessories with your transceiver: • KNB-14: Standard Battery (7.2 V/ 600 mAh) • KNB-15A: Long Life Battery (7.2 V/ 1100 mAh) • KSC-15: Regular Battery Charger • KSC-16: Rapid Battery Charger • KSC-21R: Refreshable Rapid Battery Charger •... -
Page 19: Troubleshooting Guide
TROUBLESHOOTING GUIDE • • e l l . y l t i l • y l t • • • t l l... -
Page 20: Frequency Chart
FREQUENCY CHART Model Name: TK- Serial Number:...
