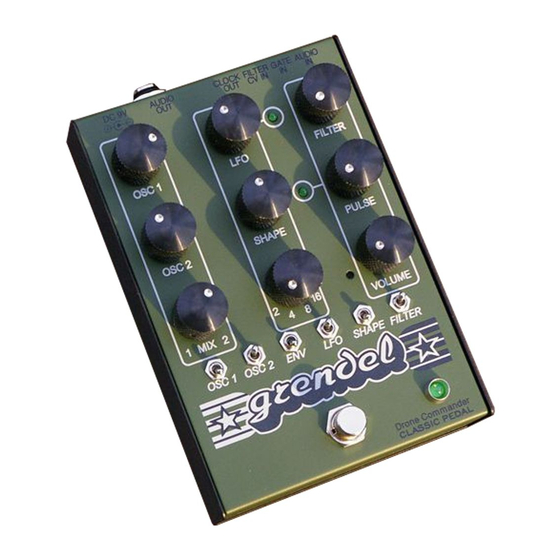

- Page 1 Grendel Drone Commander CLASSIC PEDAL Analog Music Synthesizer Rare Waves LLC USA rarewaves.net Grendel Drone Commander Classic Pedal...
-
Page 2: Table Of Contents
Specifications Contents Grendel Drone Commander Classic Pedal is a Size (L x W x H) ....16 x 10.5 x 5.5 cm P O W E R ..... . -
Page 3: P O W E R
Be sure a mono-type cable is plugged in to Audio Out Verify the AC adapter has tip-negative polarity Check for damage to the AC adapter cable P O W E R S U P P LY Grendel Drone Commander Classic Pedal... -
Page 4: C O N N E C T I O N S
** To avoid accidental damage, don’t The pedal has internal protection connect heavy-weight cables directly against damage from reverse polarity to the 3.5mm ports. and over-voltage. C O N N E C T I O N S Grendel Drone Commander Classic Pedal... -
Page 5: O S C I L L At O R S
When Audio In is patched, the oscillators are Square Triangle muted and the MIX control is deactivated. O S C I L L AT O R S Grendel Drone Commander Classic Pedal... -
Page 6: L F O
Ramp Click When you have got it close enough, wait for the Pulse LED to stabilize, then turn up the PULSE knob. L F O M O D U L AT I O N Grendel Drone Commander Classic Pedal... -
Page 7: F I Lt E R
FILTER knob Adjusts the center frequency of the filter Filter Tips: Self-oscillation (Full cutoff is not possible) The Grendel Drone Commander filter can self- oscillate, adding complexity to the tone. Self-oscillation of the filter happens when the Middle High (self-oscillation) -
Page 8: G At E / E N V E Lo P E
Gate on/off, overriding the Gate In status. ** Use a moderate touch on the stomp switch. (Don’t use your ying leap attack) G AT E & E N V E LO P E Grendel Drone Commander Classic Pedal... -
Page 9: Audio Input
Avoid connecting heavy weight cables and adapters directly to this pedal’s Audio In jack, as it might be damaged by accidental force. E X T E R N A L A U D I O I N P U T Grendel Drone Commander Classic Pedal... -
Page 10: R E V I S I O N
How does Grendel Drone Commander Classic Pedal differ from the original ammo can version? Power Supply The DC input jack is now tip negative. This lets you power it with FX pedal-style 9VDC adapters and daisy- chain power with other stomp boxes. - Page 11 Drone Commander as a buffer Note: Stomp Switch is mute function (not bypass) ENV Switch = Up 3.5mm plug 1/4” to 3.5mm adapter PAT C H E X A M P L E S Grendel Drone Commander Classic Pedal...
- Page 12 Analog sequencer The sequencer’s tempo is controlled by MIDI or another Sync source square wave clock LFO Switch = OFF PULSE knob = 0% PAT C H E X A M P L E S Grendel Drone Commander Classic Pedal...
