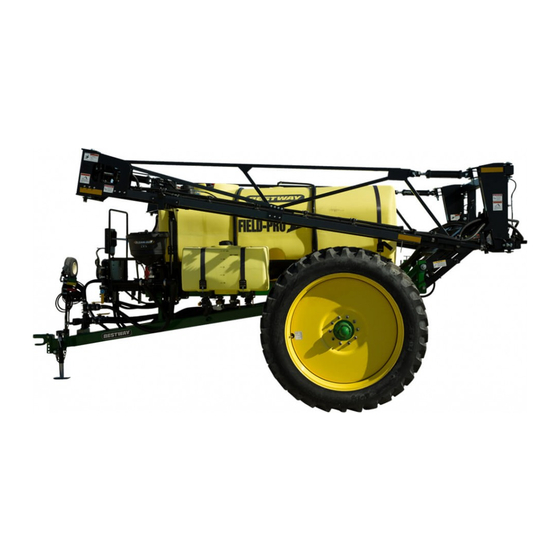

Bestway field-pro IV 1600 Operator's Manual
  1. Manuals
  2. Brands
  3. Bestway Manuals
  4. Paint Sprayer
  5. field-pro IV 1600
  6. Operator's manual

Bestway field-pro IV 1600 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

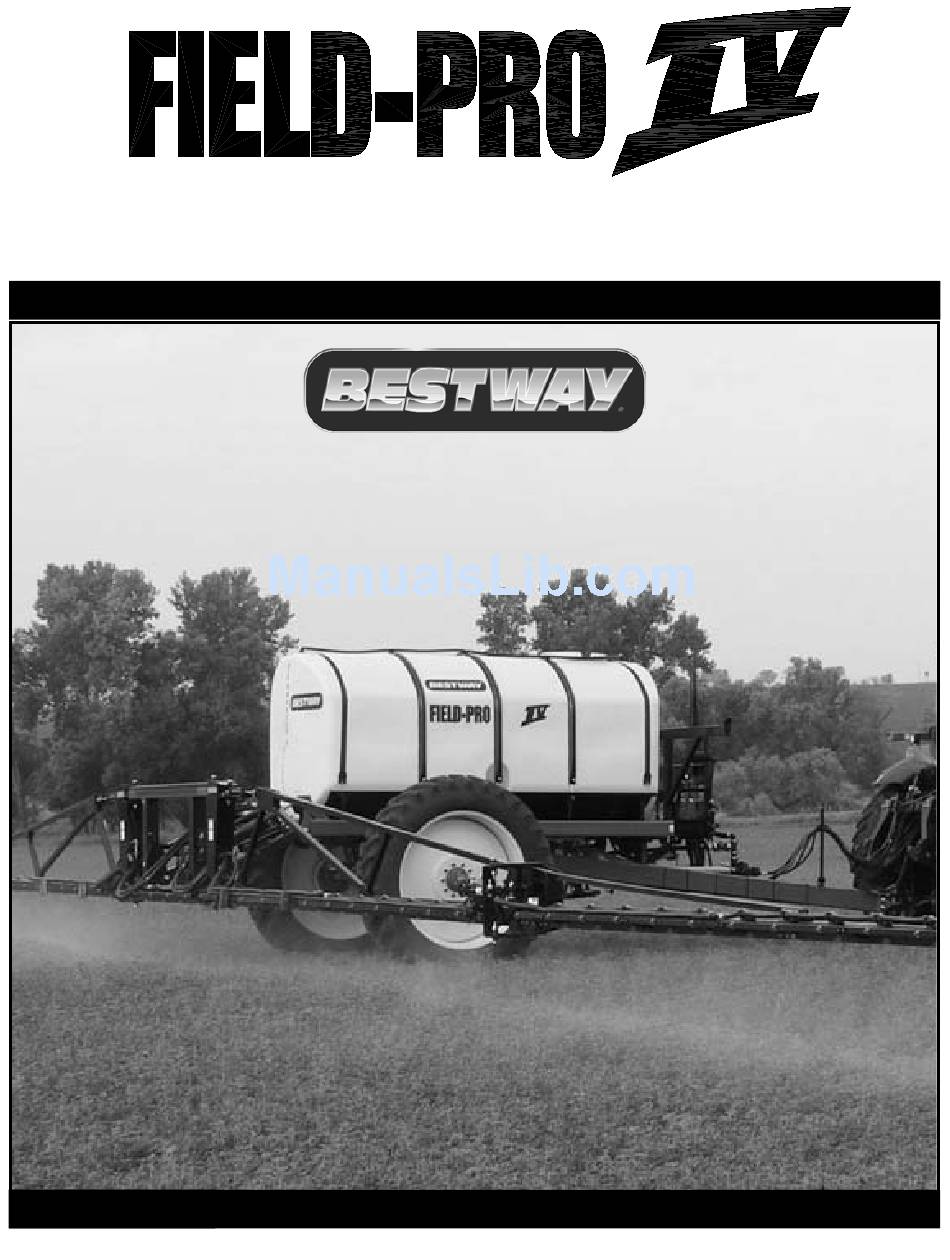

1600/1850
OPERATOR'S MANUAL
A DIVISION OF RHS, INC.
2021 West Iowa Street • P.O. Box 394
Hiawatha, Kansas 66434 USA
Phone (785) 742-2949 • FAX (785) 742-2190
Call Toll Free 1-877-390-4480
www.rhs-inc.com
Effective: May 2006
DOM-BW013
Revision B
Last Edit: August 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the field-pro IV 1600 and is the answer not in the manual?

Questions and answers

Related Manuals for Bestway field-pro IV 1600

Summary of Contents for Bestway field-pro IV 1600

  • Page 1 1600/1850 OPERATOR’S MANUAL A DIVISION OF RHS, INC. 2021 West Iowa Street • P.O. Box 394 Hiawatha, Kansas 66434 USA Phone (785) 742-2949 • FAX (785) 742-2190 Call Toll Free 1-877-390-4480 www.rhs-inc.com Effective: May 2006 DOM-BW013 Revision B Last Edit: August 2006...

  • Page 2: General Information

    GENERAL INFORMATION Congratulations on your purchase of a BESTWAY sprayer. We at RHS wish to thank you for your patronage and appreciate your confidence in BESTWAY equipment. Your BESTWAY Field- Pro IV sprayer has been carefully designed and ruggedly built to provide many years of dependable service in return for your investment.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction ......A3 Maintenance ......E1 Serial Number .

  • Page 4: Introduction

    INTRODUCTION Serial Number The serial number provides important information about your BESTWAY sprayer and may be required to obtain the correct replacement part(s). The serial number plate for the sprayer is located on the right side of the mainframe near the front.

  • Page 5: Definitions Of Safety And Service Statements

    Definitions of Safety and Service Statements TAKE NOTE! THIS SAFETY ALERT SYMBOL, FOUND THROUGHOUT THIS MANUAL, IS USED TO CALL YOUR ATTENTION TO INSTRUC- TIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
  • Page 6 All safety statements in this manual, as well as those found on safety decal's, are preceded by the following warning symbols. Carefully read and follow the instructions provided. Indicates and imminently hazardous situation that, if not DANGER: avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations typically for machine components which, for functional purposes, cannot be guarded.

  • Page 7: Warranty

    Warranty RHS, Inc. ("RHS") warrants each new Bestway product to be free from defects in RHS manu- factured components and workmanship. This warranty is applicable only for the normal service life expectancy of the product or components, not to exceed twenty-four (24) consecutive months from the date of delivery of the new Bestway product to the original purchaser.

  • Page 8: Specifications

    Except as set forth above, RHS shall have no obligation or liability of any kind on account of its equipment and shall not be liable for special or consequential damages. RHS makes no other warranty, expressed or implied, and, specifically, RHS disclaims any implied warranty or merchantability or fitness for a particular purpose.

  • Page 9: Specifications

    SPECIFICATIONS Overall Dimensions Capacities (with 380/90R46 tires) (A) Total length 302 in. (7670 mm) Sprayer tank 1,600 gal. (6080L) (B) Hitch to axle length 215 in. (5460 mm) 1850 ga. (7030L) (C) Transport width 140 in. (3556 mm) Rinse system tank 100 gal.

  • Page 10: Safety Sign Locations

    Safety Sign Locations P/N DEC-HAZ01 P/N 67657 P/N DEC-HAZ08 P/N 67673...
  • Page 11 P/N SW001 P/N/ 67671 P/N 67672 P/N DEC-HAZ02 D,G P/N 60962 P/N SW202 P/N SW900 P/N DEC-HAZ05 P/N DEC-MT4163 G...

  • Page 12: Safety Sign Care

    Safety Sign Care • Keep safety signs clean and legible at all times. • Replace safety signs that are missing or have become illegible. • Replaced parts that displayed a safety sign should also display the current sign. • Safety signs are available from your Distributor or Dealer Parts Department or RHS, Inc. How to Install Safety Signs: •...

  • Page 14: Safety Information

    SAFETY INFORMATION As the manufacturer of your BESTWAY Field-Pro IV sprayer, we care about your safety. In fact, this machine and its systems have been designed to provide maximum safety. Unfortunately, no machine design can prevent operator error or carelessness.
  • Page 15 instructions provided by the chemical manufacturer. • Before leaving the tractor cab, wear personal protective equipment as required by the pesticide use instructions. When re-entering the cab, remove protective equipment and store either outside the cab in a closed box or some other type of sealable container, or inside the cab in a pesticide resistant container, such as a plastic bag.

  • Page 16: Equipment Safety

    of all chemicals being used and the MSDS for each one. • Keep personal wash tank full of clean water for rinsing face and hands, as well as for cleaning safety equipment and spray nozzles. This water is not intended for human or ani- mal consumption.

  • Page 17: Lighting And Marking

    • Replace any CAUTION, WARNING, DANGER or instruction safety decal that is not readable or is missing. Location of such decal's is indicated in this booklet. • Do not attempt to operate this equipment under the influence of drugs or alcohol. Lighting and Marking •...

  • Page 18: Highway And Transport Operations

    Highway and Transport Operations • Comply with state and local laws governing highway safety and movement of farm machinery on public roads. • Always operate equipment in a position to provide maximum visibility at all times. Make allowances for increased length and weight of the equipment when making turns, stopping the unit, etc...

  • Page 20: Initial Preparation And Setup

    INITIAL PREPARATION AND SETUP Tractor Preparation and Hookup 1. Check and adjust tractor drawbar as shown so that it is located 16 to 22 inches above the ground. Then adjust the drawbar to a stationary position so that the hitch pin is directly below the center line of the PTO shaft.
  • Page 21 safety chain by crossing the chains under the tongue and secure to the draw bar cage or hitch or bumper frame. 4. Attach quick disconnect fittings to ends of hydraulic hoses to match tractor ports. Then con- nect hydraulic hoses to tractor ports in a sequence that is both familiar and comfortable to the operator.
  • Page 22 Some tractors use two 6-volt batteries as a power NOTE: source. Make sure there is a total of 12 volts delivered to the controller by connecting to the Positive (+) terminal of one battery and the Negative (-) terminal of the other battery. Reliable operation of the controller depends on a clean power supply.
  • Page 23 Make certain the red wire is connected to the positive IMPORTANT: side and the black wire to negative while attaching the power leads. Damage to the unit can occur if the leads are reversed. 8. Install the boom control switch box on top of the Raven Controller as shown in photo above.

  • Page 24: Initial Preparation Of The Sprayer

    Initial Preparation of the Sprayer 1. Lubricate the boom pivot points per the lubrication information in this manual prior to initial operation and at prescribed intervals thereafter. Also, make sure all tires have been properly inflated prior to each use. 2.
  • Page 25 5. If the tractor used to tow the sprayer is equipped with an open center hydraulic system, refer to the instructions on page C12 to install the correct valve cartridge in the hydraulic manifold under the sprayer tank. 6. Follow the directions in the sprayer control operating manual to calibrate and set the controller. 7.
  • Page 26 11. Turn on the master switch to direct water to the spray nozzles. At this point, the sprayer will be activated and spray tip performance can be visually checked. However, it is recommended that you also use a calibrated container and a stop watch to manually check and calibrate each spray nozzle prior to initial operation.

  • Page 27: Controller Installation

    Controller Installation In most cases, the Field-Pro IV will come from the factory with a Raven 450 sprayer control pre-installed. However, the Field-Pro IV can also be ordered with the base deluxe plumbing plate and 5-valve stack assembly, which permits the owner to install any compatible control system desired.

  • Page 28: Raven Controller

    Raven 450 Controller Figure 1. Overview The control valve used with the Raven 450 Control system is placed in an in-line location. In addition, the Raven control may be equipped with either a wheel drive or a radar speed sensor. Installation The Raven installation manual should provide most of the installation information required.
  • Page 29 Raven 450 Wiring Diagram...

  • Page 30: Raven Radar Mounting

    Raven Radar Mount Raven Radar Mounting Detail DESCRIPTION SU12.6.412 U-bolt, Sq. 1/2NC x 4-1/2 x 6 LW12 Lock Washer, 1/2” ZP Nut, 1/2”NC ZP 74231 Wment, Radar Mount - FP Trailers B38.1 Bolt, 3/8NC x 1 FW38 Flat Washer, 3/8” LW38 Lock Washer, 3/8”...

  • Page 31: Open Center Hydraulic Modification

    Open Center Hydraulic Modification Overview The hydraulic boom control manifold included with this sprayer comes equipped for use with closed center hydraulic systems. For the sprayer booms to operate with an open center hydraulic system the valve cartridge in the front of the manifold will need to be replaced. The following pages include instructions for removing the existing cartridge and replacing it with the correct car- tridge to operate with an open center hydraulic system.
  • Page 32 1. Locate the hydraulic valve manifold under the tank and behind the axle. 2. Remove the retaining nut from the end of the valve cartridge as shown at right. 3. Slide the purple ground wire and the two coils off the stem of the valve cartridge as shown in three pictures above.
  • Page 33 manufacturers number stamped at the end of the stem. The standard cartridge (RHS #69786) required for closed center systems is stamped with mfg #G0453 DA. The optional cartridge (RHS #69787) required for open center systems is stamped with mfg #G0459 EC. 6.

  • Page 34: Operation

    Main tank Quick-Fill, “off” position Rinse tank Quick-Fill, “off” position OPERATION Filling The Tank The main tank on the Field-Pro IV sprayer can be filled in one of two ways – through the top hatch using auxiliary equipment, or through the Quick-Fill valve auxiliary equipment. To fill the tank through the Quick-Fill valve: 1.

  • Page 35: Adding And Mixing Chemicals

    Sparge valve, “on” position Induction valve, “off” position Inductor Pump Inlet Inductor rinse valve, Selector Valve “on” position Inductor discharge valve, “on” position Adding and Mixing Chemicals Although chemicals can be added directly to the main tank through the hinged tank lid, the sprayer has been equipped with a chemical induction system for quick loading and thorough mix- ing.

  • Page 36: Boom Operation

    6. Open inductor discharge valve to transfer chemical to main tank. 7. Rinse chemical container and inductor tank using handgun provided. Close inductor dis- charge valve when inductor tank is empty. 8. Close induction valve and raise inductor tank to transport position. Pull outward and upward on inductor handle to unlock scissors lift mounting bracket.
  • Page 37 The two switches toward the left end of the control box control the folding and unfolding of the wings. Push the switches down to unfold the wings and push them up to fold the wings. To raise and lower individual wing tips, use the two switches to the right end of the control box. Push a switch up to raise a wing tip or push a switch down to lower a wing tip.

  • Page 38: Extending The Boom Wings

    Extending Boom Wings. 1. Raise center lift to its maximum height. 2. Reposition stow lock brackets from boom “lock” position to “unlock” position. “Lock” position “Unlock” position 3. Raise boom wing tilt enough to clear boom stow racks. 4. Unfold wing fold cylinders. Make sure wing is completely unfolded with back pressure on center section and inner wing to eliminate sway while spraying.

  • Page 39: Retracting The Boom Wings

    6. Repeat steps 3-5 to unfold opposite wing. 7. Lower center section to desired spray height. During operation, each wing can be adjusted to a posi- NOTE: tion ranging from -5 degrees to +15 degrees from level in order to follow varying ground contours, such as terraces and waterways. Retracting Boom Wings To retract boom wings, follow the above steps in reverse.

  • Page 40: Sprayer Operation

    Sprayer Operation Once you have filled the sprayer tank and thoroughly mixed the chemical(s), you are prepared to begin the spraying operation. At this point, you should have also determined the application rate and programmed that information into the rate controller computer, along with information on the spray tips, boom width, etc.
  • Page 41 Sparge Valve Function The sparge valve is used to adjust tank sparge during Throttling valve operation. Open the valve to increase sparging. Close the valve Sparge valve to reduce sparging or to increase capacity available to the boom. Pump valve Throttling Valve Function In most cases, the rate con- troller will maintain the correct...

  • Page 42: Foam Marker Operation

    Foam Marker Operation Refer to the Operator’s Manual of your Foam Guidance System for operating instruction. 50 gallon foam solution tank Foam Guidance Pump Unit Controlling Drift Drift can be defined as the movement of spray droplets outside the intended target. It is one of the biggest environmental concerns chemical applicators face.

  • Page 43: Types Of Drift

    Although some products have a greater tendency to drift than others, due to their volatility, the potential for drift exists with any chemical. Unfortunately, with the advent of genetically altered crops like Roundup Ready soybeans, and Liberty Link corn, the potential damage that can occur as a result of chemical drift is greater than ever before.

  • Page 44: Managing Drift

    • Boom height - Boom height is an important factor in controlling drift. A boom that is set too high obviously favors drift, since droplets have farther to fall, thus having more time and opportunity to drift off course. Doubling the boom height, in effect, doubles the length of time required for droplets to reach the target canopy.

  • Page 45: Spray Tip Turret

    • Nozzles which produce fine droplets are usually recommended for post-emergence applications, which require excellent coverage on leaf surfaces. • The most common nozzles used in agriculture are those which produce medium sized droplets. These can be used for contact and systemic herbicide, preemergence surface applied herbicide, insecticides and fungicides.

  • Page 46: Rinsing The Sprayer

    Rinsing The Sprayer It's important that you rinse the sprayer after each use, and every time you change chemical solutions in the tank. In most cases, it's best to rinse and flush the sprayer in the field, to mini- mize handling issues, with rinse water. In some cases, you may also want to add a commercial tank cleaner to the rinse water to help dissolve or neutralize certain chemicals.

  • Page 48: Maintenance

    Taking the time to clean the sprayer after each use is the most important thing you can do to improve the performance and longevity of your BESTWAY Field-Pro IV sprayer. This is particularly important after the use of suspension type chemicals, which can crystallize and plug the flowmeter, lines and/or spray tips.

  • Page 49: Lubrication

    Lubrication Grease Fittings Proper lubrication will help insure efficient operation of your BESTWAY sprayer and prolong the life of friction producing parts. Those parts equipped with grease fittings should be lubricated at the frequency indicated with an SAE multi-purpose type grease. Be sure to clean the fitting thor- oughly before using any grease gun.
  • Page 50 Grease Zerk Locations 50 Hours 12 Hours (2 places) 12 Hours (2 places) 12 Hours...

  • Page 51: Line Strainer Maintenance

    Bestway dealer or RHS, Inc. Sprayer Nozzle Maintenance Spray Tip Care Careful cleaning of clogged spray tips can mean the difference between a clean field and one with weed streaks.

  • Page 52: Tip Replacement

    If a tip is clogged and does need clean- ing, only use a soft bristled brush or toothpick to clean it. Never use a metal object or wire brush. Use extreme care with soft tip materials such as plastic. Even a wooden toothpick can distort the orifice.

  • Page 53: Boom Breakaway Adjustment

    • Ceramic - Superior wear life and is highly resistant to abrasive and corrosive chemicals. • Hardened stainless steel - Very good wear life, good durability and chemical resistance. • Stainless steel - Good wear live, excellent chemical resistance and a durable orifice. •...

  • Page 54: Outer Section Adjustment

    Outer Section Adjustment The outer wing section of both spray booms includes a pressure relief valve plumbed into the wing fold cylinders. In the event this section of the wing contacts an immovable object, the spring loaded valve will allow hydraulic oil to bypass the cylinder, permitting the wing tip to breakaway and fold rearward.

  • Page 55: Tire Pressure

    Tire Pressure Tire pressure should be checked prior to each use of the sprayer and maintained as follows: LOADED TIRE PRESSURE STARTING PRESSURE FOOTPRINT LENGTH 380/90 X 46 Radial Tires 26 PSI 31” 18.4 X 46 Radial Tires 20 PSI 31”...

  • Page 56: Tread Width Adjustment

    11. Fill hub cap half full of wheel bearing grease and install on hub. 12. Install wheel, tighten lug nuts to 265 foot pounds and remove jack and blocks. Tread Width Adjustment Clamping Plate Axle stop Vertical Adjustment Bolts Make axle adjustments only when tank is empty and the DANGER: sprayer is attached to an adequate towing vehicle that is in park.

  • Page 57: Preparation For Storage

    2. Loosen the (6) 3/4" x 3" mounting bolts that clamp the clamping plates to the axle. 3. Loosen the (2) 3/4" x 3-1/2" vertical adjustment bolts on the underside of the axle tube. Do not remove the clamping plate that secures the axle NOTE: stub in position.
  • Page 58 8. Pour 10 to 15 gallons of non-toxic recreational vehicle (RV) antifreeze into the main tank and rinse tank. Operate the sprayer until all hoses have been filled and RV antifreeze has begun to spray out each of the spray nozzles before shutting off. Then make sure no RV antifreeze is leaking from any fittings, hoses or nozzles.

  • Page 60: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Field-Pro IV Operation Problem - Probable Cause. Action No pressure in spray system √ Pump not running. Make sure hydraulic hoses are hooked up correctly. Verify that impeller is turning. √ Pump not primed. Turn on tank valve. Make sure the pump volute is flooded. √...
  • Page 61 Boom valves won’t turn on √ Valved not hooked up to 12 volts. Valves require 12-volt power in addition to the signal from the controller. √ Fuse has blown. Check tractor fuse panel for blown fuse. √ Wiring connection bad. Check all wiring connections. Individual nozzles turning on and off erratically √...

  • Page 62: Parts Listing

    PARTS LISTING Frame and Tank Assembly...

  • Page 63: Field-Pro Iv Frame And Tank Assembly

    Field-Pro IV Frame and Tank Assembly DESCRIPTION 69818 Tank Assy. - FPIV 1600 Gal. w/Full Sump 69820 Tank Assy. - FPIV 1850 Gal. w/Full Sump 62532 Fillwell w/Hinged Lid - 16"- 4" Vent Cap on Top 69617 Tank, Eyewash 1000/1200 gal. Replacement w/lid TLA-5T Tank Lid, 5"...
  • Page 64 DESCRIPTION 74624 Wment, Axle Adjust. Brkt - FPIV B34.312 Bolt, 3/4NC x 3-1/2 Gr5 ZP 74635 Push Plate LW34 Washer, Lock - 3/4" ZP Nut, 3/4NC Gr5 ZP 74600A Hub Assembly - FPIV 1200/1600/1850 B34.2 Bolt, 3/4NC x 2 Gr5 ZP LW34 Washer, Lock - 3/4"...
  • Page 65 Bolt, 1/4NC x 3/4 Gr5 ZP FW14 Washer, Flat - 1/4" ZP LN14 Nut, Lock - 1/4NC ZP DEC-BW007 Decal, Bestway - 6"x1.5" - 4 color DEC-OM001 Decal, Operator's Manual - 6"x2.625" - Green/Yellow1 67673 Decal, Caution - Do Not Drink, 3" x 5" SW001...
  • Page 66 DESCRIPTION 67672 Decal, Caution - Chemical Safety, 3" x 5" SW900 Decal, Danger - Toxic Chemicals 67657 Decal, Warning - Max Speed 25 MPH DEC-HAZ08 Decal, Warning - Tip Over Hazard DEC-HAZ01 Decal, Warning - High Pressure Fluid DEC-HAZ09 Decal, Recommended Tire Pressure DEC-S/N Plate, Serial Number...

  • Page 68: Base Plumbing Details

    Base Plumbing Details...
  • Page 69 Base Plumbing Details for Field-Pro IV DESCRIPTION EL-200112PP Elbow, 2 mpt x 1-1/2 hb, Polypro EPDM112 Hose, EPDM 1-1/2", 200psi, 8"LG HC-112TB Clamp, T-Bolt - 1-1/2" Hose, S.S. 73901 Tube, Sparge - 1600E Raven MBF200 Bolted Tank Flange, 2" Manifold x 2"mpt, Polypro 150-G Gasket, 1-1/2"...
  • Page 70 Pro 90 Boom...
  • Page 71 Pro 90 Boom...

  • Page 72: Pro 90 Boom

    PRO 90 BOOM DESCRIPTION 74111 Wment, Center Section - Pro90 74119 Wment, Fold Arm Right - Pro90 74118 Wment, Fold Arm Left - Pro90 74104 Wment, Parallel Linkage Arm 74108 Wment, Parallel Linkage Hframe 74121 Wment, Break Away Shaft 76120 Wment, Break Away Box 76122 Flat, Break Away Push Plate...
  • Page 73 DESCRIPTION FW34 Washer, Flat - 3/4" ZP LN34 Nut, Lock - 3/4NC ZP B1.10 Bolt, 1NC x 10 Gr5 ZP LN10NYL Nut, NyLock - 1NC ZP 74141 Flat, Transport Lock LP14 Pin, Lynch - 1/4" YZ DEC-HAZ05 Decal, Caution - Transport Lock DEC-HAZ02 Decal, Danger - Electrocution Hazard 60962...
  • Page 74 PLB 73205-Plate, Spray Bar Mnt Backing AA005 Pipe Insert, 1/4" DW Pipe B56.212SS Bolt, 5/16NC x 2-1/2 Gr5 SS N56SS Nut, 5/16NC Gr5 SS 69485 Cylinder, Hyd. - 2-1/2" Bore x 10" Stroke x 1-1/8" Rod2 DEC-BW004 Decal, Bestway - 13-7/8"W x 3-1/2"T, Yellow...
  • Page 76 Pro 90 Boom Hydraulic Schematic...

  • Page 77: Hydraulic Schematic For 90-Foot Boom

    Hydraulic Schematic For 90 Foot Boom DESCRIPTION 69784 Valve, Hyd. Assy. - 5 Function 8FP-QM Adapter, Hyd. Quick Disconnect - Male Tipx1/2"fpt 2 69685 Adapter, Hyd. - 6MB x 6FPS, Hyd. Block 69495 Hose, Hyd. - 1/4" x 20", 3/8"mpt Both Ends 69747 Hose, Hyd.

  • Page 78: Pro 90 Boom Plumbing

    Pro 90 Boom Plumbing...
  • Page 79 Pro 90 Boom Plumbing DESCRIPTION EPDM10 Hose, EPDM 1", 300psi, 55 Feet EPDM10 Hose, EPDM 1", 300psi, 32.75 Feet EPDM10 Hose, EPDM 1", 300psi, 20.5 Feet EPDM10 Hose, EPDM 1", 300psi, 36 Feet EPDM10 Hose, EPDM 1", 300psi, 58.25 Feet 71409 Hose, EPDM 3/4"...

  • Page 81: Wheel And Hub Assembly

    Wheel / Hub Assembly DESCRIPTION 69055 Tire, 380/90R46 /w 10 Bolt Wheel 69441 Tire, 18.4R-46 /w 10 Bolt Wheel 69512 Hub Assembly ------- Hub, Studded w/Cups (66#) 69516 Bearing Cup, Inner-A873 Hub, 33462 Timken 69515 Bearing Cup, Outer-A873/A871 Hubs, 453A Timken 2 69519 Stud Bolt, 3/4-16 x 2-3/4 - A873/A871 Hubs 69521...

  • Page 82: Foam Guidance System

    Foam Guidance System...
  • Page 83 Foam Guidance System DESCRIPTION 61809 Tank, 50 Gal PCO Poly - Yellow, 1-1/4"fpt Sump Ftg 1 TLA-5T Tank Lid - Ace Tanks with Bestsway Logo 71920 Strap, Tank Hold Down - 66" Nylon 69553 Buckle, Tank Strap Hold Down B38.5FT Bolt, 3/8NC x 5 ZP, Full Thread FW38 Washer, Flat - 3/8"...
  • Page 84 Inductor Kit DESCRIPTION 72399 Wment, Inductor Mount Bracket 71894 Wment, Upper Mount Arm 71895 Wment, Lower Mount Arm 71891 Wment, Inductor Tank Bracket B12.1 Bolt, 1/2NC x 1 Gr5 ZP LN12 Nut, Lock - 1/2NC ZP FW12NYL Washer, Nylon Flat - 1/2" SU12.6.312 U-Bolt, Sq.
  • Page 85 DESCRIPTION B12.6 Bolt, 1/2NC x 6 Gr5 ZP LN12 Nut, Lock - 1/2NC ZP 60043 Clip, Spring - 3/4"-1 1/8" ZP B#10.12 Bolt, #10-24 x 1/2, Phil Rnd Hd, ZP LN#10K Nut, Keeper Lock - #10-24 MLP56.214 Pin, Wire Lock - 5/16" x 2 1/4" YZ (Notes) ACE015 Tank, 15 gallon Inductor TLA-12T...
  • Page 86 1600/1850 Gallon Rinse System Assembly...
  • Page 87 Rinse System Assembly DESCRIPTION 61810 Tank, 100 Gal PCO Poly - Yellow TLA-8SL Lid, Tank - 8" Threaded 71044 Strap, Tank Hold Down - 100" Nylon 69553 Buckle, Tank Strap Hold Down B38.5FT Bolt, 3/8NC x 5 ZP, Full Thread FW38 Washer, Flat - 3/8"...
  • Page 88 DESCRIPTION EPDM34 Hose, EPDM 3/4", 300psi EPDM34 Hose, EPDM 3/4", 300psi T-34 Barb, Tee - 3/4 hb x 3/4 hb, Polypro EL-34PP Elbow, 3/4 mpt x 3/4 hb Polypro RP-5032PE Fitting, 3/4" Double Threaded SE-34-45 Street L, 45deg - 3/4"fpt x 3/4"mpt, Polypro M-34-6PP Nipple, 3/4mpt x 3/4mpt x 6, Polypro 27500E-34-18TEF...

  • Page 89: 9306C-Hm5C-Bu Pump Kit

    9306C-HM5C Pump Kit DESCRIPTION 9306C-HM5C-BU Pump, Hyd. Centrifugal - 2"fpt x 1 1/2"fpt, Black 69828 Hose, Hyd. - 1/2" x 96", 1/2"mpt Both Ends 69266 Hydra Grip - One Pair, Red and Black, RED 69266 Hydra Grip - One Pair, Red and Black, BLACK 8FP-QM Adapter, Hyd.

  • Page 90: Deluxe Plumbing Plate W/ 5-Valve Stack Assembly

    Deluxe Plumbing Plate with 5 Valve Stack Assembly...
  • Page 91 Deluxe Plumbing Plate with 5 Valve Stack Assembly DESCRIPTION HC-138TB Clamp, T-Bolt - 1-1/2" Helix Hose, S.S. EPDM112 Hose, EPDM 1-1/2", 300psi MLST150-50 Strainer, 2" Manifold, "T", 50 mesh M200150BRB90 Elbow, 2" Manifold x 1-1/2" hb, Polypro 150-G Gasket, 1-1/2" Coupler, EPDM FC200 Clamp, 2"...
  • Page 92 Base Wiring Details...

  • Page 93: Electrical Wiring Details

    ELECTRICAL WIRING DETAILS Base Wiring Details DESCRIPTION AB479 Wiring Extension, 10ft - 5 Function Hyd. Control 69785 Wiring Harness, 5 Function Hyd. Block AB474 Wiring Harness - Main Cable - OBK10 *AB383 Wiring Harness, Models 6 & RA AB473 Wiring Harness, Battery Cable - OBK10 AB462 Wiring Extension, 10ft - OBK10 Power, (Optional) EXT4/14X10...
  • Page 94 Control Valve Wiring Details...
  • Page 95 Control Valve Wiring Details DESCRIPTION AB254 Control Valve Wiring - 5 Section Control TS000 DIN Connector AB455 Control Valve Wiring - Replacement Harness 32902 Ring Connector, #10 x 12-10ga, Heat Shrink 37052 Male Tab, #10 - 1/4" Push On 31513 Female Spade, Blue Fully Insulated 31903 Ring Conn., #10 x 16-14ga, Heat Shrink, (5 Places) 1...
  • Page 96 Light Wiring Details...
