Summary of Contents for TEAMSable APT-50

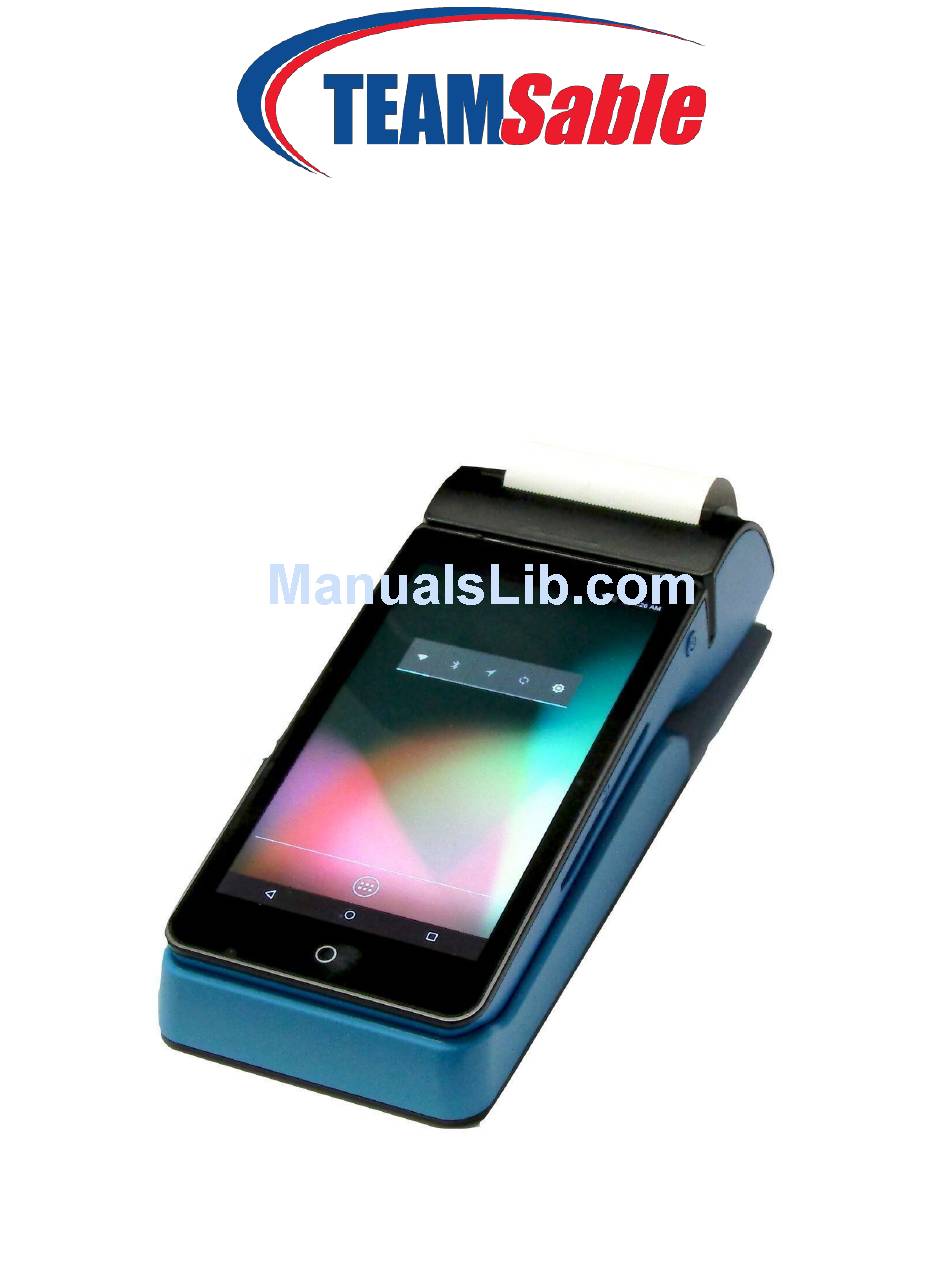

- Page 1 TEAMSable APT-50 Handheld Payment Terminal Quick Start Guide TEAMSable Inc. APT-50-2017-...
- Page 2 We do not recommend that you use any cleaners containing ammonia or alcohol to clean the LCD screen or plastic housing.Cleaners containing these contents will cause damage on theLCD screen, which TEAMSable will not be responsible for. Precautions Before operation of the device, please read this for informational purposes. For further details, please refer to the safety instructions and announcement.
- Page 3 The TEAMSable APT-50 Payment Terminal is a 5.5” handheld device that’s perfect for retail as well as the hospitality industry. The APT-50 comes standard with an 5.5” Capacitive Touch screen and other high end features such as a built in credit...
- Page 4 What Can I do on the APT-50 • Connect Wirelessly and Securely • Accepts Swipe Payments • Accepts Chip Payments • Accepts NFC/ Touch Payments Ports • Power Button • Micro USB Port • 3.5mm Audio Jack • Chip Reader Slot •...
-
Page 5: Get Started
Get Started Loading the Thermal Roll Lift the Printer’s cover to open. Load a roll of paper into the printer. (2 ¼” width) Thermal print Side will face the operator. Close cover and tear off excess paper. TEAMSable Inc. APT-50-2017-... -
Page 6: Connect To Bluetooth
3. Select the Wireless Network to be connected to 4. Enter PW and connect Connect to Bluetooth: 1. Go to Settings 2. Tap Bluetooth 3. Select the BT Device to be connected to 4. Enter PW and connect TEAMSable Inc. APT-50-2017-... - Page 7 USB Port or by using the Wall Adapter. 2. Plug the Micro USB Cable directly to the Micro USB Port on the APT-50, and either charge thru a USB Port or by using the Wall Adapter. TEAMSable Inc. APT-50-2017-...
-
Page 8: Operation
Operation 1. For MSR: Magstripe 2. For Smart Card: facing down is the Chip facing Up is the correct method correct method 3. For NFC/ Touch Payment: Contact should be made within 40mm. TEAMSable Inc. APT-50-2017-... - Page 9 Specs TEAMSable Inc. APT-50-2017-...
- Page 10 TEAMSable Inc. APT-50-2017-...
-
Page 11: Maintenance
• If it is difficult to remove dirt, use a clean, soft, lint-free cloth and please wipe the screen with alcohol-free ammonia-based cleaner. • Please use a soft, dry cloth to clean the plastic case. If the dirt is difficult to remove, pair with a little ammonia-free non- alcoholic ingredients. TEAMSable Inc. APT-50-2017-...
