DVIGear DVI-7520-PDU Quick Start Manual

DVI-7520-PDU
Quick Start Guide Power Distribution Unit
Introduction
Many AV products require the use of external AC power supply units (PSU) to power their internal
electronic circuitry. These external PSUs (wall warts) can pose a major challenge to system designers as
they occupy valuable space within AV equipment racks where there are a limited number of AC outlets.
Furthermore, some external PSUs are poorly designed and ill-suited for use in high profile applications.
DVIGear's DVI-7520-PDU Power Distribution Unit is engineered from the ground up for 24/7 mission
critical applications. This unit offers an unprecedented level of reliability with an MTBF of greater than
220,000 hours. The DVI-7520-PDU provides +12 VDC power on 8x outputs, each rated for 24 watts.
The unit has an overall power reserve of 200 watts. These features allow system designers and facility
managers to optimize power management through more efficient use of rack space, which makes this
unit an ideal solution for a wide range of professional applications.
The DVI-7520-PDU is housed in a rugged 1U half-rack mountable enclosure. It accepts AC line voltages
auto-ranging from 88-264 VAC and AC line frequencies from 47-63 Hz. All outputs include extensive
protection against overload, over-voltage and over-temperature. Versatile and reliable Phoenix
connectors allow for universal connections to various products that require +12 VDC power.

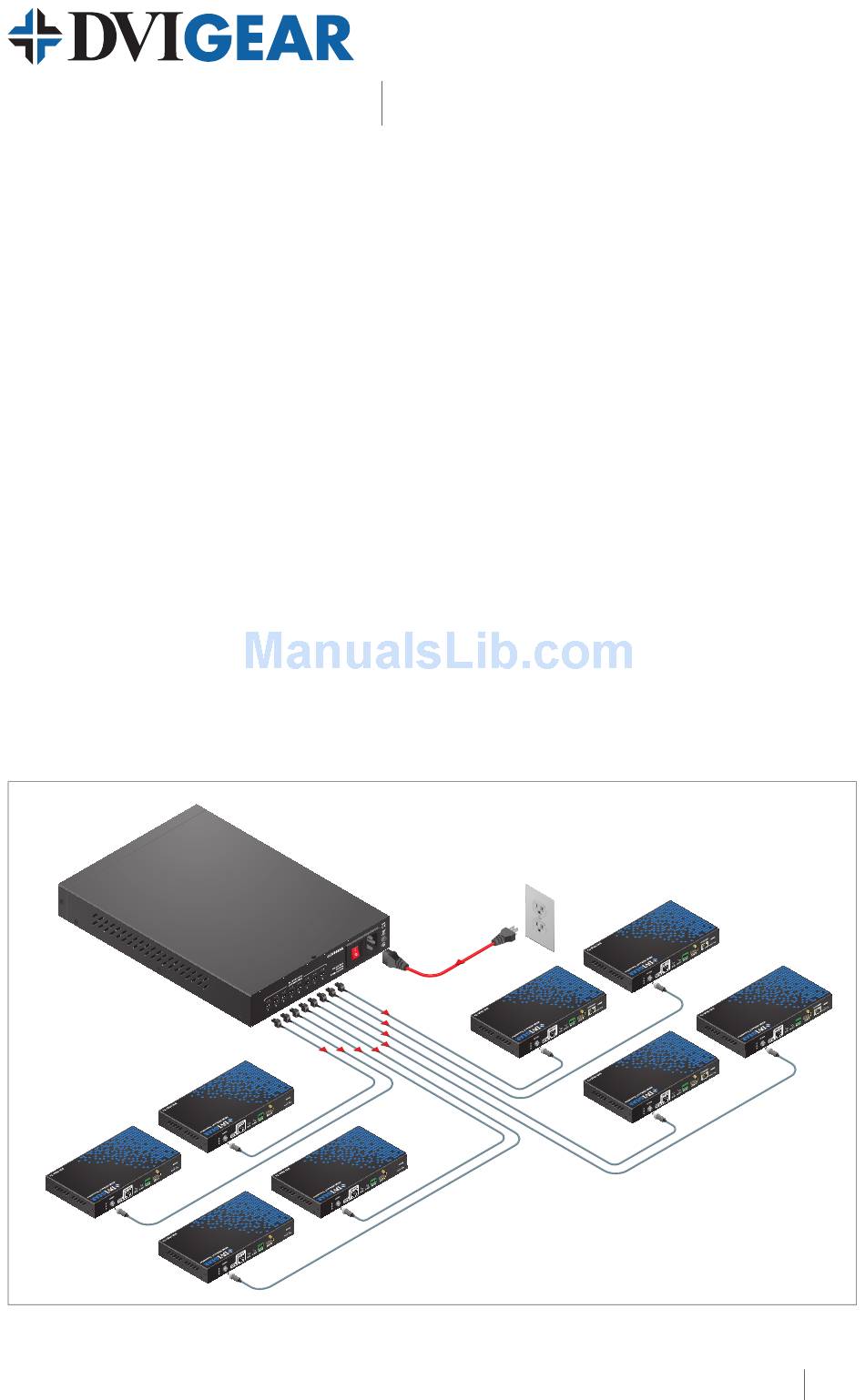

Typical Application
DVI-7520-PDU
8x 12 VDC Outputs
4x DVI-7525-TX
4x DVI-7520-TX
Note: Power supply extension cable length is 5.2 ft. (1.6 m).
DVI-7520-PDU Power Distribution Unit
1
