Summary of Contents for Tuscany TUS1500

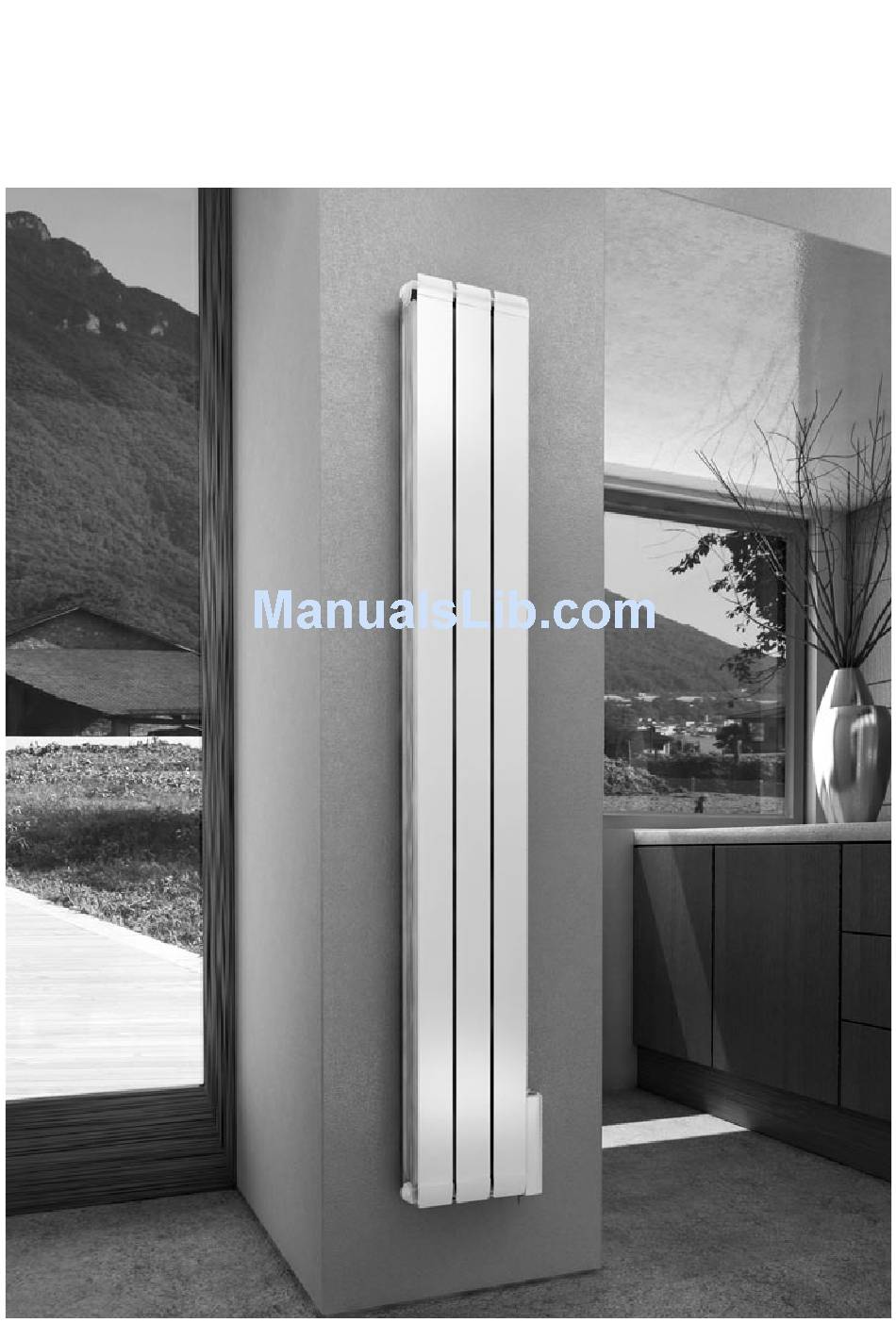

  • Page 1 Tuscany TUS1500...

  • Page 3: Table Of Contents

    INDEX WARNINGS AND RECOMMENDATIONS COMPLIANCE DECLARATIONS RANGE AND SIZES ELECTRICITY SUPPLY INSTALLATION INSTRUCTIONS FOR UNINSTALLING THE RADIATOR INSTRUCTIONS FOR USE MAINTENANCE WARRANTY DISPOSAL POSSIBLE PROBLEMS TECHNICAL CHARACTERISTICS...

  • Page 4: Warnings And Recommendations

    WARNINGS AND RECOMMENDATIONS When using the radiator, follow only the instructions found in this manual. Keep this instruction manual for the entire life of the product, for any further consultation. It’s strictly forbidden to use other kind of information that are not included in the following sheet and supplied manual, both of them have to be preserved during the use of the radiator to solve any doubts about it.

  • Page 5: Compliance Declarations

    Width (mm) Height (mm) Depth (mm) Weight (Kg) TUS1500 1866 INSTALLATION THIS UNIT MUST BE INSTALLED VERTICALLY AND WITH THE CONTROLS AT THE BOTTOM. This radiator is designed to be connected to a 230V/240V system. The supply must be adequate...

  • Page 6: Installation

    INSTALLATION Safety precaution: before and during the installation, make sure that the radiator is not connected to the electricity supply. The radiator must be installed vertically. The radiator must be fitted at least 100mm from the floor. The radiator can not be installed above a power point and must be positioned at least at 15 cm from any side obstacle (shelves, furniture, etc…).

  • Page 7: Instructions For Uninstalling The Radiator

    3. Position the radiator and rest it on the upper brackets verifying the stability and correspondence to the floor (fig.2) 4. Lift the lower bracket so it can fit over the radiator. When in place drop the lower bracket so it is holding the radiator in place and tighten the screws as in fig.3.

  • Page 8: Instructions For Use

    INSTRUCTIONS FOR USE A - IR Window B - Top Cover C - Bottom Cover D - Mode Key E - Clock Key F - Power Switch G - Decrease Key H - Increase Key I - Display J - Operation Door K - Assembly Door CONTROLLER MODES Pilot Wire Mode: Heater is controlled by pilot wire...
  • Page 9 INSTRUCTION OF USE Standby Mode Push on Power Switch, the 1st mode showing on Display is Standby with a “ . “ in the central of Display. Initial Standby Mode Change Push Mode key to change Mode setting (Clock - Pilot - Comfort - Night - Frost Protection - 2H - Standby).
  • Page 10 1. Standby Mode Heater is off. 2. Comfort Mode Heater is maintaining room temperature set by the user, range 7-32 °C. 3. Night Mode Heater is maintaining room temperature 3.5 °C lower than comfort temperature. 4. Frost Protection Mode Heater Maintains room temperature at 7 °C. 5.
  • Page 11 2H Boost Mode Forced heating boost for two hours. Entering into Standby automatically after the heating up process is completed. Standby Heat On Heat Off Heating Up Mechanism When the room temperature is 0.5°C lower than the setting temperature, the device starts to heat up.
  • Page 12 Then push Mode key to set current hour. Using “+” or “-“ key to change figure. Then push Mode key to set current minute. Using "+" or"-" key to change figure. Temperature Programming Push Mode key in Clock mode to program working mode for each Hour. Use “+” or “-” key for selecting working mode(Comfort or Night).

  • Page 13: Maintenance

    MAINTENANCE In order to maintain the correct radiator functioning and performance as guaranteed by the manufacturer, it is advised to regularly check the airflows around the radiator, they have to be free from any kind of object or material not part of the radiator itself. Don’t use alcohol, solvents or any abrasive materials.

  • Page 14: Warranty

    GUARANTEE This guarantee is offered to you as an extra benefit and does not affect your legal rights. All electrical appliance produced for the Company are guaranteed for one year against faulty material or workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person not authorised by us.

  • Page 15: Disposal

    DISPOSAL Instructions for proper disposal of the product in compliance with the European Directive 2002/96/EC. If the radiator is no longer in use, it cannot be thrown away with domestic waste, but it must be disposed in a specific recycling centre for the disposal of electric and electronic devices (RAEE) or returned to the retailer to be replaced with a new one.
