Summary of Contents for Dive Rite HP50

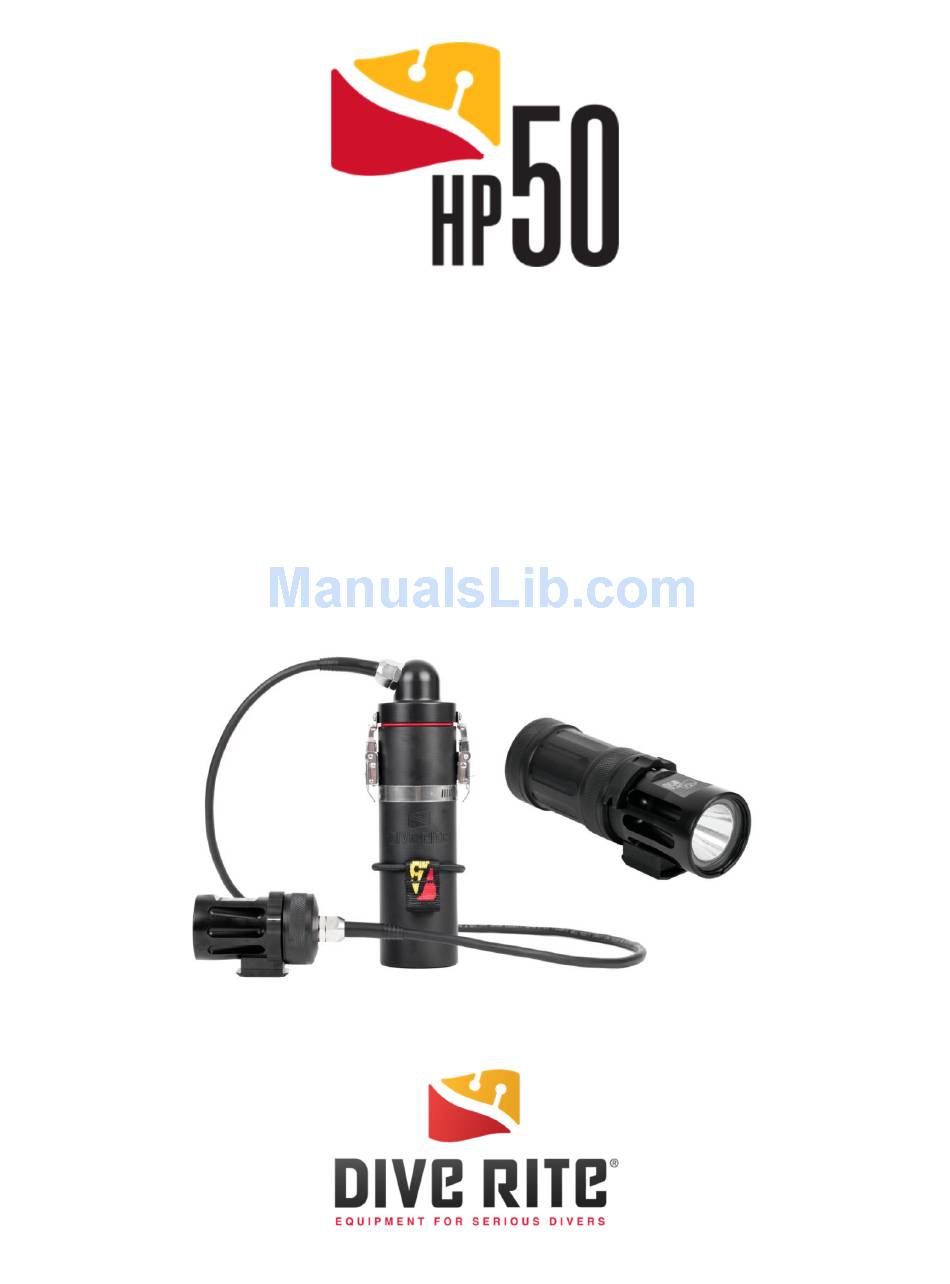

- Page 1 24 Watt LED 24 Watt LED 24 Watt LED 24 Watt LED Lighting System Lighting System Lighting System Lighting System USER MANUAL USER MANUAL USER MANUAL USER MANUAL July 2017 – Rev A...
- Page 2 This is the user manual for the Dive Rite HP50 Lighting System. This user manual is proprietary and copyright Lamartek, Inc. 2017. It may not be reproduced, changed, or distributed without authorization from Lamartek, Inc. All information contained in this manual has been carefully reviewed and is believed to be accurate, however it is subject to change.
-
Page 3: Table Of Contents
Adjusting the Hand Mount ................14 Hand Mount Attachment ................15 Light Operation ..................... 16 Care, Maintenance, & Storage ..............17 Dealing with a Flooded Light ................ 18 Warranty Information .................. 19 July 2017 © Lamartek, Inc. dba Dive Rite... -
Page 4: Product Description
A next generation, multi-die Cree XLamp XHP50 LED provides unparalleled output, efficiency, and reliability. The HP50 is proudly designed, manufactured, and assembled in the USA. July 2017 © Lamartek, Inc. dba Dive Rite... -
Page 5: Tech Specs
• Improved heat sinking and cross drilled light head allows water flow through and provides a direct thermal path from the back side of the LED chip to the water for maximum output and efficiency July 2017 © Lamartek, Inc. dba Dive Rite... - Page 6 • 4+ hour burn time after light output step down from full power • Charging time: up to 8 hours from complete discharge • Strobe Cycle Time: 100ms on then 900ms off July 2017 © Lamartek, Inc. dba Dive Rite...
- Page 7 Expedition Canister: 4.3 lbs (1.95 kg) • Buoyancy: 1.25 lbs (0.56 kg) in freshwater • Depth Rating: 500 feet (152 m) • Li-Ion Smart Charger included • Designed, manufactured, and assembled in the USA July 2017 © Lamartek, Inc. dba Dive Rite...
-
Page 8: Important Warnings
• Before diving, you should have the proper training from a qualified instructor and obtain certification from a recognized training agency. • DO NOT USE THE HP50 LIGHT OUT OF WATER. Brief operation to check functionality is OK, however the light head can get extremely hot and cause burns if used out of the water for extended periods. -
Page 9: Charging & Maintaining The Batteries
A green LED indicates when the battery is fully charged. 7. Disconnect the battery once it is fully charged and unplug the Smart Charger from the wall outlet. July 2017 © Lamartek, Inc. dba Dive Rite... - Page 10 • Do not plug the light head into the battery when not in use. The canister lid can be turned 180 degrees and reinstalled for transport and storage. The battery is not connected to the light in this position to prevent accidental activation. July 2017 © Lamartek, Inc. dba Dive Rite...
-
Page 11: Installing The Batteries
Installing the Batteries The HP50 Lighting System can be powered by either four 18650 batteries in the handheld battery tube, or using the canister battery adapter. Installing the Handheld Batteries 1. Install the four individual 18650 batteries into the battery carrier lining up the plus (+) and minus(-) indications on the batteries and the carrier. - Page 12 There is no need to lubricate this O-ring. Lubrication can attract dirt which prevents proper sealing. 4. Install the battery lid onto the battery canister so that the four banana plug pins align with the black and red plug sockets on the battery. July 2017 © Lamartek, Inc. dba Dive Rite...
-
Page 13: Mounting The Canister
You don’t need to be able to reach a switch on the canister. The HP50 canister comes with the Quick Belt Mount for mounting it to the waist belt of your harness or backplate. -
Page 14: Adjusting The Hand Mount
Adjusting the Hand Mount 1. Slide your hand into the hand mount placing your thumb through the open end on the side of the hand mount. July 2017 © Lamartek, Inc. dba Dive Rite... -
Page 15: Hand Mount Attachment
4. Tuck the excess elastic strap into the retainers. Hand Mount Attachment The HP50 light head can be attached to the hand mount with it on or off of your hand. The light mount is spring-loaded to hold the light in place, and makes it easy to attach and remove the light. -
Page 16: Light Operation
3. Follow the instructions above for attaching the HP50 to the hand mount. Light Operation The HP50 has a rotary magnetic on/off switch that can easily be operated underwater even with thick gloves. Turning the Light On or Off July 2017 © Lamartek, Inc. dba Dive Rite... -
Page 17: Care, Maintenance, & Storage
High mode when turned on again. Care, Maintenance, and Storage With proper care and service, your HP50 Lighting System can provide you with years of safe, enjoyable use. Without proper care, your HP50 can become damaged and be either unserviceable or dangerous to use. -
Page 18: Dealing With A Flooded Light
• The two head O-rings should be kept clean and lubricated with a light coating of silicone grease and replaced annually. See your Authorized Dive Rite dealer for replacement O-rings. (Dive Rite P/N RP9992-RED) • The battery canister lid O-ring should NOT be greased. It should be kept clean and wiped down between dives. -
Page 19: Warranty Information
• DO NOT TAKE THE LIGHT APART. • Arrange with your dealer to return the light to Dive Rite for repair. Flooding damage cannot be fixed or corrected in the field. Attempting to repair the light in the field voids your warranty.
