CYCLOPS TORNADO OSD V1.0 manual

Thanks for buying and using CYCLOPS OSD series products, please read this manual

carefully before use.

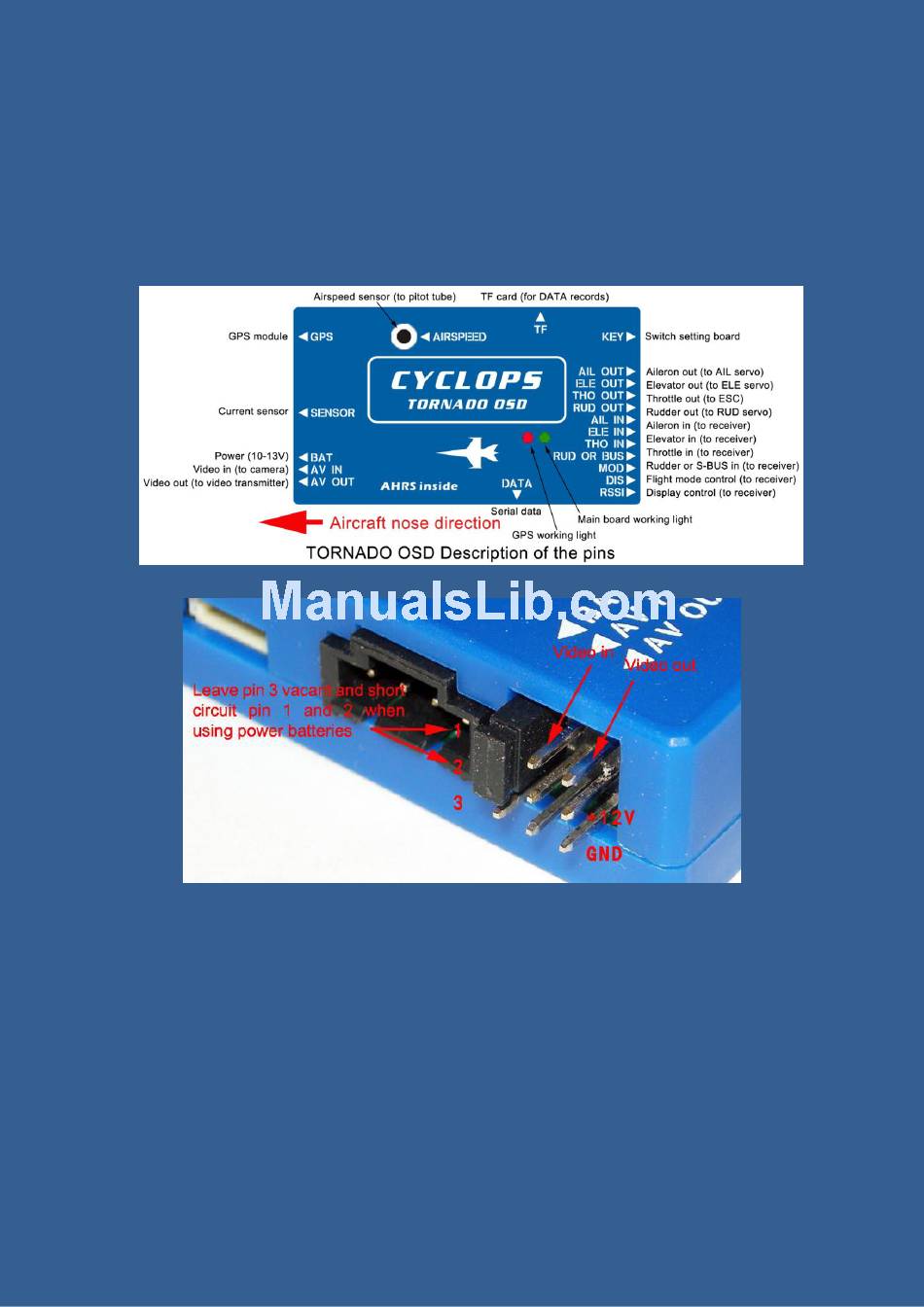

Installation of connections

Important: select Jumper instructions: 1, 2 short circuit for using power

batteries(which must be 12V, or 3S LIPO batteries); remove the jumper cap, and

connect 2 and 3 to power up OSD and wireless video equipment separately with

additional 12V power supply. When mounting OSD main board to the aircraft, please

check whether the position is installed correctly, namely the nose of the small white

plane design on the main board points to the direction of the aerial carrier's nose.

Table of Contents

Need help?

Do you have a question about the tornado osd series and is the answer not in the manual?

Questions and answers

Summary of Contents for CYCLOPS tornado osd series

Page 1 CYCLOPS TORNADO OSD V1.0 manual Thanks for buying and using CYCLOPS OSD series products, please read this manual carefully before use. Installation of connections Important: select Jumper instructions: 1, 2 short circuit for using power batteries(which must be 12V, or 3S LIPO batteries); remove the jumper cap, and connect 2 and 3 to power up OSD and wireless video equipment separately with additional 12V power supply.
Page 2 Current sensor wiring Diagrams (with a T plug) GPS Module Installation...
Page 3 System parameter setting Connect the GPS module and OSD correctly according to the above instructions, switch on the power, the red light on the OSD main board flashes, then it will enter the following boot interface: Press the “UP” and “DOWN” buttons on the switchboard at the same time to enter the main menu settings.
Page 4 SYSTEM CONFIG setup instructions...
Page 6 Setup Options Comments instructions PAGE 1 When the power consumption reaches the set value in flight, BAT SCALE mAh alarm value the battery capacity symbol and value will flash to indicate it. The mAh consuming can be adjusted by 0%-200%. Reset the current At first use or after replacing the current sensor, it needs to RESET CURRENT...
Page 7 PAGE 2 GAIN Roll sensitivity Adjustment of the roll control sensitivity ROLL Maximum turn Default25°, Maximum 45° Angle GAIN Pitch sensitivity Adjustment of the pitch control sensitivity PITCH Maximum pitch Default10°, Maximum 20° angle Clear airspeed Re-clear the airspeed. We recommend reset airspeed before RESET AIRSPEED takeoff if the environment changes.
Page 8 WAYPOINT setup instructions...
Page 9 PAGE 1 to PAGE 3 (Waypoint “A” to “J” and “HOME” point) Options Settings Remarks Waypoint distance The distance between the Waypoint and the home point, setting range: 0-5000meters Waypoint angle The angle between the line of waypoint and the home point with the due north, setting range: 0-359 Altitude of Setting range 0-800 meters...
Page 10 Directions for use 、 We recommend the clients to use electric power model airplane with good stability. 、 Place TORNADO OSD in your plane horizontally, keep the logo plane’s heading point to your plane’s heading. If the plane slope over 15 degree, the OSD will keep display the boot interface until you put the plane horizontally.
Page 11 、 We recommend to use remote controller with failure protection functions (F/S function). You may set plane pilot mode shift channel fail protection as auto return pilot. In this case, the plane can automatically return in case of losing control. 、...
Page 12 amount, the plane will fly left (right) at 45 degree slope, if the elevator steer is in 100% amount, the plane will lift (lower) at 20 degree angle. Until the control lever returns to the neutral, the system will lock and keep the course and altitude at the moment.
Page 15 Notes of other special symbols Power alarm symbol. When the power consumption of the dynamic system reaches the set value BAT SCALE in the menu, this symbol will appear and flash to alarm. Semi manual stabilization mode symbol, when the flight mode switch switches to the stabilization mode, this symbol will appear, at this time, the aileron is in auto-balance operating mode, and the OSD automatic will automatically begin the fixed altitude flight.
Page 16 During the flight, please stay away from the crowd or the buildings, CYCLOPS shall not be liable for any losses caused by improper use. When there is updated software, modified version, or renewed instructions, please pays close attention to the agent’s website...
Page 17 TORNADO OSD update guide 、 Unpack the file 、 Install the driver 、 Power on the TORNADO OSD and connect the update kit to the main board as shown on the pictures below.
Page 18 、 First step update the AHRS firmware, clicking on TORNADO AHRS update.exe The update progress is as above, DO NOT disconnect the update kit or cut off the power supply of TORNADO OSD. Click on OK to finish the update then cut off the power of TORNADO OSD and remove the update kit.
