Summary of Contents for USR IOT usr-wifiio-83

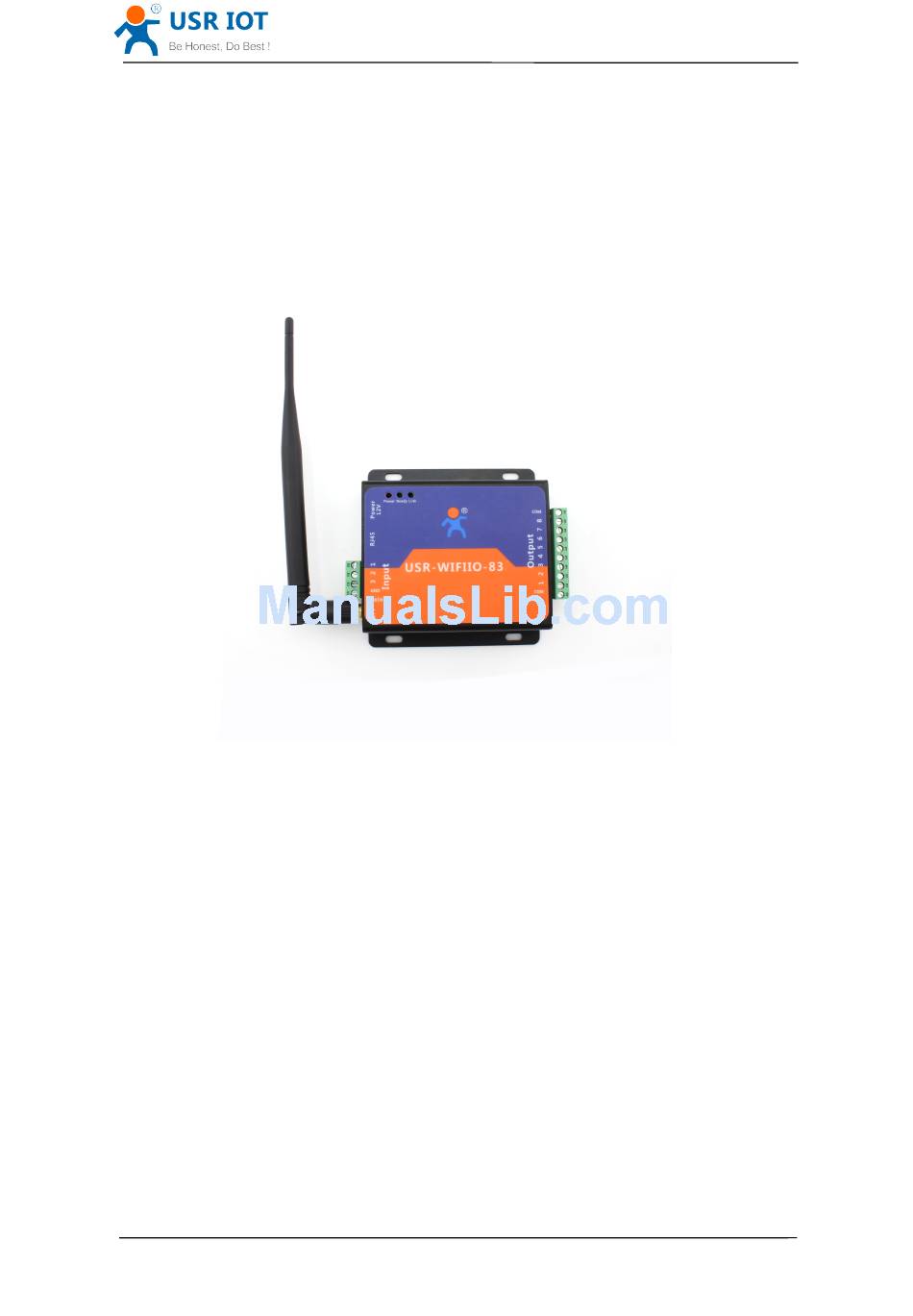

- Page 1 LonHand Series product user manual www.usr.so LonHand LonHand series series product product specification specification LonHand LonHand series series product product specification specification USR-WIFIIO-83 USR-WIFIIO-83 USR-WIFIIO-83 USR-WIFIIO-83 File Version: V1.3 1 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 2 Contact Information Appendix Appendix Appendix Appendix C C C C Disclaimer Disclaimer Disclaimer Disclaimer......................28 Appendix Appendix Appendix D D D D Update Update Update History History Appendix Update History History....................28 2 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 3 First, you should power on the USR-WIFIIO-83 with the power adapter supplied by our company. The red LED that presents the power will grow after you power on the device. After about 5 seconds the green LED that presents ready will glow. Now you can use it.
- Page 4 3. Open the LonHand software. Slide to the fourth page, click on start button. Fig.3 Start-up pages of the LonHand software 4. Enter Devices page. You can find the USR-WIFIIO-83 device. Click on its name enter Source Control page. In this page you are able to control the output, click on the...

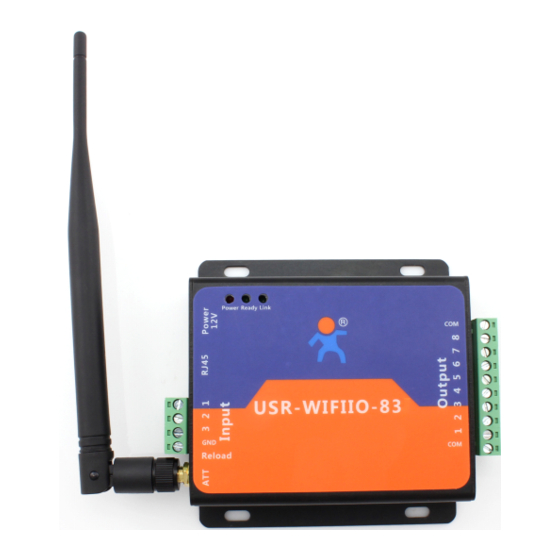

- Page 5 The USR-WIFIIO-83 device whose relays can be switched on or switched off by remote control, is WIFI branch of LonHand series product, and is designed for industrial application. LonHand series control terminals are developed for the application in the field of smart home, Internet of Things, industrial controlling and so on.
- Page 6 USR-WIFIIO-83 features features The USR-WIFIIO-83 device can be connected to the surrounding network by WIFI or by direct cable connection (via Ethernet cable interface RJ45) after you appropriately set up it. Users can control the USR - WIFIIO - 83 for proper operation with the LonHand software in long distance.
- Page 7 Schematic diagram is shown as bellow. Fig.5 Schematic diagram USR-WIFIIO-83 has 8 outputs, the live line or positive terminal of your device connects to one of the 8 outputs whose internal circuit connects to the live line of external voltage source, the null line or ground of your device connects to the null line of external voltage source.
- Page 8 This section tells how to join the device to your local router network. There are two ways to connect to the local router, one way is by WIFI network; another approach is by network cable. If you buy more than one USR-WIFIIO-83, please configure one at a time.
- Page 9 Fig.8 Connect to USR-WIFIIO-83 2. Click on the icon of USR-WIFIIO-83, click “Login Device” in the popup menu. Enter the default user name and password admin of the device, click OK. Fig.9 Login device 3. Enter WEB IO page, click on English button at the bottom of the page. Click on...
- Page 10 Fig.10 WEB IO page 4. Click OK on the popup dialog box. Fig.11 Popup dialog box 5. Search the local wireless router your USR-WIFIIO-83 required to join. Take our company wireless router for example. Click scan button. 10 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 11 Click Save at the bottom of the page. Fig.13 Enter password 7. Click Restart button at the bottom of the page. Close the software after you see rebooting successful. 11 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 12 3.2.2 Cable Cable connection connection If you want connect USR-WIFIIO-83 to your local router by network cable, please set up parameters as bellow. The first four steps are similar to wireless connection. 5. Click on work mode on the left side Fig.15 work mode page...
- Page 13 Click done, click save. Fig.16 select wan mode 7. Click restart. Restart USR-WIFIIO-83. Close the LonHand software. Fig.17 restart After restart you can join USR-WIFIIO-83 to the local network router by network cable. 13 / 28 Jinan USR IOT Technology Limited...
- Page 14 USR-WIFIIO-83 joining. Open LonHand software. If you can’t find device, click on refresh button. Fig.18 set up network Click on the name of USR-WIFIIO-83, enter source control page. Slide up and down you will see 8 outputs and 3 inputs. 14 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 15 , users can lock the state of output. You can’t control the output after you lock the output state. This is very useful for preventing mistake operation. Click the lock button again, the output is unlocked, users can control the output again. 15 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 16 (e.g. at Monday, Thursday). In control column you can select on, off, reverse operation. Click ok after you have set up. There is a task in timer task page after you add one. The timing symbol is blue when 16 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 17 In this dialog you can edit the name of device this output controlling, and add symbol of the device. Table 3 Icon for appliances Lamp Fridge 17 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 18 Click on the back button on the top of the page. Click on the icon of USR-WIFIIO-83 in devices page. Click edit in the pull-down list, pop edit dialog box. Users can...
- Page 19 USR-WIFIIO-83 as shown in fig. 24. Click on the image button , you can find an image from your cell phone represent the USR-WIFIIO-83 device. Click on the camera button , you can take a photo by your cell phone and then select it as representation of the device.
- Page 20 Fig.25 Register an account 2. Confirm that now your cell phone is in the same local area network with USR-WIFIIO-83. That is to say up to now you have not changed your cell phone WLAN just set up in above section.
- Page 21 2. The main interface primarily including Device and User page is shown as below. You can choose EN to English language. 3. Click User column, here you can log in your account. If you have no account, 21 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 22 Account, Password and Retype are required, click Register, it will pop OK. Get back and log in the account you registered just now. 4. Click Device part, you can see all devices in LAN or internet. 22 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 23 Instructions: Instructions: Instructions: USR-WIFIIO-83 is default name, D8-B0-4C-F2-25-D0 is the MAC address. Blue means online, gray means offline; Signal icon means LAN, earth means internet. Click the device Icon, it will show “Open URL”, you will open built-in webpage. This IP address is the one that router assigned to USR-WIFIIO-83.
- Page 24 Start mode: click this to save, next time when you power on relay, it will work in the state that you set. (6) This is used to set up USR-WIFIIO-83, here is the device setting interface: 24 / 28 Jinan USR IOT Technology Limited...
- Page 25 You can also change device Name, and image here, click Change to save settings. The Password is device password, default “admin”, WIFI module will restart after you change password. Get back to Device page, we will see changes. 25 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 26 3) Synchronized to cloud: Synchronize your devices from local to cloud, this is used when you change some setting on local devices, click this, the cloud 26 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 27 Tel: 86-531-55507297, 86-531-88826739 Web: www.usr.so Email: sales@usr.cn, order@usr.cn Appendix Appendix Appendix Appendix C C C C Disclaimer Disclaimer Disclaimer Disclaimer This document provides information about USR-WIFIIO-83, this document does not grant 27 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
- Page 28 Some content change with product update, did not publish V1.2 Some content change with product improvement, did not publish V1.3 Rearrange the instruction，add content about how use it on cell phone, general release. 28 / 28 Jinan USR IOT Technology Limited tec@usr.cn...
