Summary of Contents for JAO TECH Zivo

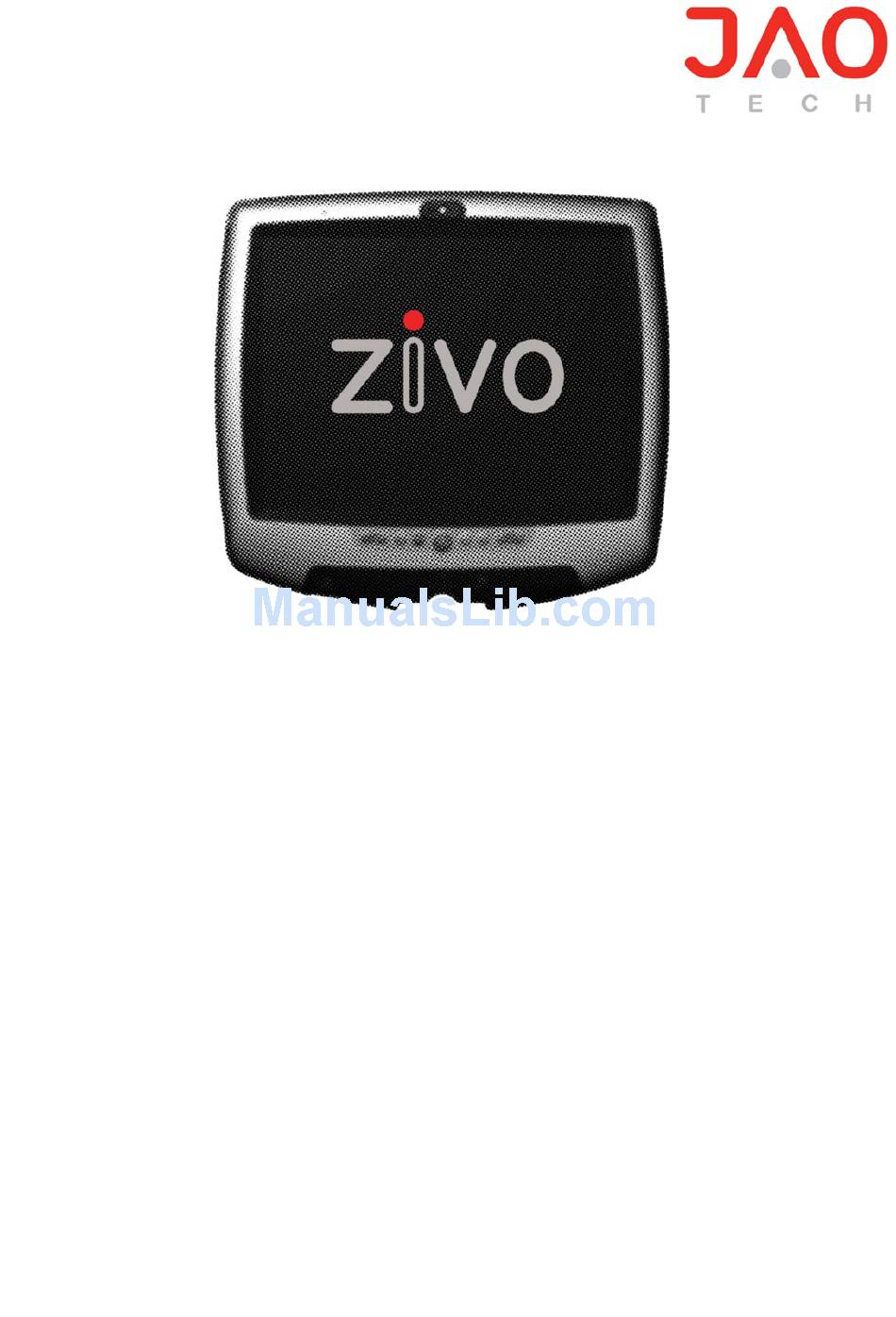

- Page 1 Zivo Smart Terminal User Manual UM.ZV.1012.01 Revision 1 October 09, 2012 JAOtech Ltd...
-
Page 2: Table Of Contents
1.2.3 Camera specifications 1.2.4 Other optional peripherals Cleaning Dimensions Chapter System setup A quick tour of the Zivo Installation procedures 2.2.1 Connecting the power cord 2.2.2 Connecting the keyboard and mouse 2.2.3 Switching on the power Running the BIOS setup program... - Page 3 Smart Terminal Zivo 4.3.1 Installation for Windows 2000 XP Further information Chapter Touch screen interface Introduction 5.1.1 General information 5.1.2 General specifications 5.1.3 Environmental specifications Installation of touch screen drivers 5.2.1 Installation for Windows Further information www.jaotech.com Commercial in Confidence...
- Page 4 Smart Terminal Zivo Appendix Appendix Mother board layout Atom with Intel 945GSE Appendix Jumpers and connectors Jumpers setting Connectors Appendix Hardware installation Overview of hardware installation and upgrading Disassembling the terminal Installing the 2.5" Hard Disk Drive (HDD) Installing the Central Processing Unit (CPU)
-
Page 5: Revisions & Amendment Record
Figure 2.3: Rear view of the Zivo Smart Terminal Oct. 09, 2012 p.20 Figure 2.4: I/O Ports of the Zivo Smart Terminal (up) p.20 Remove Figure 2.4, point 1. Modify point 6. to 8P8C+Fin Service Call Connector Modify Nurse Call Device of 26-Way MDR Connector to Service Call Device p.21... -
Page 6: Introduction
Smart Terminal Zivo Introduction Copyright This document is copyrighted, ©2007. All rights are reserved by JAOtech Ltd. JAOtech Ltd. reserves the right to make changes to its products without prior notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of JAOtech Ltd. -
Page 7: Acknowledgements
RTL is a trademark of Realtek Semiconductor Co., Ltd. • Creative is a trademark of Creative Technology LTD. • All other product names or trademarks are properties of their respective owners. • This manual is for the Zivo Smart Terminal www.jaotech.com Commercial in Confidence UM.ZV.1012.01... -
Page 8: Fcc Interference Statement Class B
Each and every JAOtech product is built to the most exacting specifications to ensure reliable performance in the harsh and demanding conditions typical of industrial environments. Whether your new Zivo Smart Terminal is destined for the laboratory or the hospital ward, you can be assured that your product will provide the reliability and ease of operation for which the name JAOtech has come to be known. -
Page 9: Product Warranty
Smart Terminal Zivo Product warranty JAOtech Ltd. warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorised by JAOtech, or which have been subject to misuse, abuse, accident or improper installation. -
Page 10: Safety Instructions
15. If your computer is losing time or the BIOS configuration resets to default settings, the battery has no power. Caution: Do not replace the battery yourself. Please contact a qualified technician or your supplier of the Zivo Smart Terminal . The Zivo Smart Terminal is provided with a battery-powered real-time clock circuit. - Page 11 Smart Terminal Zivo 16. IMPROPER INSTALLATION OF VESA MOUNTING CAN RESULT IN SERIOUS PERSONAL INJURY! VESA mount installation should be carried out by a professional technician. Please contact the service technician or your reseller if you need this service. 17. CLASSIFICATION: According to UL60950 (Technology Equipment) if JAOtech’s terminals are used in combination...
-
Page 12: Packing List
Smart Terminal Zivo Packing list Before installing your Zivo Smart Terminal , ensure that the following parts have been received in the box: • Zivo Smart Terminal • User manual • PSU & Power cord - USA, European, UK types (where applicable) •... -
Page 13: Introduction
Dimensions 1.1 Introduction The Zivo is a multimedia Intel® Atom processor-based computer that is designed to serve as a Point of Care (POC) and Point of Information terminal (POI) within healthcare applications. It is a PC based system with 15" color TFT LCD display, Gigabit Ethernet, multi-COM port and USB 2.0 interfaces and High Definition Audio codec. -
Page 14: Specifications
Smart Terminal Zivo 1.2 Specifications 1.2.1 General Display screen Type 15" SXGA TFT (1024 x 768 resolution) Colour depth 16.2 M Response time Dot size 0.3 x 0.3 Viewing angle 170/160˚ Hor./Vert. Luminance 300 cd/m² Typ Contrast ratio 1000:1 Typ... - Page 15 Smart Terminal Zivo Peripherals Multifunction connector with USB, serial, audio and power Visual call indication Call indication visible from LED array on front and back of terminal Reset switch Internal push button behind the RAM door Power switch Internal push button behind the RAM door...
-
Page 16: Handset Specifications
Smart Terminal Zivo Peripheral devices Hard drive Up to 160GB HDD Compact flash Slave on secondary IDE port Operating system Primary Linux, Windows Mechanical specifications Plastic materials C6200 PC/ABS: IDES UL94-V0 + Anti bacteria 945A PC: GE UL94-V0 + Anti bacteria... -
Page 17: Other Optional Peripherals
Vernacare wipes 1. Prepare agent per manufacturer’s instructions or hospital protocol. 2. Wipe the Zivo with a clean cloth that has been moistened in the cleaning solution. 3. Wipe thoroughly with a clean cloth. The Zivo Smart Terminal’s surfaces are resistant to the following cleaning materials: •... -
Page 18: Dimensions
Smart Terminal Zivo 1.4 Dimensions Figure 1.1: Dimensions of the Zivo Smart Terminal www.jaotech.com Commercial in Confidence UM.ZV.1012.01... -
Page 19: A Quick Tour Of The Zivo
Figure 2.1: Front View of the Zivo Smart Terminal Membrane which contains functions for Volume Up/Down, Phone, Menu, Power, Information, TV, and Channel Up/Down. When you look at the left side of the Zivo, you will see the Handset fitted to one of the Zivo’s docking ports. www.jaotech.com Commercial in Confidence UM.ZV.1012.01... - Page 20 Figure 2.2: Left side view of the Zivo Smart Terminal On the rear of the Zivo you will find the two removable access doors located left and right of the terminal. The right-hand cover provides access to the system DDR memory and a mini PCIe slot, and the left-hand cover provides access to the HDD as shown in Figure 2.3.
- Page 21 Smart Terminal Zivo There are two I/O areas in the Zivo Smart Terminal ; one is at the back and the other one is at the bottom. Figure 2.4 indicates the various ports of these two areas. Figure 2.4: I/O Ports of the Zivo Smart Terminal Back I/O area 1.
-
Page 22: Installation Procedures
2.2.1 Connecting the power cord Always handle the power cord by holding the plug end only. Follow these steps: 1. Connect the male end of the power supply DIN cable to the DC inlet of the Zivo Smart Terminal . (See Figure 2.5) 2. -
Page 23: Running The Bios Setup Program
Zivo 2.3 Running the BIOS setup program Your Zivo is likely to have been properly set up and configured by your dealer prior to delivery. If you still find it necessary to use the BIOS (Basic Input-Output System) setup program to change system configuration information please contact your JAOtech supplier for support, or email JAOtech at: techsupport@jaotech.com. -
Page 24: Introduction
3.1.2 Display memory Intel DVMT 3.0 Supports up to 224MB shared video memory. 3.1.3 LVDS transmitter The Zivo uses a Chrontel CH7308/7307 for driving its LCD panel. The controller supports 18- bit/24-bit single or dual channel LCD panels. 3.1.4 Display types CRT+LVDS simultaneous display with single, clone or extended display configuration. -
Page 25: Introduction
Before installing the audio driver, please take note of the procedures detailed below. You must know which operating system you are using in your Zivo, and then refer to the corresponding installation flow chart. Just follow the steps in the flow chart. You can quickly and successfully complete the installation, even if you are not familiar with instructions for Windows. -
Page 26: Further Information
3. When the ‘Setup Complete’ message appears click ‘Finish’ to restart your computer. 4.4 Further information For further information about the Audio interface installation in your Zivo including driver updates, troubleshooting guides and FAQs please contact your local JAOtech office or reseller. -
Page 27: Chapter 5 Touch Screen Interface
Installation of Touch Screen Drivers • Further Information 5.1 Introduction 5.1.1 General information The Zivo touch screen incorporates advanced second-generation 5-wire resistive technology which allows 85% light transmission. The resistive touch screen has an antiglare surface and improved scratch-resistant features... -
Page 28: Installation Of Touch Screen Drivers
5.2.1 Installation for Windows XP Click the ‘Start’ button in the task bar, click ‘Run’ and then select the Zivo Touch Screen driver from the driver disk. The Install dialog will appear. Important: It is important that you follow the flow chart instructions and instructions on the screen. -
Page 29: Atom With Intel 945Gse
Smart Terminal Zivo APPENDIX Motherboard layout A.1 Atom with Intel 945GSE www.jaotech.com Commercial in Confidence UM.ZV.1012.01... -
Page 30: Jumpers Setting
Smart Terminal Zivo APPENDIX Jumper Setting and Connectors B.1 Jumper Setting LVDS Voltage Selector (JLVDSVx) Voltage 3.3V (default) AT/ATX Power Mode Selector (JATx) Mode CMOS Clear Jumper (JCMOSx) Mode Protected (default) Clear Handset 2 Mode Selector 1-5, 2-6, 3-7, 4-8... -
Page 31: Connectors
Smart Terminal Zivo B.2 Connectors USB Headers (JUSBx) 5-pin JST PH series connector, 2.0mm pitch. Signal SHIELD SATA Disk Connectors (JSATAx) 1 x 2.5” SATA disk connector with power, 1 x SATA data connector. Compact Flash Socket (JCFx) Ethernet Connector (JLANx) - Page 32 Smart Terminal Zivo LVDS LCD Connector (JLVDSx) 20-pin JAE FI-SE20P-HF connector Signal TX0- TX0+ TX1- TX1+ TX2- TX2+ TXCLK- TXCLK+ TX3- TX3+ LCD Inverter Connector (JINVx) 6-pin JST PH series connector, 2.0mmpitch Signal +12V ENBKL Note: Analog brightness control (VR) ranges between 0V (Max brightness) and 5V (Min brightness).
- Page 33 Smart Terminal Zivo GPIO Connector (JGPIOx) 8-pin Hirose DF11 connector, 2.0mm pitch. Signal Signal GPI4 GPI3 GPI2 GPO2 GPI1 GPO1 DVI Connector (JDVIx) Standard DVI-I connector Remote Control Connector (JMDRx) 26-pin MDR connector with multiple signals Signal Signal USBVCC USBD-...
- Page 34 Smart Terminal Zivo LED Connectors (JLEDx) 2-pin JST PH connector, 2.0mm pitch. Signal Handset Hook Sensor Connectors (JHOOKx) 4-pin JST PH series connector, 2.0mm pitch. Signal ON_HOOK Handset Connectors (JHSx) 4-pin JST PH series connector, 2.0mm pitch. Left Connector Signal...
- Page 35 Smart Terminal Zivo Touch Panel Connector (JTPx) Mini Base/Dip 90D 5-pin 1-side Signal Probe Signal Signal Description UR, UL 5-wire touch panel signal of upper right/left side PROBE 5-wire touch panel signal of centre LR, LL 5-wire touch panel signal of bottom right/left side System Fan and CPU Fan Connectors (JFANx) 3 x 1 wafer, 2.54mm pitch...
- Page 36 Smart Terminal Zivo 1 PCI Express Mini Card Slot (JPCIEx) Internal Microphones Connector (JMIC2_L & JMIC2_R) 2-pin JST PH series connector, 2.0mm pitch. Left Channel Right Channel Signal Signal MIC2_L MIC2_R AGND AGND Internal Stereo Speaker Connectors (JSPK1_L & JSPK1_R) 2-pin JST PH series connector, 2.0mm pitch.
-
Page 37: Overview Of Hardware Installation And Upgrading
C.2 Disassembling the Zivo Smart Terminal The following is the standard procedure for disassembling the Zivo Smart Terminal upgrade your system. All procedures are illustrated in Figure C.1. Figure C.1: Disassembling the plastic rear cover of the Zivo Unscrew the screws that secure the plastic rear covers, and then remove the covers www.jaotech.com... -
Page 38: Installing The 2.5" Hard Disk Drive (Hdd)
Smart Terminal Zivo C.3 Installing the 2.5" Hard Disk Drive (HDD) You can attach one SATA Hard Disk Drive to the Zivo Smart Terminal . The following are instructions for installation: 1. Detach the HDD bracket by unscrewing the 2 M3 screws on the top of the HDD bracket. -
Page 39: Vesa Mounting
1. The Zivo wall bracket is comprised of two parts: one ‘back bracket’, and one ‘mounting bracket’. (See Figure D.1) 2. First attach the back bracket to the VESA mount at the back of the Zivo, securing it in place with the four M6 Phillips-head screws provided. - Page 40 Smart Terminal Zivo Figure D.2: VESA mounting dimension diagram (75 x 75 mm) www.jaotech.com Commercial in Confidence UM.ZV.1012.01...
-
Page 41: Installing The Smart Terminal To The Desk Stand
Desk Stand installation should be carried out by a professional technician. Please contact the service technician or your JAOtech reseller if you require this service. Follow the instructions below to mount the Zivo Smart Terminal to the ARCOS 5100 Desk Stand: Remove the hinge cover from Stand Arm by unscrewing the 2 M3 screws. - Page 42 Smart Terminal Zivo Warning: To avoid injury be sure to secure all screws of the Desk Stand tightly. Figure E.1: ARCOS 5100 Desk Stand www.jaotech.com Commercial in Confidence UM.ZV.1012.01...
- Page 43 Smart Terminal Zivo Figure E.2: ARCOS 5100 Main Dimensions www.jaotech.com Commercial in Confidence UM.ZV.1012.01...
- Page 44 Smart Terminal Zivo Further information If you require any more information regarding this product or any others in the JAOtech range then please visit our website at www.jaotech.com, email us at sales@jaotech.com, or contact our UK head office using the numbers below:...
