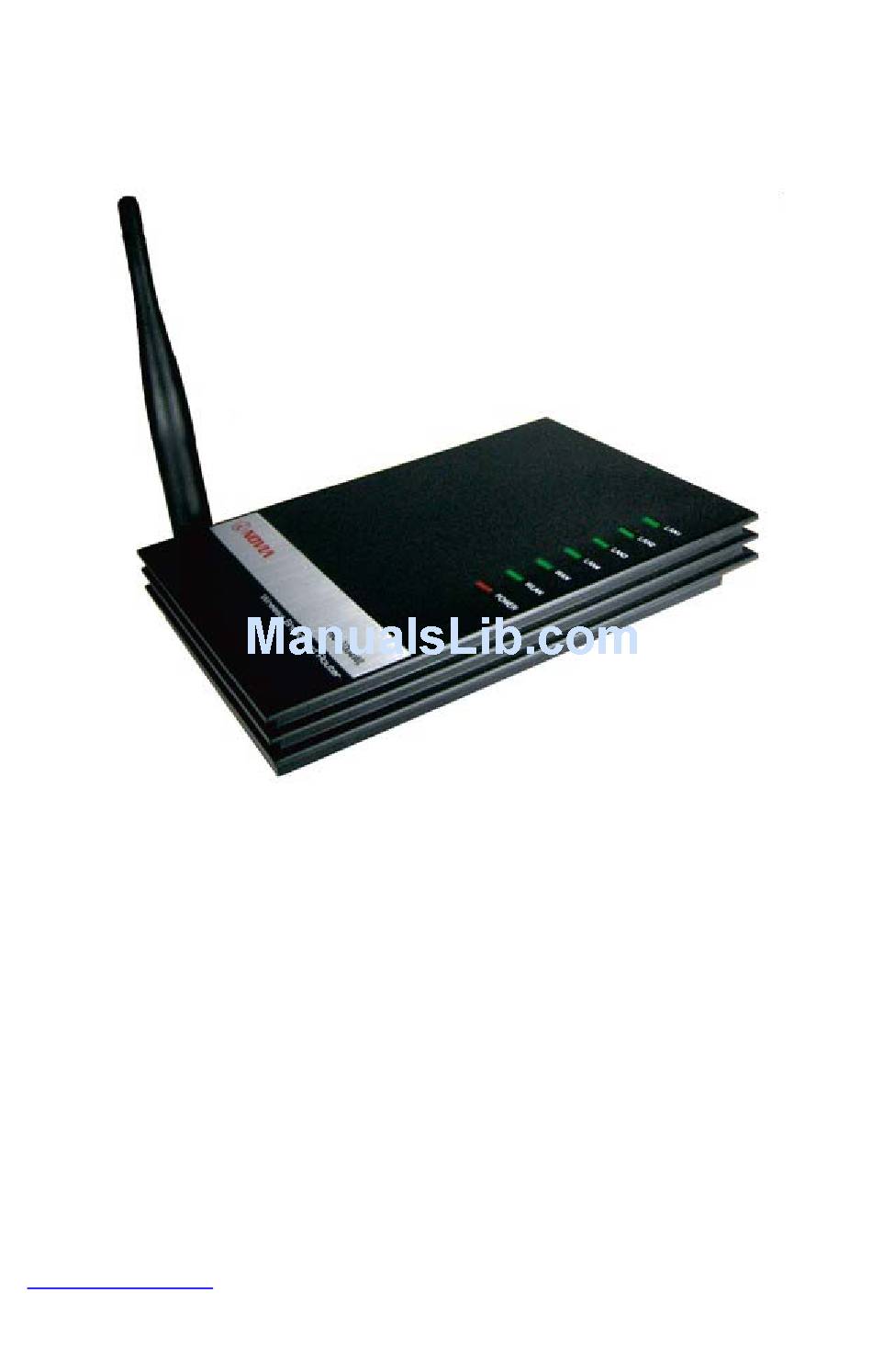

INOVIA RNC-1004WL User Manual

54m wireless router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A/S : 82-2-6309-1330
www.rncinnotek.co.kr (English)
www.inovia.co.kr
R
N
C
R
N
C
5
4
M
W
i
r
5
4
M
W
i
U
s
e
r
U
s
e
r
(Korean)
-
1
0
0
4
W
L
-
1
0
0
4
W
L
e
l
e
s
s
R
o
r
e
l
e
s
s
R
o
'
s
M
a
n
u
a
l
'
s
M
a
n
u
a
l
Ver1.1
u
t
e
r
u
t
e
r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RNC-1004WL and is the answer not in the manual?

Questions and answers

Summary of Contents for INOVIA RNC-1004WL

  • Page 1 ’ ’ Ver1.1 A/S : 82-2-6309-1330 www.rncinnotek.co.kr (English) www.inovia.co.kr (Korean)
  • Page 2 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr Trademarks and Copyright Statement All trademarks belong to their respective proprietors. Contents are subject to change without notice. This document contains of proprietary technical information that is the property of our company. And no part of this documentation may be reproduced, stored in...

  • Page 3: Table Of Contents

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr Contents Chapter One: Introduction……………………………………………… 1.1 About RNC-1004WL 54M Wireless Router……………………… 4 1.1.1 Ethernet / Fast Ethernet…………………………………… 1.1.2 Wireless LAN……………………………………………… 1.1.3 Mobility ……………………………………………………… 1.2 Package contents……………………………………………… 1.3 Features…………………………………………………………… Chapter Two Hardware Installation…………………………………… 2.1 Panel Layout………………………………………………………...
  • Page 4 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.7 System Services………………………………………………… 4.7.1 DMZ…………………………………………………………… 4.7.2 Port Forwarding…………………………………………… 4.7.3 Web Remote Control……………………………………… 4.7.4 Dynamic DNS Setting……………………………………… 4.8 QoS………………………………………………………………… 4.8.1 Wan Speed Setting……………………………………… 4.8.2 IP QoS……………………………………………………… 4.9 Management……………………………………………………… 4.9.1 Operation mode…………………………………………… 4.9.2 Time Zone Setting…………………………………………...

  • Page 5: Chapter One: Introduction

    Broadband Router. This user guide will assist you with the installation procedure. 1.1 About RNC-1004WL 54M Wireless Router RNC-1004WL 54M Wireless Router is a hybrid design product which combines Ethernet technology and wireless access into a single stand- alone unit. The device allows you take advantages of both mobility and fast connection.

  • Page 6: Features

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr * 54M Wireless Broadband Router User’s Manual If any of the listed contents are damaged or missing, please contact the retailer from whom you purchased RNC-1004WL 54M Wireless Router for assistance. 1.3 Features RNC-1004WL 54M Wireless Router has the following features that make it excellent for network connections.

  • Page 7: The Front Panel

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr The front panel of RNC-1004WL 54M Wireless Router consists of several LED indicators, which is designed to indicate connections. Viewed from left to right. The table describes the LEDs on the front panel of the router.

  • Page 8: System Requirements

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr the local PCs * AC power socket: only use the power adapter supplied with the 54Mbps Wireless Router, use of a different adapter may result in product damage. * Factory Default Reset button...

  • Page 9: Chapter Three: Quick Installation Guide

    After connecting RNC-1004WL 54M Wireless Router into your network, you should configure it. This chapter describes how to configure the basic functions of your RNC-1004WL 54M Wireless Router. These procedures only take you a few minutes. You can access the Internet via the router immediately after successfully configured.

  • Page 10: Quick Setup Wizard

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr ping 192.168.1.1 Open a command prompt, and type , then press Enter. If the result displayed is similar to that shown in the top of figure, the connection between your PC and the router has been established.
  • Page 11 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr with a web browser. http://192.168.1.1 Connect to the router by typing in the address field of web browser. After a moment, a login window will appear similar to that shown in Figure. Enter [admin] for the both User Name and Password, both in lower case letters.
  • Page 12 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr The router supports three modes: Gateway, Bridge, and Wireless ISP. You can setup different modes to LAN and WLAN interface for NAT and bridging function. Click [Next], Time Zone Setting will appear. You can select the...
  • Page 13 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr Click [Next], LAN Interface setup will appear. In this page, you can set IP address, Subnet Mask. IP Address - Enter the IP address of your router in dotted- decimal notation (factory default: 192.168.1.1).
  • Page 14 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr User Name and Password - Enter the User Name and Password provided by your ISP. Services name: Default is blank.
  • Page 15 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr If you choose " DHCP Client", the router will automatically receive the IP parameters from your ISP without needing to enter any parameters. If you Choose "PPTP", the Static IP settings page will appear, shown in the figure.
  • Page 16 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr Note: The IP parameters should have been provided by your ISP. IP Address - This is the WAN IP address as seen by external users on the Internet (including your ISP). Enter the IP address into the field.

  • Page 17: Chapter Four: Configuration Guide

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr SSID - Enter a value of up to 32 characters. The same name (SSID) must be signed to all wireless devices in your network. The default SSID is router, but it is recommended strongly that you change your networks name (SSID) to a different value.

  • Page 18: Status Show

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.2 Status Show 4.2.1 Status This page shows the current status and some basic settings of the device. you can check system Information, LAN Interface Information, WAN Interface Information. 4.2.2 Statistics This page shows the packet counters for transmission and reception regarding to wireless and Ethernet networks.

  • Page 19: Wireless Setting

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.3 Wireless Setting It contains Wireless Basic settings, Advance Settings, security, Access Control, WDS Settings, Site Survey. 4.3.1 Wireless Basic settings Band: Indicates the current mode (2.4GHz(G)-54Mbps (802.11g), 2.4GHz(B)11Mbps (802.11b)). 2.4GHz(G+B), which allows both 802.11g and 802.11b wireless stations to connect to the router.

  • Page 20: Wireless Advanced Settings

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr access point. Associated Client: Click Show Active Client, you can check the list of wireless clients. Enable MAC Clone: It only adapts to wireless client. 4.3.2 Wireless Advanced Settings These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN.

  • Page 21: Wireless Access Control

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr WPA Authentication Mode: Keys can be managed using two different mechanisms. WPA can either use an external authentication server (e.g., RADIUS) and EAP just like IEEE 802.1X is using or pre- shared keys without need for additional servers. Wi-Fi calls these "WPA-Enterprise"...

  • Page 22: Wireless Site Survey

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.3.6 Wireless Site Survey This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.

  • Page 23: Wan Advanced

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.4.2 WAN Advanced Enable UPnP: The Universal Plug and Play (UPnP) feature allows the devices, such as Internet computers, to access the local host resources or devices as needed. UPnP devices can be automatically discovered by the UPnP service application on the LAN.

  • Page 24: Network Security

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr DHCP: You can select None, Client, Server. The router is set up by default as a DHCP (Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PCs that are connected to the router on the LAN.

  • Page 25: Ip Filtering

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.6.2 IP Filtering Entries in this table are used to restrict certain types of data packets from your local network to Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network.

  • Page 26: Denial Of Service

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr internet. Block those URLs which contain keywords listed below. Enable URL : select it, you can edit URL, e.g.:xxx.com Click [Apply] Changes. 4.6.5 Denial of Service A "denial-of-service" (DoS) attack is characterized by an explicit attempt by hackers to prevent legitimate users of a service from using that service.

  • Page 27: Port Forwarding

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr the Internet for a special-purpose service such as Internet gaming or videoconferencing. DMZ host forwards all the ports at the same time. Any PC whose port is being forwarded must have its DHCP...

  • Page 28: Web Remote Control

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.7.3 Web Remote Control 4.7.4 Dynamic DNS Setting Dynamic DNS is a service, that provides you with a valid, unchanging, internet domain name (an URL) to go with that (possibly everchanging) IP-address. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP Address.

  • Page 29: Qos

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.8 QoS IP QoS enables user to control upload and downloading speed between the maximum and minimum on PC with specified IP address. 4.8.1 Wan Speed Setting 4.8.2 IP QoS 4.9 Management...

  • Page 30: Time Zone Setting

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr Gateway：(default) In this mode, the device is supposed to connect to internet via ADSL/Cable Modem. The NAT is enabled and PCs in LAN ports share the same IP to ISP through WAN port.

  • Page 31: Upgrade Firmware

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.9.3 Upgrade Firmware This page allows you upgrade the Access Point firmware to new version. Please note, do not power off the device during the upload because it may crash the system 4.9.4 Save/Reload settings...

  • Page 32: Logout

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4.10 Logout This page is used to logout.

  • Page 33: Appendix 1: Faq

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr Appendix 1: FAQ 1. How do I configure the router to access Internet by ADSL users? 1) First, configure the ADSL modem configured in RFC1483 bridge model. 2) Connect the Ethernet cable from your ADSL modem to the WAN port on the router.
  • Page 34 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr 4) How to enable DMZ Host: Login to the router, click the “firewall settings” menu on the left of your browser, and click "DMZ" submenu. On the "DMZ" page, click “Enable DMZ” radio and type your IP address into the “DMZ Host IP Address”...

  • Page 35: Appendix 2: Specifications

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr Appendix 2: Specifications General Standards IEEE 802.3, 802.3u, 802.11b, 802.11g Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP One 10/100M Auto-Negotiation WAN RJ45 port Ports Four 10/100M Auto-Negotiation LAN RJ45 ports Supporting Auto MDI/MDIX 10BASE-T: UTP category 3, 4, 5 cable (max 100m) EIA/TIA-568 100Ω...

  • Page 36: Appendix 3: Glossary

    User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr Appendix 3: Glossary 802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security.
  • Page 37 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr DMZ(Demilitarized Zone)-A Demilitarized Zone allows one local host to be exposed to Internet for a special-purpose service such as Internet gaming or videoconferencing. DNS (Domain Name Server) - An Internet Service that translates the names of websites into IP addresses.
  • Page 38 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr host as the Internet protocol thinks of it), a correspondence table relates your IP address to your computer's physical (MAC) address on the LAN. MAC Address Clone - MAC address Clone is designed for your special application that request the clients to register to a server machine with one identified MAC address.
  • Page 39 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr it's not a bad idea to run that way to enhance network security. However it's no replacement for WEP, MAC filtering or other protections. TKIP (Temporal Key Integrity Protocol) - The Temporal Key Integrity Protocol, pronounced tee-kip, is part of the IEEE 802.11 i encryption...
  • Page 40 User’s Manual - RNC-1004WL Wireless Router - www.inovia.co.kr WPA (Wi-Fi Protected Access) - Wi-Fi’s original security mechanism, Wired Equivalent Privacy (WEP), has been viewed as insufficient for securing confidential business communications. A longer-term solution, the IEEE 802.11i standard, is under development. However, since the IEEE 802.11i standard is not expected to be published until the end of 2003,...
