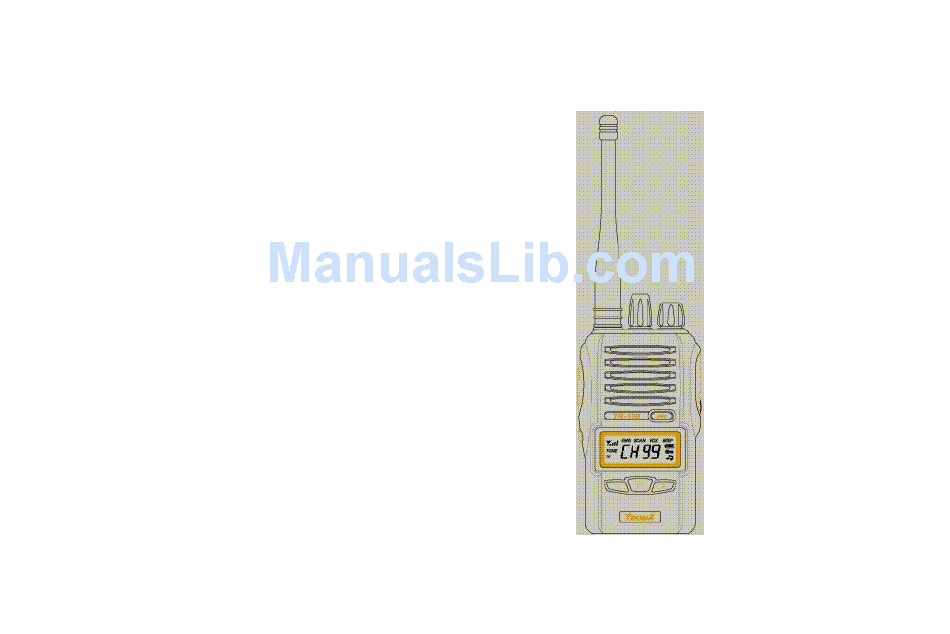

  • Page 1 TR-450H USER MANUAL TR-450H TEKMAX TELCOM CO., LTD.
  • Page 2 Thank you for choosing Tekmax Telecom for your Safety Information professional portable radio applications. This transceiver is convenient for you to use and designed to maximize its 1) Warning efficiency for everyone. o Do not hold the radio in such a manner that the antenna is...

  • Page 3: Table Of Contents

    Tekmax Telecom approved Dealer. SPECIFICATIONS Incorrect assembly, modification or repair may cause irreparable damage to your unit and will invalidate WARRANTY warranty. DECLARATION OF CONFORMITY For service or repair always return your radio to an authorized Tekmax Telecom Dealer.

  • Page 4: General Features

    1. GENERAL FEATURES 1. Usage of the equipment This FM handheld radio transceiver is designed to communicate between users through RF carrier by pressing 1) Ultra compact and light the PTT button to talk and releasing the PTT button to receive a voice.
  • Page 5 This radio complies with FCC RF exposure limits for occupational use only. 3) CE Regulations Hereby, TEKMAX TELECOM, declares that this equipment complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment is marked with the symbol and can be used throughout the European community.

  • Page 6: Package

    2. PACKAGE o Preparation before use Unpack the transceiver carefully. We recommend you to Installing Antenna check the following items in the table before discarding the Screw the antenna into the connector clockwise until packing materials. In case of absence or damage of items secured, do not over tighten.

  • Page 7: Controls And Operating Basics

    3. CONTROLS & OPERATING BASICS o Controls & Description 1)Power/Volume 13) Hand Strap Hole Switch Channel Emergency 14) Belt Clip Switch Button Lock-Unlock Antenna Connector 15) Battery Lock Knob 4) LED Lamp External EAR/MIC/PC- 9) PTT button Programming Monitor button 7) MIC Hole <...
  • Page 8 1) Power/Volume Switch : Turn it clockwise to switch ON 10) Monitor button : Press this button to remove squelch or the transceiver and rotate it to adjust the volume. tone squelch. To switch OFF the transceiver, turn it counter-clockwise 11) ¡...
  • Page 9 LCD display & Icon Operating Basics 1. Power On/Off 1) Turn the Power switch clockwise to turn the radio power ON and turn the switch counter clockwise to turn the radio power OFF. Display Details 2) If you turn on the radio power, all the icons will be Indicates the signal strength while receiving / displayed on the LCD with backlight in orange with transmitting...
  • Page 10 receiving mode automatically. At this time, release the PTT 6. Selective Call mode button and then press it again for re-transmitting. You can send a call individually to the registered IDs programmed by PC. 3. Receiving 1) Press ¡F¡ button for more than 3 seconds to enter 1) Select the desired channel to receive by Channel Switch.
  • Page 11 MENU SETTINGS 1. VOX Press ¡F¡ button to enter menu setting mode, then you can Internal Voice Operated Transmit allows you to talk without set the following functions. If you do not select any menu for pressing the PTT button. Voice transmission automatically over 15 seconds, it will turn back to the stand by mode for activates by your voice when VOX is on.
  • Page 12 2. BEEP melody interfering with other parties who may be using the same You can select the levels of beep tone being activated when channel you selected. you press a button. 1) Press ¡F¡ button to find bLON/OFF icon. BEEP ON 2) Select ON/Off using Channel Switch.
  • Page 13 Additional Functions 4. CTCSS / DCS TONE Frequency Table o CTCSS Table 1. Emergency Call Frequency Frequency Frequency When you are placed under an emergency situation, press the Emergency button(Orange button on the top) over 1 103.5 162.2 second. 67.0 107.2 167.9 2.

  • Page 14: Specifications

    o DCS Table 4. Specifications Code Code Code Code Model TR-450 GENERAL 400~430(L) Frequency Range 440~470(H) Number of Channels 128 CH Temperature Range -20 ~ +60 Operation Voltage 7.4V DC Battery life 8 hours Size 59mmx102mmx32mm (Including battery) Weight 250 g (w/ Battery, Antenna, Belt clip) Transmitter Channel Bandwidth 12.5KHz / 25KHz...

  • Page 15: Warranty
