Summary of Contents for MEMMINGER-IRO MLT WESCO
- Page 1 Betriebsanleitung Operating Instructions Instructions de service Instrucciones de uso Istruzioni per l’uso Kullanma Kýlavuzu Instruções de utilização MLT WESCO 操作手冊 042.920.000 13.11.07...
-
Page 2: Table Of Contents
Preface / Index Preface We are pleased that you selected a MEMMINGER-IRO product. The more familiar you make yourself with this product, the better the results that you achieve will be. We therefore strongly recommend the following: Please read these operating instructions carefully before putting the device into operation. It contains important infor- mation and notes that must be observed when using the device. -
Page 3: Safety Notes
(machine or earth contact of a plug, etc.), must be taken prior to opening the device. All contained components may only be replaced by original MEMMINGER-IRO spare parts. NOTE! Before using the MLT WESCO for the first time, or if it hasn't been used for a while, the unit has to be charged. -
Page 4: Accessories Supplied

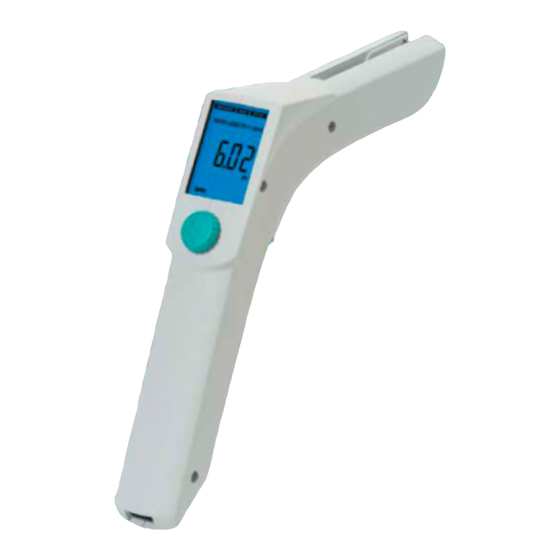

Function The device is stand alone and transportable. The MLT WESCO yarn meter is a stand alone, electronic All required accessories are included in the carry hand-held measuring device for the measurement and case. -
Page 5: Unit Components
Housing Yarn engagement swivel arm Display Rotary knob Swivel arm release handle Locking knob The MLT WESCO offers four selectable MEASURING MODES: MACHINE SPEED YARN LENGTH YARN TENSION YARN SPEED The YARN LENGTH mode can be set between: 1 to 100 machine revolutions... -
Page 6: Settings
Confirm your selection by a short press of the rotary knob. Switching the MLT WESCO on Switch the MLT WESCO on by a short press of the rotary knob (4). The previously set measuring mode, e.g. "YARN LENGTH", is shown on the display. -
Page 7: Mounting
NOTE! The maximum clearance between the magnet and the revolution sensor must not exceed 5 max. 5 mm Connecting the MLT WESCO to the revolution sensor Plug the revolution sensor (4) into the socket of the MLT WESCO. NOTE! Press the release knob on the bottom when unplugging the revolution sensor. -
Page 8: Operation
The measured value in units of the preset system of measurement (e.g. m or inch per revolution) is shown on the display. NOTE! During the measuring process, the MLT WESCO must be held still and straight. ATTENTION! The measuring process is stopped as soon as the swivel arm release handle is released or no longer pressed. -
Page 9: Measuring The Machine Speed
Operation Measuring the machine speed Connect the MLT WESCO to the revolution sensor. Apply a short press to the rotary knob to access the "selection menu": MACHINE SPEED YARN LENGTH YARN TENSION YARN SPEED Turn the rotary knob to the right or left until "MACHINE SPEED"... -
Page 10: Measuring The Yarn Length
Operation Measuring the yarn length Connecting the MLT WESCO to the revolution sen- sor. Apply a short press to the rotary knob to access the "selection menu": MACHINE SPEED YARN LENGTH YARN TENSION YARN SPEED In the "selection menu", turn the rotary knob to select "YARN LENGTH"... -
Page 11: Selecting The Yarn Tension Measuring Modes
Operation Selecting the Yarn Tension measu- ring modes Apply a short press to the rotary knob to access the "selection menu": MACHINE SPEED YARN LENGTH YARN TENSION YARN SPEED In the "selection menu", turn the rotary knob to select "YARN TENSION" on the display. Apply a short press to the rotary knob. -
Page 12: Measuring The Yarn Tension
Operation Measuring the yarn tension Catch the yarn with the help of the swivel arm. Press the swivel arm release handle and keep it pressed. The measurement is started. Furthermore, the display shows dots running from the left to the right during the measuring process until the yarn tension is displayed. -
Page 13: Measuring The Yarn Speed
Operation Measuring the yarn speed Apply a short press to the rotary knob to access the "selection menu": MACHINE SPEED YARN LENGTH YARN TENSION YARN SPEED In the "selection menu", turn the rotary knob to select "YARN SPEED" on the display. "YARN SPEED"... -
Page 14: Calibration
Place the upper loop over the roller of the swivel arm. Trigger the swivel arm release handle and keep it pressed. If the MLT WESCO does not show 10.0 cN the value has to be corrected by turning the rotary knob. NOTE! The weight is not allowed to swing during calibration. -
Page 15: Maintenance
ATTENTION! Change of batteries only while MLT WESCO is off. NOTE! Before using the MLT WESCO for the first time, or if it hasn't been used for a while, the unit has to be charged. -
Page 16: Replacing The Batteries
The swivel arm release handle (5) is hinged down, to provide access to the battery compartment. The batteries can now be removed and replaced. Inserting the batteries When inserting the batteries into the MLT WESCO, the correct polarity must be observed. -
Page 17: Dimension Drawing
Dimension Drawing / Technical Data Technical Data Power supply: Rechargeable nickel-metal-hydride battery, 1.2 V, type Mignon AA or 2 dry batteries, type Mignon 1.5 V Battery charging unit: 100 to 240 V AC, 47-63 Hz,output 5 V, 2 A DC Digital LCD display: 1 to 9999 meters or inches Maximum yarn speed:... -
Page 18: Declaration Of Conformity
The manufacturer: MEMMINGER-IRO GmbH Jakob-Mutz-Straße 7 D-72280 Dornstetten, Germany hereby certifies that the following product: MLT WESCO conforms to the requirements of the above named directives. The following harmonised standards were used: EN ISO 12100 Safety of machinery EN 61000-4-2...
