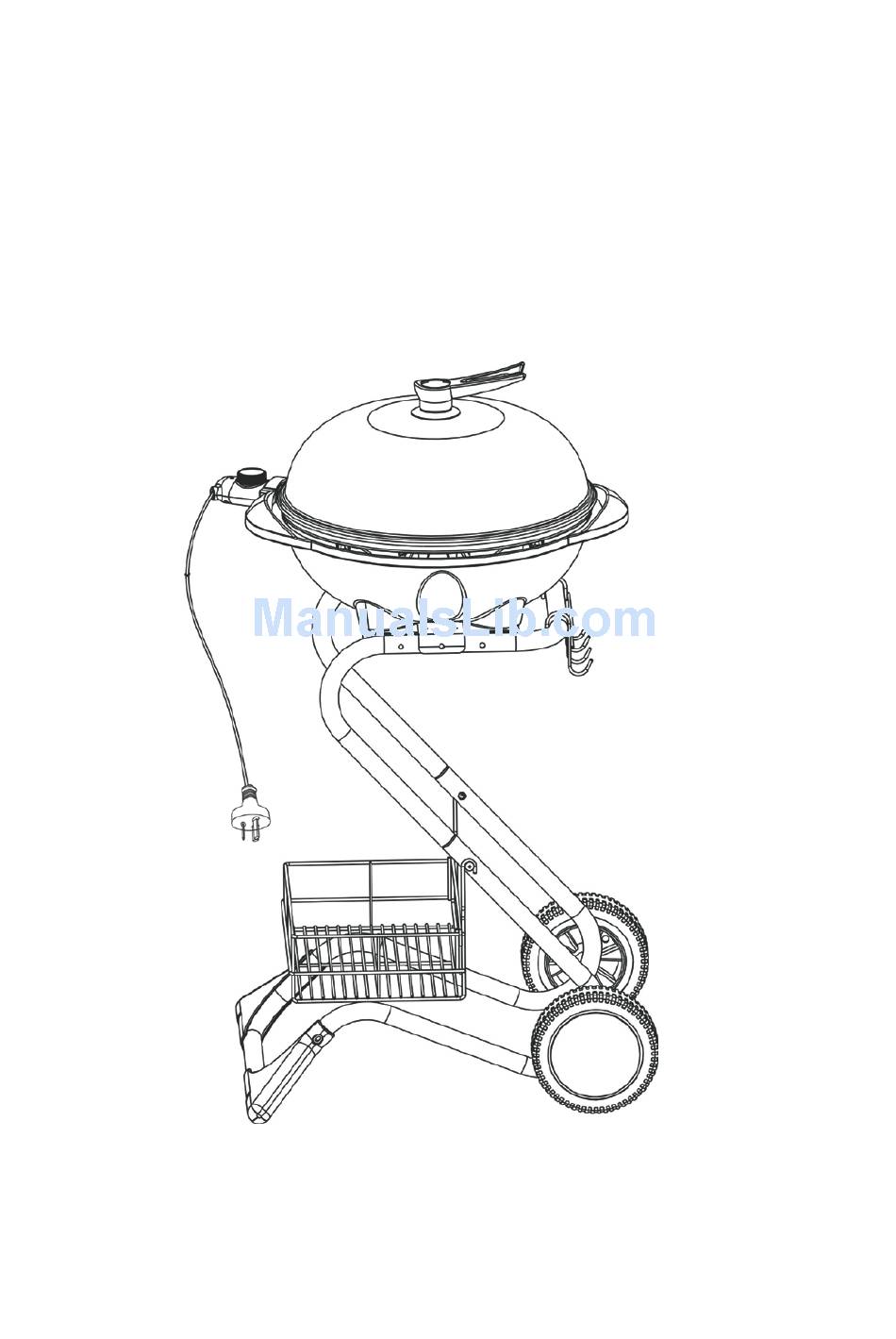

INSTRUCTION MANUAL
Bar-B-Chef Electric BBQ
Code No: BBQE
Model No:KYS-367S
Read these instructions thoroughly before first use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KYS-367S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bar-B-Chef KYS-367S

  • Page 1 INSTRUCTION MANUAL Bar-B-Chef Electric BBQ Code No: BBQE Model No:KYS-367S Read these instructions thoroughly before first use...
  • Page 2: Before Use

    Before use Please read these instructions carefully. They will give you important advice for the use, security and maintenance of this appliance. Keep these instructions and, should the situation arise, pass them on to other users. The appliance must only be used for the intended purpose according to these instructions. Observe any local regulations.
  • Page 3  Only use extension leads after having made sure that their condition is faultless and use an earthed cable with a minimum capacity of 10A.  Positon the power cord and cable so that unintentional touching or catching is impossible. ...
  • Page 4: Electric Diagram

    considerable danger to the user.  If the power cord is damaged, it must be replaced only by the manufacturer, their after-sales service department or a similarly qualified person in order to avoid risks.   No war r anty for any possible damage can be accepted if the appliance is used for improper pur pose, wrongly oper ated or unprofessionally repaired.
  • Page 5 Description 1 Roasting hood 2 Hood handle 3 Hotplate 4 Grease cup 5 Base 6 Stand tube 7 Upper tube 8 Tool holder 9 Base tube 10 Condiment basket 11 Base handle 12 Opening for appliance socket 13 Detachable temperature Regulator with cable 14 Temperature indicator lamp 15 Power inlet socket...
  • Page 6: Installation Instructions

     Installation instructions A. Fit the feet (16) to the base tube ( 9 ).Fix in place with two M4*6 screws(20). Left and right side are the same B.Put the axle (17) through the two holes In the base tube as shown. Attach the wheels (18) to the axle .
  • Page 7 E. Install the bracket (23) onto the upper tube (7) with M 6 × 30 screws(24)and nuts (24). Install the stand tube (6) onto the brackets(23). Note the slot on the stand tube which is going to fix the bbq base. Fix the stand tube in place with two screws (25)and nuts.
  • Page 8 I.Place the hotplate (3) in the bbq (5). Insert the power inlet socket (15) of the hotplate into the opening for the powercord with the hotplate tilted upwards ,Then lower the hotplate onto bbq base. Before taking the hotplate out , make sure it is cool and disconnected from the power.
  • Page 9: Tips For Grilling

     Before using the appliance for the first time  Remove all the packaging materials and wash the hotplate (3), grease cup (4) and roasting hood (1) thoroughly Impor tant: Dry all the different parts thoroughly. This applies especially to the power inlet socket (15) .Never immerse the power cord with regulator (13) in water.
  • Page 10  Never cook meat for too long. Even pork is better if it is served when it is still a little pink and juicy.   If cooked food sticks to the hotplate, rub the plate with a piece of kitchen paper soaked in oil from time to time.
