EN
ASSEMBLY, USE
AND INSTRUCTION MANUAL

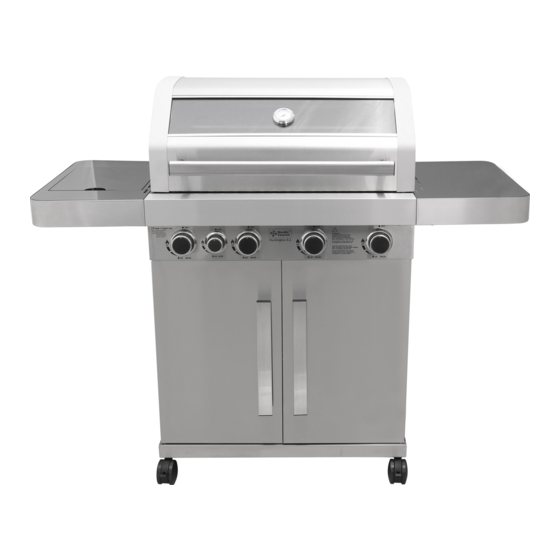

Huntington
High class
4+1
GG501715
!
READ THE OPERATING INSTRUCTIONS
BEFORE USING THE APPLIANCE.
FOR OUTDOOR USE ONLY.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GG501715 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Huntington GG501715

  • Page 1 ASSEMBLY, USE AND INSTRUCTION MANUAL Huntington High class GG501715 READ THE OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE. FOR OUTDOOR USE ONLY.
  • Page 2: Table Of Contents

    Contents Warnings..............3 Technical data ............4 Gas category ...............4 Explotion drawing ............5 Parts list ..............6 Hardware ..............7 Assembly instructions ...........8 Gas leak test ............20 Connecting gas ............21 Lighting instructions ...........22 Before using the grill........... 24 Warnings ..............25 Maintenance .............26 Cleaning ..............26 Troubleshooting ............27...
  • Page 3: Warnings

    WARNINGS Failure to follow the instructions provided can imply a risk of serious injury to personnel and fixed installations. Some grill parts can be sharp, we recommend wearing gloves when assembling and lifting. Sharp edges can cause injury. The grill is intended for outdoor use only in well-ventilated areas. Never grill in enclosed spaces or under a roof, due to the danger of the lack of oxygen.
  • Page 4: Technical Data

    Technical data — Huntington 4+1 Total effect: 17 kW (main burner heat input 14 kW (1020 g/h, side burner heat input: 3 kW (218g/h) Total gas consumption: 1238 g/h. Hose and regulator (not included): Must be approved according to EN standard.
  • Page 5: Explotion Drawing

    Exploded drawing...
  • Page 6: Parts List

    Parts list Appellation Lid handle Thermometer Warming rack Cast iron grids Big heat distribution panel Fire box assembly Main burner tube assembly Right side table Side burner layer Support bar Control panel assembly Control panel ornament Main burner control knob Grease tray Grease cup assembly Cart front beam...
  • Page 7: Hardware

    Hardware The following screws and nuts are supplied with the grill and must be fitted. TOOLS FOR ASSEMBLING (NOT INCLUDED) Ruler Medium size flat blade or Adjustable spanner or Philips/cross-point screwdriver metric spanner set WARNING! Exercise caution when using electric tools – their strength can damage the screws.
  • Page 8: Assembly Instructions

    Assembly instructions Please follow these instructions step by step. We recommend two people to assemble the grill to avoid heavy lifting.
  • Page 9  ...
  • Page 19: Before Using The Grill

    ASSEMBLY IS NOW COMPLETE. ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE GRILL. READ CAREFULLY CHAPTER ON LEAK TESTINING.
  • Page 20: Gas Leak Test

    IMPORTANT! GAS LEAK TEST ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE GRILL. Leak test annually, and whenever the gas bottle is removed or replaced. Always perform a leak test in a well-ventilated area. Make a mixed solution (½...
  • Page 21: Connecting The Gas

    Connecting the gas ALWAYS perform a gas leak test before using the grill. Hose Gas bottle Check the gas hose regularly Connect the gas hose to the gas   for cracks, damage and de- rail inlet on the left hand side of the cay.
  • Page 22: Lighting Instructions

    Lighting instructions Huntington 4+1 The lid must be open when lighting the burner. Do not MANUAL IGNITION stand with your face directly over the gas grill when MANUELL- If the grill will not light using the lighting it. Your gas grill will have following method of...
  • Page 23 IGNITION OF SIDE BURNER: To get the maximum yield with the minimum Flames should be blue consumption of gas it is handy to keep the following and stable. If the flames are points in mind: large and yellow, flaring or Once the burner has been alighted, adjust the flame according to your needs, from “Maximum”...
  • Page 24: Before Using The Grill

    Before using the grill LOCATION Grilling tips  A CLEAN GRILL WORKS BETTER, causes less smoke  Ensure that the grill is and prevents fat catching fire. Burn off the grill after placed at least 150cm use by opening the lid and burning all the burners at in all directions from house walls, trees, plants and full power for 10 minutes.
  • Page 25: Warnings

    WARNING! Always keep an eye on the grill when in use. Never allow children or others who Disconnect the gas bottle when the require supervision near the grill when in grill is in use or before moving it. use. If storing the grill in a garage or This grill is only intended for outdoor basement below ground level, do not store use and must not be used under a roof.
  • Page 26: Maintenance

    Maintenance and cleaning MAINTENANCE CLEANING  Check that the burners are  Use clean water only. A mild washing up burning correctly regularly. liquid can be added for general cleaning. Do not use flammable cleaning agents.  Remove the grill grate and flame guards.
  • Page 27: Troubleshooting

    Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Empty gas bottle Replace gas bottle Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose Burner will not light when using the ignition knob Electrode is broken or dirty Clean the electrode Ignition knob is broken...
  • Page 28: Consumer Contact

    Spare parts, consumer contact and warranty claims. This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help.
