Summary of Contents for ETE ELECTRONICS T-960CL

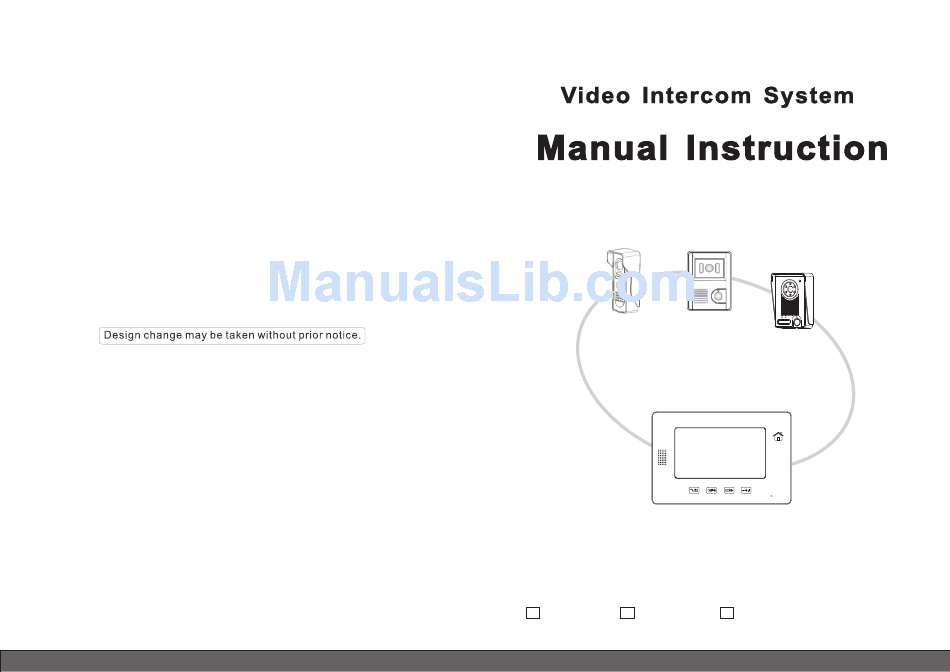

  • Page 1 T-03C T-01C T-06C Video door phone Video door phone T-960CL T-01C T-03C T-06C...
  • Page 2 I.Introduction Thanks for purchasing video door phone intercom system, This series is the latest design of our company with multi-function and ultra-thin wall- mount installation.the product is adopting the principle of closed-circuit monitoring, outside photography, indoor display, two-way intercom, video, door remote unlocking and supervise outdoor situation anytime .

  • Page 3: Structure Description

    1.indoor monitor 2 outdoor camera Video door phone Video door phone T-960CL T-01C T-03C T-06C 6 instruction 3 10m cable 4 bracket 5 fitting screws 7 DC15V power manual and adapter warranty card 4-wire socket 4-wire socket T-03C T-01C T-06C...

  • Page 4: Function Instruction

    IV.Function instruction 3.Indoor unit T-960CL Button instruction while the system is under standby state Front view 1.When the system under standby state, the call button, camera Image display area button, monitor button ,unlock button of the bell are out of use .Only after press the call button enter into bell stare ,above four buttons can work.
  • Page 5 C.Monitor function b. Brightness At main interface,press call botton twice then enter into monitor state . Can adjust the brightness of the screen at this menu. owner can supervise outdoor situation through outdoor camera now .press intercom button if want to talk with outdoor visitor,press the call botton again when conversation ending or LCD screen will close automatically and return to standby state after 60 seconds.

  • Page 6: Installation Instruction

    VI.Installation instruction Photo Video g.tone There are 16 ring tos for option ,press menu button to choose, then press exit. tone tone tone tone tone tone tone tone tone tone tone tone tone tone tone tone 2 .Visitor recording Can set up picture and video at this menu. Video Picture a.Picture...

  • Page 8: Wiring Diagram

    VIII.Wiring Diagram Video door phone Video door phone VII.Specifications F2.8,about 78 degree F2.8,about 78 degree F2.8,about 78 degree 0.5 LUX 0.5 LUX 0.5 LUX T-960CL T-960CL 16 Ring tones 7"LCD 240×160×26mm 480h×234v Record video： Take photo： Available(SD card) Available...
  • Page 9 VIIII.Caution...
