GPS Speedometer and Tracker for Skiing
by
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-SPEED and is the answer not in the manual?

Questions and answers

Summary of Contents for Microsport X-SPEED

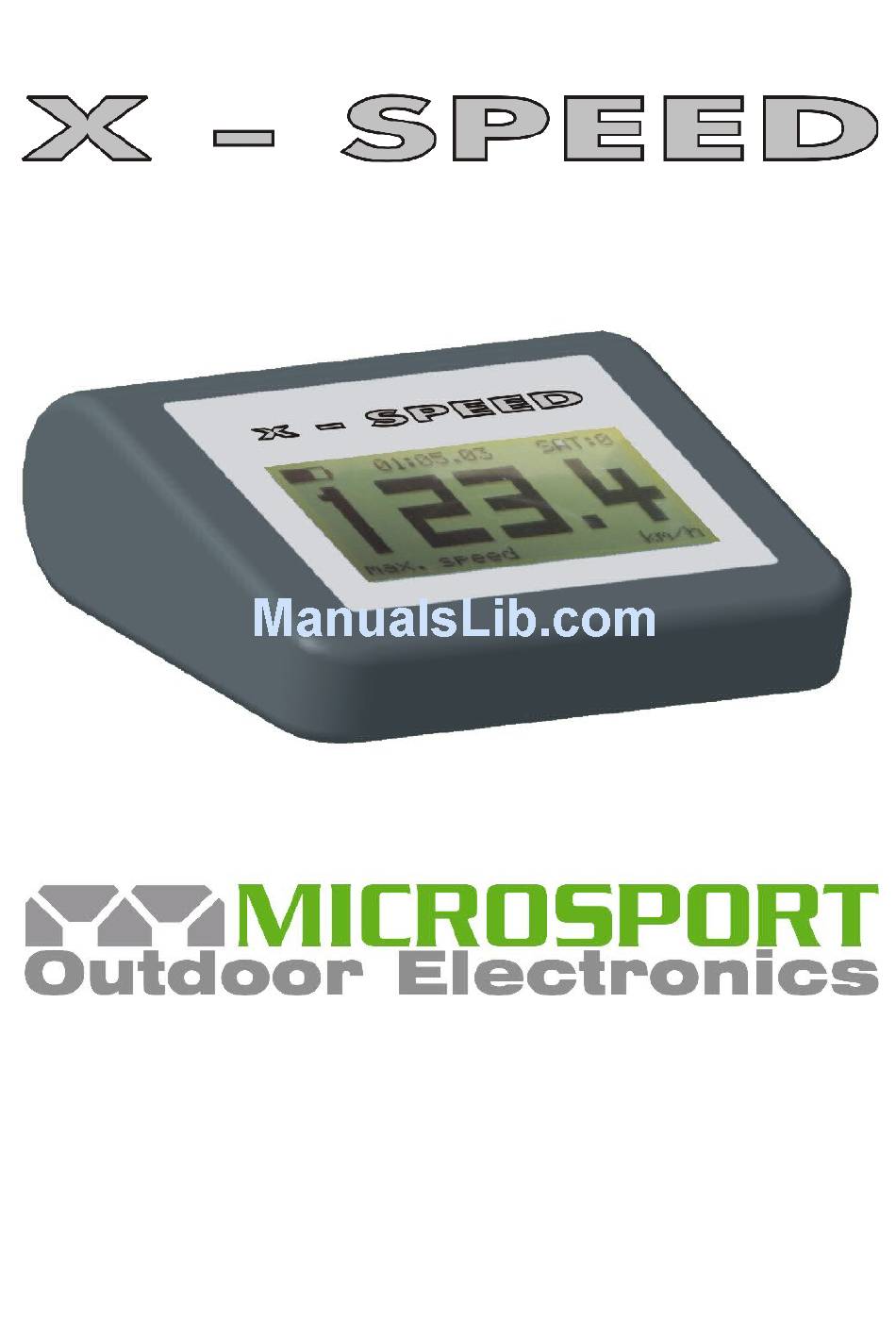

  • Page 1 GPS Speedometer and Tracker for Skiing Instruction Manual...

  • Page 2: Table Of Contents

    Content Introduction Components of the X-SPEED Speedometer microSD Card Computer-Software 4.1. Installation of the Computer Software 4.2. Running the Computer-Software X-SPEED – Mounting the Baseplate X-SPEED - Handling 6.1. On/Off 6.2. Display 6.2.1. Actual speed less than 20km/h (12 M/h) 6.2.2.

  • Page 3: Introduction

    24 hours before you go skiing the first time. This guarantees the stronges glueing force for the baseplate. Don’t let the X-SPEED mislead you to fast and reckless skiing. Protect yourself and other skiers by respectfull skiing. SAFETY FIRST!

  • Page 4: Components Of The X-Speed Speedometer

    • Instruction Manual If you find your X-SPEED system is incomplete please contact the seller of the X-SPEED for getting a full system. 3. microSD Card Pre installed on the microSD card is the X-SPEED Computer-Software, a PDF of this instruction manual and a lot of free memory for storing your tour data with the X- SPEED.
  • Page 5 Without mounted microSD card the X-SPEED module can not work. It can’t be switches On/Off without the microSD card inserted in the slot on the module. To mount the microSD card remove the silicon skin first and then insert the microSD card like shown in the picture below.

  • Page 6: Computer-Software

    Push in the microSD card all way to the catch. The microSD card will lock itself into the X-SPEED then. When you can switch on the X-SPEED after mouning and the display is activated the microSD card is installed correctly.
  • Page 7 Open the window with the content of the microSD card. In order to install the computer software please double-click the correct setup file in your preferred language. The installer with then start automatically and guide you in a few easy steps through the installation. To be able to install the program on your computer you must accept the “end user licence agreement”...
  • Page 8 Please choose the folder to which the program files should be copied.
  • Page 9 Now choose the name under which the software should be installed. Decide, if a desktop icon shall be generated.
  • Page 10 Now you can start the installation by clicking on the “Nest” button.
  • Page 11 Confirm the successful installation of the necessary drivers by clicking “OK” Finally you can select whether the X-SPEED program shall start automatically after finishing the installation. To exit the installation process on your computer click on the “Finish” button. You have successfully installed the X-SPEED software on...

  • Page 12: Running The Computer-Software

    4.2. Running the Computer software Open the program folder in which the X-SPEED software is installed or double click the X-SPEED program icon. When you have made a desktop icon for your X-SPEED software you can start the application by double clicking on this shortcut.

  • Page 13: X-Speed - Mounting The Baseplate

    5. X-SPEED – Mounting the Baseplate The baseplate should be mounted directly below the ski tip (picture. 1) . If your ski has a strong 3D surface in this area you can also glue the baseplate into the tip area of your ski (picture.
  • Page 14 After cleaning the glueing area of your ski you can remove the protection strips of the double sided tape and glue the baseplate to the ski. Press against the ski firmly for 20 seconds. If your ski has a strong 3D structure in the tip area of your ski you can use the 2 additional 3M double sided tape strips included in the package in order to maximise the contact area between baseplate and ski.

  • Page 15: X-Speed - Handling

    6. X-SPEED – Handling Insert the X-SPEED module from the tip of your ski into the baseplate until it locks in and can’t be easily pushed out again. 5.1. On/Off In order to operate your X-SPEED Speedometer and Tracker correctly the microSD card must be inserted (see 3.1.).
  • Page 16 ATTENTION! If you cant switch on the X-SPEED module even if the microSD card is inserted correctly, the rechargeable battery might be empty. See Chapter 6.4. how to recharge the battery and retry again after charging. For switching off the X-SPEED module press the On/OFF button again until the display shows: SD –...

  • Page 17: Display

    4 satellites. The time between switching on the X-SPEED and the reception of 4 satellites may vary due to the weather and your position. It can take a few minutes for the X-SPEED to be fully operational.
  • Page 18 6.2.2. Actual speed more than 20 km/h (12 M/h) At higher speeds it is necessary that the user concentrates on skiing and is not disturbed by the X-SPEED display. In order to guarantee a good visibility of the display at higher speeds the display will only show the actual speed in the biggest possible letters.

  • Page 19: Functions

    6.3. Functions The X-SPEED Speedometer + Tracker shows the following functions in the display: • Actual Speed • Maximum Speed, over all runs • Maximum Speed, last run • Actual altitude • Maximum altitude • Distance downhill • Trip Time...
  • Page 20 # X-SPEED.ini # Language, Sprache, Lingua # lang=de german, deutsch, tedesco # lang=en english, englisch, inglese # lang=it italian, italienisch, italiano lang=de # Units, Einheiten, Unità # metric, metrisch, metrica # imperial, imperial, imperiale # units=metrisch # units=imperial units=metrisch # Time difference, Zeitverschiebung,...
  • Page 21 contrast=48 # timeformat=12 (=AM/PM) # timeformat=24 (=24h) timeformat=24 # Time per function # Anzeigedauer der Funktionen # Durata indicatione del funzioni # 1/10 seconds, Sekunden, secindi # i.e., z.B., p.e. # disptime=10 (=1 sec) # disptime=30 (=3 sec) # disptime=90 (=9 sec) # Values, Werte, quantità...

  • Page 22: Language

    6.4.1. Language Select the language of the X-SPEED module between: German (de), English (en) and Italian (it). The initial setting is German (de) 6.4.2. Units Select „METRISCH“ when you want to use the following units for the functions • Actual speed [km/h] •...
  • Page 23 UTC (Universal Time Coordinated). In order to get the correct real time of your actual position to be displayed on the X-SPEED you must enter the time difference between UTC and the real time of you position. For Austria, German, Swizzerland and Italy the time difference is 1 in winter time and 2 during the summer time period.

  • Page 24: Charging The X-Speed Module

    (see.3.1.) Plug in the microUSB power supply in the right slot of the X-SPEED housing and plug the ACDC part into a power outlet. The charging of an empty rechargeable battery takes about...
  • Page 25 Microsport Service Team. If you need replacement please send the X-SPEED module to our service centre at: Microsport X-SPEED Service Grüntal 10a...

  • Page 26: Accessories

    Update yourself about the available items at our website www.microsport.eu. 8. Limited Warranty During the time of warranty Microsport can repair or exchange accepted claims by it's decision. Please store the receipt carefully for evidence of purchase. This limited warranty is in lieu of all other express or implied warranties, and excludes refund of the purchase price.
  • Page 27 T: +49 (0)89 30725599 F. +49 (0)89 30725598 info@microsport.de , www.microsport.eu Information about other Microsport Outdoor Electronics products such as the innovative „mobile lightbulb“ C-Light 2.0 RC or the GPS Navigation system evidenceGPS can be found at our website www.microsport.eu.
