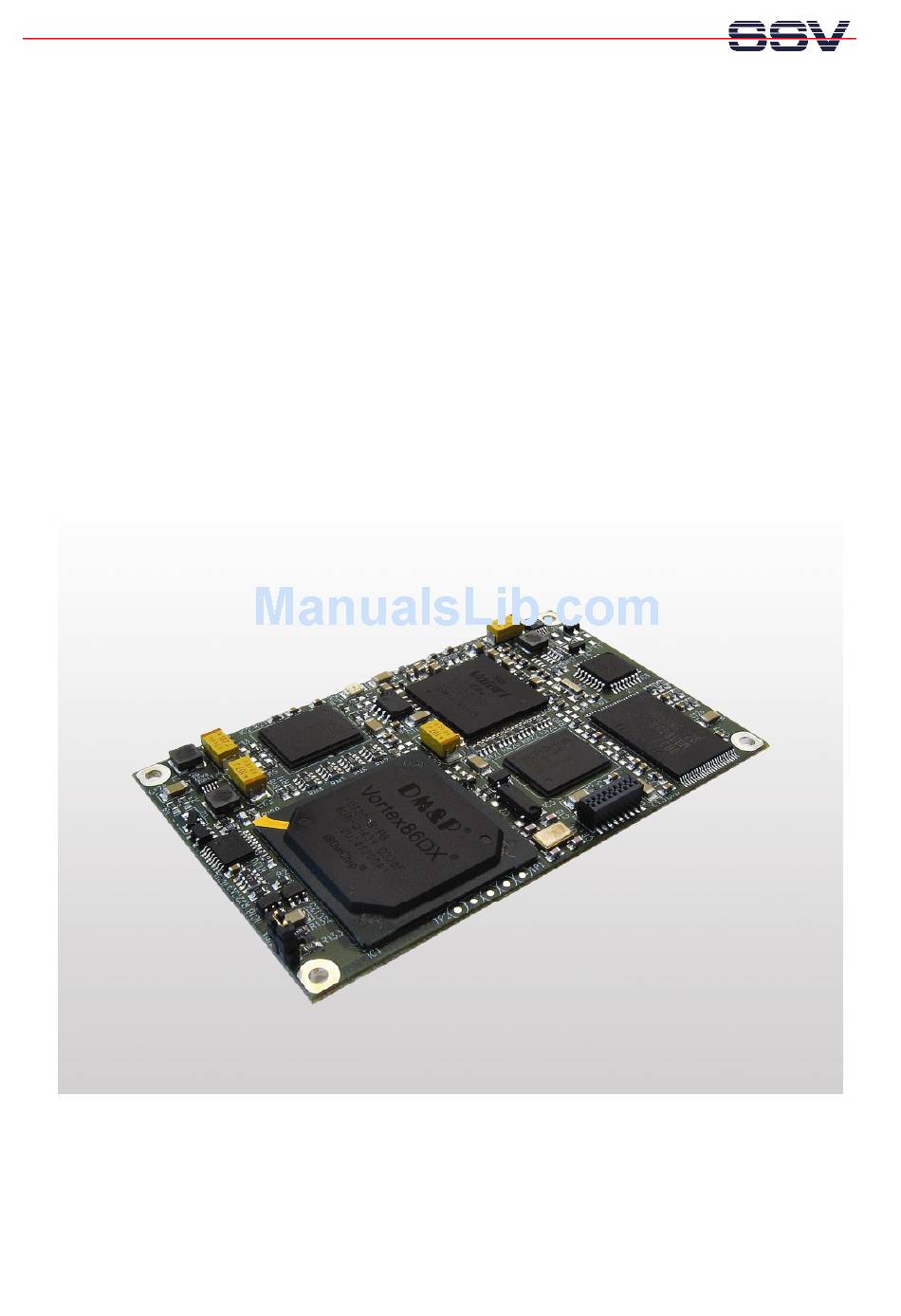

System-on-Module eSOM/2586 - Hardware Reference INTRODUCTION This document describes the hardware components of the System-on-Module eSOM/2586. For further information about the individual components of this product you may follow the links from our website at http://www.ssv-embedded.de. Our website contains a lot of technical information, which will be updated in regular periods.
System-on-Module eSOM/2586 - Hardware Reference Block Diagram The System-on-Module eSOM/2586 comes with 1 x 10/100 Mbps Ethernet LAN interface, 16-bit GPIO, 1 x SPI, 3 x UART, 18-bit VGA TTL LCD and 4-wire Touch Screen Interface, 1 x CompactFlash (CF) card slot and 2 x USB 2.0 host port. The 16-bit expansion bus inter- face (available over the 2 x 100 pin interface connector) supports the connection to external I/O chips and memory devices.
System-on-Module eSOM/2586 - Hardware Reference Features and Technical Data Vortex86DX 32-bit x86 SoC @600, 800, 1.000 MHz Clock Speed (please see note 1) • PC-compatible AMI Basic I/O System (BIOS) • 128 MByte SDRAM with DDR2 interface @300 MHz Bus Speed •...
System-on-Module eSOM/2586 - Hardware Reference PINOUTS 2 x 100 Pin Connector – J1 (1. Part) Name Group Function 1 VCC 3.3 Volt Power Input 2 VCC 3.3 Volt Power Input 3 PA0 GPIO GPIO - Parallel Port A, Bit 0...
System-on-Module eSOM/2586 - Hardware Reference 2 x 100 Pin Connector – J1 (2. Part) Name Group Function 41 D2 EXPBUS Expansion Bus, Data Bit 2 42 D10 EXPBUS Expansion Bus, Data Bit 10 43 D3 EXPBUS Expansion Bus, Data Bit 3...
System-on-Module eSOM/2586 - Hardware Reference 2 x 100 Pin Connector – J2 (1. Part) Name Group Function 101 VCC 3.3 Volt Power Input 102 VCC 3.3 Volt Power Input 103 CTS1 Serial I/O, UART COM1 CTS Pin 104 --- Not Connected – Reserved. Do not use.
System-on-Module eSOM/2586 - Hardware Reference 2 x 100 Pin Connector – J2 (2. Part) Name Group Function 141 GND Ground 142 GND Ground 143 --- Reserved. Do not use. 144 --- Reserved. Do not use. 145 LCDB5 LCD Interface, Blue Data Bit 5...
System-on-Module eSOM/2586 - Hardware Reference 2 x 100 Pin Connector – J2 (3. Part) Name Group Function 181 PB4 GPIO GPIO - Parallel Port B, Bit 4 182 PB0 GPIO GPIO - Parallel Port B, Bit 0 183 PB5 GPIO...
System-on-Module eSOM/2586 - Hardware Reference CompactFlash Card Slot – J3 (1. Part) Pin Name Function 1 GND Ground 2 D3 Data Bit 3 3 D4 Data Bit 4 4 D5 Data Bit 5 5 D6 Data Bit 6 6 D7...
System-on-Module eSOM/2586 - Hardware Reference CompactFlash Card Slot – J3 (2. Part) Pin Name Function 26 CD1 Connected to Ground 27 D11 Data Bit 11 28 D12 Data Bit 12 29 D13 Data Bit 13 30 D14 Data Bit 14...
System-on-Module eSOM/2586 - Hardware Reference 3.10 RCM Jumper – JP1 The RCM (Remote Console Mode) offers the possibility to control the eSOM/2586 via a terminal emulation program over the UART-based serial port COM1 (serial- based CLI = Command Line Interface).
0x0010.0000 - 0x03FF.FFFF 63 MByte Main Memory 16-bit MEM R/W 0xF800.0000 - 0xFBFF.FFFF 64 MByte Frame Buffer 16-bit MEM R/W Table 12: System memory map of System-on-Module eSOM/2586 System I/O Map Physical Address Range Description Access Format Type 0x000 - 0x3FF...
All length dimensions have a tolerance of 0.5 mm. The drillings are suitable for M2 screws. Figure 3: Mechanical dimensions of System-on-Module eSOM/2586 B o a r d R e v i s i o n 1 . 0 / M a n u a l R e v i s i o n 1 . 1...
