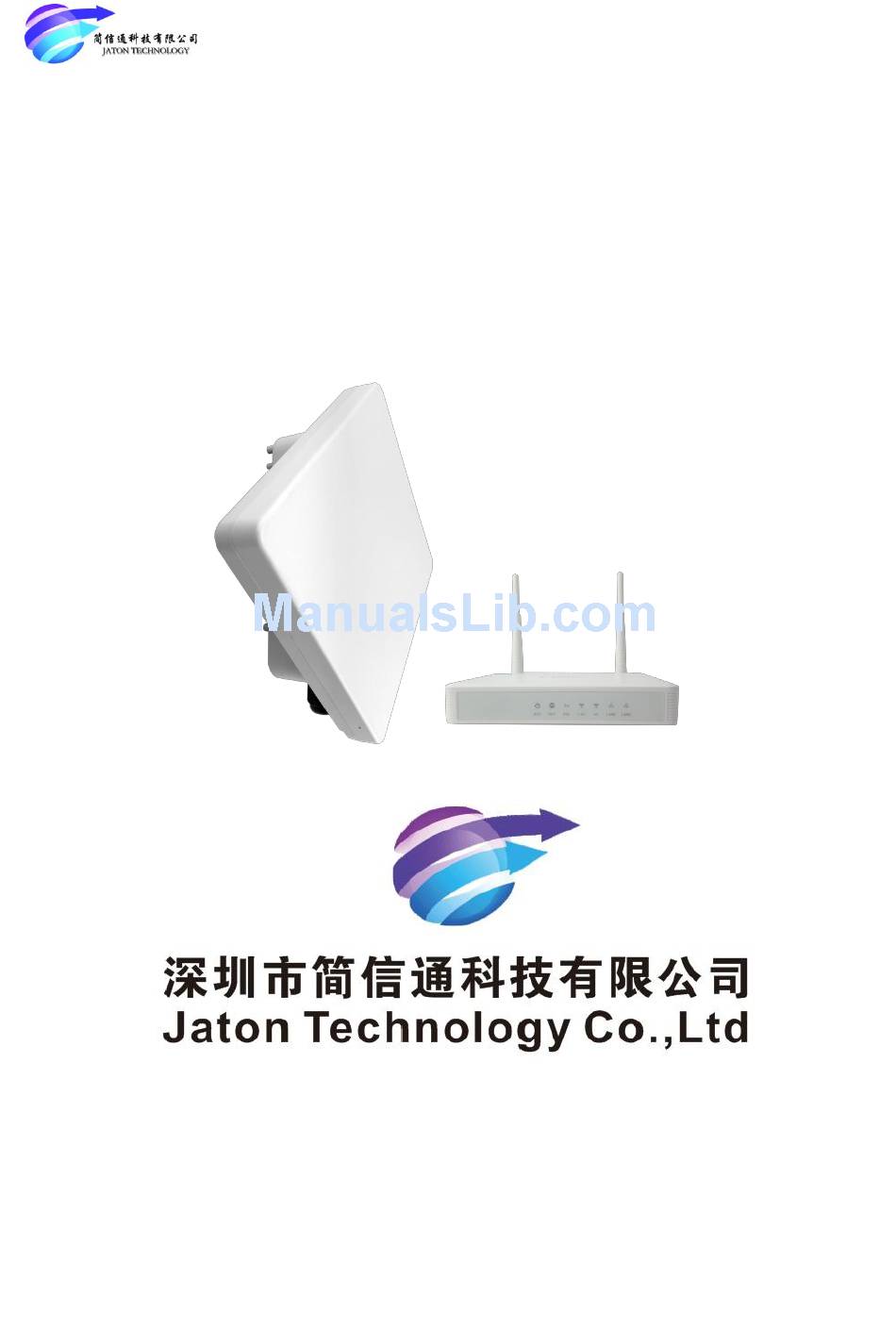

AM4200T Outdoor CPE
User Manual V1.0
Jaton Technology Limited. C
ONFIDENTIAL
This document and the information contained in it is confidential information of Jaton Technology Limited (Jaton), and
shall not be used, or publish, or disclosed, or disseminated outside of Jaton in whole or in part without Jaton's consent.
This document contains trade secrets of Jaton. Reverse engineering of any or all of the information in document is
prohibited. The copyright notice does not imply publication of this document
© C
2016, Jaton Technology Limited.
OPYRIGHT 2007-
CONFIDENTIAL INFORMATION
Information contained herein is proprietary to Jaton for whose benefit
Confidentiality shall be maintained
Advertisement
Summary of Contents for Jaton AM4200T
- Page 1 This document and the information contained in it is confidential information of Jaton Technology Limited (Jaton), and shall not be used, or publish, or disclosed, or disseminated outside of Jaton in whole or in part without Jaton’s consent. This document contains trade secrets of Jaton. Reverse engineering of any or all of the information in document is prohibited.
-
Page 2: Getting To Know Your Device
Getting to Know Your Device Packing list Upon receiving the product, please unpack the product package carefully. Each product is the following items: shipped with CPE Products Quantity ODU unit Router unit Mounting brackets 48V DC power adapter Ethernet cable If you find any of the items is missing, please contact our local distributor immediately. - Page 3 Type Function Description Green Color – Device is powered on Power Indicator Fast Blinking – Device is rebooting System Run Indicator Slow Blinking – Device is in normal operation Solid Green – LAN port is up LAN port status Blinking Green – LAN data activity in progress Light is on –...
- Page 4 To obtain the best radio signal level and connection quality, the user can rotate the CPE slowly in horizon direction to find the best signal direction, then fixed it with the anchor ear. The CPE radio signal strength level can be observed from the RF LEDs mounted on the lower panel as shown below.
-
Page 5: Connecting To Your Device
In any event, Jaton is not liable for any injury, damage or regulation violations associated with or caused by installation, grounding or lightning protection. - Page 6 launch a Web browser and specify http://172.16.1.1 in the address bar. A window will pop up requesting password. Input the user login password and then click the “Log in” button. After successful log on, the default home page of the WEB GUI interface will appear. Note that the default user password is “user123”.
- Page 7 Maintenance Firmware Upgrade over HTTP: Click on the Browser button to select the firmware file to be uploaded to the device. Click the Upgrade button to begin the upgrade process. Upgrade must not be interrupted. Load Factory Defaults: This will restore the device to original factory setting. User will need to reconfigure the authentication setting in order to get the device operational.
- Page 8 FAQ and Troubleshooting Problem Suggested Solution Re-plug the PC Ethernet cable and check if the PC LAN • connection is up or showing activity. Check if the system run LED is on. If it is not, check the • My PC cannot connect to power cord and make sure it is connected properly.
