Summary of Contents for TouchTunes 700220-001

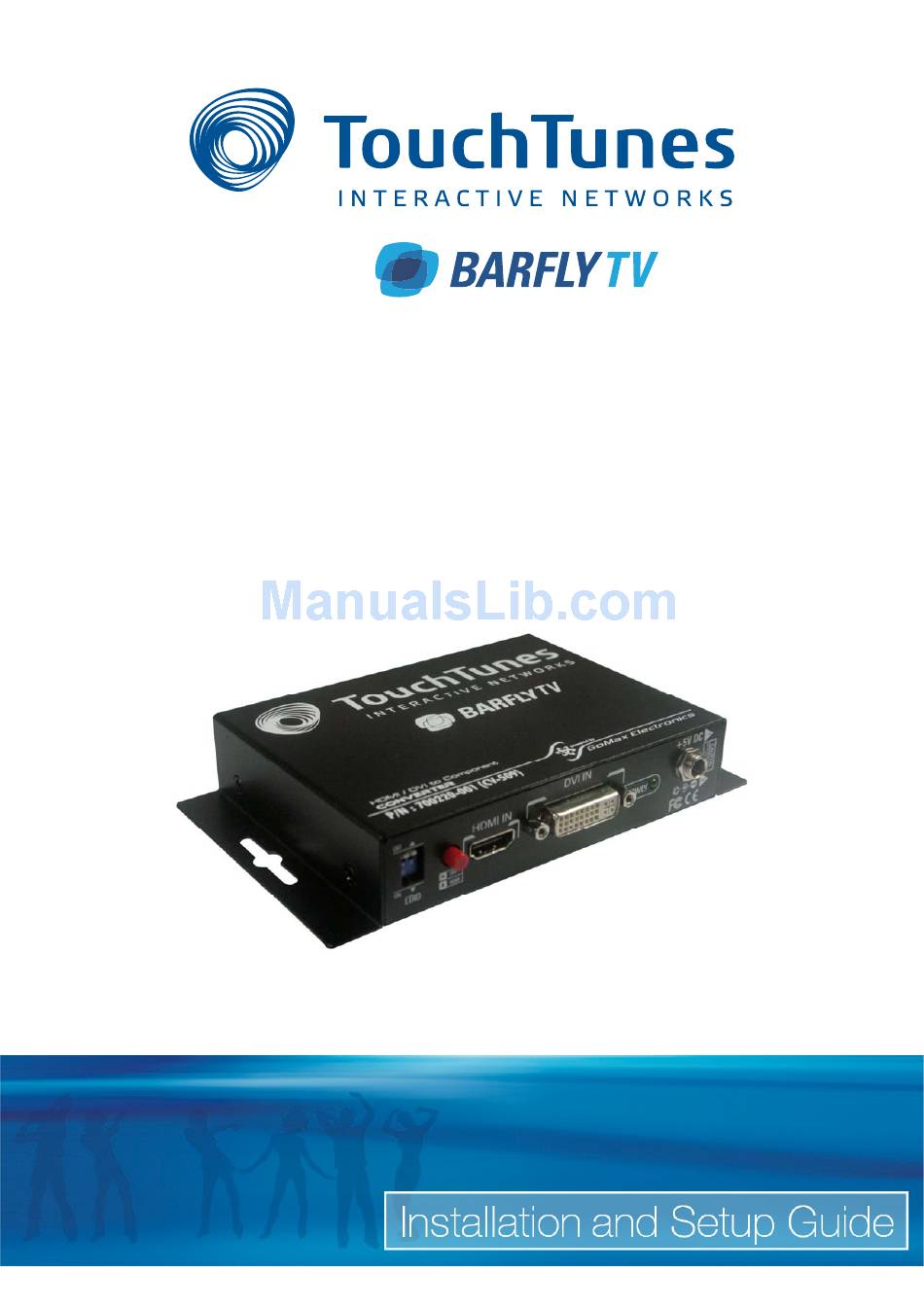

- Page 1 HDMI / DVI to Component CONVERTER P/N: 700220-001 (CV-509) Installation and Setu...
-
Page 2: Safety And Notice
Safety and Notice The HDMI / DVI to Component Converter [P/N: 700220-001 (CV-509)] has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the HDMI / DVI to Component Converter should be used with care. -
Page 3: Table Of Contents
T able of Contents Chapter 1 Introduction Overview Features Package Contents Specifications Chapter 2 Panel Description Chapter 3 Connection Diagram Chapter 4 Hardware Installation Chapter 5 EDID Learning Warranty Rev.0908... -
Page 5: Chapter 1 Introduction
Introduction Overview This HDMI / DVI to Component Converter [P/N: 700220-001 (CV-509)] offers an easy and instant approach for converting digital HDMI to analog PC video (VGA) and component video (YPbPr) with digital audio (S/PDIF) and analog stereo audio. With this module, component based display such as monitors, TV or projectors can be readily connected to HDMI sources. -
Page 6: Specifications
Specifications Technical HDMI / DVI to component converter [P/N:700220-001 (CV-509)] Role of usage D/A converter HDMI compliance HDMI 1.2a DVI compliance DVI 1.1 Video bandwidth Single-link 165MHz [4.95Gbps] Video support Up to 1080p60, WUXGA [1920x1200@60] & UXGA [1600x1200@60] Audio support... -
Page 7: Chapter 2 Panel Description
PaNEL DeSCRIPTION Front Panel 1. DIP Switch for EDID 4. DVI input 2. HDMI or DVI source switch button 5. Power on/off indicator 3. HDMI input 6. +5V DC interlocked power jack DIP Switch Pin 1 Mode Learn EDID from VGA socket and save EDID to HDMI socket Write back the default EDID to HDMI socket Pin 2 Mode... -
Page 8: Chapter 3 Connection Diagram
Connection Diagram... -
Page 9: Chapter 4 Hardware Installation
(P/N: 300424-072) to the VGA output connector then link a component cable (P/N: 300421-072) to the component (YPbPr) TV or projector. 4. Power up the HDMI / DVI to component converter [P/N: 700220-001 (CV-509)] with the 5V 4A DC power supply unit (P/N: 700229-001) connected.
