XS Scuba R250 Conversion Manual

First stage regulator conversion, from din to yoke
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

R250 First Stage Regulator
Conversion
From DIN to Yoke

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R250 and is the answer not in the manual?

Questions and answers

Summary of Contents for XS Scuba R250

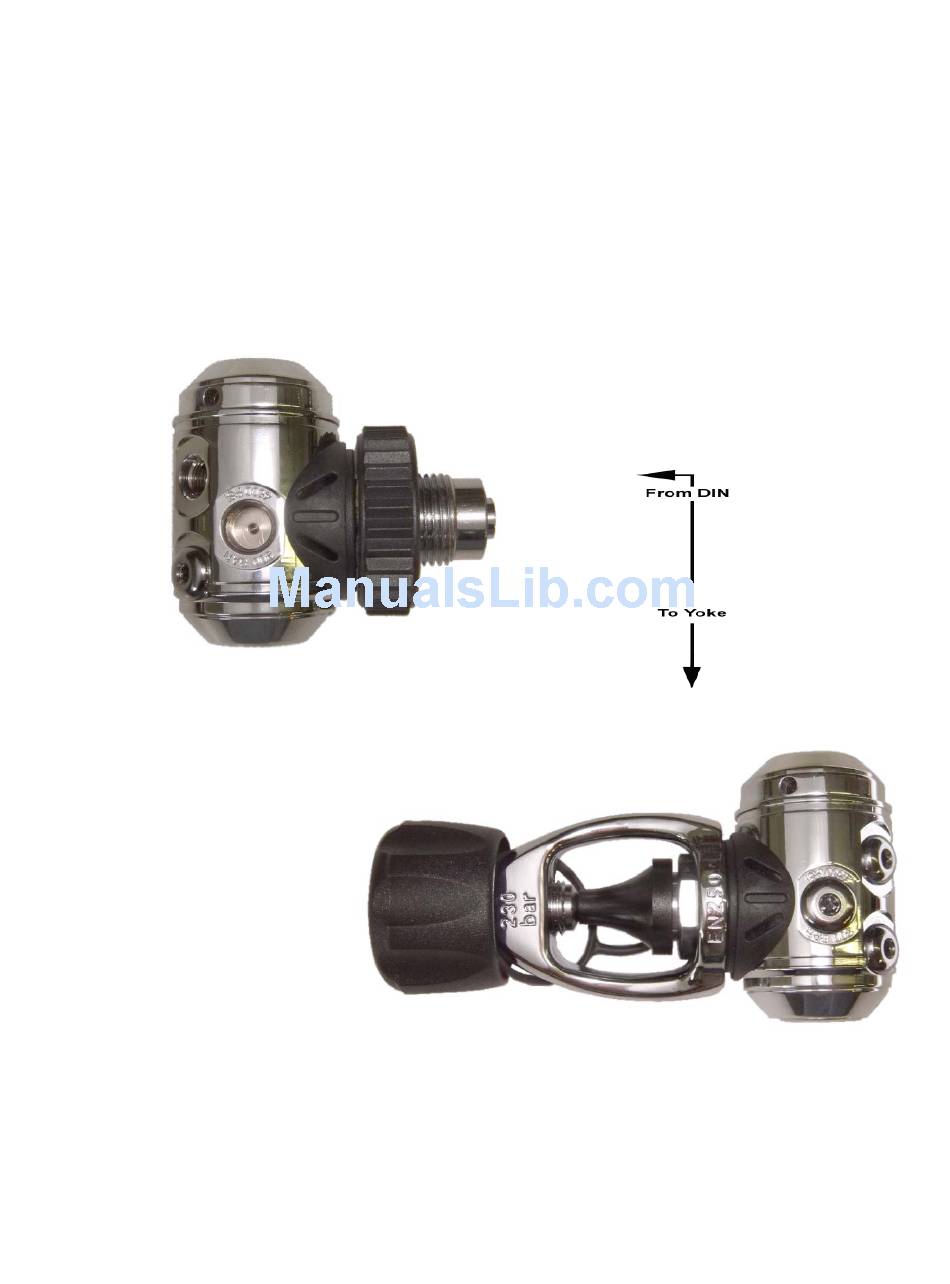

  • Page 1 R250 First Stage Regulator Conversion From DIN to Yoke...
  • Page 2 To convert from DIN to Yoke, remove four parts of the DIN connection which are the Filter Retainer Screw, DIN Wheel DIN Connector Body and the conical filter inside the DIN Connector Body as shown in fig.3. Always use a Vice with protected jaw with ether Rubber, Nylon, Plastic or Wood blocks as shown below.
  • Page 3 Fig.7 Fig.8 From here we’re going to assemble the yoke adapter. As shown in fig.9, leave the black Spacer on the body of the regulator, Do Not Remove. Place the yoke on top of the black spacer as shown in fig.10. Fig.9 Fig.10 Make sure the Yoke Nut O-Ring is cleaned and lightly greased...
  • Page 4 Now do your usual regulator pressure test for any leaks. Parts to convert from DIN to Yoke Fig.13...
