Summary of Contents for ATP Instrumentation DMS-USB2

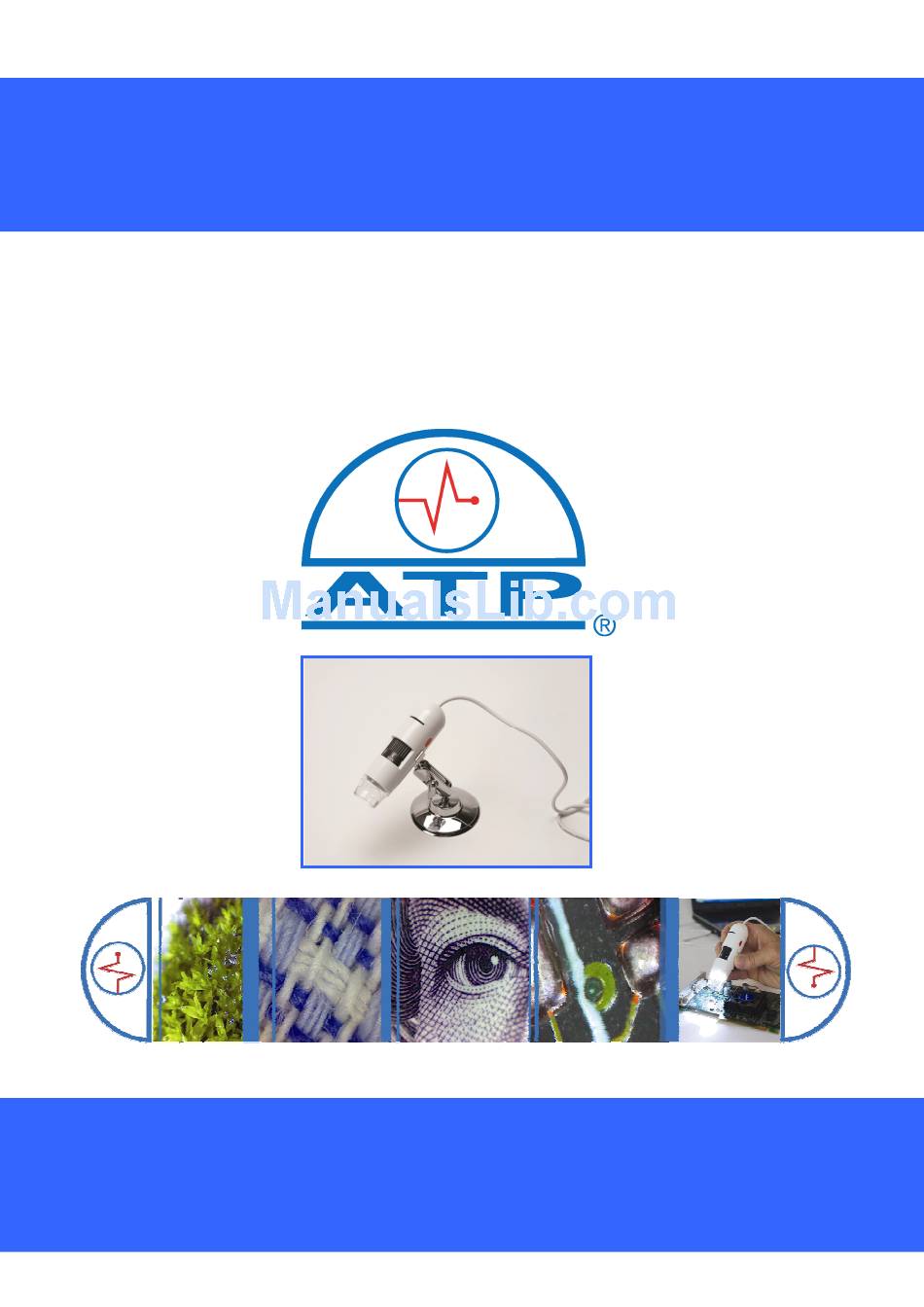

- Page 1 USB Microscope Model No. DMS-USB2 Instructions for Use www.atp-instrumentation.co.uk...
- Page 2 Never open or try to repair the microscope. Never use the microscope for medical purposes. Do not dispose of the product into industrial or consumer waste. ATP Instrumentation Ltd is registered under the WEEE directive for disposal of electronic waste. Please contact ATP’s technical support department for details about disposal and costs applicable.
- Page 3 Technical Specifications Image Sensor 2 Megapixels Video Capture Resolution Min 160 x 120, max 2560 x 2048 Still Image Capture Resolution Min 160 x 120, max 2560 x 2048 Colour 24bit RGB Lens Dual Axis 27X & 100X Microscope Lens Focus Range 10mm to infinity Flicker Frequency...
- Page 4 Software Installation 1. Place the mini disc supplied with the microscope into your CD/DVD drive on your computer. If a window called ‘Digital Microscope Application Setup Wizard’ does not appear automatically please use the following instructions. 2. Go to ‘Start’ on your desktop’s tool bar and click on ‘Run…’ This will bring up a window that will allow you to search for the software you are trying to install.
- Page 5 Operation of your microscope With your microscope connected to your PC open up the software called ‘Digiview’. Digiview is the program that controls the microscope and allows settings to be changed and pictures / videos to be taken. This is also the place where the resolution for the microscope is selected.
- Page 6 To take a photo, press and a jpeg file will appear underneath in the photo library. To record a video, press and a video will appear in the video library. Trouble Shooting 1. The picture is not clear. Clean the camera lens with a soft and dry cloth. 2.
- Page 7 6. The file transfer is running low 1. Check that the USB port supports USB 2. You need the following service packs for USB 2.0: Windows XP: Service pack 1 or higher. Windows 2000: Service pack 4 or higher. 2.
- Page 8 ATP Instrumentation Ltd Tournament Way Ivanhoe Ind Est Ashby De La Zouch Leicestershire LE65 2UU Sales: 01530 566800 sales@atp-instruments.co.uk Technical: 01530 566804 technical@atp-instruments.co.uk www.atp-instrumentation.co.uk...
