CGA/EGA/YUV TO VGA
Converter GBS-8200 Ver.3/4
Manual
GBS-8200 Ver.3
GBS-8200 Ver.4
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GBS-8200 Ver.3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Retro Active Arcade GBS-8200 Ver.3

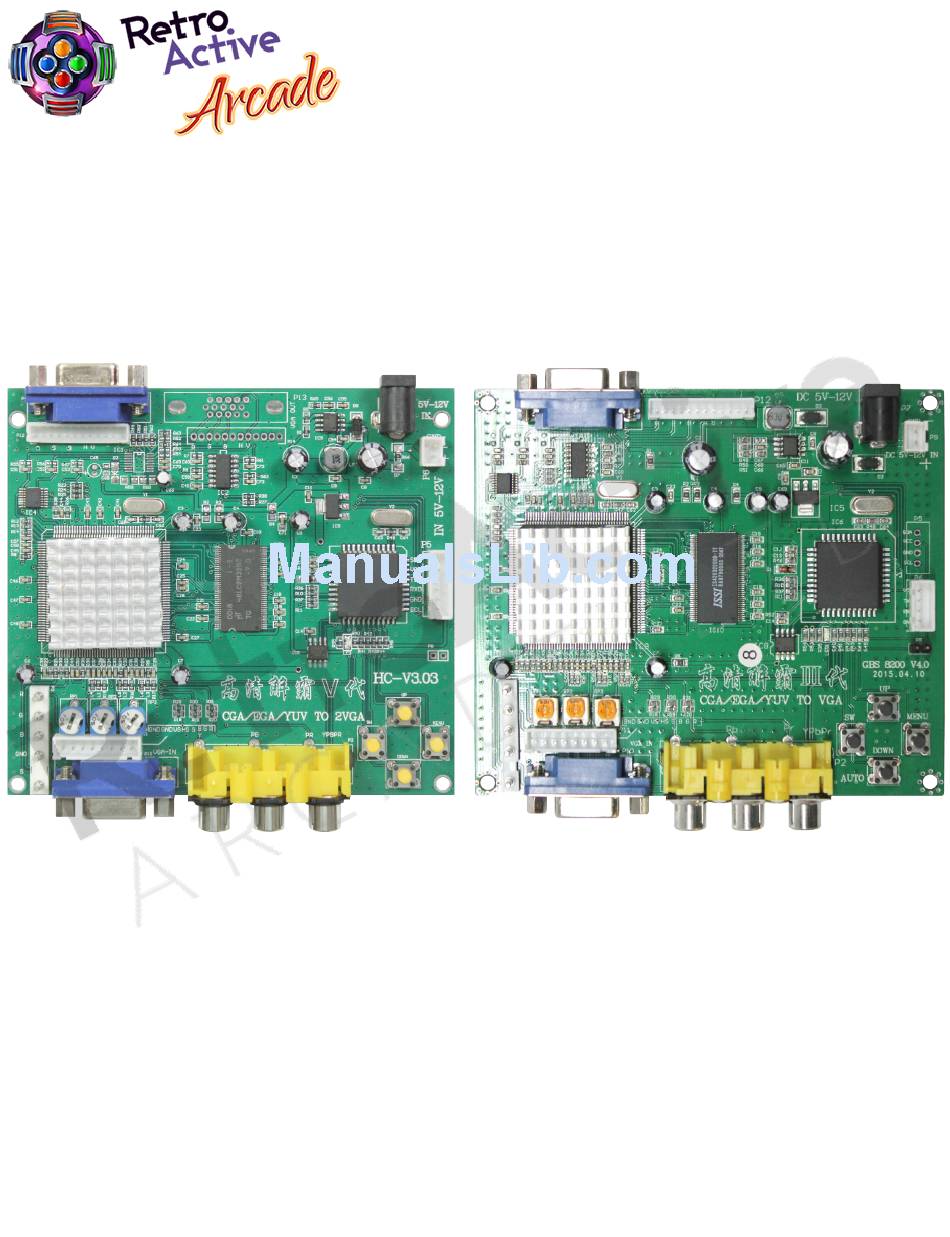

  • Page 1 CGA/EGA/YUV TO VGA Converter GBS-8200 Ver.3/4 Manual GBS-8200 Ver.3 GBS-8200 Ver.4 Page 1...

  • Page 2: Table Of Contents

    CGA/EGA/YUV TO VGA Converter GBS-8200 Ver.3/4 INDEX Page DESCRIPTION / INCLUDED ITEMS ....3 FEATURES........3 APPLICATION.

  • Page 3: Cga/Ega/Yuv To Vga Converter Gbs-8200 Ver

    CGA/EGA/YUV TO VGA Converter GBS-8200 Ver.3/4 DESCRIPTION CGA,EGA,RGB TO VGA GAME The high definition converter GBS-8200 is a professional game & playstation display converter. It supports all major games (Play Station, Xbox.etc) converts to CRT monitors, LCD monitors, PDP monitors. It features an Auto scan CGA/EGA/YUV signal function, and as well has VGA output with a high resolution signal.

  • Page 4: Wiring Diagram

    CGA/EGA/YUV TO VGA Converter GBS-8200 Ver.3 Wiring Diagram BARREL JACK OPTIONAL 5V DC IN. DOUBLE (CLONE) (DO NOT USE 12V VGA OUTPUT UNLESS ADVISED OTHERWISE) 12 PIN VGA OUTPUT TWO PIN 5V DC IN NOT USED EGA/CGA INPUT SCREEN POSITION...
  • Page 5 CGA/EGA/YUV TO VGA Converter GBS-8200 Ver.4 Wiring Diagram BARREL JACK OPTIONAL 5V DC IN. DOUBLE (CLONE) 12 PIN (DO NOT USE 12V VGA OUTPUT VGA OUTPUT UNLESS ADVISED OTHERWISE) TWO PIN 5V DC IN NOT USED EGA/CGA INPUT SCREEN POSITION MENU ADJUSTMENT BUTTONS DOWN OR...

  • Page 6: Operation Menu

    CGA/EGA/YUV TO VGA Converter GBS-8200 GBS-8200 BUTTON LAYOUT MENU DOWN OR AUTO SCAN INPUT SWITCH BUTTON 6. OPERATION MENU A. “MENU” opens the OSD menu and also acts as the “Enter/Select” button. B. “UP” moves the screen up and can also increase the image size. C.

  • Page 7: Specifications & Detailed Display Functions

    CGA/EGA/YUV TO VGA Converter GBS-8200 7. SPECIFICATIONS & DETAILED DISPLAY FUNCTIONS A. Power DC 5V 2A +/- 0.5V B. CGA/EGA 14.5V - 16.5K 23.5V - 25.5K 30.5V - 32.5K AUTO SCAN C. RGBHV 30.5V - 32.5K AUTO SCAN D. VGA 30.5V - 32.5K AUTO SCAN E.
  • Page 8 CGA/EGA/YUV TO VGA Converter GBS-8200 8. FAQ Q. No image or signal going to the screen. A. Check the cable on both ends. Make sure both ends are connected securely. Check that the screen in switch on and power is going to it. If you see the message “No signal” on the screen, press the “SW” button to change the input signal type.

This manual is also suitable for:

Gbs-8200 ver.4
