Summary of Contents for VEI dl49

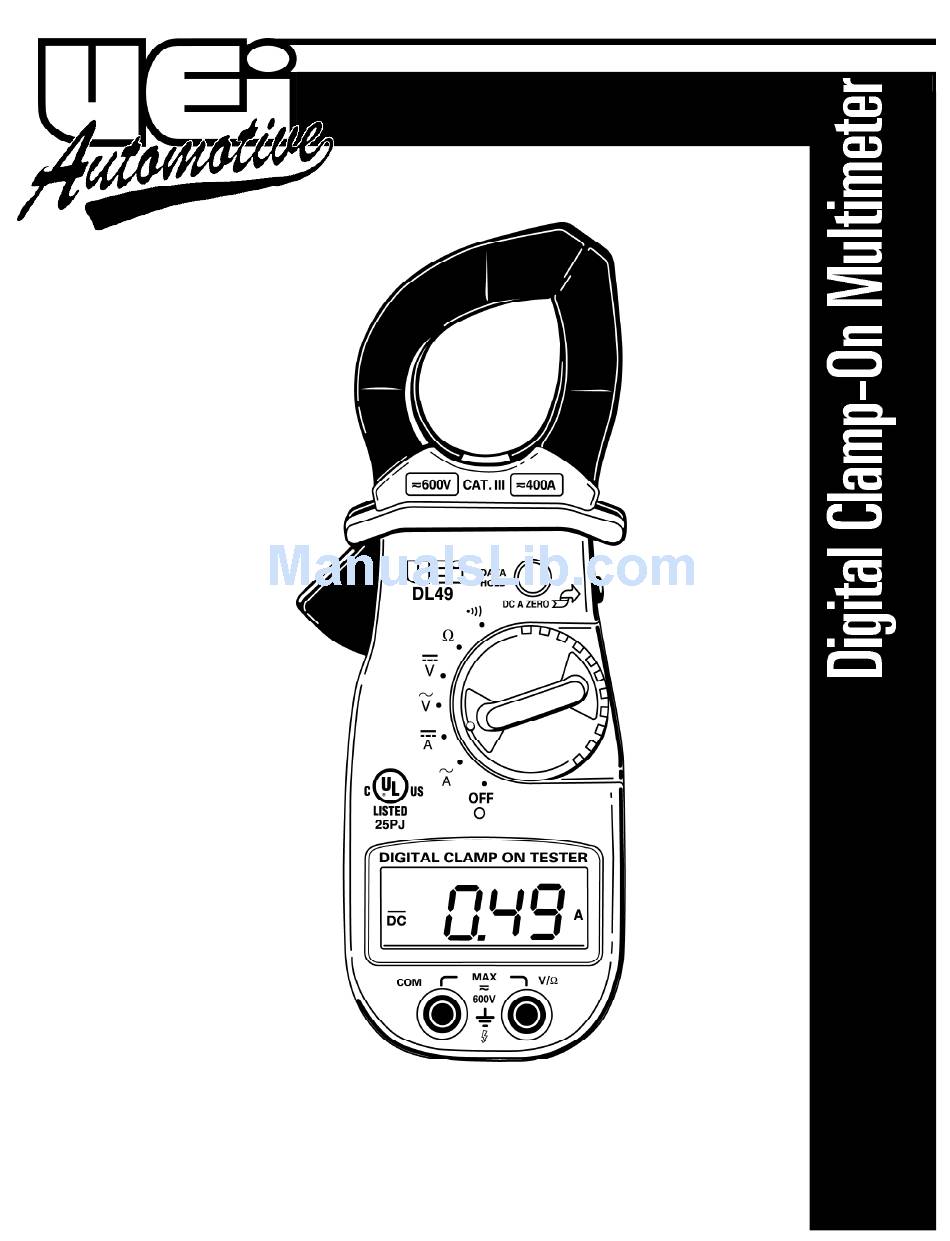

- Page 1 INSTRUCTION MANUAL DL49 1-800-547-5740 • Fax: (503) 643-6322 www.ueiautomotive.com • email: info@ueiautomotive.com...
- Page 2 • Arcing The DL49 is a hand-held, battery powered, digital multimeter with clamp- • Flame on current measuring ca p a b i l i ty. This instrument is ideal for anyone that •...
- Page 3 This instrument automatically selects the range that gives you the best resolution for the function and value measured. As the meter seeks the appropriate range, the display may briefly display an overload (OFL) indication or show quickly changing values until it stabilizes. DL49-MAN P. 2...
- Page 4 NOTE: For all measurements requiring the use of the meter leads, insert the red lead into the V/ port and the black lead into the COM port. DL49-MAN P. 3...
- Page 5 Remove cover 4. Although your meter is built to withstand the rigors of daily use, it can be damaged by severe impacts. Use reasonable caution when using and storing the meter. (Fig 1) DL49-MAN P. 4...
- Page 6 0.01 A Amps AC 40 A ±(2% + 5 digits) 0.1 A (50-400 Hz) 400 A ±(3% + 10 digits) 0.01 A Amps DC 40 A ±(2.5% + 10 digits) 400 A 0.1 A ±(1.5% + 5 digits) DL49-MAN P. 5...
- Page 7 Digital Clamp-On Multimeter Limited Warranty The DL49 is warranted to be free from defects in materials and workmanship for a period of three years from the date of purchase. If within the warra n ty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
