USER MANUAL FOR SOLID FUEL STOVE
VOLCANO - 24kW

Advertisement

Table of Contents
loading

Summary of Contents for ABC PROIZVOD VOLCANO

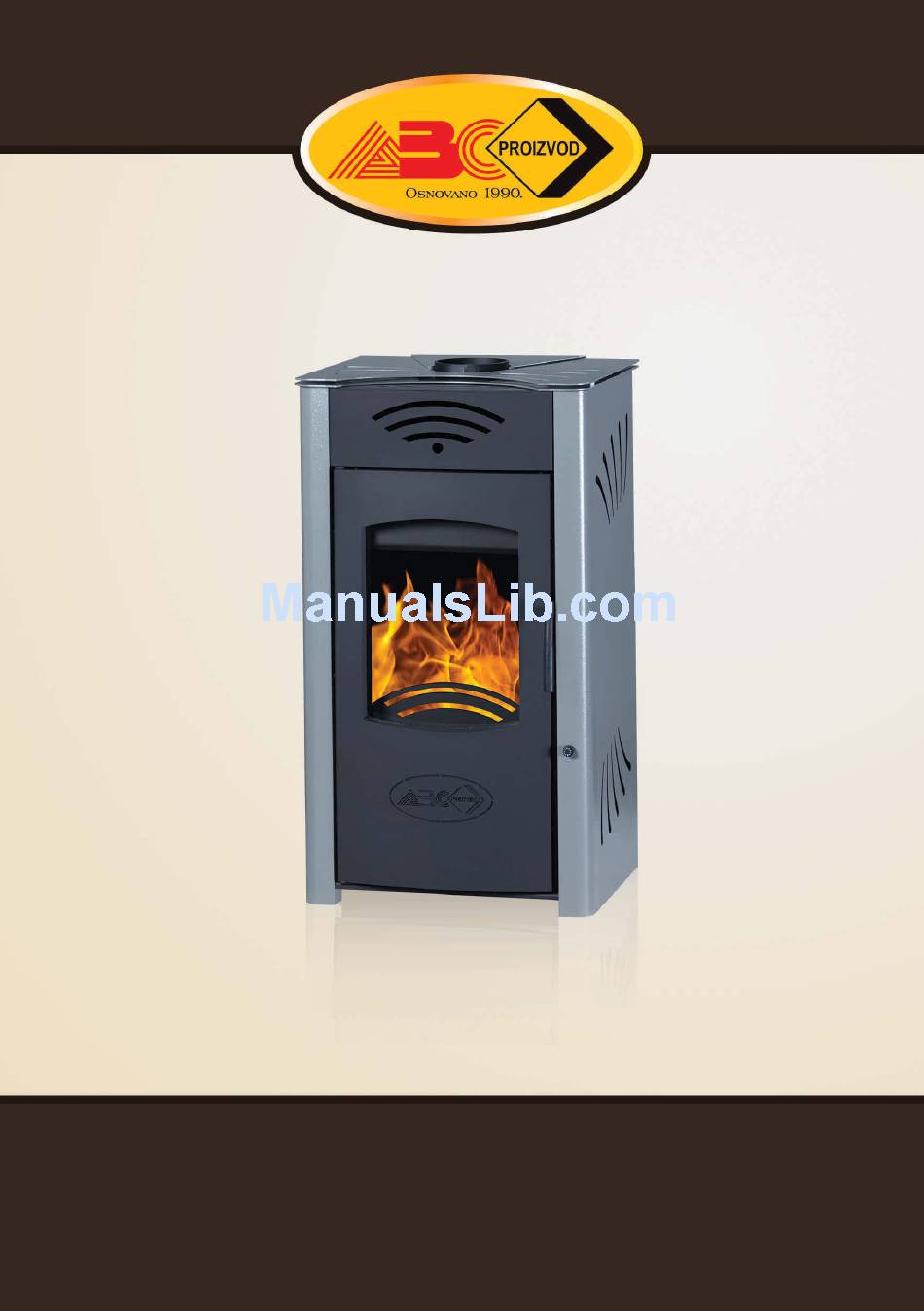

  • Page 1 USER MANUAL FOR SOLID FUEL STOVE VOLCANO - 24kW...

  • Page 2: Instruction Content

    8. Cleaning and maintenance 9. Dismantling and removal 10.Annex: a) Compliance with EU directives b) Compliance with international standards c) Warranty ABC PROIZVOD d.o.o. Srbija – 31000 Užice – Miloša Obrenovića 2 +381 (0) 31 514- 502, 514-501; e-mail: office@ abcproizvod.rs www.abcproizvod.rs...
  • Page 3 1. PURPOSE AND SPECIFIC CHARACTERISTICS OF FIREPLACES FOR CENTRAL HEATING These fireplaces are intended for heating of rooms through installation of central heating, using solid fuel (coal or dry wood). Fireplace may be connected to installation with open or closed system for pressure maintenance, with water temperature up to 90°C and max.

  • Page 4: Description And Technical Characteristics

    3. DESCRIPTION AND TECHNICAL CHARACTERISTICS Fireplace, for which this INSTRUCTION is made, is constructed for heating with solid fuel (coal or dry wood). It is made of certified boiler plate of guarantied chemical composition and mechanical properties at high temperatures. It is welded using latest welding procedures.

  • Page 5: Transportation And Storage

    In case of doubt that it is not operational, contact seller or directly factory ''ABC PROIZVOD''. 5. SETTING/INSTALLATION Design, setting and installation of central heating is strictly done by a professional.
  • Page 6 Fig. 3 CONNECTION TO CHIMNEY Inappropriate connection of Appropriate connection fireplace to chimney of the fireplace to chimney Sealed Pipe Opening for cleaning Opening for Sealed is sealed cleaning Opening for cleaning is Opening for sealed cleaning Sealed Pipe Opening for cleaning Opening for is sealed...

  • Page 7: Installation

    5.3. INSTALLATION Fireplace for central heating may be connected to open system (Fig. 5) and closed system (Fig. 6) of central heating installation, since this has built-in thermal protection – heat exchanger. Thermal valve is not in the basic equipment of the fireplace.It is advisable to install fireplace onto central heating open system, and in any case, it is compulsory to install thermal valve with the probe onto the fireplace and connection of the heat exchanger to the water system.

  • Page 8: First Firing

    Fig. 6 Diagram of the connection of fireplace to central heating closed system 12’ 1. Kamin Vulkan (zadnja strana) 9. Cirkularna pumpa 2. Dimna cev 10. Sigurnosni ventil 3. Ventil 11. Potisni vod 4. Zatvoren ekspanzioni sud 12. Priključni vod za vodovodnu mrežu 5.

  • Page 9: Operation

    As the consequence of improper handling, non-observance of proper heating mode and fireplace maintenance by the user – in such case, please read again this manual and proceed properly, If after all above mentioned problem persists, contact the factory ,,ABC PROIZVOD“ for advice/intervention.

  • Page 10: Cleaning And Maintenance

    8. CLEANING AND MAINTENANCE Due to longer life of fireplace and its proper operation, it is necessary to properly maintain fireplace, both during firing and after that. Space for ash and opening for airflow below regulator flap (when removed ashtray, opening is located on the right hand side) must be regularly cleaned.
