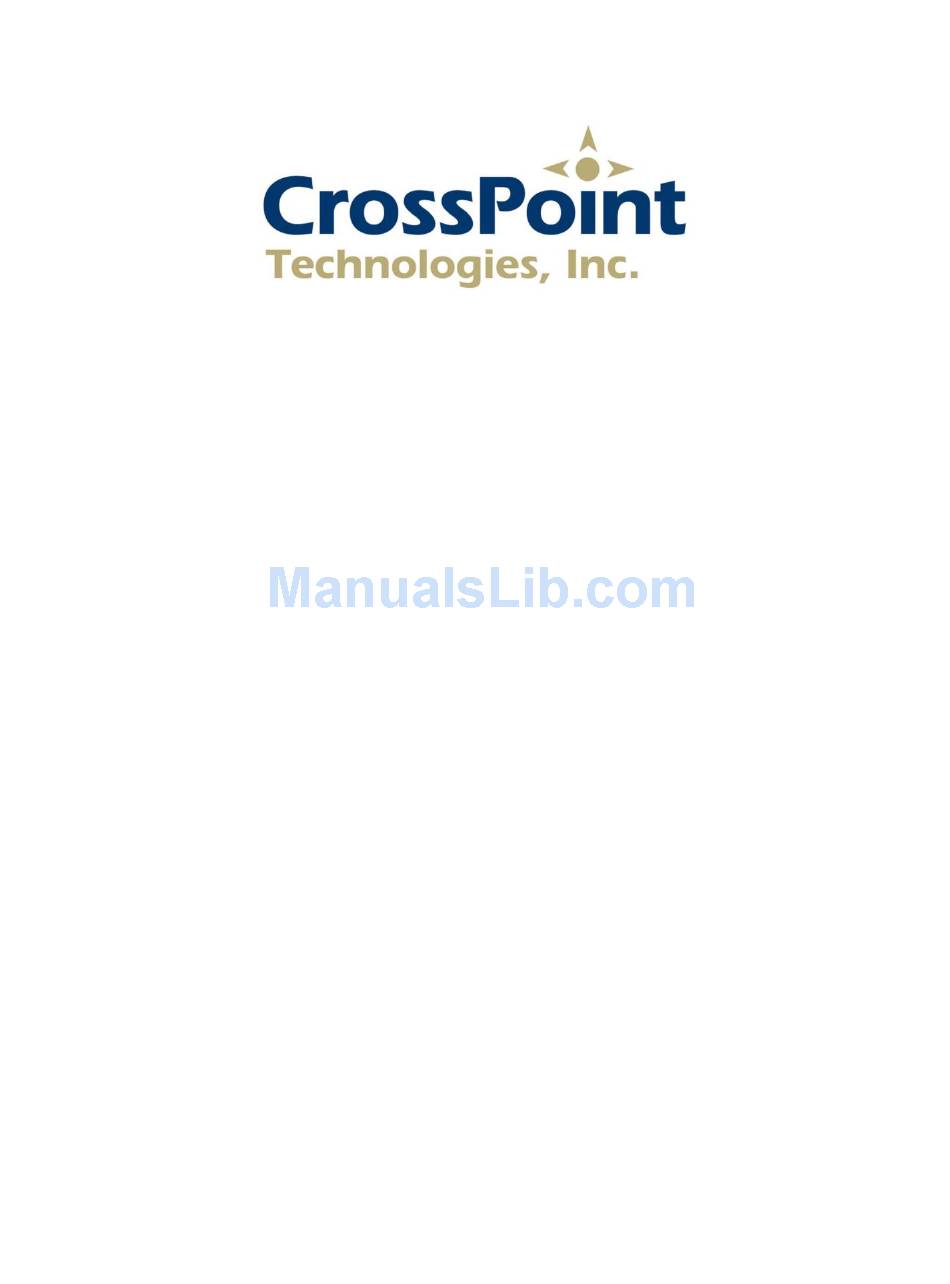

CROSSPOINT TECHNOLOGIES MS-400 SERIES Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

MS-400x Matrix Switch
Operating Manual
CPT-006-1410
Rev H
CrossPoint Technologies, Inc.
3 Foshay Road
Dudley, MA 01571
860-935-0284
CAGE: 3XJY8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-400 SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for CROSSPOINT TECHNOLOGIES MS-400 SERIES

  • Page 1 MS-400x Matrix Switch Operating Manual CPT-006-1410 Rev H CrossPoint Technologies, Inc. 3 Foshay Road Dudley, MA 01571 860-935-0284 CAGE: 3XJY8...
  • Page 2 Revision History CPT-006-1410 Revision Date Summary of Changes Original Issue Jan 6, 2006 Added MS4001-4x4-LB-MW-P June 19, 2006 Added MS-4001-32x32-HF, Ethernet April 9, 2010 Added MS-4000-8x32-LB-FO, MS-4000-16x32-LB-FO, MS-4000- 32x8-LB-FI, MS-4000-32x16-LB-FI April 16, 2010 Added MS-4001-32x32-HF, Modifications to Firmware v1.9 to Added MS-4001-32x32-HF Addendum.
  • Page 3 Rev H Model MS-400x CrossPoint Technologies, Inc. makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. CrossPoint Technologies shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 4 WARNING If this instrument is used in a manner not specified by CrossPoint Technologies, the protection provided by the instrument may be impaired. CAUTION When removing a power supply drawer while the system is powered by the alternate drawer (hot-swapping), the power switch must be turned to its Off (“O”)
  • Page 5 CrossPoint Technologies warrants that its software and firmware designated by CrossPoint Technologies for use with an instrument will execute its programming instructions when properly installed on that instrument. CrossPoint Technologies does not warrant that the operation of the instrument, or software, or firmware will be uninterrupted or error-free.

  • Page 6: Table Of Contents

    Rev H Model MS-400x Table of Contents Introduction ..........................1 Applicability ........................1 Terminology ........................1 Controls and Indicators ......................2 Front Panel ........................2 Rear Panel ........................3 Installation ..........................3 Connections ........................3 3.1.1 AC Power ........................3 3.1.2 Serial Port ........................

  • Page 7: Introduction

    Model MS-400x Introduction CrossPoint Technologies Model MS-400x Matrix Switches are available in a variety of input/output configurations. The operation and remote control interfaces are identical for all devices. The MS- 4000 series are solid state switches. The MS-4001 use mechanical RF relays as their switching element.

  • Page 8: Controls And Indicators

    Cancel the current Edit session and return to the next higher menu level. No changes occur to matrix state. MENU key Move from the normal display to the various configuration and status menus. LCD Display For local status and control. CrossPoint Technologies, Inc...

  • Page 9: Rear Panel

    To control the system from a PC, a “null Modem” cable is required. A Null Modem adapter can be used with a “straight through” cable, or a custom cable can be wired, following the diagram below. CrossPoint Technologies, Inc...

  • Page 10: Remote Control Operation

    The serial interface does not support hardware or software flow control. Commands and responses are relatively short and flow control is not normally required. The command/response method assures that the host computer can sense if the Matrix is unable to accept more characters. CrossPoint Technologies, Inc...
  • Page 11 This type is recommended, as it does not require a separate power supply or transformer for operation. Suggested sources for these adapters are B&B Electronics (www.bb-elec.com or 815-433-5100 and Black Box Network Services (www.blackbox.com or 877-877-2269). CrossPoint Technologies, Inc...

  • Page 12: Front Panel Operation

    If the operator enters a number that is out of range for the matrix (e.g. typing in “9” for a 8x8 matrix), the operation is aborted, and the LCD displays the previous selection. No change occurs in the RF path. If the number is accepted, the change is CrossPoint Technologies, Inc...

  • Page 13: Using The Menus

    Maintenance & Setup Serial Options RS232/RS422 Interface Selection Baud Rate Ethernet DHCP enable Static IP address set or DHCP address readback Port Static Net Mask MAC (Hardware) address readback System Network ID readback Software Version Set Defaults CrossPoint Technologies, Inc...

  • Page 14: Startup Splash

    If a number is entered that is out of range, the screen will revert to the previous Input, and no change in connection will occur. Pressing ESC will exit the Edit mode without making any changes. CrossPoint Technologies, Inc...

  • Page 15: Remote/Local Control

    While in these menus, the screen is not updated dynamically. Changes to any fault status information are displayed once for that screen. To see the effect of changes, you must navigate out of that screen and re-enter to refresh the screen data. CrossPoint Technologies, Inc...
  • Page 16 DN OUT OFF 6 If a fault is present, there is an option to see details. Press Enter to get the next screen IN MENU 1 Com Status F00 B02 C00 A00 ENT: Back ESC: Back DN OUT OFF 6 CrossPoint Technologies, Inc...
  • Page 17 The 32x32 matrices will have two detector backplanes. All other matrices have only a single detector backplane controller. Message Detector Backplane 1 Detector Backplane 2 (MS-4000-32x32 only) Not communicating Not communicating Not communicating Not communicating CrossPoint Technologies, Inc...
  • Page 18 After RS422 COM, scroll down to see the individual switch card status (or relay driver card status for MS-4001.) IN MENU 1 Switch Card Status: Fault ENT: Details ESC: Back DN OUT OFF 6 Press ENTer to see details of the switch cards CrossPoint Technologies, Inc...
  • Page 19 S (hex) (binary) Card cage Bit 3 Bit 2 Bit 1 Bit 0 0 (MSB) 0000 slot 32 0000 0000 1000 Bottom 0000 0000 0000 0000 0000 slot 32 0000 0000 0000 0000 0000 0100 0 (LSB) 0000 CrossPoint Technologies, Inc...
  • Page 20 3 corresponds to the bit 3 being set in the “8”. This example indicates that the relay driver card in slot 3 is not communicating properly. Bit 3 Bit 2 Bit 1 Bit 0 A display of S00000000 is the normal response with all relay driver cards operating properly. CrossPoint Technologies, Inc...
  • Page 21 Slot 9 In 1-8 Out 5, also controls Out 5 2X1 Switch Slot 10 In 9 -16 Out 5 Slot 11 In 1-8 Out 6, also controls Out 6 2X1 Switch Slot 12 In 9 -16 Out 6 CrossPoint Technologies, Inc...

  • Page 22: Maintenance & Setup

    Switch matrix connections will be interrupted while this reset takes place, and will then be automatically restored. Reset typically takes less than 10 seconds, depending on network response times. CrossPoint Technologies, Inc...
  • Page 23 Press ENT to drop into the menu item and scroll through available choices. Press ENT to change the baud rate. Changing Serial mode parameters will cause the Matrix to reset itself automatically when the action is confirmed, and will be operational again in about 6 seconds CrossPoint Technologies, Inc...
  • Page 24 (when DHCP is off) or it shows the address received from the DHCP initialization process if DHCP is enabled. If DHCP is enabled, but no address has been assigned, the screen will show an address of 000.000.000.000. In this case, communication with the matrix is not possible. CrossPoint Technologies, Inc...
  • Page 25 For system administration, it is often important to know the hardware MAC (Media Access Control) address. This address is assigned in silicon at the factory, and is globally unique among all Ethernet devices. The next menu item displays the MAC address of the matrix switch, and is read-only. CrossPoint Technologies, Inc...

  • Page 26: Set Defaults

    All switches are set to their OFF condition (Failsafe models revert to failsafe condition). The Matrix resets itself and will be operational again in about 6 seconds. IN MENU 1 Set Defaults Press ENT to Confirm DN OUT OFF 6 CrossPoint Technologies, Inc...

  • Page 27: Remote Control

    In commands which include lists of items, all items are processed unless an error is encountered. All items after an error are discarded, as well as the error itself. An error response is returned. CrossPoint Technologies, Inc...

  • Page 28: Detailed Command And Status Formats

    The response returns each channel number and a ‘P’ indicating Pass, or a ‘F’ indicating Fail. Response 3 is returned if the optional hardware is not installed CrossPoint Technologies, Inc...
  • Page 29 Note that this fault does not have anything to do with power supply voltages, per se. However, if the main CPU cannot communicate with theses boards, their voltage status will be reported with the last information that the CPU received. CrossPoint Technologies, Inc...
  • Page 30 No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm No comm CrossPoint Technologies, Inc...
  • Page 31 S00000008. Notice that not all bits have meaning. The highlighted slot 3 corresponds to the bit 3 being set in the “8”. This example indicates that the relay driver card in slot 3 is not communicating properly. Bit 3 Bit 2 Bit 1 Bit 0 CrossPoint Technologies, Inc...
  • Page 32 Slot 9 In 1-8 Out 5, also controls Out 5 2X1 Switch Slot 10 In 9 -16 Out 5 Slot 11 In 1-8 Out 6, also controls Out 6 2X1 Switch Slot 12 In 9 -16 Out 6 CrossPoint Technologies, Inc...
  • Page 33 ‘O’ (oh) if the selected output is in the Off state. Format 3 queries specific channels only. Leading zeroes are not required for the incoming command, but will be placed in the response. Response 4 occurs if the optional signal detectors are not installed. CrossPoint Technologies, Inc...
  • Page 34 However, if there are no current faults, then the cards are all communicating successfully and require no action. Occasional, intermittent voltage faults usually indicate noise spikes that got through the filters to the A to D converter, and are also not significant. CrossPoint Technologies, Inc...
  • Page 35 There is no other command to change serial or Ethernet settings remotely. To disconnect all switch settings without changing any communication parameters, use the AO command. Remote or Local control FORMAT: RL[R|L|K] CrossPoint Technologies, Inc...
  • Page 36 3 digits, and trailing ‘P’ if power is present or ‘A’ if power is absent. Format 3 queries specific channels only. Leading zeroes are not required for the incoming command, but will be placed in the response. CrossPoint Technologies, Inc...
  • Page 37 Batteries both Pass internal monitoring, while the 12V supply failed. Redundant supplies will use an A or B designation to distinguish the status of the individual supplies. Most devices will return longer strings than this example. MS4001-32x32-HF Response, with external amplifier chasses: TRBAT:P,5V-A:P,5V-B:P,15V-A:P,15V-B:P,28V-A:P,28V-B:P,28V-C:P,28V-D:P,28V-E:P,28V-F:P CrossPoint Technologies, Inc...

  • Page 38: Appendix

    Rev H Model MS-400x Appendix Includes Block Diagrams Specifications Panel Drawings Connectors Spares These configurations are covered in this Appendix. MS-4000-16x16-LB3-FO MS-4000-16x16-LB3-FI MS-4000-32x32-IF-FO MS-4000-32x32-IF-FI MS-4001-10x6-XB-FO MS-4001-12x6-KU-FO MS-4001-4x4-LB-MW-P MS-4001-32x32-HF MS-4000-8x32-LB-FO MS-4000-16x32-LB-FO MS-4000-32x8-LB-FI MS-4000-32x16-LB-FI MS-4000-8x8-LB3-FO MS-4000-8x8-LB3-FI MS-4001-16x6-XB-FO CrossPoint Technologies, Inc...

  • Page 39: A. Ms-4000-16X16-Lb3-Fo

    Rev H Model MS-400x A. MS-4000-16x16-LB3-FO Part Number: CPT-006-1210 Block Diagram CrossPoint Technologies, Inc...
  • Page 40 NOTE: MS-4000-16X16-LB-FO units shipped before 2012 covered the 950 MHz to 1750 MHz frequency range and did not include Ethernet control. MENU CrossPoint Technologies, Inc. MS-4000 POWER/CONTROL Front Panel – Power Supply / Controller Rear panel – Power Supply / Controller CrossPoint Technologies, Inc...
  • Page 41 Rev H Model MS-400x CrossPoint Technologies, Inc. MS-4000 16X16 LB FAN OUT +12V Front Panel - Switch INPUTS CONTROL POWER OUTPUTS Rear panel - Switch CrossPoint Technologies, Inc...
  • Page 42 Output 8 SMA-F Output 9 SMA-F Output 10 SMA-F Output 11 SMA-F Output 12 SMA-F Output 13 SMA-F Output 14 SMA-F Output 15 SMA-F Output 16 Serial Control Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 43 A1A18 FanOut A1A19 – 701-042-121 Amplifier Assy, Input, Incl A1A34 Panels, L Band A1A35 – 016-006-121 Power Divider Assy, 16 way, L A1A50 Band A1A51 – P90997-ND Fan, 12vdc,3.149 Sq A1A53 * CPT-006-1224 was used before 12-31-11 CrossPoint Technologies, Inc...

  • Page 44: B. Ms-4000-16X16-Lb3-Fi

    Rev H Model MS-400x B. MS-4000-16x16-LB3-FI Part Number: CPT-007-1210 Block Diagram CrossPoint Technologies, Inc...
  • Page 45 NOTE: MS-4000-16X16-LB-FI units shipped before 2012 covered the 950 MHz to 1750 MHz frequency range and did not include Ethernet control. MENU CrossPoint Technologies, Inc. MS-4000 POWER/CONTROL Front Panel – Power Supply / Controller Rear panel – Power Supply / Controller CrossPoint Technologies, Inc...
  • Page 46 Rev H Model MS-400x CrossPoint Technologies, Inc. MS-4000 16X16 LB FAN IN +12V Front Panel –Switch OUTPUTS CONTROL POWER INPUTS Rear panel – Switch CrossPoint Technologies, Inc...
  • Page 47 Input 8 SMA-F Input 9 SMA-F Input 10 SMA-F Input 11 SMA-F Input 12 SMA-F Input 13 SMA-F Input 14 SMA-F Input 15 SMA-F Input 16 Serial Control Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 48 A1A18 FanIn A1A19 – 701-042-122 Amplifier Assy, Output, Incl A1A34 Panels, L Band A1A35 – 016-006-121 Power Divider Assy, 16 way, L A1A50 Band A1A51 – P90997-ND Fan, 12vdc,3.149 Sq A1A53 * CPT-007-1224 was used before 12-31-11 CrossPoint Technologies, Inc...

  • Page 49: C. Ms-4000-32X32-If-Fo

    Backplane & Controller 16 way switch 16 way switch DC Cable MS-4000 Power / Control Control Keyboard & LCD Fault Monitor & Power Supply Sled Redundancy Control Fault Monitor & Redundancy Power Supply Sled Controller Block Diagram CrossPoint Technologies, Inc...
  • Page 50 Switch Type: Coaxial Relay Control: RS232 or RS422 selectable Connectors: SMA-F in and out MENU CrossPoint Technologies, Inc. MS-4000 POWER/CONTROL Front Panel – Power Supply / Controller CONTROL DC OUT Rear panel – Power Supply / Controller CrossPoint Technologies, Inc...
  • Page 51 Rev H Model MS-400x CrossPoint Technologies, Inc. MS-4000 32X32 IF FO +12V Front Panel - Switch INPUTS CONTROL POWER OUTPUTS Rear panel - Switch CrossPoint Technologies, Inc...
  • Page 52 Input 24 SMA-F Input 25 SMA-F Input 26 SMA-F Input 27 SMA-F Input 28 SMA-F Input 29 SMA-F Input 30 SMA-F Input 31 SMA-F Input 32 SMA-F Output 1 SMA-F Output 2 SMA-F Output 3 SMA-F Output 4 CrossPoint Technologies, Inc...
  • Page 53 Output 24 SMA-F Output 25 SMA-F Output 26 SMA-F Output 27 SMA-F Output 28 SMA-F Output 29 SMA-F Output 30 SMA-F Output 31 SMA-F Output 32 Serial Control Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 54 FanOut , IF A1A35 – CPT-008-1226 Amplifier Assy, Input, Incl Panel A1A66 A1A67 – PD-32-IF-CPT Power Divider Assy, 32 way, IF A1A108 A1A109 CPT-008-1229 Power Combiner Assy, 2 way x 32, IF A1A110 – P90997-ND Fan, 12vdc,3.149 Sq A1A112 CrossPoint Technologies, Inc...

  • Page 55: D. Ms-4000-32X32-If-Fi

    Backplane & Controller 16 way switch 16 way switch DC Cable MS-4000 Power / Control Control Keyboard & LCD Fault Monitor & Power Supply Sled Redundancy Control Fault Monitor & Redundancy Power Supply Sled Controller Block Diagram CrossPoint Technologies, Inc...
  • Page 56 Switch Type: Coaxial Relay Control: RS232 or RS422 selectable Connectors: SMA-F in and out MENU CrossPoint Technologies, Inc. MS-4000 POWER/CONTROL Front Panel – Power Supply / Controller CONTROL DC OUT Rear panel – Power Supply / Controller CrossPoint Technologies, Inc...
  • Page 57 Rev H Model MS-400x CrossPoint Technologies, Inc. MS-4000 32X32 IF FI +12V Front Panel - Switch OUTPUTS CONTROL POWER INPUTS Rear panel - Switch CrossPoint Technologies, Inc...
  • Page 58 Output 22 SMA-F Output 23 SMA-F Output 24 SMA-F Output 25 SMA-F Output 26 SMA-F Output 27 SMA-F Output 28 SMA-F Output 29 SMA-F Output 30 SMA-F Output 31 SMA-F Output 32 SMA-F Input 1 SMA-F Input 2 CrossPoint Technologies, Inc...
  • Page 59 Input 24 SMA-F Input 25 SMA-F Input 26 SMA-F Input 27 SMA-F Input 28 SMA-F Input 29 SMA-F Input 30 SMA-F Input 31 SMA-F Input 32 Serial Control Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 60 A1A35 – CPT-009-1226 Amplifier Assy, Output, Incl A1A66 Panel, IF A1A67 – PD-32-IF-CPT Power Divider Assy, 32 way, IF A1A108 A1A109 CPT-008-1229 Power Combiner Assy, 2 way x 32, IF A1A110 – P90997-ND Fan, 12vdc,3.149 Sq A1A112 CrossPoint Technologies, Inc...

  • Page 61: E. Ms-4001-10X6-Xb-Fo

    RF OUTPUTS Control Cable DC Cable (RS422) MS-4001 Power / Control Control Keyboard & LCD Fault Monitor & Power Supply Sled Redundancy Control Fault Monitor & Redundancy Power Supply Sled Controller Control Fault Monitor & Redundancy Block Diagram CrossPoint Technologies, Inc...
  • Page 62 17 x 18 deep x 5.25 high (nominal) : 3 RU Controller/PS Switch Type: Coaxial Relay Control: RS232 or RS422 selectable Connectors: SMA-F in and out MENU CrossPoint Technologies, Inc. MS-4001 POWER/CONTROL Front Panel – Power / Controller CONTROL DC OUT ETHERNET Rear Panel – Power / Controller CrossPoint Technologies, Inc...
  • Page 63 Rev H Model MS-400x CrossPoint Technologies, Inc. MS-4001 10X6 XB FO +28V +15V Front Panel – Switch CONTROL OUTPUTS POWER Rear Panel - Switch CrossPoint Technologies, Inc...
  • Page 64 Input 7 SMA-F Input 8 SMA-F Input 9 SMA-F Input 10 SMA-F Output 1 SMA-F Output 2 SMA-F Output 3 SMA-F Output 4 SMA-F Output 5 SMA-F Output 6 Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 65 A1A3 – CPT-010-1224 Relay Driver Card A1A8 A1A9 – 10HS2L34 Coaxial Relay, 28V, SP10T A1A14 A1A15 – CPT-010-1227 Amplifier Assy, Input, A1A24 A1A25 – P815X-2 Power Divider, 8 way A1A34 A1A35 – P90997-ND Fan, 12vdc,3.149 Sq A1A37 CrossPoint Technologies, Inc...

  • Page 66: F. Ms-4001-12X6-Ku-Fo

    Rev H Model MS-400x F. MS-4001-12x6-KU-FO Part Number: PL-CPT-011-1210 Block Diagram CrossPoint Technologies, Inc...
  • Page 67 Switch Type: Coaxial Relay Control: RS232 or RS422 selectable, and Ethernet Connectors: SMA-F in and out MENU CrossPoint Technologies, Inc. MS-4001 POWER/CONTROL Front Panel – Power / Controller CONTROL DC OUT ETHERNET Rear Panel – Power / Controller CrossPoint Technologies, Inc...
  • Page 68 Rev H Model MS-400x CrossPoint Technologies, Inc. MS-4001 12X6 KU FO +28V +15V Front Panel - Switch CONTROL OUTPUTS POWER Rear panel - Switch CrossPoint Technologies, Inc...
  • Page 69 Input 9 SMA-F Input 10 SMA-F Input 11 SMA-F Input 12 SMA-F Output 1 SMA-F Output 2 SMA-F Output 3 SMA-F Output 4 SMA-F Output 5 SMA-F Output 6 Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 70 A1A9 – 6IT2L34 Coaxial Relay, 28V, SP6T A1A20 A1A21 – 2S2A31 Coaxial Relay, 28V, SPDT A1A26 A1A27 – CPT-011-1227 Amplifier Assy, Input, A1A38 A1A39 – P816K-1 Power Divider, 8 way A1A50 A1A51 – P90997-ND Fan, 12vdc,3.149 Sq A1A53 CrossPoint Technologies, Inc...

  • Page 71: G. Ms-4001-4X4-Lb-Mw-P

    Microwave 2.0-14.5 GHz 4 way relay & 4 way relay & Backplane & Controller relay driver relay driver RF OUTPUTS 900 MHz - 14.5 GHz Keyboard & LCD Power Supply Controller Serial (RS-232 / RS-422) Block Diagram CrossPoint Technologies, Inc...
  • Page 72 Common C Temperature (Op) AC Voltage Power Consumption Dimensions: 17 x 15 deep x 3.5 high (nominal) : 2 RU Switch & Controller Switch Type: Coaxial Relay Control: RS232 or RS422 selectable Connectors: SMA-F in and out CrossPoint Technologies, Inc...
  • Page 73 Rev H Model MS-400x Front Panel Rear Panel CrossPoint Technologies, Inc...
  • Page 74 Output 1 (900 MHz – 14.5 GHz) SMA-F Output 2 (900 MHz – 14.5 GHz) SMA-F Output 3 (900 MHz – 14.5 GHz) SMA-F Output 4 (900 MHz – 14.5 GHz) SMA-F Serial Interface AC Input Stud Ground CrossPoint Technologies, Inc...
  • Page 75 LCD & Backlight Module A1A5 CPT-006-1245 Backplane Control Assy A1A6 CPT-006-1225 Backplane Assy, 16 Slot A1A7- CPT-010-1224 Relay Driver Card A1A10 A1A11- 4IT2L34 Coaxial Relay, 28V, SP4T A1A14 A1A15- Power Divider, 2 way A1A16 A1A17- Power Divider, 2 way A1A18 CrossPoint Technologies, Inc...

  • Page 76: H. Ms-4001-32X32-Hf

    Amp monitoring Controller MS-4001-HF Amplifier 2 Control Cable DC Cable (RS422) MS-4000 Power / Control Control Keyboard & LCD Fault Monitor & Power Supply Sled Redundancy Control Fault Monitor & Redundancy Power Supply Sled Controller Block Diagram CrossPoint Technologies, Inc...
  • Page 77 Control: RS232 or RS422 selectable, Ethernet 10 Base-T Connectors: BNC-F in and out (intra-chassis HF cables are SMA, provided) Intra-chassis Cables provided: DC power cable, 3 inter-communication cables, 32 RF cables (SMA- SMA), 6 US line cords. CrossPoint Technologies, Inc...
  • Page 78 Rev H Model MS-400x MENU CrossPoint Technologies, Inc. MS-4001 POWER/CONTROL Front Panel – Power Supply / Controller CONTROL DC OUT ETHERNET Rear panel – Power Supply / Controller CrossPoint Technologies, Inc...
  • Page 79 Rev H Model MS-400x CrossPoint Technologies, Inc. MS-4001 32X32 HF +28V +15V Front Panel - Switch CONTROL POWER INPUTS OUTPUTS Rear panel - Switch CrossPoint Technologies, Inc...
  • Page 80 Rev H Model MS-400x Front Panel – Amplifier 1 & Amplifier 2 Rear Panel – Amplifier 1 & Amplifier 2 CrossPoint Technologies, Inc...
  • Page 81 Amplifier 2 J26 SMA-F Input 27 Amplifier 2 J27 SMA-F Input 28 Amplifier 2 J28 SMA-F Input 29 Amplifier 2 J29 SMA-F Input 30 Amplifier 2 J30 SMA-F Input 31 Amplifier 2 J31 SMA-F Input 32 Amplifier 2 J32 CrossPoint Technologies, Inc...
  • Page 82 User Input 3 BNC -F User Input 4 BNC -F User Input 5 BNC -F User Input 6 BNC -F User Input 7 BNC -F User Input 8 BNC -F User Input 9 BNC -F User Input 10 CrossPoint Technologies, Inc...
  • Page 83 User Input 11 BNC -F User Input 12 BNC -F User Input 13 BNC -F User Input 14 BNC -F User Input 15 BNC -F User Input 16 SMA-F Output 1 Switch J17 SMA-F Output 2 Switch J18 CrossPoint Technologies, Inc...
  • Page 84 Switch J28 SMA-F Output 13 Switch J29 SMA-F Output 14 Switch J30 SMA-F Output 15 Switch J31 SMA-F Output 16 Switch J32 AC Input (PS1) AC Input (PS2) D9-M Control In/Out Amplifier 1 J36 D9-M Control In/Out CrossPoint Technologies, Inc...
  • Page 85 MENU CrossPoint Technologies, Inc. MS-4001 POWER/CONTROL Power / Controller CPT-025-1210 3 RU CrossPoint Technologies, Inc. MS-4001 32X32 HF +28V +15V HF Switch CPT-025-1221 7 RU HF Amplifier 1 CPT-025-1222-1 6 RU HF Amplifier 2 CPT-025-1222-2 6 RU CrossPoint Technologies, Inc...
  • Page 86 Rev H Model MS-400x MS-4001-32x32-HF System Rack elevation, Rear CONTROL DC OUT ETHERNET CONTROL POWER INPUTS OUTPUTS CrossPoint Technologies, Inc...
  • Page 87 Rev H Model MS-400x Installation Wiring Diagrams MS-4001-32x32-HF System Rack elevation, Rear CONTROL DC OUT ETHERNET DC Power Cable CONTROL POWER AC Line Cords (6) INPUTS OUTPUTS CrossPoint Technologies, Inc...
  • Page 88 Rev H Model MS-400x MS-4001-32x32-HF System Rack elevation, Rear CONTROL DC OUT ETHERNET Communication Cables CONTROL POWER INPUTS OUTPUTS CrossPoint Technologies, Inc...
  • Page 89 Rev H Model MS-400x MS-4001-32x32-HF System Rack elevation, Rear CONTROL DC OUT ETHERNET CONTROL POWER Coaxial cables INPUTS OUTPUTS Coaxial cables CrossPoint Technologies, Inc...
  • Page 90 DC OUT ETHERNET CONTROL POWER INPUTS OUTPUTS User Inputs User Inputs 11 12 13 14 15 16 17 18 19 20 21 22 23 24 User Inputs User Inputs 25 26 27 28 29 30 31 32 CrossPoint Technologies, Inc...
  • Page 91 POWER 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 User Outputs INPUTS OUTPUTS 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 CrossPoint Technologies, Inc...
  • Page 92 Rev H Model MS-400x MS-4001-32x32-HF System Rack elevation, Rear User Serial (RS-232 or RS-422) CONTROL DC OUT ETHERNET Ethernet CONTROL POWER INPUTS OUTPUTS CrossPoint Technologies, Inc...
  • Page 93 (Serial communications are always 8 bits, no parity, 1 stop bit) In the menu Status | Amplifier Status area, the display now shows both the summary fault status for each enabled channel, and also the enabled/disabled status of each amplifier. These are hex CrossPoint Technologies, Inc...
  • Page 94 Amps which are disabled will never display a fault, even if the amp truly has a fault. Since the Enable/Disable status is not reset during Restore Defaults, it is important to make sure the Enable/Disable status of each channel is kept current if the system configuration is changed. CrossPoint Technologies, Inc...
  • Page 95 (oN), amplifier 5 is enabled, amplifier 6 is disabled, amplifier 12 is disabled, etc. All 32 channels are returned as a single message if AE? Is issued. Otherwise, the response includes only the channels found in the incoming message. CrossPoint Technologies, Inc...
  • Page 96 DESCRIPTION: Sets all switch paths to OFF condition, and Initializes the matrix parameters. The Ethernet and serial parameters are NOT changed. The Amplifier Enable/Disable configuration is not changed. The Matrix will reset and will need about 5 seconds before it becomes responsive to external commands. CrossPoint Technologies, Inc...
  • Page 97 P90997-ND Fan, 12vdc,3.149 Sq A1A82 Amplifier (PL-CPT-025-1222-1, PL-CPT-025-1222-2) [1 of each per system] Qty per Recommended Part Number Description Spares Qty AIA1- CPT-025-1250 Amp Power Distribution Assy A1A2 A1A3 – CPT-025-1223 Power Supply Sled, HF A1A4 Amplifier CrossPoint Technologies, Inc...
  • Page 98 Amplifier Module, HF A1A20 A1A3A1, VP-F1412005 Power supply, 28V A1A4A1 PDxxxxx-ND Fan, 24vdc, 3.149 Sq External Cables Qty per Recommended Part Number Description Spares Qty Coaxial cable, SMA-SMA, 6’ DC Power cable Inter-communication cable Line cord, US CrossPoint Technologies, Inc...

  • Page 99: I. Ms-4000-8X32-Lb-Fo

    Rev H Model MS-400x MS-4000-8x32-LB-FO Part Number: CPT-048-1210 Block Diagram CrossPoint Technologies, Inc...
  • Page 100 17 x 18 deep x 5.25 high (nominal): 3 RU Controller / PS Switch Type: Coaxial Relay Control: RS232 or RS422 selectable & Ethernet Connectors: SMA-F in and out Front Panel – Power Supply / Controller Rear Panel – Power Supply / Controller CrossPoint Technologies, Inc...
  • Page 101 Rev H Model MS-400x Front Panel - Switch Rear Panel - Switch CrossPoint Technologies, Inc...
  • Page 102 Output 9 SMA-F Output 10 SMA-F Output 11 SMA-F Output 12 SMA-F Output 13 SMA-F Output 14 SMA-F Output 15 SMA-F Output 16 SMA-F Output 17 SMA-F Output 18 SMA-F Output 19 SMA-F Output 20 SMA-F Output 21 CrossPoint Technologies, Inc...
  • Page 103 Output 24 SMA-F Output 25 SMA-F Output 26 SMA-F Output 27 SMA-F Output 28 SMA-F Output 29 SMA-F Output 30 SMA-F Output 31 SMA-F Output 32 Serial Control Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 104 16 Way Switch Assy, L Band, A1A18 Fan Out A1A19 – AM-LB3-CPT-049 Amplifier Assy, Input, Incl A1A34 Panels, L Band A1A35 – PD-32-CPT-049-LB3- Power Divider Assy, 32 way, L A1A50 Band A1A51 – CPT-006-4016 Fan, 12 VDC, 3.149 SQ, Incl A1A53 Cable CrossPoint Technologies, Inc...

  • Page 105: J. Ms-4000-16X32-Lb-Fo

    Rev H Model MS-400x J. MS-4000-16x32-LB-FO Part Number: CPT-049-1210 Block Diagram CrossPoint Technologies, Inc...
  • Page 106 17 x 18 deep x 5.25 high (nominal): 3 RU Controller / PS Switch Type: Coaxial Relay Control: RS232 or RS422 selectable & Ethernet Connectors: SMA-F in and out Front Panel – Power Supply / Controller Rear Panel – Power Supply / Controller CrossPoint Technologies, Inc...
  • Page 107 Rev H Model MS-400x Front Panel - Switch Rear Panel - Switch CrossPoint Technologies, Inc...
  • Page 108 Output 9 SMA-F Output 10 SMA-F Output 11 SMA-F Output 12 SMA-F Output 13 SMA-F Output 14 SMA-F Output 15 SMA-F Output 16 SMA-F Output 17 SMA-F Output 18 SMA-F Output 19 SMA-F Output 20 SMA-F Output 21 CrossPoint Technologies, Inc...
  • Page 109 Output 24 SMA-F Output 25 SMA-F Output 26 SMA-F Output 27 SMA-F Output 28 SMA-F Output 29 SMA-F Output 30 SMA-F Output 31 SMA-F Output 32 Serial Control Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 110 16 Way Switch Assy, L Band, A1A18 Fan Out A1A19 – AM-LB3-CPT-049 Amplifier Assy, Input, Incl A1A34 Panels, L Band A1A35 – PD-32-CPT-049-LB3- Power Divider Assy, 32 way, L A1A50 Band A1A51 – CPT-006-4016 Fan, 12 VDC, 3.149 SQ, Incl A1A53 Cable CrossPoint Technologies, Inc...

  • Page 111: K. Ms-4000-32X8-Lb-Fi

    Rev H Model MS-400x K. MS-4000-32x8-LB-FI Part Number: CPT-046-1210 Block Diagram CrossPoint Technologies, Inc...
  • Page 112 17 x 18 deep x 5.25 high (nominal): 3 RU Controller / PS Switch Type: Coaxial Relay Control: RS232 or RS422 selectable Connectors: SMA-F in and out Front Panel – Power Supply / Controller Rear Panel – Power Supply / Controller CrossPoint Technologies, Inc...
  • Page 113 Rev H Model MS-400x Front Panel –Switch Rear Panel – Switch CrossPoint Technologies, Inc...
  • Page 114 Input 9 SMA-F Input 10 SMA-F Input 11 SMA-F Input 12 SMA-F Input 13 SMA-F Input 14 SMA-F Input 15 SMA-F Input 16 SMA-F Input 17 SMA-F Input 18 SMA-F Input 19 SMA-F Input 20 SMA-F Input 21 CrossPoint Technologies, Inc...
  • Page 115 Input 24 SMA-F Input 25 SMA-F Input 26 SMA-F Input 27 SMA-F Input 28 SMA-F Input 29 SMA-F Input 30 SMA-F Input 31 SMA-F Input 32 Serial Control Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 116 16 Way Switch Assy , L Band, A1A18 FanIn A1A19 – AM-LB3-CPT-047 Amplifier Assy, Output, Incl A1A34 Panels, L Band A1A35 – PD-32-CPT-049-LB3- Power Divider Assy, 32 way, L A1A50 Band A1A51 – CPT-006-4016 Fan, 12 VDC, 3.149 SQ, Incl A1A53 Cable CrossPoint Technologies, Inc...

  • Page 117: L. Ms-4000-32X16-Lb-Fi

    Rev H Model MS-400x L. MS-4000-32x16-LB-FI Part Number: CPT-047-1210 Block Diagram CrossPoint Technologies, Inc...
  • Page 118 17 x 18 deep x 5.25 high (nominal): 3 RU Controller / PS Switch Type: Coaxial Relay Control: RS232 or RS422 selectable Connectors: SMA-F in and out Front Panel – Power Supply / Controller Rear Panel – Power Supply / Controller CrossPoint Technologies, Inc...
  • Page 119 Rev H Model MS-400x Front Panel –Switch Rear Panel – Switch CrossPoint Technologies, Inc...
  • Page 120 Input 9 SMA-F Input 10 SMA-F Input 11 SMA-F Input 12 SMA-F Input 13 SMA-F Input 14 SMA-F Input 15 SMA-F Input 16 SMA-F Input 17 SMA-F Input 18 SMA-F Input 19 SMA-F Input 20 SMA-F Input 21 CrossPoint Technologies, Inc...
  • Page 121 Input 24 SMA-F Input 25 SMA-F Input 26 SMA-F Input 27 SMA-F Input 28 SMA-F Input 29 SMA-F Input 30 SMA-F Input 31 SMA-F Input 32 Serial Control Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 122 16 Way Switch Assy , L Band, A1A18 FanIn A1A19 – AM-LB3-CPT-047 Amplifier Assy, Output, Incl A1A34 Panels, L Band A1A35 – PD-32-CPT-049-LB3- Power Divider Assy, 32 way, L A1A50 Band A1A51 – CPT-006-4016 Fan, 12 VDC, 3.149 SQ, Incl A1A53 Cable CrossPoint Technologies, Inc...

  • Page 123: M. Ms-4000-8X8-Lb3-Fo

    Rev H Model MS-400x M. MS-4000-8x8-LB3-FO Part Number: CPT-084-1210 Block Diagram CrossPoint Technologies, Inc...

  • Page 124: Ms-4000-8X8-Lb3-Fo

    Power Consumption 19”W x 20”D x 5.25”H (3RU) Dimensions : Switch Type : Solid State Control : Remote: Ethernet, RS232 or RS422 selectable Local: Front panel display and keypad Connectors SMA-F in and out Front Panel –Switch CrossPoint Technologies, Inc...
  • Page 125 SMA-F Output 1 SMA-F Output 2 SMA-F Output 3 SMA-F Output 4 SMA-F Output 5 SMA-F Output 6 SMA-F Output 7 SMA-F Output 8 Serial Control RJ-45 Ethernet Control AC Input (PS1) AC Input (PS2) Stud Ground CrossPoint Technologies, Inc...

  • Page 126: Ms-4000-8X8-Lb-Fi

    Rev H Model MS-400x N. MS-4000-8x8-LB-FI Part Number: CPT-085-1210 Block Diagram CrossPoint Technologies, Inc...
  • Page 127 19”W x 20”D x 5.25”H (3RU) Dimensions : Switch Type : Solid State Control : Remote: Ethernet, RS232 or RS422 selectable Local: Front panel display and keypad Connectors SMA-F in and out Front Panel –Switch Rear Panel – Switch CrossPoint Technologies, Inc...
  • Page 128 SMA-F Input 1 SMA-F Input 2 SMA-F Input 3 SMA-F Input 4 SMA-F Input 5 SMA-F Input 6 SMA-F Input 7 SMA-F Input 8 Serial Control RJ-45 Ethernet Control AC Input (PS1) AC Input (PS2) Stud Ground CrossPoint Technologies, Inc...

  • Page 129: Ms-4001-16X6-Xb-Fo

    Rev H Model MS-400x O. MS-4001-16x6-XB-FO Part Number: PL-CPT-128-1210 Block Diagram CrossPoint Technologies, Inc...
  • Page 130 17 x 18 deep x 5.25 high (nominal) : 3 RU Controller / PS Switch Type: Coaxial Relay Control: RS232 or RS422 selectable, and Ethernet Connectors: SMA-F in and out MENU CrossPoint Technologies, Inc. MS-4001 POWER/CONTROL Front Panel – Power / Controller Rear Panel – Power / Controller CrossPoint Technologies, Inc...
  • Page 131 Rev H Model MS-400x Front Panel - Switch Rear panel - Switch CrossPoint Technologies, Inc...
  • Page 132 Input 13 SMA-F Input 14 SMA-F Input 15 SMA-F Input 16 SMA-F Output 1 SMA-F Output 2 SMA-F Output 3 SMA-F Output 4 SMA-F Output 5 Output 6 SMA-F Serial Control 7 pin DC Input circular Stud Ground CrossPoint Technologies, Inc...
  • Page 133 Spares Qty CPT-006-1245 Backplane Control Assy CPT-006-1225 Backplane Assy, 16 Slot CPT-128-1224 Relay Driver Card 8HT2L34LA Coaxial Relay, 28V, SP8T 2S2A31LA Coaxial Relay, 28V, SPDT CPT-010-1232 Amplifier Assy, Input, P815X-2 Power Divider, 8 way 1608KL-05W-B50- Fan 24V 40X20MM CrossPoint Technologies, Inc...
