Summary of Contents for Movcam SCU-1

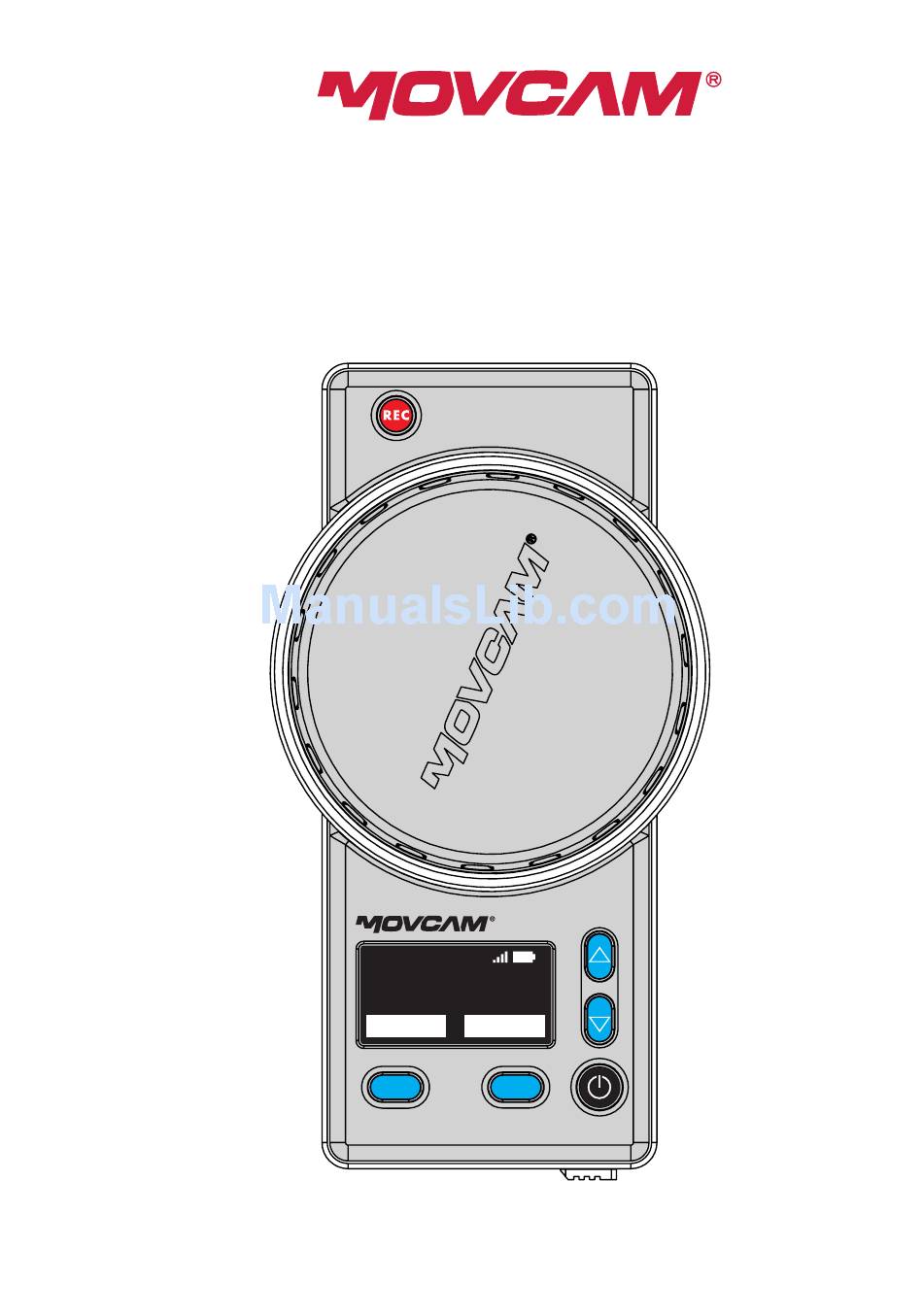

- Page 1 WirelessLensControlSystem User Guide SCU-1 RECORD: STBY LIM: MENU Version:V1.00 April,2015...
- Page 2 WirelessLensControlSystem User Guide Contents Features Components Setup Menu...
- Page 3 WirelessLensControlSystem User Guide Caution: 1. Please read the instructions carefully before use. 2. Keep ngers away from the gear when the motor is working to avoid possible injury. 3. Keep the motor gear set against the lens gear and tighten the motor lock screw when mounting motors.
- Page 4 8. Calibrating and setting limit on both ends of lens automatically 9. Two control modes: wireless control and cable control 10. Control of ENG lens 11. Compatible with Movcam auto follow focus system-- AcFocus 12. Ergonomical design, easy to operate Features...
- Page 5 WirelessLensControlSystem User Guide B: Components 1. Single Axis Hand Control Unit SCU-1 Technical Data Wireless Module: Frequency: ISM2.4M Transmission delay: less than 12ms Indoor transmission distance: 30m Outdoor transmission distance: 200m Memory Card: miniSD card Battery: SONY NP-F570/F550 7.4V 2600mAh Power: 12v---24V Power Consumption: 150mA, 7.2V...
- Page 6 WirelessLensControlSystem User Guide 2. Receiver Box Module MRS-1 Cameras MRS-1 can control:: ARRI:ARIXA,AMIRA,ARIXA MINI, SONY:F5/F55，FS700，FS7， RED:EPIC,SCARLET, CANON:C500/C300/C100 BLACK MAGIC:BMCC,BMPCC, Wireless Module Transmission Delay: less than 12ms Indoor transmission distance: 30m Outdoor transmission distance: 200m Volt Range: 12V-24V Power supply: ＞2 A Screen: 0.48"...
- Page 7 WirelessLensControlSystem User Guide 3. UM-1 Motor Motor is very quiet. It uses precision speed reduction mechanism to ensure smooth operation. Press the button to change direction of motor. Press and hold for 3 seconds, the motor calibrates automatically. 4. ZOOM extension module ZSU-1 (Optional) It uses pressure sensor, which is extremely sensitive and ideal for precision control.
- Page 8 WirelessLensControlSystem User Guide LimitButton OLEDDisplayScreen UP/DownButton Start/Stop FunctionButtons PowerSwitch MarkingDisc BatteryCartridge USB/miniSDCARD HandKnob BatteryCartridgeLock MBUS...
- Page 9 WirelessLensControlSystem User Guide C:SETUP M RS -1 M D -Z CAN cable: CAN-1 Motor cable: CRM-1 Power cable: PWD-1 1. First install motor to standard 15mm or 19mm rod. Make sure the motor gear is securely set against the lens gear. Tighten the motor lock screw.
- Page 10 WirelessLensControlSystem User Guide 5. Install battery for hand control unit Insert fully-charged battery into battery cartridge 6.Turn on the Hand Control Unit Press and hold ON/OFF button for 3 seconds. 7.Set wireless module at the same channel as the receiver. 8.
- Page 11 WirelessLensControlSystem User Guide Limit Set Limit button makes focus change easily between point A and point B. How to Set: Turn handwheel/ handknob to expected focus point A, press limit button to set. e screen display will show: LIM: FA. en, turn handwheel / handknob to expected focus point B, press limit button to set again.
- Page 12 WirelessLensControlSystem User Guide D:Menu 1. Turn-on Press and hold ON/OFF button for 3 seconds to turn on the system and enter home menu, where intensity of the wireless module, frequency, battery capacity and camera status are all displayed. 2. Motor Calibrating Press and hold "CAL"...
-
Page 13: Enter Menu
WirelessLensControlSystem User Guide 3. Enter Menu Press "Menu" button to enter home page 4. Switch wireless module channel RFChannel Control Setup Motor Setup Back Enter Back Mode Select "RF Channel” Press "UP" or "DOWN" buttons to select a range of channels from 1 to 9. - Page 14 WirelessLensControlSystem User Guide 5. Select “Control Setup”, Press “Enter” to go to next level to choose among “Focus/ Iris/ Zoom” for the handwheel or stick. Press Up or Down button to choose “ Knob” or “ Stick”. en Press “Swicth” to change among focus ring, iris ring or zoom ring.
- Page 15 WirelessLensControlSystem User Guide 8. Stick Speed Motor Setup Torque Stick Speed Back Enter Back Select "Stick Speed" to set the stick speed on a range from 1 to 100. Scale 1 is the lowest speed while scale 100 is the highest speed. Press "ZAP"...
-
Page 16: Restore Factory Defaults
WirelessLensControlSystem User Guide 10. Knob Illumination Switch Stick Speed Backlight Knob illume Back Enter Back Switch Select "Knob Illume” Press "Switch" button to turn on or turn off knob illumination. 11. Language Backlight 简体中⽂ Knob illume English Language Back Enter Back Enter Select “Language”... -
Page 17: Report All Incidents
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Report All Incidents If your Movcam wireless lens control system performs in a way that you do not intend or in a way that it is not supposed to, contact Movcam Customer Center.
