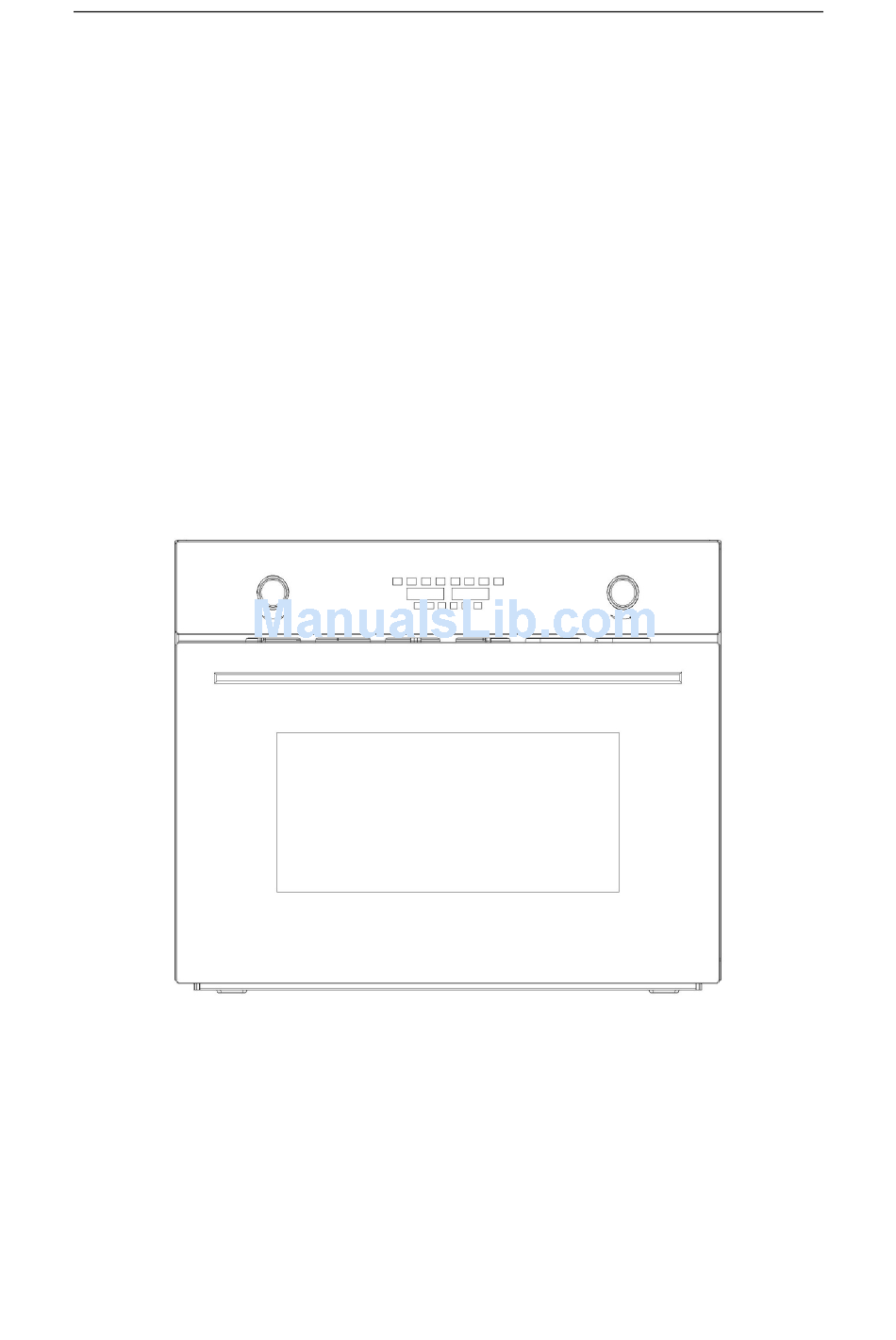

Steam Oven Owner's Manual
MODEL:
AMSG35SS
CONTENTS


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMSG35SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Apelson Appliances AMSG35SS

  • Page 1   Steam Oven Owner's Manual MODEL: AMSG35SS CONTENTS  ...

  • Page 2: Table Of Contents

      1、TECHNICAL SPECIFICATION ..................3 2、UNPACKING AND INSTALLATION ................3 2.1 Before the installation ..................3 2.2 Installation ......................3 3、SAFETY PRECAUTION ....................6 4、DISPOSE OF REJECTED PRODUCT ................ 6 5、STRUCTURE OF DIAGRAM ..................7 6、DESCRIPTION OF FRONT PANEL CONTROLS ............7 7、GET TO KNOW STEAM OVEN ...................

  • Page 3: Technical Specification

      1、 TECHNICAL SPECIFICATION MODEL AMSG35SS CAPACITY （L） VOLTAGE(V) 220-240 FREQUENCE（Hz） CIRCUIT BREAKER(A) POWER(STEAM)（W） 1600-1900 POWER(STEAM OVEN)（W） 1400-1700 PRODUCT DIMENSION（mm） 594×530×455 PACKAGE SIZE（mm） 675×611×525 GROSS/NET WEIGHT（Kg） 33.0/29.0 2、 UNPACKING AND INSTALLATION 2.1 Before the installation 1、Machine shell to be checked without deformation caused by pressure or force.
  • Page 4   In order to fix the steam oven with cabinet， please open the steam oven door and insert four wood screws into the four hole around frame and fix them.  ...
  • Page 5   Note: the installation and handling, please do not use the handle for stress point  ...

  • Page 6: Safety Precaution

      3、SAFETY PRECAUTION Warning：Only a qualified person can install ,repair and remove the oven，Please keep child away.  Before you cook on the steam oven for the first time, turn the appliance on at highest temperature. This will remove oils left on the appliance during manufacture. Do not leave cooked food in steam oven for a long time to avoid too much ...

  • Page 7: Structure Of Diagram

      5、STRUCTURE OF DIAGRAM 1、 Control panel 2、 Water Box 3、 Seal Ring 4、 Racks 5、 Pan 6、 Perforated pan 7、 Door Available Accessories Perforated container：Cooking for fresh or refrigerant vegetables, meat and poultry. Non-perforated container：Cooking for preserved fruit、dumplings. Rack：Cooking for foods with small utensils ,Like: steam bun, sweetmeats。 6、DESCRIPTION OF FRONT PANEL CONTROLS  ...

  • Page 8: Get To Know Steam Oven

      PT1. This button is used to setup time, choose cooking time length, high and low temperature. PT2. This knob is for setting operation and the start and end of programmer. DSP1. This displays the time of programmer executing and clock DSP2.

  • Page 9: Functions

      8、FUNCTIONS 8.1 Menu Under standby state, presses PT2 to boot function choose, turn PT2 to choose function. The chosen function will be shown on DSP3.Preset temperature and parameter will be shown on DSP2. Note ：1、When the cavity temperature reaches the preset temperature, temperature icon “...

  • Page 10: Vegetables Cooking (Automatically)

      the appliance begins to work. Steam fish function icon “ ” and temperature icon “ ” will flash, working time icon “ ” and high water level icon “ ” will light. Notice: Temperature of foods will flash alternately. Different fish have different temperature;...

  • Page 11: Pizza Function (Steam Oven Function)

      8.7 Pizza Function (Steam Oven function) -Choose pizza function “ ”, DSP1 no display, DSP2 display 200 g -Press PT1, and turn PT1 to set weight. Then press PT2, cooking begin to work, pizza function ion “ ” will flash, work time icon “ ”...

  • Page 12: Timed

      Plate Dishes Rack Ready-Made Remove lid from Rack Meals/Frozen Container and Put on rake Beans Disinfection:time Rack And temperature Cherries Rack According to 1L Plums Rack capacity Baby Bottles Rack 9、TIMED After setting cooking time and parameter, press PT1,delay time function begins to work, and DSP4 shows “...

  • Page 13: End Program Without Steam Function (Grill And Pizza)

      mode. If water in boiler is higher than 75℃， DSP1 and DSP2 will flash PUMP OUT. When the water is lower than 75℃， it shows PUMP OUT meaning water is automatically pumped to water tank from boiler. After the pumping is finished, it will go to standby mode automatically.

  • Page 14: Cleaning And Maintenance

      You can either open or close the oven door when you begin descaling，procedures are as follows:  With the appliance in OFF status, keep PT1 pressed until OFF SHO appears on DSP1,press PT1 continuously until ENTR CAL appear on DSP1 and DSP2.Descaling indicator “...

  • Page 15: Display Information

      connect the appliance to the electrical mains ;or unplug the appliance if the plug is accessible ; 2）Remove the glass cover of the lamp-holder ; 3）Remove the lamp and replace with a lamp resistant to high temperatures with the following characteristic.
  • Page 16    Strange noise happens when steam oven is in operation! - Cooking in the process of work noise, such as: steam generator of the pump. - Cavity body cavity pressure of steam in the produce. (These are normal phenomenon). ...
  • Page 17 This guarantee does NOT cover: irreparable as agreed by the engineer approved by Apelson Appliances UK Ltd then we reserve the right, at Appliances that have been damaged or neglected as a our discretion, to exchange the defective product with...
  • Page 18 USEFUL CONTACTS USEFUL CONTACTS TECHNICAL SUPPORT Apelson Appliances UK LTD Phone: 0844 800 1128 Email: uksupport@apelson.co.uk Web: www.myspareparts.co.uk SPARES Apelson Appliances UK LTD Phone: 0844 800 1128 Email: uksupport@apelson.co.uk Web: www.myspareparts.co.uk SERVICE AND GUARANTEE Apelson Appliances UK LTD Phone: 0844 800 1128 Email: uksupport@apelson.co.uk...
