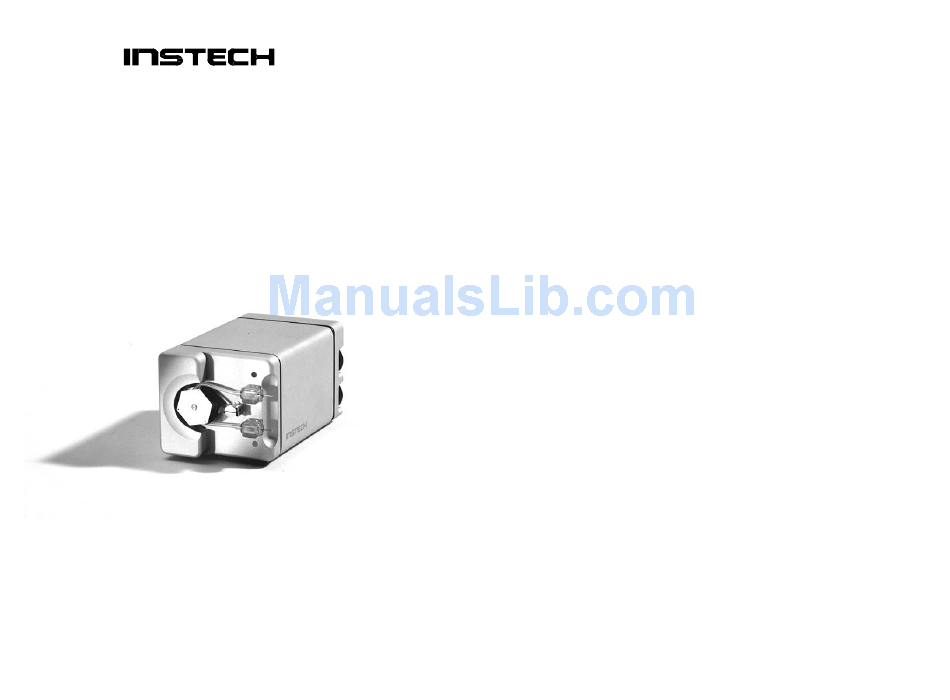

- Page 1 Model P720 Peristaltic Pump Operation Manual NOTE: This pump is a laboratory device. It is not intended for use on humans. Instech Laboratories, Inc. cannot assume liability from improper use of its products.
- Page 2 0.2 to 180 ml/hr,* to work with a variety of solutions, and to pump in single or dual channel mode. The Model P720 can operate as a stand-alone pump or as an ele- ment in closed loop control applications using the external speed control input.
-
Page 3: Battery Installation
Set-up Check for signs of shipping damage. You should have received: 1 ..Model P720 pump 1 ..Wall mounted 15V DC power adapter 1..9V lithium battery 1 ..3.5mm stereo jack (for external speed control) Order tube sets separately. - Page 4 4. Make sure that the removal ribbon is below the battery. 5. Place the battery into the compartment and replace access plate. Testing Battery Backup Operation 1. Place speed source selector in INTernal position. 2. With no external adapter attached, turn on POWER switch and check pump end for illumination of red LED.
- Page 5 Pump tube installation Pump Tube Removal 1. Press the purge button. 2. Lift the input side of the tube out of the holder. 3. As the rotor turns, lift the input side until the entire tube has disengaged. 4. Remove the output side from its holder.
-
Page 6: Operation
Operation Stand Alone Operation 1. Insert the power jack into the pump first, then plug the 9V DC wall mount supply into an AC outlet. 2. Press in the pump POWER switch. 3. Attach inlet and outlet lines as required. Due to the low flow rates, it is usually best to attach the lines to the pump tube connector, fill the system, clear any air bubbles, pinch off the line to stop any flow and then install the pump tube into the... - Page 7 EXTspeed in input Monitor voltage Out. Stereo jack connections for EXTernal speed control The control voltage passes through the speed control potentiome- ters and can be attenuated via the knob settings. This is a useful feature when operating more than one pump from a common control line since it allows individual speed adjustment for each pump.
- Page 8 Calibration Instech’s P720 peristaltic pumps use tube sets of different sizes to cover the range of flow rates. The base model P720, with a motor that has a 900:1 gear ratio, will have flows from approximately 0.2 to 180 ml/hr (see chart below). Other models, such as the P720/66, /10K or /37K will have different ranges as shown in the spec sheet posted on the Instech website.
- Page 9 1. Attach either the inflow or the outflow tube to a container on a balance, or one whose weight is precisely known. Ensure that all the air has been removed from the lines. 2. Set the pump dials to 110 to run the motor at maximum speed (coarse speed control: 100, fine speed control: 10), and turn on the pump motor.
-
Page 10: Replacement Parts
Next choose the tube material and inlet and outlet connectors using the table below. When ordering, give Instech a part number that specifies: inlet connector–tubing– outlet connector. For example, LL-020S-22 specifies a single channel .020” silicone tube with a male Luer lock inlet connector... - Page 11 Pumps with spur gearheads (P720/37K, P720/10K and P720) are more susceptible to this stress than are pumps with planetary gearheads (P720/66). In addition, dual 062 tube sets make contact with the sides of the pump rotor, which will cause those tube sets to wear faster than other sizes.
- Page 12 Available tube set materials, sizes and connectors Tube size (ID) Material Infusate .015" .020" .031" .062" .093" Silicone Saline, most drugs 015S 020S 031S 062S 093S C-FLEX® IV diets with fats 020C 031C 062C 093C VITON® Petroleum-based fluids 020V 062V Channel Inlet and outlet connectors .015"...
-
Page 13: Specifications
Accessories Instech also offers a range of accessories and replacement parts for its peristaltic pumps. Call for current prices. Part Number Description P720/RMC Rod mounting clamp. Attaches P720 and P820 pumps and controllers to standard rod mounting systems (including Instech’s UNIMOUNT). - Page 14 Instech Laboratories, Inc. Instech has been a leading provider of instruments for medical and biological research for over 40 years. Our reputation for quality and reliability is recognized by research facilities, universities and a wide range of companies throughout the world.
