Summary of Contents for Sancon SAMCOM FTAN10A

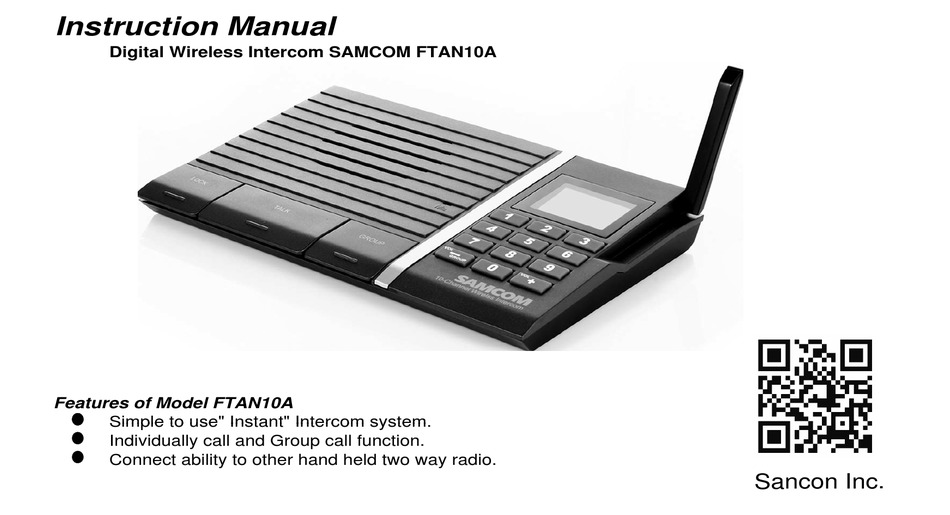

- Page 1 Instruction Manual Digital Wireless Intercom SAMCOM FTAN10A Features of Model FTAN10A Simple to use" Instant" Intercom system Simple to use Instant Intercom system. Individually call and Group call function. Connect ability to other hand held two way radio. Sancon Inc.
-
Page 2: Table Of Contents
SANCON Sancon Inc. assumes no responsibility of any damages or loss resulting from use of this Manual Sancon Inc. assumes no responsibility for any loss or claims by third partly which may arise ibilit f b thi d hi h through the use of Wireless Intercom FTAN10A Sancon Inc. -
Page 3: Get Acquaint Q
1. Get Acquaint Description of Buttons and Keys ABC Switch ABC Switch DC Input (Mini USB) DC Input (Mini USB) Antenna LCD Unit 10 Keys Unit LOCK KEY TALK KEY GROUP KEY... -
Page 4: Display Symbols And Icons
Display symbols and icons Selective icon Power On icon Channel icon ABC icon Group icon VOL icon... -
Page 5: Set Intercom Channel And Function
2. Set INTERCOM channel and function Set Channel Factory settings for all INTERCOM channel is 1 Factory settings for all INTERCOM channel is 1 Each INTERCOM should have own channel to be called other INTERCOM individually. To set INTERCOM channel, select number from 1 to 9 and depress for 8 seconds After 8 seconds, short beep sound will be generated and New set channel will be displayed in LCD unit automatically. -
Page 6: Set Group Channel
Set Group channel Factory settings for all Group channel is 0, if no interference sound or interface from the neighbor system need not be resetted neighbor system need not be resetted. To set new Group channel for each INTERCOM, following are the step: 1. -
Page 7: Abc Switch Function
ABC switch function FTAN10A has special ABC selection switch. All the ABC switch should set in the same position such as "A" position All the ABC switch should set in the same position such as "A" position. If you find some interference sound or interface from the neighbor system, you can change to ABC switch to other position "B"... -
Page 8: Basic Operation
3. Basic Operation Power up and standby Connect USB power cable to INTERCOM, small beep alert will be heard and icon will be appeared to indicate the INTERCOM is in the standby mode. While standby mode, you can see INTERCOM channel number in the LCD unit display. In this standby mode you will be called by other INTERCOM automatically without depressing any keys Channel 8 standby display... -
Page 9: Reception From Other Intercom
Reception from other intercom You will be called by other INTERCOM automatically. Antenna Antenna INTERCOM has the external Antenna To get better communication range it would be recommend to pull up the Antenna as picture. Volume control You can adjust the volume by pressing "+" key or "-" key. You can adjust the volume by pressing + key or key. -
Page 10: Talk To Other Intercom
Talk to other intercom To talk to other INTERCOM. Press 10 key unit to select which INTERCOM to be talked with. then press TALK key to start to speak. While talking to other INTERCOM Selective call icon and selected channel number will While talking to other INTERCOM, Selective call icon and selected channel number will appear in the LCD LCD when selected channel 6 as a selective call... - Page 11 Note: 15 seconds after the last reception or last transmission. INTERCOM will return channel to own channel automatically (standby mode) LCD when selected channel 6 as a selective call Channel 8 standby display NOTE: When press the TALK key then LCD back light color will change from white to red to indicate that INTERCOM is under transmissions mode.
-
Page 12: Talking Lock Operation G P
Talking lock operation INTERCOM has the LOCK key to make you hands free speaking mode. When press LOCK key at once INTERCOM will enter the transmission When press LOCK key at once. INTERCOM will enter the transmission mode continuously. So you can speak to other INTERCOM without any pressing keys. -
Page 13: Group Call Operation
Group call operation INTERCOM has a unique GROUP call function. When under the group call operation you can speak to all the INTERCOM simultaneously call operation you can speak to all the INTERCOM simultaneously. Or you will be called by other INTERCOM on GROUP call and your INTERCOM will change channel from own channel to GROUP channel automatically. - Page 14 Monitor operation INTERCOM also has unique application for Monitor operation. You can listen other rooms voice continuously to use LOCK key. INTERCOM in the monitor room, select your own channel and press LOCK key. Monitor room Your room Channel 6 Channel 6 Channel 8 Channel 8...
- Page 15 4. Important precaution Note the following important precautions before using INTERCOM for the first time. This INTERCOM contains precious electronic components, Avoid temperature extremes during use storage and do not subject it to strong impact during use storage, and do not subject it to strong impact. Avoid using it in area where it might come into direct contact with liquids and avoid very high humidity.
- Page 16 THE FCC WANTS YOU TO KNOW Your intercom might cause TV or radio interference even when it is operating properly. To determine whether your intercom is causing the interference, turn off the stations, if the interference goes away, your intercom is causing the interference. Try to eliminate the interference by: Moving your stations away from the receiver.
