Guy Support Assembly:

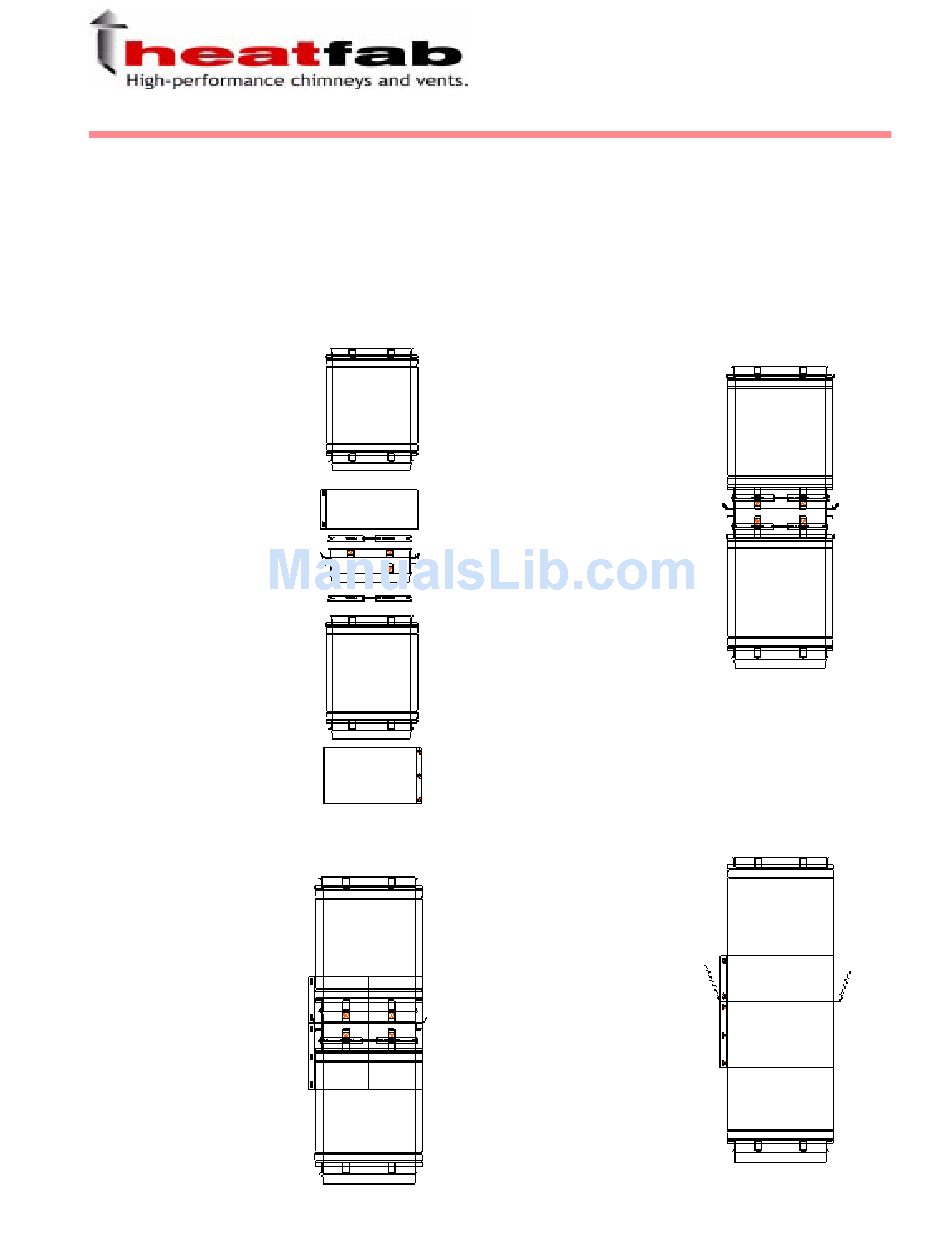

Assemble the guy support to the vent sections as shown in the joint assembly instructions. Once
the guy support is assembled to the vent sections, figure 1, install the 5" long coupler from the guy
support so that it fits directly on top of the guy brackets. On the vent section below the guy
support, attach the 8" long coupler so that it fits up to the bottom of the guy brackets, figure 2. The
guy support is now totally enclosed with only the guy brackets protruding, figure 3. The guy lines
can be attached before or after installation of the couplers.
Vent Section
above Guy Support
Guy Support
Coupler Band,
5" Long
Locking Strap
Guy Support
Locking Strap
Vent Section
below Guy Support
Vent Section
Coupler Band
8" Long
Guy Support Coupler
attached above and
Vent Section Coupler
attached below.
Figure 2
Saf-T Vent CI Plus
GUY SUPPORT
Installation Instructions
Guy Support
assembled
to Vent.
Figure 1
Guy Support Brackets
for attaching Guy Lines.
Figure 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HeatFab Saf-T Vent CI Plus
Summary of Contents for HeatFab Saf-T Vent CI Plus
-
Page 1: Installation Instructions
Saf-T Vent CI Plus GUY SUPPORT Installation Instructions Guy Support Assembly: Assemble the guy support to the vent sections as shown in the joint assembly instructions. Once the guy support is assembled to the vent sections, figure 1, install the 5" long coupler from the guy support so that it fits directly on top of the guy brackets. - Page 2 Spacing Between Supports Diameters Spacing 6" thru 12" 14" thru 18" 20" thru 24" 26" thru 32" The Guy Supports can be used in five different applications: 1.To Lower a Stack Inside of a Chase 2.To Support a Stack Above a Roof 3.To Support a Stack from Below a Floor or Roof 4.To Support a Stack Above a Floor 5.To Support Horizontally...
- Page 3 APPLICATION 2. Support Above a Roof (Figure 5). Required if stack extends more than 6' above the roof. Note: When using a guy support above a roof, the stack below the roof must be supported. Install the guy support between the last 2 sections of straight vent. Attach guy wires or chains, with a minimum rated capacity of 500 lbs.
- Page 4 APPLICATION 3. Support Below a Floor or Roof (Figure 6). Attach guy wires, chains, or threaded rod with a minimum rated capacity of 500 lbs. to the four hole locations on the support brackets. Anchor the guy lines to the building infrastructure on the underside of the floor or roof.
