Tuuci Equinox INSA6000 Assembly Instructions Manual

Tuuci Equinox INSA6000 Assembly Instructions Manual

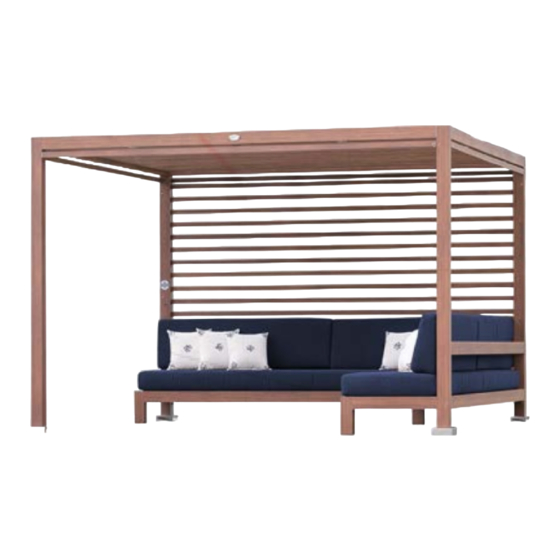

Outdoor cabana, single unit

Advertisement

Quick Links

PMS 1&2 COLOR
PMS 877 C
PMS 1795 C
PMS 877 C
PMS 1795 C
single unit assembly instructions
Equinox MANUAL
BLACK & WHITE 1
BLACK
WHITE
INSA6000

Advertisement

loading
Need help?

Need help?

Do you have a question about the Equinox INSA6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tuuci Equinox INSA6000

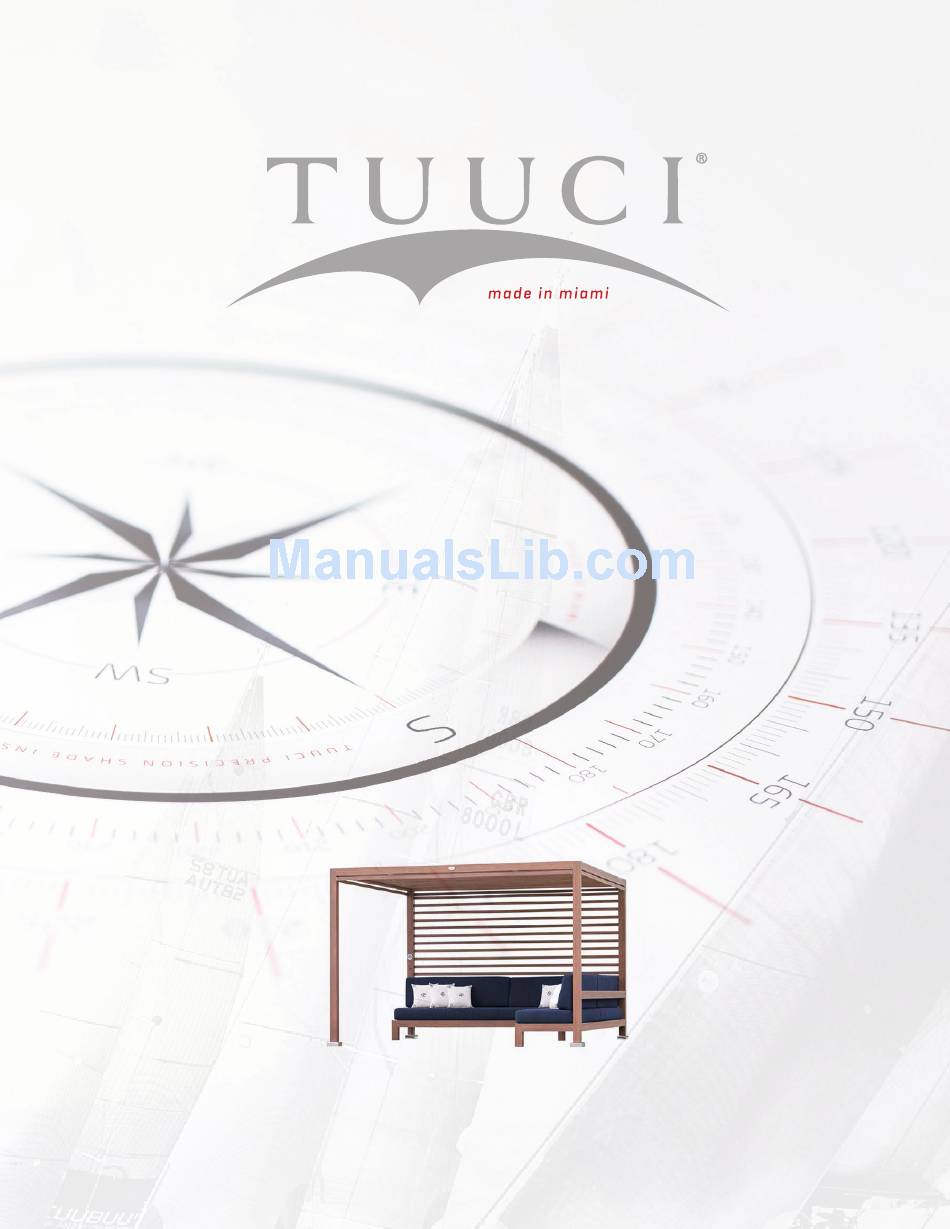

  • Page 1 PMS 1&2 COLOR BLACK & WHITE 1 PMS 877 C BLACK PMS 1795 C PMS 877 C WHITE PMS 1795 C Equinox MANUAL single unit assembly instructions INSA6000...
  • Page 2: Table Of Contents

    Hard top fabric roof for square and rectangle (excluding 12’ square) pages 19-21 Hard top fabric roof for 12’ square pages 22-24 Single Bench installation pages 25-28 L-Bench installation pages 29-33 Trellis wall installation pages 33-34 Curtain installation pages 35-36 Care and Maintenance page 37 Warranty page 38 INSA6000 tuuci...
  • Page 3 TO ASSEMBLING THE CABANA SEE PAGE 4 9x9 Plate FOR END CAP BRACKETS - SEE PAGE 15 FOR CABANAS WITH IGSM AND LEVELING BASE OPTIONS BASE MUST BE INSTALLED PRIOR TO ASSEMBLING THE CABANA Leveling Base SEE PAGE 9 IGSM INSA6000 tuuci...
  • Page 4 Expansion anchor Anchor punch 1/4” Drill bits 5/8” & 1” Qty: 8 pieces (per base) Qty: 1 piece Not included Recommended: Hammer Recommended: Drilling Gun Recommended: Chalk line reel Not included Not included Not included INSA6000 continued on next page tuuci...
  • Page 5 Turn 9”x9” plate over and place on the floor aligning the holes perpendicular to the chalk lines, as shown in Figure A. Using the 9”x9” plate as a template mark each hole. Reference Figure B. 9”x9” SS base plate FIG B INSA6000 continued on next page tuuci...
  • Page 6 4 inner holes. anchor spike Step 5: Clean holes from debris and place anchors in each hole making sure anchor is below the surface. Use the anchor spike to set the anchors in place. INSA6000 continued on next page tuuci...
  • Page 7 9”x9” base plate through the oval washers. security base stem ss oval washer 9”x9” base plate Step 8: Using the level tool (not included), adjust security base stem with the leveling bolts. security base stem 9”x9” base plate leveling bolt INSA6000 continued on next page tuuci...
  • Page 8 INSTALLATION INSTRUCTIONS STEM w/9” 9” PLATE Step 9: Install columns as illustrated. column beauty cover security leveling base orient stem through hole with column through hole mount 3/8-16” x 3/4” flat-head socket cap screw INSA6000 tuuci...
  • Page 9 140” / 355.6 cm 181” / 460 cm FIG A DIM B DIM A DIM C Step 2 Design concrete slab with dimensions of 31.5” (80cm) x 27.6” (70cm) for each center marked from step 1. INSA6000 continued on next page tuuci...
  • Page 10 Make sure the top of the in-ground is flush and leveled with the top of the concrete. 90 degree Step 4 Place the leveling base on the IGSM and mount with 1/2 inch bolts. Adjust leviling base with the leveling bolts. Leveling Base Leveling Bolts IGSM INSA6000 continued on next page tuuci...
  • Page 11 INSTALLATION INSTRUCTIONS STEM w/IGSM BASE Step 5: Install columns as illustrated. column beauty cover security leveling base orient stem through hole with column through hole mount 3/8-16” x 3/4” flat-head socket cap screw INSA6000 tuuci...
  • Page 12 ASSEMBLY & OPERATING INSTRUCTIONS COLUMNS & BEAMS FRAME STRUCTURE Note: columns and beams are labeled as followed “B” - indicates Beam “C” - indicates Column INSA6000 tuuci...
  • Page 13 Attach/connect column (C1), beam (B1), and column (C2) on the floor laying horizontally. Step 2 Attach/connect beam (B2), and col- umn (C3) on the floor. Move sub- assemblies upright, and fasten to column C2. INSA6000 continued on next page tuuci...
  • Page 14 ASSEMBLY & OPERATING INSTRUCTIONS COLUMNS & BEAMS FRAME STRUCTURE Step 3 Attach/Connect column (C4) to beam (B3) on the floor, move upright and fasten to column (C3). Step 4 Attach/Connect beam (B4) to column (C1) and (C4). INSA6000 tuuci...
  • Page 15 ASSEMBLY & OPERATING INSTRUCTIONS END CAP BRACKET AND BEAUTY COVER Install beauty cover before mounting end cap bracket column end cap bracket and beauty cover installation Once cabana is stationed in its desired location mount end cap brackets. INSA6000 tuuci...
  • Page 16 ASSEMBLY & OPERATING INSTRUCTIONS TRELLIS ROOF INSTALLATION INSA6000 tuuci...
  • Page 17: Trellis Roof Installation

    TRELLIS ROOF INSTALLATION Step 1 Remove pre-installed 1/4”-20 cap screws from beams (B2) and (B4). 1/4”-20 cap screws (typical) Step 2 Install each trellis roof as illustrated. Use previously removed 1/4”-20 x 3/4” cap screws. INSA6000 tuuci...
  • Page 18 HARD TOP FABRIC ROOF FOR SQUARE AND RECTANGLE ASSEMBLY & OPERATING INSTRUCTIONS (EXCLUDING 12’ SQUARE) 3 Panels see page 20 ASSEMBLY & OPERATING INSTRUCTIONS HARD TOP FABRIC ROOF 12’ SQUARE 5 Panels see page 22 INSA6000 tuuci...
  • Page 19 (B2) and (B4). 1/4-20 cap screws (typical) Step 2 Place rear and center trellis roof panel on cabana. Secure previously top panel trim removed 1/4”-20 cap screws. Snap in place top panel trim extrusion. rear center continued on next page INSA6000 tuuci...
  • Page 20 3 TOTAL PANELS TO INSTALL Step 3 Place front trellis roof panel on cabana. Fasten ¼”-20 cap screws. Snap in place panel trim extrusion (top part) including front and back. back trim extrusion front trim extrusion roof panel INSA6000 tuuci...
  • Page 21: Hard Top Fabric Roof For 12' Square

    (B2) and (B4). 1/4”-20 cap screws (typical) Step 2 Place rear and adjacent trellis roof panels on cabana. Fasten previously removed 1/4”-20 x 1-1/2” cap screws. Snap in place panel trim extrusion (top part). continued on next page INSA6000 tuuci...
  • Page 22 Step 3 Place center roof panel and snap in place trim extrusion. Step 4 Place trellis roof panel and fasten previously removed 1/4”-20 x 1-1/2” cap screws. Snap in place panel trim extrusion (top part). continued on next page INSA6000 tuuci...
  • Page 23 HARD TOP FABRIC ROOF INSTALLATIONS FOR 12’ SQUARE 5 TOTAL PANELS TO INSTALL Step 5 Place final trellis roof panel and fasten previously removed 1/4”-20 x 1-1/2” cap screws. back trim extrusion front trim extrusion Step 6 Snap in place trim extrusions in three places. INSA6000 tuuci...
  • Page 24 ASSEMBLY & OPERATING INSTRUCTIONS SINGLE BENCH INSTALLATION INSA6000 tuuci...
  • Page 25: Single Bench Installation

    SINGLE BENCH INSTALLATION Step 1 Remove bottom bracket from bench beams before dropping blades through column slot. Step 2 Once beams are installed, install bottom bracket and fasten to beam. Repeat process on other ends continued on next page INSA6000 tuuci...
  • Page 26 SINGLE BENCH INSTALLATION Step 3 Install angle brackets on lower beams. Step 4 Install inner bench beams and legs. Secure with 3/8”-16 hex cap screws. continued on next page INSA6000 tuuci...
  • Page 27 SINGLE BENCH INSTALLATION Step 5 Install bench support panels (no fastener required). Step 6 Mount cushions continued on next page INSA6000 tuuci...
  • Page 28 ASSEMBLY & OPERATING INSTRUCTIONS RIGHT & LEFT L - BENCH INSTALLATIONS INSA6000 tuuci...
  • Page 29 RIGHT & LEFT L - BENCH INSTALLATIONS Step 1 Remove bottom bracket from bench beams before dropping blades through column slot. Step 2 Once beams are installed, install bottom bracket and fasten to beam. Repeat process on other ends continued on next page INSA6000 tuuci...
  • Page 30 Install angle brackets on all lower beams. 1/4”-20 cap screws (typical) Step 4 Install inner bench beams and legs. Secure with 3/8”-16 hex cap screws. Step 5 Install support beams using bolts through bottom slot. continued on next page INSA6000 tuuci...
  • Page 31 RIGHT & LEFT L - BENCH INSTALLATIONS Step 6 If necessary use bed post leveler Step 7 to level bench to floor Install bench support panels (no fastener required). Step 8 Mount cushions INSA6000 tuuci...
  • Page 32 ASSEMBLY & OPERATING INSTRUCTIONS TRELLIS WALLS INSTALLATION trellis walls w/ bench trellis walls INSA6000 tuuci...
  • Page 33: Trellis Wall Installation

    TRELLIS WALLS INSTALLATION Install trellis walls using 1/4”-20 trellis walls Allen Key Flat Heads. 1/4”-20 Allen Key Flat Head (typical) trellis walls w/ bench INSA6000 tuuci...
  • Page 34 ASSEMBLY & OPERATING INSTRUCTIONS CURTAIN INSTALLATION INSA6000 tuuci...
  • Page 35: Curtain Installation

    Insert curtain bar into column bracket on one side. curtain bar Step 3: Slide-up curtain bar onto other side bracket per detailed view and Step 4: lock-in with pin. Attach curtains to column with turn buttons bracket locking pin INSA6000 tuuci...
  • Page 36 • Prior to opening, ensure that the shade product is properly secured to an adequate shade anchor. • When opening a TUUCI parasol, separate each rib 6 inches from the center post, before raising the hub. Do not force hub if it does not rise easily.
  • Page 37 If warrantable damage occurs to the charges incurred by claimant or TUUCI as a result of a warranty claim. War- hubs, center pole or stainless steel hardware, TUUCI will replace or repair ranty covers only parts and the labor to manufacture the parts for non- any item listed in this category at its discretion.
  • Page 38 PMS 1795 C global mission control 2900 NW 35th Street, Miami, FL 33142 USA / 305.634.5116 info@tuuci.com europe shade post Nedervonder 17, 5061 JP Oisterwijk, The Netherlands / +31.13.522.0471 info@tuuci.eu asia shade post Level 24, 138 Market Street CapitaGreen, Singapore 048946 / +0650.3794715...
