Summary of Contents for Wurlitzer OMT K 99

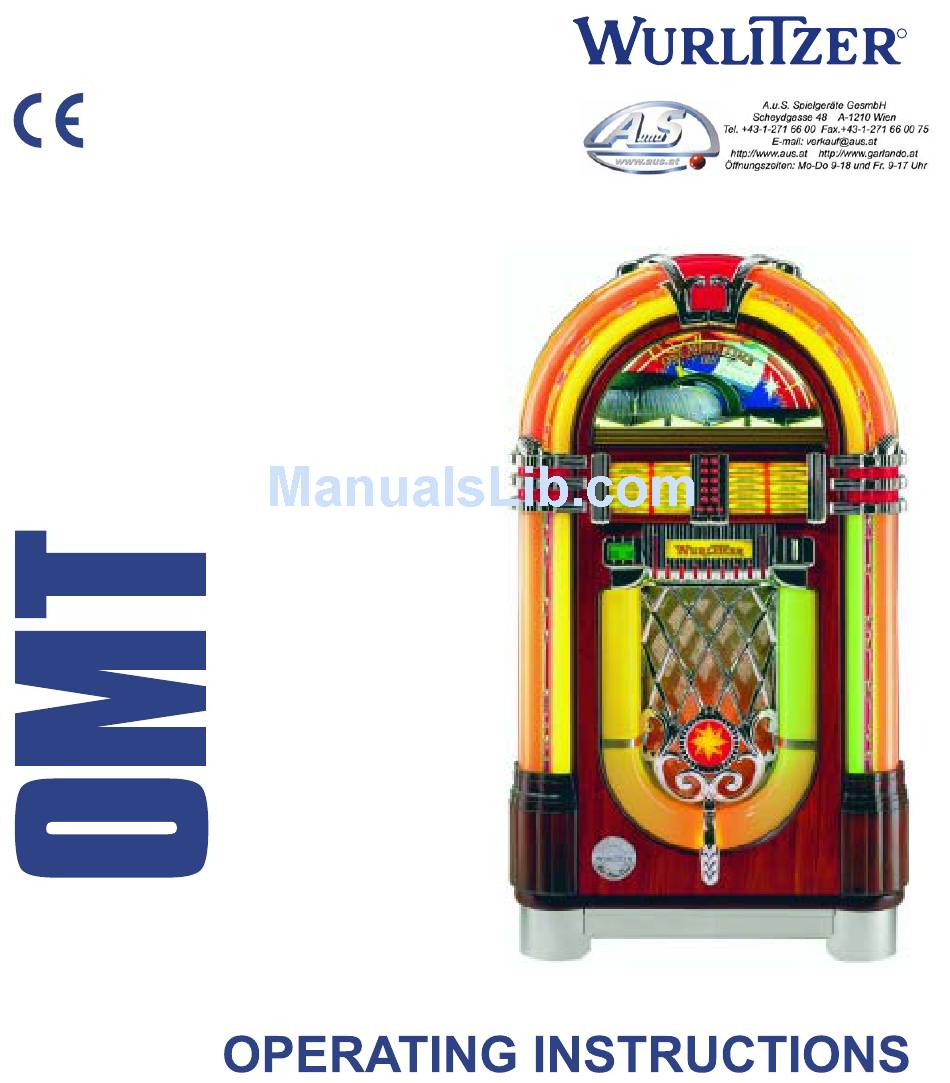

- Page 1 MORE TIME CD K 99/F 91...
- Page 2 Warning CLASS LASER PRODUCT 3122 110 03420 Although the beam emitted by the laser diodes is nearly invisible, it may cause damage to the human eye. When the laser is being operated, the emitting surface must not be viewed either directly or through a lens, fiber or mirror. Caution The CD mechanism and many electronic components are extremly susceptible to electrostatic discharges.
-
Page 3: Table Of Contents
Unpacking ............3 Unlocking . - Page 4 External amplifier connection ............18 Position of fuses and plug connectors on the K99 .
-
Page 5: Unpacking
Unlocking Unpacking Unlocking The key is stored in the coin return cup in the RH cabinet wall. The key WUA 1 unlocks the cabinet by turning the key clockwise. The lock is spring loaded, press slightly against the door, this allows the key to turn easily. -
Page 6: Loading Compact Discs
Removal of motor book shipping guards Loading compact discs Removal of motor book shipping guards Cut both plastic strings on both sides of the book (1). Press push buttons (2) inside and turn down the book (3). Remove elastic band from the motor book systems (4). -
Page 7: Cd Handling Precautions
CD handling precautions CD handling precautions Dust, fingerprints or other dirt on the disc surface can cause skipping, jumping or sticking problems. Use only clean and undamaged CDs. Never touch the surface of a disc. Inserting CDs Insert up to 50 or 100 CDs, depending on the compartments in the carrier. - Page 8 Inserting CDs ATTENTION! For carriers with 100 CDs the position ’00’ is the 100th CD. It is recommended to insert the Compact Disc and then the title page into the appropriate numerical slot position of the motor page system. The pages can be turned manually by hand without any damage to the motor drive.
-
Page 9: Programming Number Of Cds In The Carrier
Programming number of CDs in the carrier Programming number of CDs in the carrier At the rear wall inside the jukebox cabinet the Selection & Credit Computer is situated. Some units are equipped with a metal cover. In this case the slide switch "SERVICE"... -
Page 10: Coin Operation Or Free Play
Coin operation Coin operation or free play? Both coin operation or free play are adjustible at the jumper from 0 to F button LT “Selection & Credit Computer” unit. It is located at in row GP the rear wall inside the cabinet underneath the CD- player. -
Page 11: Test Credit
Test credit Test credit For repair and test purposes it is possible to give test credits. By touching the test credit button you get one credit also shown in the digital display. You can terminate un-used credits by pressing the LT button. -
Page 12: Track Selection
How to select a track Track selection How to select a track If credit exists or free play is set you can select tracks by means of the buttons 0 - 9 on the keyboard. First enter the number of the CD with two digits, then the track with two digits too. Example: CD 2, track 9: Enter 0 - 2 - 0 - 9 (Exception: CD 100 = 00.) The button R You can delete wrongly entered numbers up to the... -
Page 13: I Do Not Like This Track - The Button Cancel
I do not like this track - the button CANCEL I do not like this track - the button CANCEL If you do not like a track you can cancel it by pressing the button 'CANCEL' at the rear side of the jukebox or at the remote control. -
Page 14: Volume, Sound And Balance Control - Amplifier F91
The control terminal at the rear Volume, sound and balance control - amplifier F91 ATTENTION! Depending on adjusted volume of the jukebox noise levels of more than 70 dB can be reached. The control terminal at the rear With the control terminal at the rear side of the jukebox the volume, treble, bass and balance can be current controlled individually. -
Page 15: The Infrared Remote Control
The infrared remote control The infrared remote control As desired an infrared remote control will be installed from factory or can be delivered as conversion kit (part no. 0040435). If it has been installed the hand transmitter is located in the cashbox. If credit is given or free play is programmed a CD ART.NR.: 0040443 can be selected with the buttons 0 to 9 and R. -
Page 16: Pre-Settings For Volume
Pre-settings for volume Pre-settings for volume After power on of the jukebox or after pressing the Tone Treble Low Level Input CD button ‘preset’ the values of volume, bass and treble Bass Clipping Remote Amplifier F91 reach the values set by the DIP switches. 0039155 Input Tape You can set the basic values for volume in 63 steps... -
Page 17: Volume, Sound And Balance Control - Amplifier K99
Volume control Volume, sound and balance control - amplifier K99 Volume control You can control the volume of the jukebox from different points at the same time: ECKEL BNEHMEN EMOVE OVER Verstärker K 99 With the pots Vol.1 and Vol.2 on the amplifier. Amplifier K 99 C-UL ECHANIK ECHANISM... -
Page 18: The Infrared Remote Control
The infrared remote control The infrared remote control As desired an infrared remote control will be installed from factory or can be delivered as conversion kit (part no. 0058809). If it has been installed the hand transmitter is located in the cashbox. If credit is given or free play is programmed a CD RCS-K No.: 0059745... -
Page 19: Treble And Bass Control
Treble and bass control Treble and bass control You can control the sound with the knobs ECKEL BNEHMEN bass and treble on the amplifier. EMOVE OVER Verstärker K 99 Amplifier K 99 C-UL ECHANIK ECHANISM TEREO CAUTION TO REDUCE THE RISK ntern xtern OF FIRE REPLACE ONLY... -
Page 20: External Amplifier Connection
External amplifier connection External amplifier connection On the RCA terminals “Ausgang - Output” you ECKEL BNEHMEN can connect an external amplifier with any EMOVE OVER power rate. In Stereo mode the output level is Verstärker K 99 0056041 ECHANIK Amplifier K 99 C-UL 0058484 ECHANISM normally controlled by means of the pot for the... -
Page 21: Position Of Fuses And Plug Connectors On The K99
Position of fuses and plug connectors on the K99 Position of fuses and plug connectors on the K99 Usually the jukeboxes are fitted with fuses of DIN 41571 (5x20 mm) slow blow or medium blow. Slow blow fuses of DIN standard bear ECKEL BNEHMEN EMOVE... -
Page 22: External Speaker Connection
External speaker connection Fuse Failure Main fuse T 3.15, res. T8 A for 110/117 V. No illumination, machine completely dead. Fuse F1: T4A supply 30V ~ The digital digit on the CD-control is dark. Power supply for CD player and control unit is interrupted. Credit circuit via LED M is interrupted. - Page 23 External speaker connection The impedance of all external speakers per channel in ”Stereo” mode should Normal operation mode (Stereo) not be less than 8 ohms, because the DIP switch “Mode”, slide switch Stereo-2channel and Mono-Stereo switch cabinet speakers represent a load of in position STEREO already 8 ohms per channel.
-
Page 24: Technical Data
Technical data Connect external speakers to the screw terminals on the LH amplifier side. ECKEL BNEHMEN EMOVE OVER Verstärker K 99 0056041 Amplifier K 99 C-UL ECHANIK 0058484 ECHANISM In Stereo mode do not connect speakers with TEREO CAUTION TO REDUCE THE RISK OF FIRE REPLACE ONLY ntern xtern... -
Page 25: The Internal Clock
Clock setting The internal clock It is necessary to programme the time, date and weekday once or at least to control these settings. Only then can the jukebox switch on and off the Playstimulator or the Back Ground Music at the desired time. -
Page 26: Set Year And Weekday
Set year and weekday Set year and weekday To display the year and the weekday press selection button 2: Beispiel: The weekdays are assigned to numbers as shown. 0 = Sunday 4= Thursday 1= Monday 5 = Friday 2 = Tuesday 6 = Saturday Jahr 3 = Wednesday... -
Page 27: Automatic Random Select (Playstimulator)
Set year and weekday Automatic random select (Playstimulator) If the Playstimulator is programmed the jukebox plays random tracks of the CDs in carrier registered in the service program level 1, button 5. CDs declared as BGM CDs (ref. to the next chapter) will not be used! The time between the last track played by inserted money and the first random track of the Playstimulator is programmable from 1 up to 98 min. -
Page 28: Programming Start And Stop Time
Programming start and stop time A = number of CDs in the carrier (00 = 100) Example: B = repeat time programmed to 10 minutes A = 50 CDs in carrier Example: B = no random plays A = 63 CDs in carrier Example: B = Playstimulator on, continuousplay Note the number of CDs in carrier. - Page 29 Programming start and stop time press selection button 8. The display shows at first a flashing ’1’. This means ’start time’. Then the time will be displayed, here 14.05 o’clock (2.05 p.m.). Press selection button 8 once again. Now the display shows a flashing ’2’. This means ’stop time’.
-
Page 30: Back Ground Music (Bgm)
Programming start and stop time Exit the service program: Set the slide switch ‘service’ at the SCC unit to OFF. Press ‘LT’ button. The changer starts an initialisation run. After this the jukebox is ready to operate. Back Ground Music (BGM) If BGM is programmed and activated a amplifier F91 random track from the CDs declared for BGM... -
Page 31: Number Of Bgm Cds And Repeat Time
Number of BGM CDs and repeat time To enable BGM (service program, level 3) : amplifier K99 Set the slide switch ‘service’ at the SCC-unit ntern xtern hannel hannel reble to ON. Press ‘LT’ button. NZEIGE ISPLAY Press selection button 4 -hold down- and RS232 press selection button R then release both ICRO... -
Page 32: Start Position For Bgm Cds And Configuration
Start position for BGM CDs and configuration Start position for BGM CDs and configuration Press button 8. The start position of the BGM CDs is displayed in the left two digits. The RH digits indicate whether BGM CDs can be selected over coin insertion or not. A = start position of BGM CDs (01 = factory pre-setting) B = 00 - BGM CDs can be selected B = 01 - BGM CDs can NOT be selected... - Page 33 BGM time zones at different weekdays Press selection button 0 again, the display shows flashing: # 0 (LH) = Sunday # 2 means stop time one, then the time will be displayed, here12.30 o’clock. Press selection button 0 again, the display shows flashing: # 0 (LH) = Sunday # 3 means start time two, then the time will be displayed, here 20.00 o’clock.
- Page 34 BGM time zones at different weekdays Meaning of the digits to be entered Examples: in the example The jukebox should play BGM on Tuesday from 9.30 to 11.45 and from 17.00 to 19.55. To programme press selection button 2 - 0 - 9 - 3 - 0 1 - 1 - 4 - 5 1 - 7 - 0 - 0 1 - 9 - 5 - 5 hold - and press selection button R.
-
Page 35: Further Programming Options
Number of tracks played successively on the same disc Further programming options 10.1 Number of tracks played successively on the same disc The display shows the maximum number of tracks played successively from the same disc if more tracks have been selected. Preset value = 04 tracks, i.e. after four tracks from this CD it will be taken back to the carrier, and the next CD stored in the selection memory will be played. -
Page 36: Selective Disabling Of Tracks
Selective disabling of tracks 10.2 Selective disabling of tracks You can disable up to maximum 25 different tracks of different CDs. If somebody selects a disabled track the digital display flashes. This indicates that this track is not selectable. To disable tracks (service program, level 2): Set the slide switch ‘service’... -
Page 37: Selection And Credit Memory Reset By Power Off
Selection and credit memory reset by power off 10.3 Selection and credit memory reset by power off The function memory reset will cancel remaining credits and selections by power OFF of the jukebox. To enable this function (service program, level 2): Set the slide switch ‘service’... -
Page 38: Player And Cd Cleaning
Nicotine, dust, fingerprints Player and CD cleaning Dust, fingerprints or other dirt on the disc surface can cause skipping, jumping or sticking problems. Because of this never touch the surface of a disc! However it is rather easy to remove nicotine, dust or fingerprints. -
Page 39: Technical Data
Laser lens cleaning Technical data 110 - 240 Volt Power supply Height 152.0 cm Dimensions Width 81.5 cm Depth 64.0 cm 157.0 kg Weight amplifier F91 amplifier K99 100 - 240 V 100 - 240 V Power supply in standby: 146 Watt in standby: 146 Watt Power consumption Max. -
Page 40: Declaration Of Conformity
Laser lens cleaning Declaration of Conformity Konformitätserklärung – Declaration of Conformity – Déclaration de Conformité Geräteart: Musikbox Product Description: Jukebox Typenbezeichnung: OMT CD Model No.: Angewandte EG-Richtlinien: 73/23/EEC Niederspannungsrichtlinie Directives Complied with: Low voltage directive 89/336/EEC Elektromagnetische Verträglichkeit EMC Directive Technische Vorschriften: EN 50081-1 Elektromagnetische Verträglichkeit... -
Page 41: Index
Index Laser lens cleaning ..... . . 36 Albumplay .......11 Player and CD cleaning . - Page 42 Notes OMT CD – Stand: 13.08.2007...
- Page 44 A.u.S. Spielgeräte GmbH Scheydgase 48 A-1210 Wien Tel.: +43 (0) 1-271 66 00-0 Fax: +43 (0) 1-271 66 00-75 verkauf@aus.at Part no.: 0071121 Edition 4708 Wurlitzer® A Registered Trademark of the Gibson Guitar Corporation...
