AV Life SS44RS Manual

Matrix scaller 12x4 quad processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual Matrix Scaller 12x4 Quad Processor
(SS44RS)
Versão 2016.05.17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS44RS and is the answer not in the manual?

Questions and answers

Summary of Contents for AV Life SS44RS

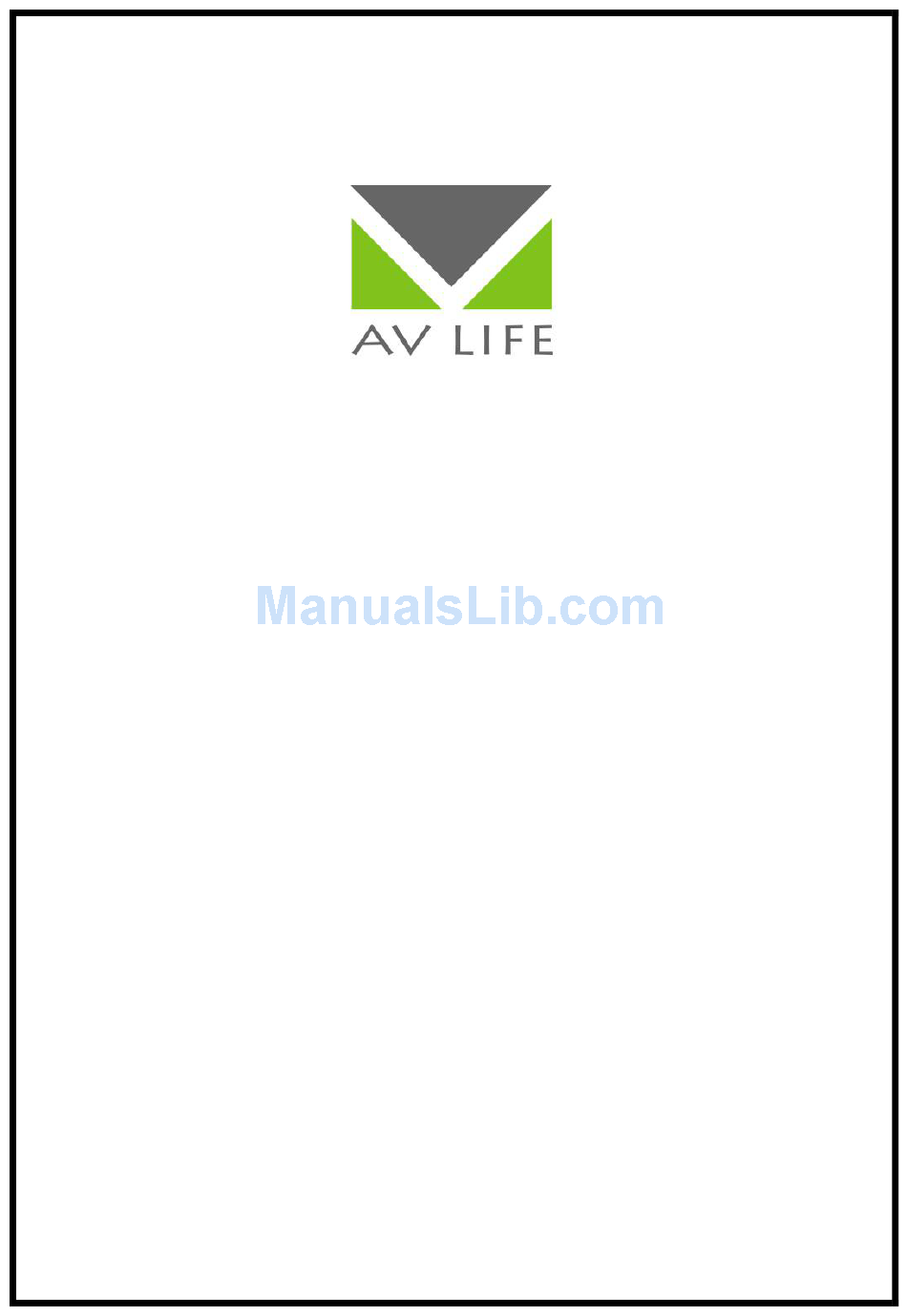

  • Page 1 Manual Matrix Scaller 12x4 Quad Processor (SS44RS) Versão 2016.05.17...

  • Page 2: Package Contents

    1.Introduction The matrix switcher is a high-performance with seamless switching output and mixed input 4x4 matrix switcher,4 mixed input to support digital video signals and analog video signal, and 4 outputs with seamless switching function, seamless switching mode: fast switching, fade in/fade out, blinds and so on; the mixing matrix switcher adopts the advanced digital technology, with scaller function, and achieve a variety of formats to achieve a unified output signal, switching seamlessly perfect visual effects. At the same time it with infrared matrix function, analog video signal input with embedded audio function. Flexible control mode diversity, through the front panel button, remote control,RS-232 and TCP/IP control.

  • Page 3: Specifications

    4.Specifications Input Ports 4×HDMI, 4xVGA, 4xRCA, 1×RS-232, 1xRJ-45(Control), 5×IR INPUT, 4xAudio Output Ports 4×HDMI, 4xIR OUTPUT Input Resolutions Support Up to 1920x1080P@60Hz Output Resolutions Support Up to 1920x1080P@60Hz Control IR , RS-232 , TCP/TP , Buttons ESD Protection Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) Power Supply 12 V/2.5 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 440mm (W)×200mm (D)×44.5mm (H) Weight 2380 g Chassis Material Metal Silkscreen Color Black Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF Relative Humidity 20~90 % RH (non-condensing) Power Consumption 13.5 W(Max)/1.2W(Standby) 5. PANEL FUNCTIONS 5.1 Front Panel Part 1. LCM: Displays the information of each input and output setting and EDID management . Part 2. IR: IR Receiver window (accepts the remote control signal of this device only).
  • Page 4 1. Press the button to select source input. For example: Press input 1>VGA,The input 1 will be select the VGA video input. 2. Press the button to select mode, select matrix, multi-viewer and video wall. For example: a. Select matrix mode, press buttons HDMI/M1 > ENTER. b. Select multi-viewer mode, press buttons VGA/M2 > ENTER, and press buttons A/B/C/D select different mode c. Select video wall mode, press buttons CV/M1 > ENTER, and press buttons A/B/C/D select different input. Part 6. EDID: Smart EDID management, the LCM will display the EDID operation. Press the MENU button will enter the EDID management window, press UP or DOWN button to select the needed EDID setting, press ENTER button to select the download input source. It can easy download any EDID mode to any input source. Note: The EDID mode table EDID Mode EDID Description 1080i, 2CH AUDIO 1080p, 2CH AUDIO DVI 1920X1080 EDID. What is it and what is it used for? Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then...

  • Page 5: Rear Panel

    5.2 Rear Panel Part1: IR Channel IR EXT: if the panel sensor is obstructed or the unit is installed in a closed area out of infrared line of sight, the IR RX receiver included can be inserted into the IR EXT port at the rear to extend the IR sensor range and enable local control of the matrix. IR IN/OUT: Super IR control system interface. for further details, please refer to the Super IR system control introduction. Part2: VGA CV AND AUDIO INPUT Connect to the VGA or CV input source devices such as a DVD player, a Set-top Box or PC with VGA cable or RCA cable.Each VGA or CV input is accompanied with a 3.5mm stereo audio coaxial input. Part 3: PC CONTROL TCP/IP: This port is the link for TCP/IP controls, connect to an active Ethernet link with an RJ45 terminated cable. RS232: Connect to a PC or control system with D-Sub 9-pin cable for the transmission of RS-232 commands. Part4: OUTPUT The HDMI OUTPUT connect to HDMI equipped TVs. Part5: HDMI INPUT Connect to the HDMI input source devices such as a DVD player or a Set-top Box with HDMI cable.

  • Page 6: Ir Control System

    different mode; and in video wall mode, press buttons IN/M1, IN/M2, IN/M3, IN/M4 select different input. (6).Picture adjust: In video wall mode, users can set the bezel size of the adjacent images in zoom-in model, to make the whole image looks coherently 7. IR Control system At Matrix end: Insert the 3.5mm jacks of the IR TX Emitters included with the unit into the IR TX Emitter ports at the rear of the matrix according to input. The IR signal is added to the HDMI of the input device so, for example, if the user is watching Blu-ray on input 1, the IR signal will be directed through the IR TX1 socket to control the device.
  • Page 7 9. PC controller user guide Installation Matrix controller is a green software. Just copy MatrixController.exe to PC which is used to control the Matrix by RS232 COM port or TCP/IP to complete installation. Preparation n Connect PC and Matrix by RS232 cable (headers of both sides of cable should be FEMALE) or TCP/IP(local area network) n Power-up Matrix n Double click MatirxController.exe icon to run it How to control Matrix: “General” page 1. Select RS232 COM or TCP mode 2. Select RS232 COM port 3. Click to connect or disconnect PC and Matrix 4. Select Matrix IP 5. Connect to Matrix IP 6. Search Matrix IP 7. Configure Matrix IP and MAC 8. Click to reset to the factory settings 9. Click to button system into the matrix mode 10. Click to button system into the Multi-viewer mode; for details, please refer to the Multi-viewer mode.
  • Page 8 Ø Configure TCP After action of 7 , edit form will pop-up as below: 1. Select auto or static IP 2. Rewrite the Matrix IP 3. Rewrite the Matrix MAC l The Multi-viewer mode The Multi-viewer mode has a variety of display modes. All the display modes as below: Detailed operations: While the PC software is running normally, click on the button , via the mode of the drop-down box , choose 1/2/3/4 mode, and via the audio of the drop-down box , choose 1/2/3/4 input audio, as the same time via the main of the drop-down box , choose 1/2/3/4 input one as the main picture, and via the Border can add show border or not show border.
  • Page 9 Picture outside Picture (POP) Displaying Mode 1: Mode 2: Mode 3: Picture in Picture (PIP) Displaying Mode 4:...
  • Page 10 l The video wall mode Detailed operations: While the PC software is running normally, click on the button In this area, users can set the bezel size of the adjacent images in zoom-in model, to make the whole image looks coherently. As shown in: Figure 1 and Figure 2 will show you the difference between the original image and the image adjusted. Figure 1 The Original Image Figure 2 The Image Adjusted Diagram of Video Wall Displaying 4x Zoom-in: It means matrix switcher is able to zoom in the input image and spilt to 4 parts, and then full-screen display on the output displayers one to one.
  • Page 11 “EDID control” page 1. Select the needed EDID to input port and click set button the EDID will write to the selected HDMI input ports. u “Matrix” page 1. LED which display Input number for respective Output 2. Click to select Input port for respective Output port 3. Click to select previous or next Input port for respective Output port 4. Click to select the seamless switching output mode 5. Click to select the seamless switching time 6. Click to automatically adjust the output picture 7. Click to scaler the output picture 8. Click to select the input signal source Note: The signal source for the VGA input 6 can use.

  • Page 12: Connection And Installation

    u “FW upgrade” page 1. Click to open FW file(file extension is “.fw”) 2. Display the FW file path 3. Displaying the progress of the software upgrade 4. Click to upgrade the Matrix software 5. Display the message of the software upgrade 6. Clear the message of the software upgrade Note: The matrix after software upgrade required again to power supply. 10. Connection and Installation 1. Connect up to 4 sources such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI ,VGA or CV inputs on the unit. Insert and extract cables carefully with the power switch off. Connecting and disconnecting while the unit is powered can result in damage to circuitry. 2. Connect up to four HD displays using the output ports(A-D) on the matrix. 3. OPTIONAL:Connect the IR receiving extender to the IR EXT port on the matrix. 4. OPTIONAL:Connect an Ethernet cable from the TCP/IP port on the matrix to a local Area Network. 5. OPTIONAL:Connect an RS-232 cable from the RS232 port on the matrix. 6. OPTIONAL:Connect the IR receiving extender to the IR INPUT port and the IR emission extender to the IR output port on the matrix. 7. Connect the DC 12V Locking power supply to the power receptacle on the matrix. 8. Connect the power supply to an available electrical outlet.
  • Page 13 Atenção: . Não expor o equipamento a situações de calor excessivo (não apoiar ele sobre superfícies quentes). . Deixar o equipamento ventilado. . Desplugar da tomada o equipamento em situações de raios ou queda de energia constante. . Tome cuidado ao conectar os cabos HDMI, verifique a posição do conector e plugue o cabo devagar. . Mantenha as embalagens e manuais para efeito de garantia e futuras consultas (pelo menos durante o tempo da garantia – 6 meses). . Qualquer dúvida ou problema, entre em contato com a Suporte (suporte@discabos.com.br) ou através do telefone 11.4783-4186 Dicas / Resolução de Problemas: - Sempre verifique se a luz do Power (energia) esta acesa. Se estiver muito fraca ou piscando, troque a fonte de alimentação por outra compatível.. - Algumas instalações possuem tomadas AC com fase diferente e sem um bom aterramento, configurando uma situação de risco para os equipamentos ligados ao sistema, devido ao loop de terra. Nesse caso, por exemplo, as fontes de sinal HDMI (...) estão ligados a tomada AC-1, e o display (...) a tomada AC-2, se a voltagem entre elas não for igual a 0, quando os cabos HDMI (que carregam 5 V DC) são conectados ao sistema, pode acontecer a falha no sinal ou a queima dos equipamentos, cujos danos não são cobertos pela garantia.
