PRODIG TECH GL-6+(S) Operation Manual

Coating thickness gauge

Hide thumbs

Table of Contents

Quick Links

Download this manual

Table of contents:

1. Technical specifications ..............................................................................1

2. Getting started ..........................................................................................1

3. Gauge manual ...........................................................................................2

Guarantee ..................................................................................................4

1. Technical specifications

Basic specifications of the device:

measurement

a reference point;

measurement based on a defined reference point;

measurement resolution: 1 or 10µm;

measurement range: from 0µm to 2100µm;

measurement memory (also after turning the device off): 100 units;

Zeroing Function;

LCD backlight;

automatic shut-off after longer idleness;

Getting started

Coating thickness gauge GL-6+ is designed to measure the thickness of a steel, galvanized steel or

aluminium sheet paint coating. It is also possible to make a measurement based on a defined reference point..

The device has a LCD backlight which makes measuring in places with insufficient light (e.g. garage) much

easier.

Before You start to use the device, please place a new alkaline battery or a fully charged accu in the back

side of the device's housing. In order to do it please take off the battery flap and place correctly the battery or

accu by connecting it to the clips on the cable.

WARNING! The device is preset to galvanized steel and aluminium (Zn/Al)! Should the measurement be

taken on older cars with non-galvanized steel bodywork, the „Steel" option shall be chosen.

Zeroing (calibration)

Before You start to take measurements, please check whether the gauge is calibrated. To do it properly,

please select the „ZERO" function from the main menu and put the sensor against the green side of the

calibration sheet. If the display shows a 0 +/-10µm value, it means that the gauge is calibrated. Should the

aberration be larger than 0 +/-10µm, please put the sensor once more against the green side of the calibration

sheet, wait until the result stabilizes and press the "OK" button while the sensor still touches the sheet. On the

display will appear a „OK..." caption and the device will return automatically to the main menu.

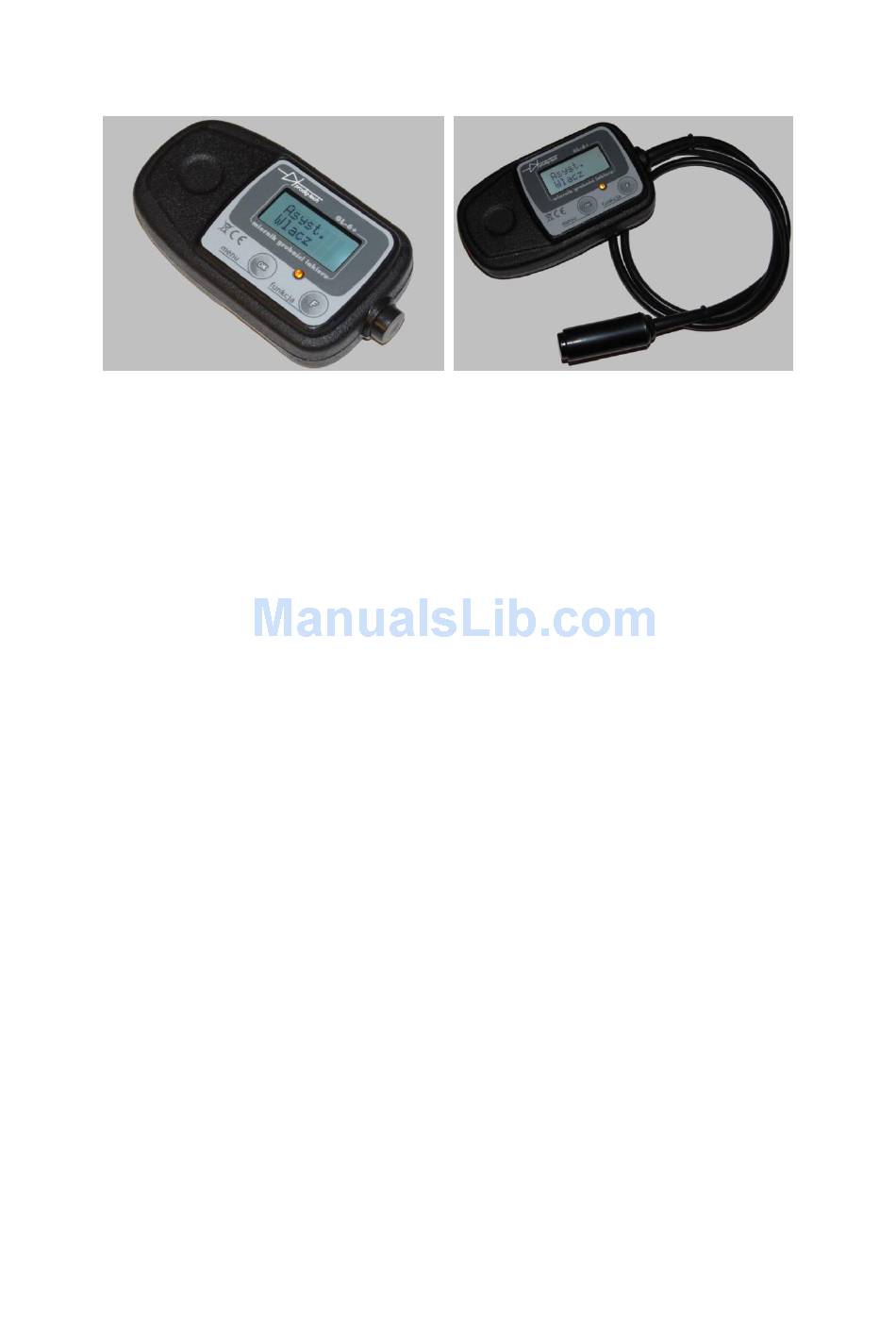

Coating Thickness Gauge GL-6+(s)

Operation Manual

steel,

galvanized

steel,

aluminium

sheets

and

other

defining

Table of Contents

Need help?

Do you have a question about the GL-6+(S) and is the answer not in the manual?

Questions and answers

Summary of Contents for PRODIG TECH GL-6+(S)

Page 1 Coating Thickness Gauge GL-6+(s) Operation Manual Table of contents: 1. Technical specifications ………..…………………………………………………….……1 2. Getting started ……………………………….…….………………………………….…...1 3. Gauge manual ..…...………………………………………………………………….…….2 Guarantee …………………………………………………………………………………..4 1. Technical specifications Basic specifications of the device: measurement steel, galvanized steel, aluminium sheets other defining a reference point; measurement based on a defined reference point;...
Page 2 If the device is calibrated, You can cancel the “ZERO” function by pressing the (OK) button. WARNING! While zeroing, the calibration sheet should be placed on a flat, stable non-metalic surface (e.g. do not place the sheet on the bodywork). Also, please avoid holding the sheet in Your hands as this may affect the operation.
Page 3 After You finish taking the measurements please return to the main menu by pressing the (OK) button. Memory function This function allows You to recall the latest measurement values. Please press the (FUNCTION) button to switch between the stored results. The first displayed result is the oldest one. After You get to the last result the device returns automatically to the first one.
Page 4 Stamp Signature: Jeżeli urządzenie oznakowane jest tym znakiem, oznacza to, że nie wolno wyrzucać go razem z innymi odpadami domowymi. Prodig Tech Arkadiusz Berliński Należy oddać go do punktu odbioru zużytych urządzeń elektrycznych i elektronicznych przeznaczonych do recyklingu. ul. Kublinów 5 Pozbywając się...
