Technical Manual

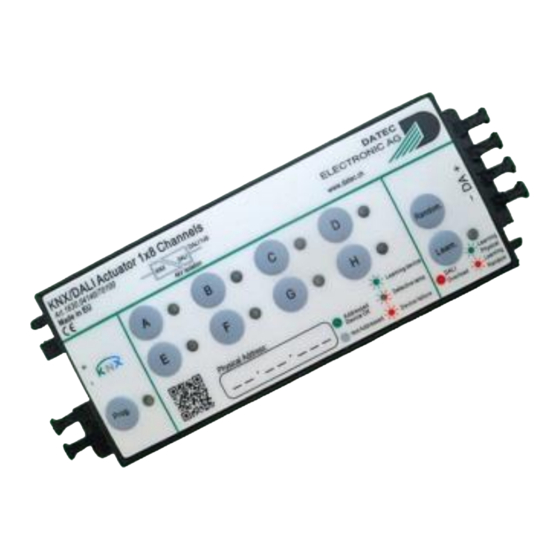

KNX/DALI ACTUATOR
1x8 channels
Art. 1630.04140/70100
Because of continuous product improvement, notice
is subject to change without notification.
Please always check for latest version. Refer to
www.datec.ch or contact support@datec.ch
Advertisement
Table of Contents
Summary of Contents for DATEC 1630.04140/70100
- Page 1 4057 Basel Because of continuous product improvement, notice is subject to change without notification. Tel. +41 61 633 22 25, Fax. +41 61 633 22 27 Please always check for latest version. Refer to www.datec.ch, support@datec.ch www.datec.ch or contact support@datec.ch...
-
Page 2: Table Of Contents
3.2.8 Scene 1 parameters ....................................45 3.2.9 General sending parameters ................................... 47 4. Technical data: Art. 1630.04140/70100 ................................48 DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 3: Presentation
1.1. Presentation The Datec KNX/DALI Actuator 1x 8 channels is a device for controlling and monitoring up to 8 independent DALI ballast. With its KNX input which is transformed into a DALI signal it is not necessary to have complex electrical installations, and thanks to its decentralized housing it can be installed near the lighting equipment (suspend ceilings) to avoid additional wiring costs. -
Page 4: Overall View
6. Channel E to H button 11. Channel E to H LED 7. Random button DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 – support@datec.ch www.datec.ch.ch... -
Page 5: Connection Diagram
Technical Manual KNX/DALI ACTUATOR - Art. 1630.04140/70100 1.3. Connection diagram Figure 1: Connection diagram DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 – support@datec.ch www.datec.ch.ch... -
Page 6: Operating Manual
In no case, another DALI Master or DALI power supply must to be connected to the KNX / DALI actuator. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 7: Local Push-Buttons And Led's
Red (not blinking): there is an overload on the DALI bus, for ex. too much ballasts connected or short circuit. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 8: Channel A- D, Channel E- H Buttons And Led's
Constant green: a ballast with corresponding short address is already detected, so channel is not in learning mode. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 9: Dali Addressing
On by CO Nr. 2/ Buzzer switch On-Off / Buzzer status. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 10: Physical Addressing
- Within random procedure, once no channels are left in addressing mode or no more ballasts without short addresses are detected anymore. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... - Page 11 Rem.: master reset will have no incidence on data’s already stored within ballasts (short address, minimum or maximum value, …). DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –...
-
Page 12: Application Description
Rem.: While DALI power supply is Off, all channels will be considered as missing and Off. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 13: Buzzer Switch On-Off / Buzzer Status
Rem.: On restart of device (after KNX bus power recovery, after programming, …), buzzer is automatically switched Off. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 14: Dali Send Single
The same way, all connected ballasts can be switched to maximum level by sending “$FF $05” (broadcast jump to maximum) on CO Nr. 3/. For further information, please consult DALI standard, EN 62386-102. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 – support@datec.ch www.datec.ch.ch... -
Page 15: Dali Send Twice
DALI standard, respecting DALI frame format and delay between telegrams, but without any control if data’s are valid. For further information, please consult DALI standard, EN 62386-102. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 16: Dali Query
The resulting answer status and value will be given on CO Nr. 6/, CO Nr. 7/ and CO Nr. 8/. For further information, please consult DALI standard, EN 62386-102. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 17: Dali Answer Value
“No” will not create any data corruption, since a “No” answer has no incidence on DALI bus. For further information, please consult DALI standard, EN 62386-102. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 18: Dali Answer Error
Rem.: While DALI power supply is switched Off, device will not detect any DALI overload. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 19: Physical Addressing / Addressing Status
Also, writing on CO Nr. 10 and selecting no single channel will result in exiting physical addressing mode. CO Nr. 10/ is not a standard KNX datapoint type. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 20: Random Addressing
Rem.: Writing on CO Nr. 11 and selecting no single channel will result in exiting random addressing mode. CO Nr. 11/ is not a standard KNX datapoint type. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 21: Erase Short Address
DALI line, even if this address is NOT associated to any KNX / DALI actuator channel. CO Nr. 12/ is not a standard KNX datapoint type. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 22: Central Switch On-Off
Also, for each channel, parameter “Listen to central” has to be set accordingly. Rem.: If corresponding channel is forcing, it will not react on CO Nr. 14/. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 23: Central Dimm Absolute
Rem.: Forcing has higher priority than Central control. Rem.: Central control will stop Stairlight process on according channel. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 24: Scene Control
Rem.: Activating a scene will stop Stairlight process on according channel. Rem.: Scene activating is not possible if channel is forcing or in Central Control. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 25: Channel A Switch On-Off
Within parameters it can be set how CO Nr. 19/ has to be updated on KNX bus. Rem.: the real status may be delayed for a few seconds DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 26: Channel A Dimm Relative
Rem.: If channel A is Forcing or Central control, it will not react on CO Nr. 21/. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 27: Channel A Brightness Status
Also, the actual status of channel A Slave mode is available on CO Nr. 23. Rem.: Channel A Slave mode will stop Stairlight on Channel A. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 28: Channel A (Re)Start Burn In / Channel A Burn In Status
Rem.: Burning time counter is limited to 65535 hours (about 7.4 years). In case of overflow, it will restart from 0. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 29: Channel A Relamping Time Elapsed Status
Rem.: In order channel A burning time hours and relamping time elapsed status to work correctly, channel A burning time must be reset to 0 at each lamp replacement (and only at lamp replacement). DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 30: Channel A (Re)Start Stairlight
Rem.: Even while Forcing, Central mode switch On/Off will be stored (NOT Central switch On-Off). Rem.: Forcing will stop any on-going Stairlight. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 31: Channel A Ballast Failure Status
Rem.: Ballast failure Status is only read out of device if Lamp is Off (switched Off, lamp defective, …). So, CO Nr. 30 will NOT be updated while lamp is On. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 32: Channel A Ballast Missing Status
Slave mode Lowest priority Channel commands Figure 10: Priority of different working modes DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 – support@datec.ch www.datec.ch.ch v26/14E... -
Page 33: Parameter Description
The maximum buzzer duration can be set within parameters, in order to avoid perturbing people if buzzer is forgotten to be switched Off (for example if mistakenly switched On wrong Buzzer trough KNX-Bus). DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 34: Channels Parameters
The KNX / DALI actuator will make the KNX channels A…H correspond with the DALI short addresses 0…7, according to this settings. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... - Page 35 KNX bus). For addressing DALI ballasts, please refer to section “2.3 DALI addressing” of this manual. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –...
-
Page 36: Channel A Parameters
Rem.: Also refer to ballast manufacturer. A value set below the physical minimum level of ballast will be ignored (physical minimum level will be used instead). DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... - Page 37 Setting Switch on custom level lower than minimum level or higher than maximum level, the ETS Application will display a warning message, asking to correct values. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –...
- Page 38 If set to “Off channel keeps off”, channel will keep off, whatever value is sent on CO Nr. 21/. Channel A dim absolute. Figure 16: Warning correct values DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –...
-
Page 39: Stairlight Channel A Parameters
If stairlight is already in warning, on level will be restarted using restart duration as remaining on time. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... - Page 40 Setting Off custom level lower than minimum level or higher than maximum level, the ETS Application will display a warning message, asking to correct values. Figure 18: Warning correct values DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 – support@datec.ch www.datec.ch.ch...
- Page 41 Technical Manual KNX/DALI ACTUATOR - Art. 1630.04140/70100 Figure 19: Stairlight DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 – support@datec.ch www.datec.ch.ch v26/14E Page |...
-
Page 42: Central Control Parameters
If “Dimm to custom” is selected as Central switch on behaviour, this parameter sets the central custom On level. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... - Page 43 Rem.: In order a channel to listen to central commands, it must first be put into central mode by sending “1” on CO Nr. 16 / Central mode switch On/Off. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –...
-
Page 44: Scenes 1
Scene y used: By setting this parameter to “Used”, according parameters for scene y are made accessible. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 45: Scene 1 Parameters
Setting a value, channel will dim to value set within this parameter if scene y is activated. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... - Page 46 Rem.: learning scenes will only store the scene values in volatile memory. After reset of the KNX / DALI actuator, the scene will recover values set in parameters. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –...
-
Page 47: General Sending Parameters
For more detailed information about the single status CO’s refer to the communication object description. DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 –... -
Page 48: Technical Data: Art. 1630.04140/70100
EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-11 DATEC ELECTRONIC AG – Hochbergerstrasse 60C, 4057 Basel TEL. + 41 61 633 22 25 – FAX. + 41 61 633 22 27 – support@datec.ch www.datec.ch.ch v26/14E Page |...
