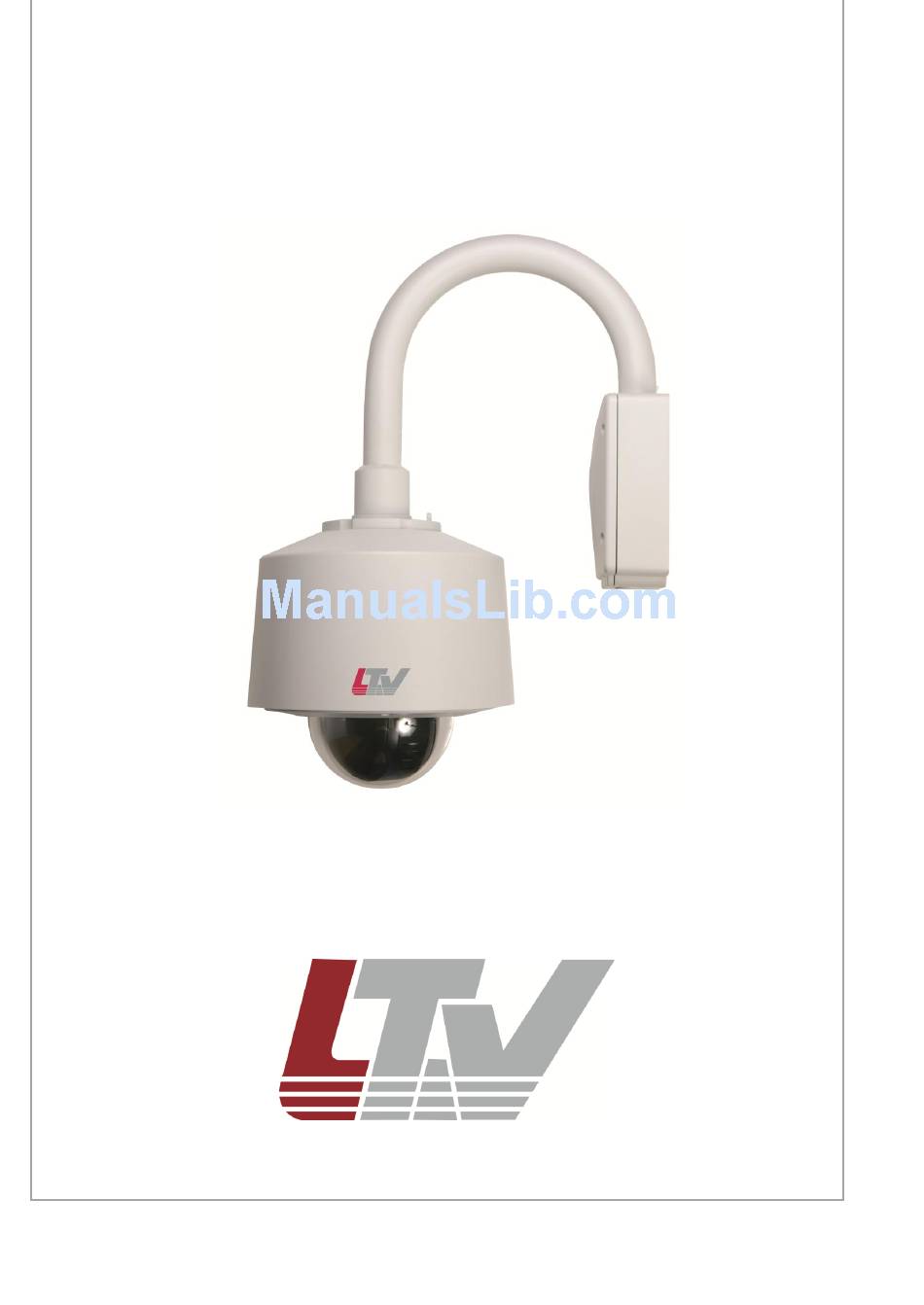

LTV-ISDNO20-M2
Высокоскоростная уличная антивандальная
купольная PTZ IP-камера
Инструкция по эксплуатации
Версия 1.0
www.ltv-cctv.ru

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISDNO20-M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for LTV ISDNO20-M2

  • Page 1 LTV-ISDNO20-M2 Высокоскоростная уличная антивандальная купольная PTZ IP-камера Инструкция по эксплуатации Версия 1.0 www.ltv-cctv.ru...
  • Page 2 Благодарим за приобретение нашего продукта. В случае возникновения каких-либо вопросов, связывайтесь с продавцом оборудования. Данная инструкция подходит для видеокамеры LTV-ISDNO20-M2. Сведения, представленные в данном руководстве, верны на момент опубликования. Производитель оставляет за собой право в одностороннем порядке без уведомления потребителя вносить изменения в конструкцию изделий...
  • Page 3 Техника безопасности  Прочитайте и сохраните данную инструкцию.  Обратите внимание на все предупреждения.  Следуйте всем положениям данной инструкции.  Видеокамера не должна подвергаться воздействию воды.  Протирайте только сухой мягкой тканью.  Не блокируйте вентиляционные отверстия в корпусе видеокамеры. ...

  • Page 4: Table Of Contents

    Contents Product Features ..........................Accessing the Camera ........................Access from a browser ......................Accessing the camera from the Internet..................Adjusting the Image and Focus ....................The Live View page ........................Video stream types ........................How to stream H.264 ......................... The Setup ............................Installation ............................

  • Page 5: Product Features

    1. Product Features Product Accessories Housing Safety Water Proof Tape Cable Hanger Hexagonal Wrench Anchor Bolt(4pcs) Wall Mount Type Hole Manual Template Safety Quick Wire Manual Ceiling Mount Type...
  • Page 6 Wall/Ceiling Mount Bracket These are used to install the camera on the wall or ceiling and have a junction box. The Housing Safety junction box of the bracket accommodates Wire Hanger inner box. Wall Mount Bracket Ceiling Mount Bracket Sun Shield & Upper Housing Sunshield &...
  • Page 7 2nd Video Output Port Audio Output Port Audio Input Port Alarm In/Output and 2nd Video Output Port Micro SD Card Slot & Cover Network Cable Port Power Port Heater Heater 2nd Video Output Port Defrost the dome cover in a low temperature by Video out check the screen during installation.
  • Page 8 Wall Mount Bracket Installation Ceiling Mount Bracket Installation Using the hole template, mark the holes on the wall/ceiling. After drilling the holes, fix the four anchor bolts into the holes. After locating the wall/ceiling mount bracket on the anchor bolts properly, tighten the nuts for anchor bolts.
  • Page 9 You have to detach the PTZ mechanism from the upper housing to plug the connector of cable. To detach the PTZ mechanism, pressing down and holding up the black handles in both sides of PTZ mechanism. You should remove the tape used to fix the PTZ mechanism after detaching the PTZ mechanism from the upper housing.
  • Page 10 Connect each of the following cables to the applicable port and set the DIP switch to configure the camera ID, communication protocol. 2nd Video Output Port Alarm In/Output and 2nd Video Output Port Audio Output Port Audio Input Port Network Cable Port Power Port Micro SD Card Slot &...
  • Page 11 Plug the connector of cable from junction box into properly. After checking the orientation of one touch connector in the upper housing, press the PTZ mechanism into the hooks in the upper housing. To lock the PTZ mechanism to the upper housing, press the two black handles until it snaps.
  • Page 12 Close the dome cover. Care must be taken to locate the dome cover by matching the „Arrow Mark‟. Arrow Mark Arrow Mark Tighten four screws on the dome cover in sequence as shown in the picture. To maintain the best sealing, the torque of each screw must be in the range between 0.5 ~ 1.0 N·m(0.3 ~ 0.73 lbf·ft).
  • Page 13 Network Connection Power Video Output Network Connection Video Output Connect the crossover cable into Video out check the screen during installation. the RJ-45. Power Connection - Please, check the voltage and current capacity of rated power carefully. Rate Power Current Consumption Heater Off: 23W 802.3at AC 24V...
  • Page 14 Alarm in/Output and 2nd Video Output Alarm In/Sensor Alarm 2nd Video Output Alarm Input/Sensor Alarm Output If you want to use alarm input, the types of There are 4 alarm outputs and all of them are sensor must be selected in Setup menu. The relay contact type.
  • Page 15 Amplifier Mic. Audio In Line Out Connection Direct Connection Mic. Audio Out Line In Connection Speaker Connect the „Audio Out‟ port of the camera to the Connect the „Audio In‟ port of the camera „Line In‟ port of the speaker. to the microphone directly or „Line Out‟...
  • Page 16 The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. Recommended SD Card Specification (Not Included) - Type: Micro SD (SDHC) - Manufacturer: Transcend, Kingston, Toshiba, Sandisk - Capacity: 4~16G...

  • Page 17: Accessing The Camera

    2. Accessing the Camera Follow the instructions in the PTZ Installation Guide to install the camera. The PTZ could be accessed with most standard operating systems and browsers. The recommended browser is Internet Explorer for Windows. 2.1 Access from a browser 1.

  • Page 18: Accessing The Camera From The Internet

    2.2 Accessing the camera from the Internet Once installed, the camera is accessible on the local network (LAN). Configure the router/firewall to allow incoming data traffic to access the camera from the Internet. For security reasons this is usually done on a specific port. Please refer to the documentation for router/firewall for further instructions.

  • Page 19: The Live View Page

    2.4 The Live View page PC(Client) Speaker PC(Client) Microphone Digital Zoom Snap Shot Full Screen Video Stream change: First stream  Second stream Play: Click this button by manually to start the stream Stop: Click this button by manually to stop streaming NOTE: It is possible that not all the buttons described below will be visible unless the Live View pagehas been customized to display them.

  • Page 20: How To Stream H.264

    • UDP (User Datagram Protocol) is a communications protocol that offers limited service for exchanging data in a network which uses the Internet Protocol (IP). UDP is an alternative to the Transmission Control Protocol (TCP). The advantage of UDP is that, it is not required to deliver all data and may drop network packets when there is network congestion.

  • Page 21: The Setup

    3. The Setup The PTZ is configured from the Setup link, which is available on the top left hand side in the web interface. This configuration could be done by: • Administrators, who have unrestricted access to all settings under the Setup tab. •...

  • Page 22: Installation

    4. Installation The following descriptions show examples of some of the features available in the PTZ. 4.1 Installation Setup Installation Mode allows use of the analog BNC output from the camera to connect the camera...

  • Page 23: Camera And Image

    5. Camera and Image The following descriptions show examples of some of the features available in the 5.1 Video Codec These are the tools for adjusting the H.264, MJPEG settings and controlling the video bit rate. Motion JPEG This format uses standard JPEG still images in the video stream. These images then are displayed and updated at a rate sufficient to create a stream that shows constantly updated motion.

  • Page 24: Codec

    The H.264 standard provides scope for a large range of different coding tools for use by various applications in different situations, and the PTZ provides certain subsets of these tools. Using H.264, it is also possible to control the bit rate, which in turn allows the amount of bandwidth usage to be controlled.

  • Page 25: Camera

    5.2 Camera This section allows you to adjust various camera settings.

  • Page 26: Exposure Control

    5.2.1 Exposure Control Enable AE (Auto Exposure) ON: Use this setting for automatic exposure control. OFF: Use these settings to control camera exposure manually. To compensate for poor lighting conditions, you can adjust the Color level, Brightness, Sharpness, Contrast and Exposure control. NOTE: When AE is enabled, some of the submenus (AGC Gain, e-Shutter Speed) will be disabled.

  • Page 27: Image Property Control

    5.2.4 Image Property Control Modify the video signal parameters, such as: Brightness, Sharpness, andContrast. Sharpness (Default: 8, Range: 1~15) Brightness (Default: 15, Range: 0~30) Contrast (Default: 15, Range: 0~30) 5.2.5 Lens Adjustment  Pan/Tilt: camera movement  Home: Depends on User-specified Home setting ...
  • Page 28  Refresh: Check  One Push Focus: Camera will automatically adjust the focus.  Default: Back to original factory default position.

  • Page 29: Audio

    6. Audio The PTZ can transmit audio to other clients, and can also play audio received from other clients. This section describes the basic audio settings, such as setting the communication codec and adjusting the sound levels for the microphone and speakers connected to the camera.

  • Page 30: Live

    7. Live PTZ can support up to 10 simultaneous users via unicast. With multicasting, PTZ can support an unlimited number of users. If supported on the network, consider using the multicast function, as the bandwidth consumption will be much lower. Viewer Setup LiveView Protocol RTP Unicast (UDP) / RTP Multicast (UDP) / RTP over RTSP (TCP)

  • Page 31: Ftp

    8. FTP 8.1 FTP >Config (Configuration) Server Configuration When it is set as Enable, the FTP client could download the saved content. Client Configuration It is setting page to transmit the still shot to remote sites, using the FTP server. It could not be used when the Installation mode is on.

  • Page 32: Ftp > Event

    8.2 FTP > Event Event FTP Sending It is setting page to transmit the still shot to the FTP server at remote sites when event such as Alarm In happens. It could not be used when the Installation mode is on.

  • Page 33: Ftp > Periodical

    8.3 FTP > Periodical Periodical FTP Sending It is setting page to transmit the still shots periodically to the FTP server of remote sites. Before using the FTP, turn off the Installation mode. Please set the first stream 1920x1080 in Video-> Codec setting and second stream to MJPEG or None. The difference is that instead of saving the still shot on Alarm In event, it transmits to the Ftp server set on the Client Configuration of FTP->Config menu.

  • Page 34: Event

    9. Event 9.1 Event > Alarm Port Alarm Input - Used for connecting external alarm devices and triggering images for specific alarm-based events. The input is typically connected to a motion detector or any other external security device, and images could be uploaded whenever the detector is activated.
  • Page 35 Event Mapping It is possible to define conditions that would cause the camera to respond with certain actions. A triggered event happens as a result of an event which is mapped within this menu. This could be caused by motion detection or an external alarm input. Alarm Out events could be triggered by either Alarm In.

  • Page 36: Network

    10. Network 10.1 Network > IP Setup Network Settings Click the Setup > Network > IP Setup to see the current network settings. IP Address Configuration - The PTZ supports both IP version 4 and IP version 6 (IPv6 will be supported in V3.00).

  • Page 37: Network > Service Port

    •Primary DNS server Enter the IP address of the primary DNS server for your network. •Secondary DNS server Enter the IP of the Secondary DNS, which is used if the Primary DNS server is unavailable How to assign IP address Default setting is set to “DHCP”...
  • Page 38 Service Port HTTP port- The default HTTP port number (80) could be changed to any port within the range 1-65535. This is useful for simple port mapping. RTSP port- The RTSP protocol allows a connecting client to start an H.264 stream. Enter the RTSP port number to use.

  • Page 39: Network > E-Mail

    10.3 Network > E-mail You must turn Notification to „On‟ and then enter the host names or addresses for your mail servers inthe fields provided, to enable the sending of event and error email messages from the camera topredefined addresses via SMTP.

  • Page 40: Ptz

    11. PTZ 11.1 Preset :preset is a pre-defined camera view than can be quickly and easily moved to and viewed, simply by selecting the preset.  If Preset button is pressed, Preset Settings window pops up.  Adjust theLens(Pan, Tilt, Zoom, Focus or IRIS) ...
  • Page 41 11.2 Scan :Tour displays the video stream from different preset positions Select ‘Preset 1/2’. : Set two points to the location specified by Preset scan to operate  Select ‘Direction’.: Auto operation, the shortest distance to behave in a counter-clockwise ...
  • Page 42 11.3 Tour :Set the camera movement.  Select „Tour Dwell Time‟: Standstill at one location during tour.  Set „Tour Speed‟.: Set degree of movement per second  Select „Sequence Number‟. (Preset or Scan or Tour)  Click „Save‟ button.

  • Page 43: System

    12. System 12.1 System > User Access the camera and the Configure Root Password dialog appears. Enter the User name: ADMIN and password is 1234 to log in. To changed password or add a user click SETUP > SYSTEM > USER. Fill the User ID, Password and E-mail server.

  • Page 44: System > Date & Time

    12.2 System > Date & Time Date & Time Format Specify the formats for the date and time (12h or 24h) displayed in the Live View video streams. Network Time Server Synchronize the time from an NTP server every 60 minutes. Specify the IP address or host name ofthe NTP server you are using.

  • Page 45: System > Maintenance

    12.3 System > Maintenance System Name Choose a system name to identify the camera when using e-mail notifications. System Reboot Reboots the camera. Factory Default To reset the camera back to the original factory default settings. Save Ptz Data System settings can be saved to a PC. Load Data The system settings can be reloaded in case of accidental factory reset or can be transferred toanother camera if multiple units need to be installed with the same...
  • Page 46 2. Go to Setup > System > Maintenance within the camera web browser setup. 3. In the Firmware Update section, browse to the desired firmware file on your computer. Click OK. NOTE: Do not disconnect power to the unit during the upgrade. The unit will restart automaticallyafter the upgrade has completed.

  • Page 47: System > Information

    12.4 System > Information System Information After updating firmware, you can confirm the new F/W version here.

  • Page 48: Specification

    13 Specification Модель LTV-ISDNO20-M2 Матрица 1/2.8" Progressive scan CMOS Электронный затвор 1-1/10 000с (22 установки) Разрешение Full HD (1080p) Частота кадров До 30/25 к/с при любом разрешении Камера 1.7 лк (цвет) / 0.3 лк (ч/б) / 0.095 лк (Sens- Чувствительность...
