SPECIFICATIONS
Power Source:
220-240V a.c., 50Hz
Power Consumption:
127W
Standby Power
Consumption:
1,4W
Aerial Impedance:
75Ω unbalanced, Coaxial Type
Receiving System:
PAL-B/G, H, I, D/K, PAL-525/60
SECAM B/G, D/K, L/L'
M.NTSC
NTSC (AV only)
Receiving Channels:
VHF E2-E12
VHF H1-H2 (ITALY)
VHF A-H (ITALY)
VHF R1-R2
VHF R3-R5
VHF R6-R12
UHF E21-E69
CATV (S01-S05)
CATV S1-S10 (M1-M10)
CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video
38,9MHz, 34MHz
Sound
32,9MHz, 33,16MHz, 33,4MHz
40,4MHz, 32,4MHz (A2 STEREO)
33,05MHz, 34,05MHz (NICAM)
32,66MHz, 32,4MHz (CZECH STEREO)
Colour
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Video/Audio Terminals:
AUDIO MONITOR OUT
Audio (RCAx2)
AV1 IN
Video (21 pin)
Audio (21 pin)
RGB (21 pin)
AV1 OUT
Video (21 pin)
Audio (21 pin)
AV2 IN
Video (21 pin)
Audio (21 pin)
S-Video IN
(21 pin)
AV2 OUT
Video (21 pin)
Audio (21 pin)
Selectable Output (21 pin)
AV3 IN
Audio (RCAx2)
Video (RCAx1)
High Voltage:
30,5kV ± 1kV
Picture Tube:
W66EHK51X81 66cm
Audio Output:
2 x 20W (Music Power)
8Ω Impedance
Headphones
8Ω Impedance
Accessories supplied:
Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height:
514mm
Width:
796mm
Depth:
514mm
Net Weight:
36kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with the
EURO-4H technical guide.
500mV rms1kΩ
1V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
500mV rms10kΩ
1V p-p 75Ω

Colour Television

EURO-4H Chassis
TECHNISCHE DATEN
Netzpannung:
220-240V a.c., 50Hz
Leistungsaufnahme:
127W
Standby
Leistungsaufnahme:
1,4W
Antennenimpedanz:
75Ω asymmetrisch, Koaxial-Typ
Empfangssystem:
PAL-B/G, H, I, D/K, PAL-525/60
SECAM B/G, D/K, L/L'
M.NTSC
NTSC (nur AV Eingang)
Empfangsbereiche:
VHF E2-E12
VHF H1-H2 (ITALY)
VHF A-H (ITALY)
VHF R1-R2
VHF R3-R5
VHF R6-R12
UHF E21-E69
CATV (S01-S05)
CATV S1-S10 (M1-M10)
CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Zwischenfrequenz:
Video
38,9MHz, 34MHz
Sound
32,9MHz, 33,16MHz, 33,4MHz
40,4MHz, 32,4MHz (A2 STEREO)
33,05MHz, 34,05MHz (NICAM)
32,66MHz, 32,4MHz (CZECH STEREO)
Colour
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Video/Audio Anschlüsse:
AUDIO MONITOR OUT
Audio (RCAx2)
AV1 EINGANG
Video (21 pin)
Audio (21 pin)
RGB (21 pin)
AV1 AUSGANG
Video (21 pin)
Audio (21 pin)
AV2 EINGANG
Video (21 pin)
Audio (21 pin)
S-Video IN
(21 pin)
AV2 AUSGANG
Video (21 pin)
Audio (21 pin)
Wählbarer Ausgang
AV3 EINGANG
Audio (RCAx2)
Video (RCAx1)
Hochspannung:
30,5kV ± 1kV
Bildrohre:
W66EHK51X81 66cm
Ton Ausgangsleistung:
2 x 20W (Musikleistung)
Lautsprecher
8Ω Impedanz
Kopfhörer:
8Ω Impedanz
Mitgel. Zubehör:
Fernbedienung
2 x R6 (UM3) Batterien
Abmessungen:
Höhe:
514mm
Breite:
796mm
Tiefe:
514mm
Gewicht:
36kg
Änderungen der Technisichen Daten vorbehalten.
Gewichte und Abmessungen sind Näherungsangaben.
Hinweis: Bitte verwende Sie das Service Manual zusammen mit dem
Technical Guide.
ORDER No. SM-00003
TX-28DK20D
TX-28DK20F
500mV rms1kΩ
1V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
500mV rms10kΩ
1V p-p 75Ω

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TX-28DK20D

Summary of Contents for Panasonic TX-28DK20D

  • Page 1: Colour Television

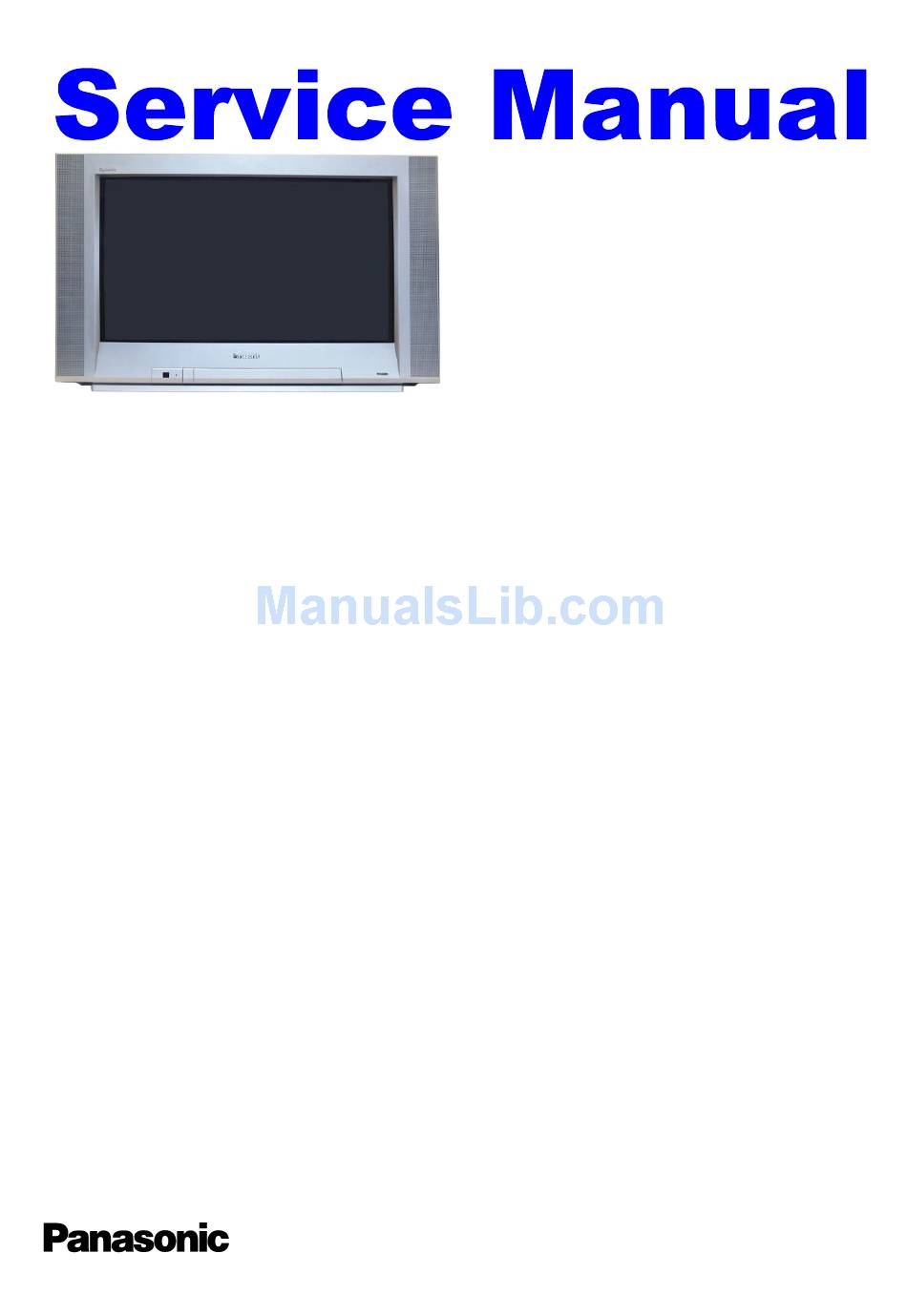

    ORDER No. SM-00003 Colour Television TX-28DK20D TX-28DK20F EURO-4H Chassis SPECIFICATIONS TECHNISCHE DATEN Power Source: 220-240V a.c., 50Hz Netzpannung: 220-240V a.c., 50Hz Power Consumption: 127W Leistungsaufnahme: 127W Standby Power Standby Consumption: 1,4W Leistungsaufnahme: 1,4W Aerial Impedance: 75Ω unbalanced, Coaxial Type Antennenimpedanz: 75Ω...
