Summary of Contents for Red Dragon R.C.P. BRIDGE

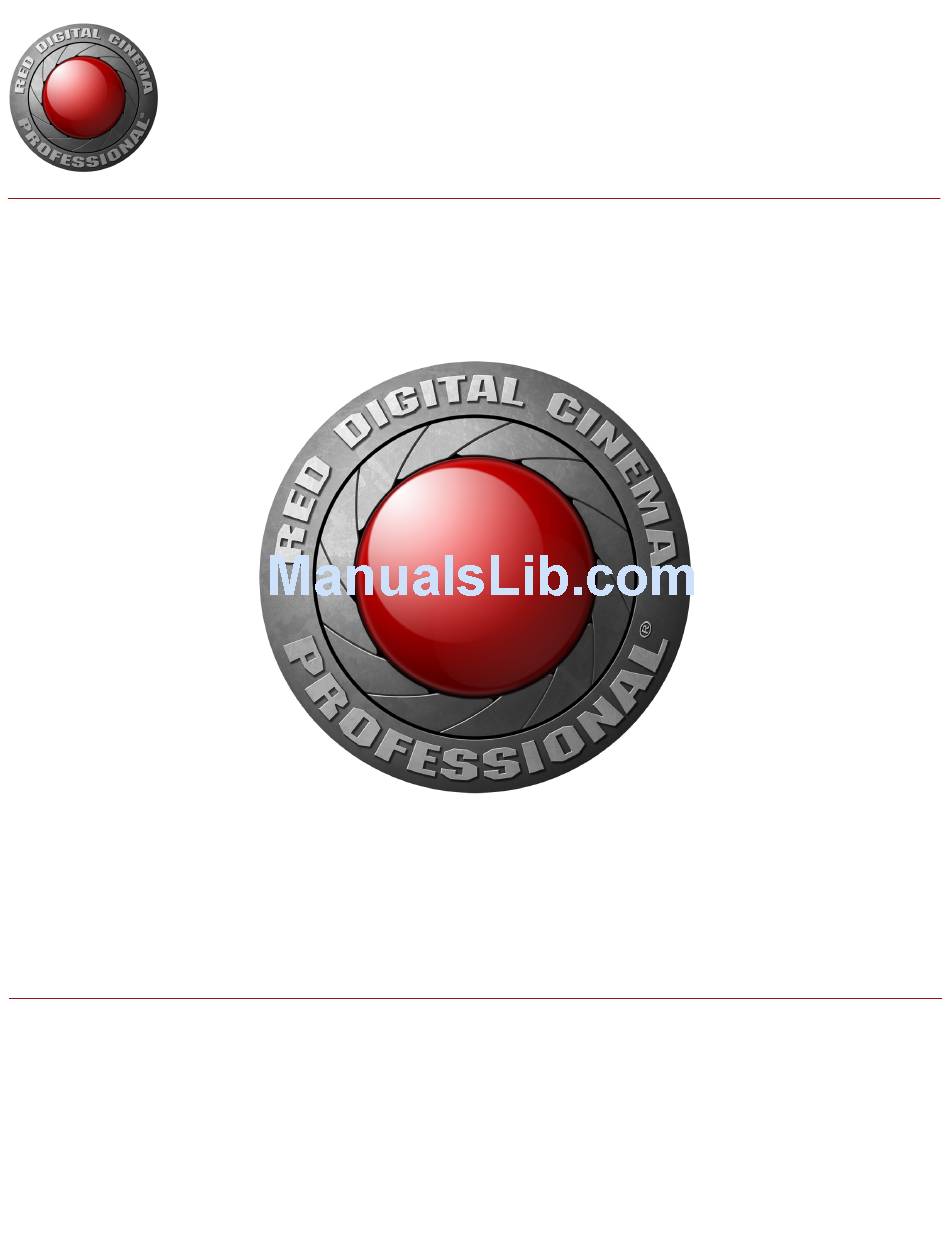

- Page 1 R.C.P. BRIDGE OPERATION GUIDE R.C.P. DEVELOPMENT KIT LENS CONTROL RED.COM...
-
Page 2: Table Of Contents
3 Install the R.C.P. Bridge Dock the R.C.P. Bridge Undock the R.C.P. Bridge Power the R.C.P. Bridge 4 Connect R.C.P. Bridge to an App Connect Via Ad-Hoc Mode Connect Via Infrastructure Mode 5 Control Lenses Via R.C.P. Bridge Pair the T.H.C. with the R.C.P. Bridge Set Up Focus and Iris Control Initialize Lens with the T.H.C. -
Page 3: Disclaimer
R.C.P. BRIDGE OPERATION GUIDE FEDERAL COMMUNICATIONS COMMISSION (FCC) DISCLAIMER STATEMENTS ® has made every effort to provide clear and accurate This equipment has been tested and found to information in this document, which is provided solely for the user’s comply with the limits for a Class B digital information. - Page 4 R.C.P. BRIDGE OPERATION GUIDE EUROPEAN UNION COMPLIANCE STATEMENTS CAUTION: If the device is changed or modified RED declares that the without permission from RED, the user may void radio equipment his or her authority to operate the equipment. described this document comply with R&TTE...
-
Page 5: Safety Instructions
R.C.P. BRIDGE OPERATION GUIDE USAGE RESTRICTIONS FOR PRODUCTS THAT INCORPORATE ELECTROMAGNETIC INTERFERENCE: The use of devices using RED COMMAND PROTOCOL radio or other communication waves may result in the malfunction or interference with the unit and/or with audio and video signals. - Page 6 R.C.P. BRIDGE OPERATION GUIDE CAUTION: The power cord plug for the DSMC AC Power Adaptor is used as the power disconnect. To disconnect all power from the DSMC AC Power Adaptor, unplug the power cord plug from the wall outlet. During use, the power cord plug should remain easily accessible at all times.
-
Page 7: C.p. Overview
NOTE: The R.C.P. Bridge requires that your camera is on firmware v5.2.8 or later. R.C.P. DEVELOPMENT KIT INCLUDED COMPONENTS At this time, the R.C.P. Bridge is available as part of the R.C.P. Development Kit, and is not available as a standalone item. -
Page 8: Additional Resources
R.C.P. BRIDGE OPERATION GUIDE ADDITIONAL RESOURCES ® The following resources offer additional information about RED, the DSMC system, and the RED community: RED.com: Check the official RED website for the latest information about RED products. RED Learn Articles: RED offers... -
Page 9: C.p. Bridge Connector And Leds
DESCRIPTION ® AUX (6-pin 0B LEMO Connect the R.C.P. Bridge to a T.H.C. for wired pairing COMPATIBLE CABLE 790-0444: R.C.P.-to-T.H.C. Connector Cable (3') C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 0 6 4 , R EV - G |... -
Page 10: Bridge Leds
Pwr In R.C.P. BRIDGE LEDS COLOR/FLASHING DESCRIPTION Power Indicator The R.C.P. Bridge is not powered: The camera is powered off and turned Green The R.C.P. Bridge is powered: The camera is powered on and turned on Amber The camera is upgrading R.C.P. Bridge firmware... -
Page 11: Install The R.c.p. Bridge
INSTALL THE R.C.P. BRIDGE This chapter explains how to install and power the R.C.P.™ Bridge. NOTE: The R.C.P. Bridge is HOT SWAPPABLE, meaning you can remove or install the module while the camera is powered on. DOCK THE R.C.P. BRIDGE 1. -
Page 12: Connect R.c.p. Bridge To An App
CONNECT VIA AD-HOC MODE In Ad-Hoc mode, the R.C.P. Bridge and your device connect to each other. To connect the R.C.P. Bridge to your device via an ad-hoc network, follow the instructions below: 1. Dock the R.C.P. Bridge to the camera. Go to "Dock the R.C.P. - Page 13 8. Close the WiFi screen. 9. Connect your device to the ad-hoc network created by the R.C.P. Bridge. The steps in this procedure depend on what type of device and operating system you are using. For example, if you are connecting an iOS device, go to Settings >...
-
Page 14: Connect Via Infrastructure Mode
CONNECT VIA INFRASTRUCTURE MODE In Infrastructure mode, the R.C.P. Bridge and your device both connect to an access point, and communicate through that wireless network. To connect the R.C.P. Bridge to your device via an existing wireless network, follow the instructions below: 1. - Page 15 C. Type the passphrase to access the network. The passphrase is limited to alphanumeric characters (0–9, A–Z). D. Select OK. 10. Select Connect. The IP address of the access point displays on the WiFi screen after the R.C.P. Bridge connects to the access point. Figure: Connect to Network C O PYR I G HT ©...
- Page 16 R.C.P. BRIDGE OPERATION GUIDE 11. Connect your device to the same wireless network that the camera is connected to. The steps in this procedure depend on what type of device and operating system you are using. For example, if you are connecting an iOS device, go to Settings >...
-
Page 17: Control Lenses Via R.c.p. Bridge
Set Focus and Iris lens limits for Canon and Nikon lenses Initialize remotely This chapter explains how to pair the T.H.C. with the R.C.P. Bridge, as well as how to control Focus and Iris with the T.H.C. For detailed instructions for using all components of the RED 3-Axis Lens Control System, see the... - Page 18 R.C.P. Bridge. When using the High setting, the T.H.C. should be at least one (1) meter from the R.C.P. Bridge for proper operation. C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC...
-
Page 19: Set Up Focus And Iris Control
High setting, the T.H.C. should be at least one (1) meter from the R.C.P. Bridge for proper operation. SET UP FOCUS AND IRIS CONTROL After the T.H.C. is paired to the R.C.P. Bridge, set up the lens and camera Focus settings so that you can successfully control Focus and Iris. -
Page 20: Initialize Lens With The T.h
R.C.P. BRIDGE OPERATION GUIDE INITIALIZE LENS WITH THE T.H.C. WHEN TO INITIALIZE Normally, the lens initializes when you power on the camera or swap the lens. However, sometimes the lens may not operate properly when first connected to the camera. -
Page 21: C.p. Bridge Maintenance
Bridge, except by a RED authorized service facility, will void the Limited Warranty. CLEAN SYSTEM COMPONENTS Clean ONLY using a dry cloth. When cleaning your R.C.P. Bridge, remember that the components are not waterproof and moisture can damage electronic circuitry. -
Page 22: Troubleshoot The R.c.p. Bridge
Cannot connect a T.H.C. (Tactical Hand Controller) to the R.C.P. Bridge. POTENTIAL RESOLUTIONS You can only connect one T.H.C. to the R.C.P. Bridge at a time. Ensure that the R.C.P. Bridge is disconnected from any T.H.C. before connecting a new one. - Page 23 R.C.P. BRIDGE OPERATION GUIDE CANNOT CONTROL FOCUS OR IRIS SYMPTOM After successfully connecting the T.H.C. to the R.C.P. Bridge, adjusting the Focus and Iris knobs on the T.H.C. does not change the Focus and Iris of the lens. POTENTIAL RESOLUTIONS Ensure that the switch on the side of your lens is set to autofocus.
-
Page 24: A Technical Specifications
R.C.P. BRIDGE OPERATION GUIDE TECHNICAL SPECIFICATIONS R.C.P. BRIDGE SPECIFICATION DESCRIPTION Wireless Standard 802.11/b/g/n Wireless Range Approximately 50 feet Frequency 2.4 GHz Data Rates 1 Mbps to 72 Mbps Network Modes Ad-Hoc mode Infrastructure mode Network Security Network Channels Channel 1 to Channel 11 (when connecting to a device) Channel 1 to Channel 42 (when connecting to T.H.C.) -
Page 25: Development Kit Packaging
R.C.P. BRIDGE OPERATION GUIDE SPECIFICATION DESCRIPTION Typical Operating Power Dissipation 220 mA Peak Operating Power Dissipation 300 mA 1. The R.C.P.™ Bridge is not a wireless access point. 2. As with all wireless devices, the communication range may be affected by the environment and any radio frequency (RF) interference that may be present. -
Page 26: B R.c.p. Bridge Compatibility
Pro Battery Module (Quad) Pro I/O Module SUPPORTED LENSES ® You can use the R.C.P. Bridge with the T.H.C. (Tactical Hand Controller) to control the Focus and Iris of any Canon ® ® and Nikon lens that is electronically supported by RED .
