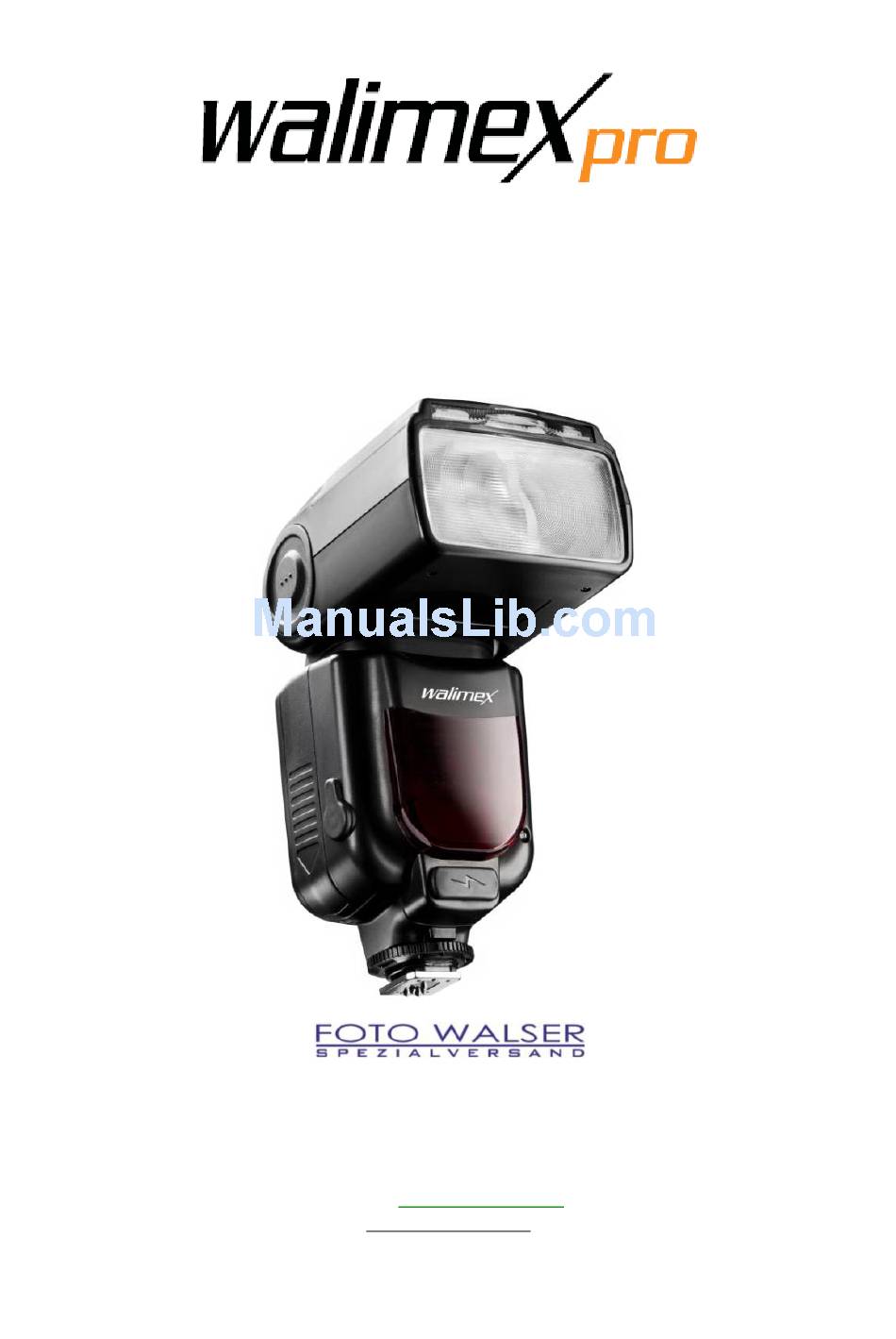

- Page 1 Copy of Instruction Manual System Flash TTL FW 950 Gewerbering 26 86666 Burgheim Tel. +49 84 32 / 9489-0 Fax. +49 84 32 / 9489 - 8333 E-mail: info@foto-walser.de www.foto-walser.de...
- Page 2 Foreword We would like to thank you for buying this walimex pro product. Please read these instructions carefully to avoid physical injuries and damages. Please keep this manual safe. If you are selling or leaving the device to another person, please ensure to hand this manual over as well.
- Page 3 Overview of components and operating elements of the device 1.) Reflector screen 2.) Built-in wide angle diffusion disk 3.) Flash head 4.) Connecting socket sync cable 5.) Sync cell 6.) Battery compartment 7.) Connecting socket for external power pack (SD-8A) 8.) Flash mount 9.) Locking wheel 10.-11.) Contact pin...
- Page 4 2. Attaching the Speedlite to the camera Turn the locking wheel clockwise Turn the ring clockwise in order to In order to remove the flash, and loosen it as much as possible. fasten it. loosen the fastened locking wheel. Slide the mount of the flash device Slide the flash out of the accessory into the accessory shoe of the shoe of the camera.
-
Page 5: Protection Function
5. S1 mode Press the MODE button and set the flash device to the S1 mode. This allows you to use the flash device as a slave flash in order to work with several flashes simultaneously. When the flash is set to the S1 mode, it triggers in sync with the master flash. 6. - Page 6 Advanced use 1. Indirect Flashing Indirect flashing means that you photograph by reflecting the flash from a wall or the ceiling to make the light softer. 2. Use of the reflector screen for photographing Pull the reflector screen and the wide angle diffusion disk from the flash head at the same time and push the wide angle diffusion disk back into the flash head.
