Summary of Contents for jobmate 58-7992-0
-

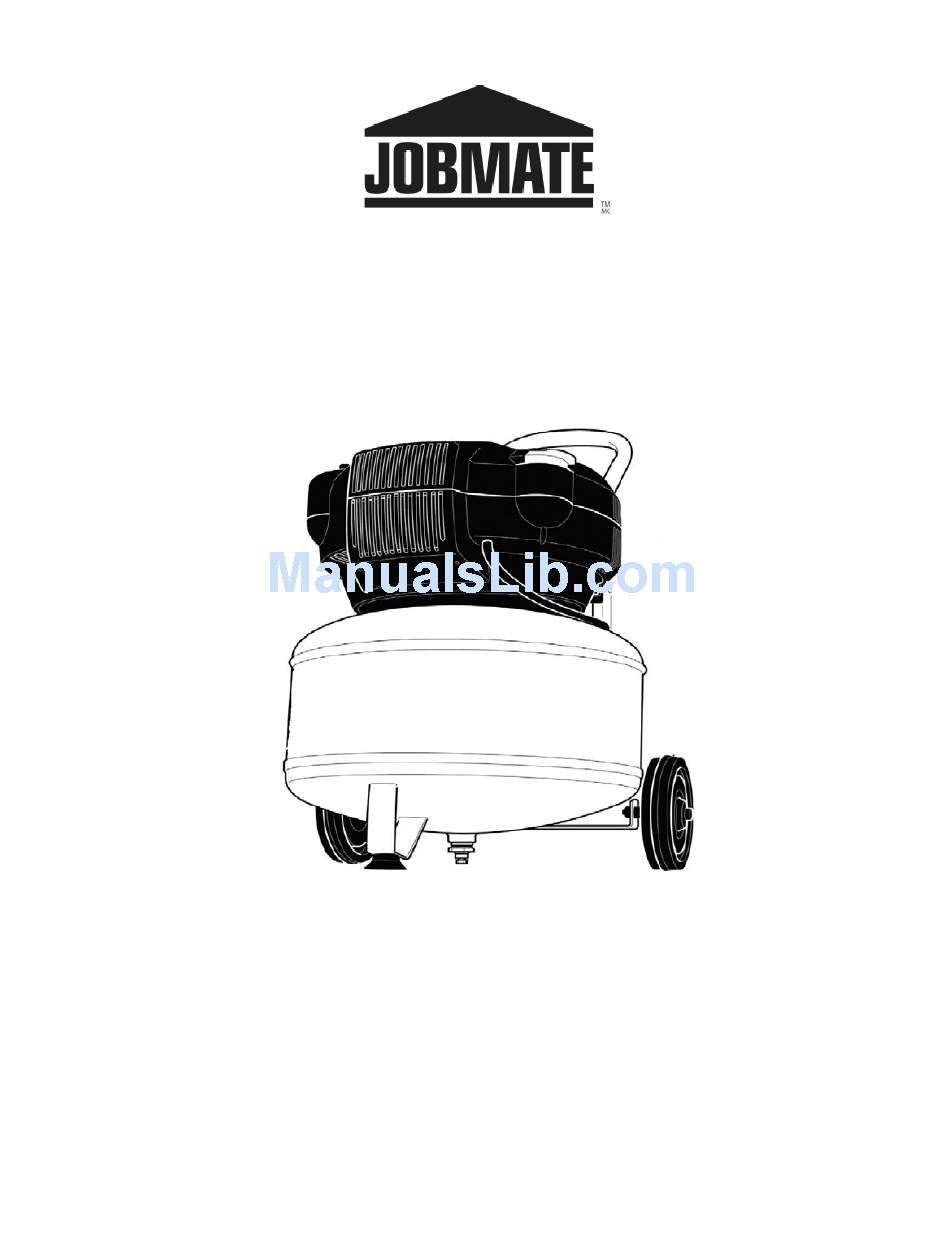

Page 1: Instruction Manual
8-gallon Air Compressor Kit 58-7992-0 Instruction Manual For Parts, Service, Warranty or other Assistance, please Call 1-877-888-3872 Manual 58-7992 V 1.7– 8 Gallon compressor 2005-7-19... -
Page 2: Table Of Contents
FAILURE COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL INJURY, PROPERTY DAMAGE, AND/ OR VOIDING OF YOUR WARRANTY. JOBMATE WILL NOT BE LIABLE FOR ANY DAMAGE BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCTIONS. Safety Guidelines - Definitions This manual contains important information that must be read and understood in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. -
Page 3: Hazard Warnings
Save These Important Safety Instructions! Read and understand all of these safety instructions. Be sure to retain this manual for future use. Hazard Warnings WARNING! SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES CONTAINS CHEMICALS KNOWN TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. - Page 4 • Make sure that any attachments are securely assembled. • Never point any nozzle or sprayer toward a person or any part of the body. Equipment can cause serious injury if the spray penetrates the skin. Risk of Fire or Explosion Potential hazards •...
- Page 5 Preventive measures • Always wear an MSHA/NIOSH approved, properly fitting face mask or respirator when using such tools. Read all instructions to be sure your respirator mask will protect you. • Always work in a clean, dry, well-ventilated area. • Never directly inhale the compressed air produced by a compressor.
- Page 6 tired. • Always use tool attachments rated for the speed of the power tool. • Never use tools which have been dropped, impacted or damaged by use. • Use only impact grade sockets on an impact wrench. • Do not apply excessive force to the tool. Let the tool perform the work. •...
- Page 7 Allow them to cool before handling or servicing. • Keep children away from the compressor at all times. Compressor Item Value Model Number 58-7992-0 Tank Capacity 8-gallon (30 L) Power 115 V, 13 A , 1 phase Kick-In Pressure 80 PSI...
-
Page 8: Hp Air Compressor
Precautions • Drain the moisture from the tank daily to help prevent corrosion. • Pull the pressure relief valve ring daily to ensure proper function and clear possible obstructions. • To provide proper ventilation for cooling, the compressor must be kept at least 12” (31 cm) from the nearest wall, in a well-ventilated area. -
Page 9: Compressor Controls
c. In cold climates, store portable compressors in a heated building when not in use. This will reduce problems with motor starting and freezing of water condensation. d. Remove the compressor from the shipping pallet or carton and place it on the floor or a hard, level surface. -
Page 10: Breaking In The Pump
Note: A circuit breaker is recommended. If the air compressor is connected to a circuit protected by a fuse, use dual element time delay fuses (Buss Fusetron type “1” only). Extension Cord Note: Avoid use of extension cords. For optimum performance, plug the compressor power cord directly into a grounded wall socket. Do not use an extension cord unless absolutely necessary. -
Page 11: Operating Instructions
6. After about 15 minutes, turn the pressure switch to the OFF position. 7. Close the air pressure regulator by turning it clockwise. Turn the pressure switch to ON. The tank will now fill. Note: As compressed air is used, the pressure switch will restart the motor automatically. Note: During the initial break-in cycle, there will be a slight electrical smell as the motor brushes seat. -
Page 12: Storage
Draining the Tank Relieve the air pressure in the system and open the drain valve on the bottom of the tank to drain. WARNING! CONDENSATION WILL ACCUMULATE IN THE TANK. TO PREVENT CORROSION OF THE TANK FROM THE INSIDE, THIS MOISTURE MUST BE DRAINED AT THE END OF EVERY WORKDAY. -
Page 13: Troubleshooting
TROUBLESHOOTING Note: Troubleshooting problems may have similar causes and solutions. PROBLEM POSSIBLE CAUSE SOLUTION • Low pressure - Close valve Tank Pressure Relief valve is open. • Prolonged excessive use of air. • Not enough air - Decrease use Compressor not large enough. Compressor - Check air requirement of accessory. - Page 14 • Circuit breaker/ - Link additional air hoses together to Excessive wire length causes fuse trips. Often acquire additional length; voltage to drop too much. DO NOT USE AN EXTENSION CORD - Contact authorized service centre. • Restricted air passages. - Replace check valve and/or pressure •...
-
Page 15: Glossary Of Terms
• Check valve stuck open. - Bleed line by moving pressure switch • lever to OFF position before restarting. Pressure bleeder valve on pressure If bleeder valve does not open, replace switch has not unloaded head bleeder valve. pressure. - Link additional air hoses together to •... -
Page 16: Limited Warranty
LIMITED WARRANTY Trileaf Distribution warrants to the original purchaser that the product covered under this warranty is free from defects in material and workmanship for one (1) YEAR limited warranty on air compressor components. Trileaf Distribution will repair or replace, at its option, products or components which have failed within the warranty period. -
Page 17: Parts List
Parts List Description Description screw M6X25 outlet valve support rubber support valve plate air tank inlet valve plate drain valve washer wheel cylinder nut M8X40 hex screw M6X35 screw M6X35 washers strap wheel handle stator safety valve armature air tube cover screw ST4X20 hex screw M5X95... - Page 18 1/4" air nozzle fan cover 1/4" X1/4" tie-in valve 1/4" X1/4" fix ring connector copper nut C5 washer copper tube plug of air nozzle screw M10X25 screw M5X10 6203 bearing ground wire connecting rod air pressure switch piston ring strap black plate transmission shaft M6X15 hex screw...
