Summary of Contents for ACTIVE STATION AST1001

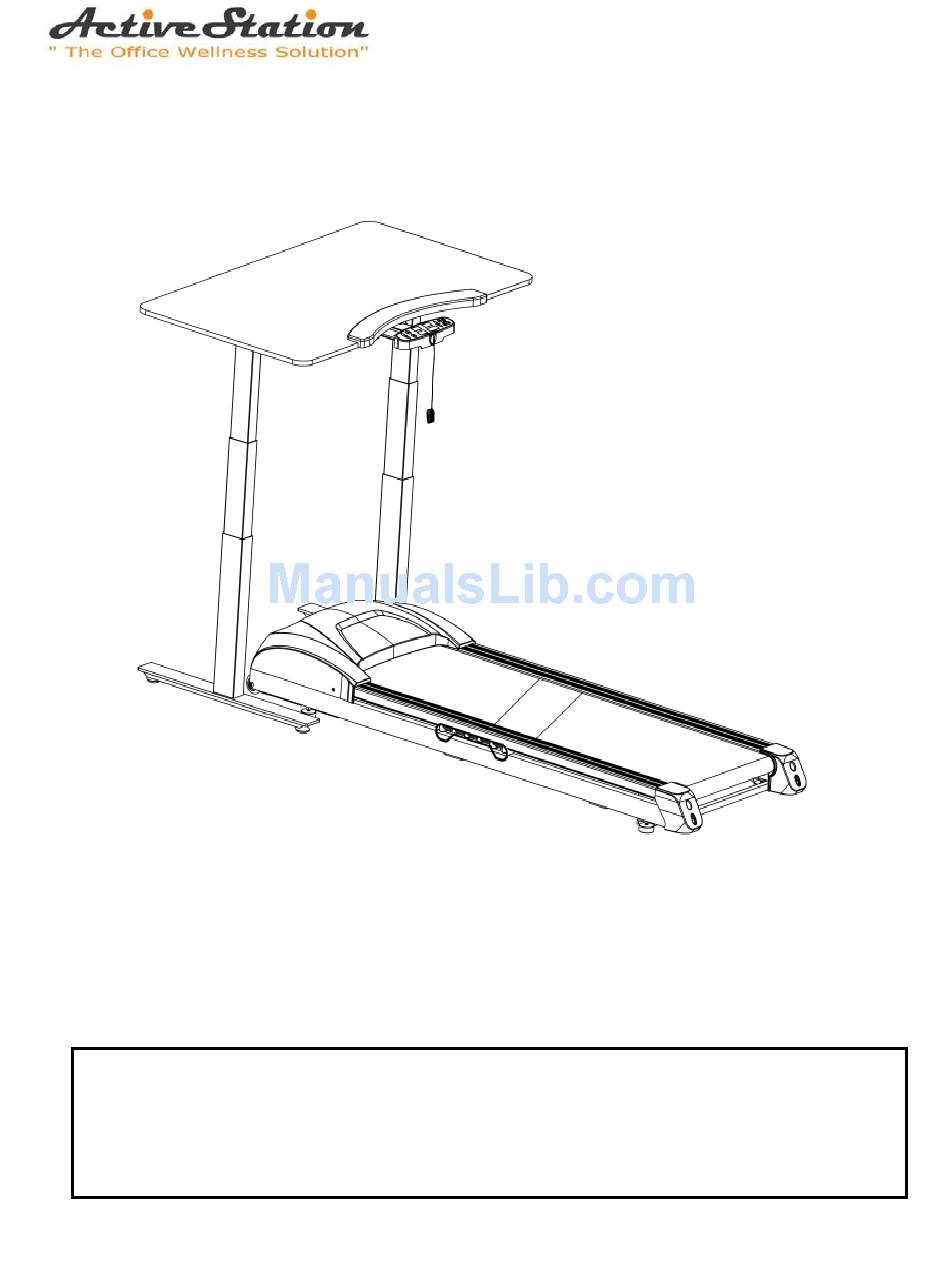

- Page 1 OWNER'S MANUAL AST1001/ASWD1001/ASWD2001 IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for the future reference. ~ 1 ~ ...
- Page 2 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. ~ 2 ~ ...
-
Page 3: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS 1. Plug the power cord into a surge protector (not Included) then plug the surge protector into a grounded circuit. No other appliances should be on the same circuit. 2. Position the treadmill on a clear level surface. Do not place the treadmill on thick carpet as it may interfere with proper ventilation. Always place treadmill indoors and never place treadmill near water. 3. -
Page 4: Hardware Contents
ASSEMBLY INSTRUCTIONS Ⅰ Ⅱ Ⅲ Ⅴ Ⅳ Ⅵ HARDWARE CONTENTS: Parts # Description Qty. Ⅰ MAIN FRAME 1 Ⅱ SAFTY LOCK 1 Ⅲ OIL BOTTLE 1 Ⅳ ... -
Page 5: Exploded Diagram
EXPLODED DIAGRAM ~ 5 ~ ... -
Page 6: Parts List
PARTS LIST # DESCRIPTION REMARKS QTY # DESCRIPTION REMARKS QTY 1 Main frame 1 47 Console top cover 1 2 Motor holder 1 48 Console bottom cover 1 3 Oil pipe holder 1 49 Side rail 2 4 Console sliding holder 1 ... -
Page 7: Assembly Steps
# DESCRIPTION REMARKS QTY # DESCRIPTION REMARKS QTY 44 wheel bearing 12 90 Emergency switch 1 45 Motor top cover 1 91 Membrane switch 1 46 Motor bottom cover 1 92 Console overlay 1 ... - Page 8 Step3: Connect the treadmill and table control wires and place the emergency switch onto the console. Step4: Turn on the knob (A) for self‐lubricating counterclockwise as shown below. ~ 8 ~ ...
-
Page 9: Dimensions And Parameters
CAUTION: 1. DO NOT PLUG IN THE POWER CORD UNTIL FINAL ASSEMBLY HAS BEEN COMPLETED AND MOTOR COVER IS IN PLACE. 2. Read the instructions fully prior to assembly start. 4. Keep Children away from the treadmill at all times. DIMENSIONS AND PARAMETERS 1,960×710×230 mm BUILT UP SIZE SPEED RANGE 0.6 – 2.5 MPH 77.2×28×9.1 inch 1,480×510 mm MAX USER RUNNING AREA 136Kg/300Lb 58.3×20 inch WEIGHT LED DISPLAY SPEED, DISTANCE, CALORIES&TIME. SUGGESTED STRETCHES 1. WARM‐UP: A proper warm‐up increases your body temperature, heart rate and circulation in preparation for exercise. ... - Page 10 CONSO LE OPE ERATION he LED wind ow shows: MPH (spee d), TIME, M MILES (distan nce) and CA AL. (calories s). Window MPH (spee d): Displays s the curren nt speed. Sp eed Range: : 0.6~2.5MP PH. Window TIME: Displ lays the tota al workout t time. Time Range: 0:00 0~99:59. Window MILES (dist ance): Disp lays the tot tal workout distance. D Distance ran ge: 0.0~99. 9. CAL. (calo ories): Displ lays the tota al workout c calories. Ca...
-
Page 11: Operation Modes
OPERATIONMODES 1. Normal: Insert the safety Key then press “START”. Then the running belt is starting to move. The treadmill will start from the speed of 0.6mph and the time will count up from 0:00 to 99:59. When the time reaches to 99:59, it will count up from 0 again. Press SPEED▲ and ▼ to adjust the speed. 2. Bluetooth: Download and install the Active Station APP. Pair it with the unit via Bluetooth and connect when using it to take advantage of its features. ... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE Error Cause Checking Correction code 1. Check the distance and 1. Adjust the distance place between sensor and between the sensor and the magnet. magnet. 2. Check if the wire is broken. 2. Change the wire. E01 No sensor signal 3. Check if the magnetism is 3. Change the magnet. good. 4. Check if the controller is 4. Change to a new controller. damaged. 1. Check if the network 1. Regulator is needed to voltage is stable. adjust the voltage. Over‐voltage protection of the E02 motor 2. Check if the controller is 2. Change to a new controller. damaged. 1. Verify user weight is within 1. The machine is overloaded. allowed parameters 2. Check if the motor or the 2. Take the foreign matter roller gets stuck by out. something. E03 ... -
Page 13: Belt Adjustment
Error Cause Checking Correction code 2. Check if the sensor wire of 2. Change to the new sensor the emergency switch is wire of the emergency switch. damaged. 3. Check if the port of the emergency switch is 3. Change to a new console. damaged. E0C Burst clash The controller is damaged. Change to a new controller. BELT ADJUSTMENT 1. We suggest that you cut off power for 10 minutes after an extended walking period 2. The belt is too loose if it slips during use when you apply forward pressure on it. 3. If the belt is too tight, it would affect the performance of motor and increase the abrasion of roller and belt. 4. When properly tightened, the belt can be lifted about 2”‐3” from the deck. Center the running belt 1. Place treadmill on a level surface and run at full speed. If the belt drifts to the right, pull out the switch, turn the right adjusting bolt ... - Page 14 BELT AND DECK LUBRICATION This treadmill is equipped with a pre‐lubricated, low maintenance deck system and an automatic lubrication pump. The pump is designed to lubricate the belt every 200 miles of use. The liquid silicone bottle needs to be re‐filled every 6,000miles of use. To re‐fill, remove the motor cover and unscrew the cap on the pump. Re‐fill using only pure liquid silicone 1000cst (see drawing below). In case it is required, pressing the + and – speed buttons at the same time will also run the lubricate pump for 10 seconds. ...
