Thank you for selecting this BLUETOOTH headset. This BLUETOOTH headset uses
2.4GHz Bluetooth technology to provide lightweight, handsfree, private and secure
communication – without the inconvenience of wires.
This Bluetooth headset is compatible with devices that support the Bluetooth Headset and
Handsfree profiles. To be able to use the headset with a mobile phone, the phone needs to
have built-in Bluetooth technology, or a compatible Bluetooth phone adaptor.
KEY DIAGRAM
Advertisement
Table of Contents
Summary of Contents for Archer Wireless RSQ-22000
- Page 1 Thank you for selecting this BLUETOOTH headset. This BLUETOOTH headset uses 2.4GHz Bluetooth technology to provide lightweight, handsfree, private and secure communication – without the inconvenience of wires. This Bluetooth headset is compatible with devices that support the Bluetooth Headset and Handsfree profiles.

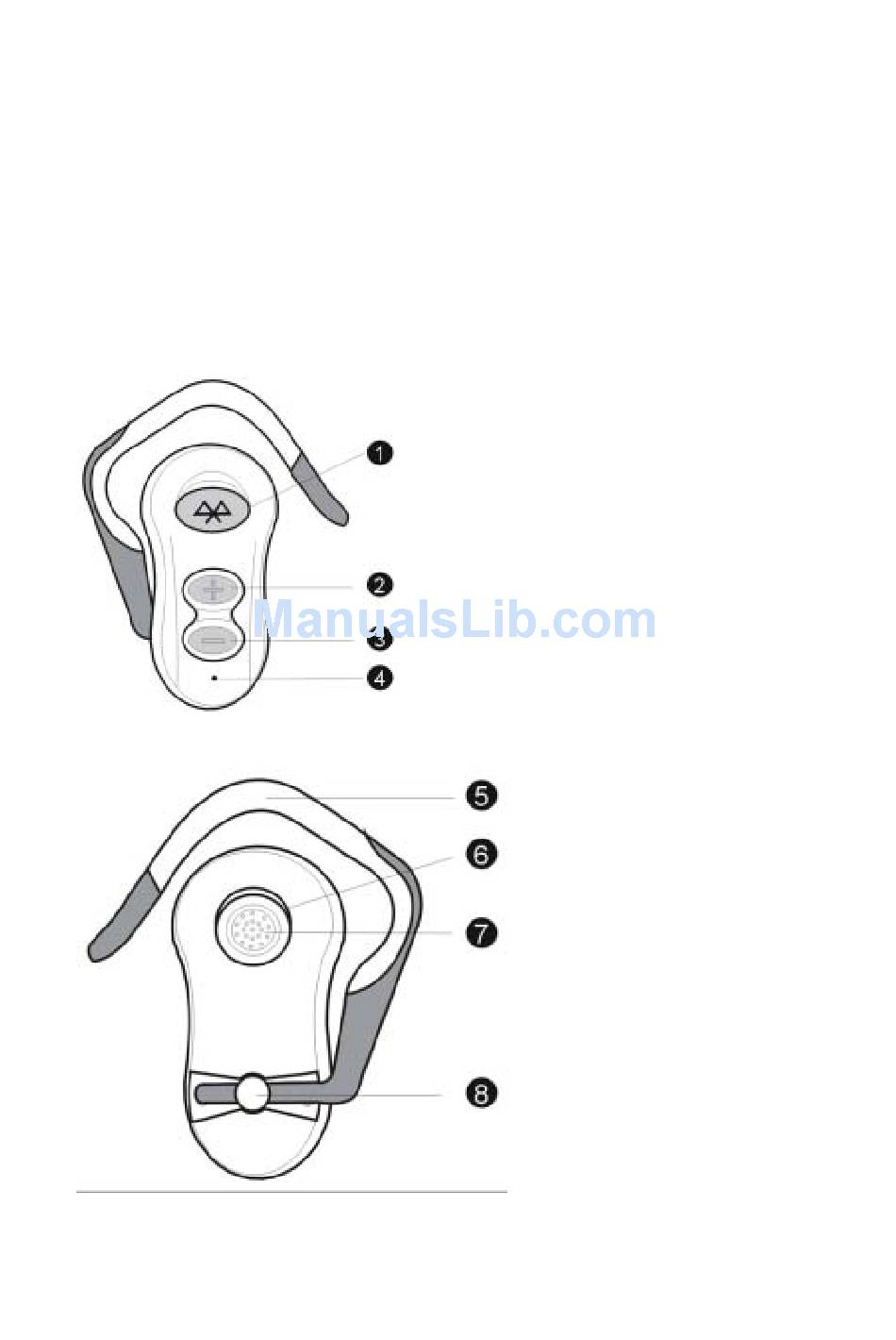

- Page 2 1. Function Button 2. Volume + Button 3. Volume – Button 4. Microphone 5. Earhook 6. EarGel 7. Speaker 8. Earhook hole GETTING START To use your headset, please follow these simple steps : Charge your headset battery Switch your headset on. III.
- Page 3 LOW BATTERY WARNING When the headset is on and the battery becomes low, the RED LIGHT will flash to remind you the headset needs to be recharged. Recharge the battery as described above. SWITCHING YOUR HEADSET ON/OFF To turn your headset on, press & hold “Function button” & “Volume – button” simultaneous For 2 seconds.
- Page 4 device ID is now stored in the phone’s memory). 5. Your phone screen will advise that pairing has been successful, and headset indicator light will then goes to stand-by (GREEN LED light flash) mode. 6. Once the headset and phone have successfully paired you are ready to place and receive calls.
- Page 5 USING YOUR HEADSET ANSWERING A CALL To answer a call, wait for the headset to ring, just press the Function button to answer the call. When the call is coming, Both RED LED & GREEN LED will flash alternately to alert the user.
- Page 6 LAST NUMBER REDIAL When making a call, you can dial the last number called using your headset. Press Volume + or Volume – button under stand-by mode to redial the last number. VOICE DIALING Making sure that your mobile phone supports voice dialing function., and voice tags are stored.
- Page 7 PLEASE NOTE: "The driver is ultimately responsible for the safe operation and control of their vehicle at all times. You should never use a hand held phone, including sending or reading text or picture messages, while driving . Research indicates that there is a risk to safety when the driver of a motor vehicle is distracted and using a mobile phone while driving can be a distraction.
