Summary of Contents for AMKOV CDC3
-

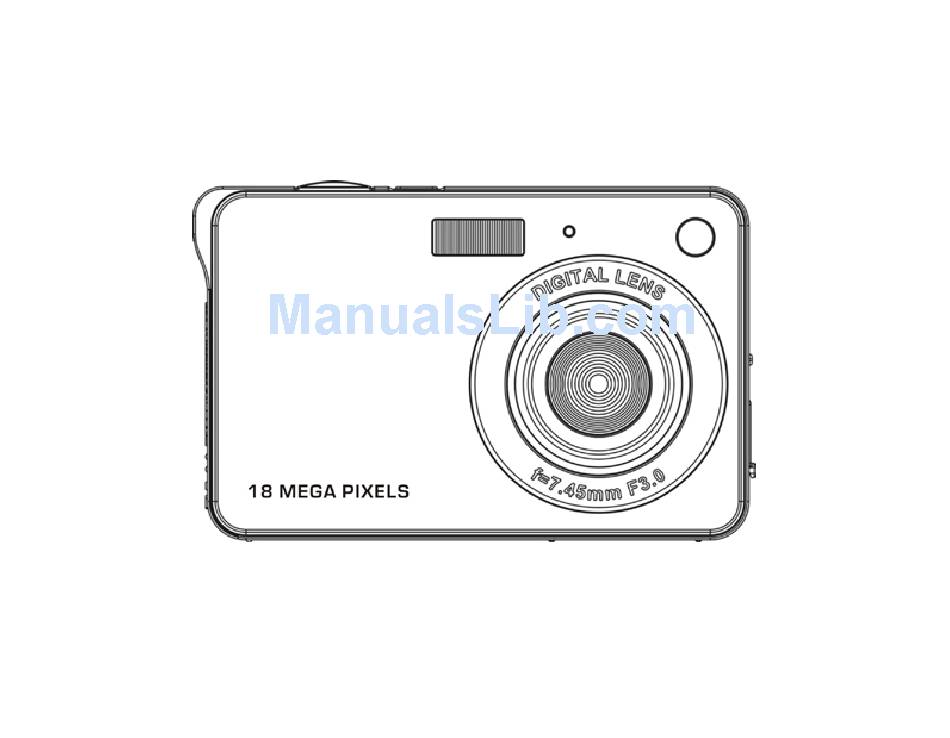

Page 1: Digital Camera
Digital Camera Please read this manual carefully before using this unit and keep it for future reference... -
Page 2: Table Of Contents
Table of content Introduction ............................2 Key Features............................. 2 What Your Camera Includes ......................2 Computer System Requirement for Windows 7/XP ................ 3 Computer System Requirement for Windows Vista ............... 3 Computer System Requirements for Macintosh .................. 3 Quick Look at Your Digital Camera ....................4 Main Icons on the LCD ........................ -
Page 3: Introduction
Introduction Thanks for purchasing this kind of Digital Camera, it can not only take good quality digital photos but also can be used as removable disk, everything you need to take quality photos is included with your camera, please read this manual carefully before using. Key Features ... -
Page 4: Computer System Requirement For Windows 7/Xp
Computer System Requirement for Windows 7/XP To be able to download photos and videos to your PC you will need the following minimum configuration: Pentium processor or above with Windows 7, XP 128 MB RAM, more than 150MB free disk space. ... -
Page 5: Quick Look At Your Digital Camera
Quick Look at Your Digital Camera... -
Page 6: Main Icons On The Lcd
Main Icons on the LCD... -
Page 7: Battery Power Level
Battery power level Full battery power Self-timer On 10 seconds Medium battery power Self-timer On 5seconds Low battery power Self-timer On 2 seconds Photo quality Self-timer off Normal quality Digital Zoom Fine quality Protect Super quality Protect Flash Force Flash Anti-Shake Auto Anti-Shake on... -
Page 8: Prepare Your Camera For Use
Prepare Your Camera for use Install battery Your camera supplied a lithium battery, please refer to the following illustration as correct installation method: Slide and open the battery compartment. Insert the lithium battery correctly as the correct polarity facing up. Close the battery compartment. -
Page 9: Starting Your Digital Camera
Locate the SD memory card slot, insert a SD memory card as above, until you hear a “Click” sound, it indicates your SD card is installed with an icon “SD” appear on the LCD screen. Note: After the SD memory is inserted successful, the photos/videos you have taken will be stored on the SD memory card. -
Page 10: Camera Mode
Power off Press Power button once to turn off your camera. When there is insufficient battery power, your camera will show “Low Battery” on the LCD screen and power off automatically after a moment. Camera Mode After you power on your camera, icon will appear on your LCD screen, indicating your camera is in Camera Mode. - Page 11 Press Flash button repeatedly. The icon will appear on the LCD screen. This means the flash function has been "forced on" (manual flash). If the flash is not ready, a red LED will light up beside the LCD screen and the icon will flash repeatedly- wait until the flash is ready before taking a photo.
- Page 12 Press Menu button. Press Right/Left button to select the icon Press Up/Down button to select: 4896x3672 (18M), 4608x3456 (16M), 4416x3312 (14M), 4000x3000 (12M), 3648x2736 (10M), 3264x2448 (8M), 3648x2048 (7M HD), 2592x1944 (5M), 2048x1536 (3M), 1920x1080 (2M HD), 640x480 (VGA). Press Menu button or Multi-Function button A to confirm. The image size icon will show on the LCD screen.
- Page 13 Smile Capture Press Menu button. Press Right/Left button to select the icon Press Up/Down button to select: On/Off. Press Menu button or Multi-Function button A to confirm. Continue Shot You can take 6 photos continuously after pressing Shutter button only once with this function on. Press Menu button.
- Page 14 Setup You can set Exposure, ISO, White Balance, Sharpness, Quality, Size, Date, Auto Power Off, Language, Frequency, Beep Sound, Format, Default Setting and Cancel. To operate it as below: Press Menu button. Press Right/Left button to select icon Exposure This setting allows you to control the brightness of your images. Press Up/Down button to select Exposure option in Setup menu.
- Page 15 White Balance This setting allows the camera to adjust the color of your photos according to the color of your light source. Press Up/Down button to select White balance option in Setup menu. Press Menu button or Multi-Function button A to enter the White Balance submenu. Press Up/Down button to choose the best option: Auto/Daylight/Cloudy/Incandescent/Fluorescent.
- Page 16 Size Press Up/Down button to select Size in Setup menu. Press Menu button or Multi-Function button A to enter the Size submenu. Press Up/Down button to select video size: 1280x720 HD/640x480 (VGA)/320x240 (QVGA)/. Press Menu button to confirm and return to the Camera mode. Note: You can press Multi-Function button B to exit in each menu.
- Page 17 Note: If you select “None”, the camera will not be powered off until the battery power using up or turn off it manually. You can press Multi-Function button B to exit in each menu. Language You can select your language per your request. Press Up/Down button to select Language option in Setup menu.
-
Page 18: Video Mode
Press Menu button or Multi-Function button A to enter the Format submenu. Press Up/Down button to select: OK/Cancel. Press Menu button or Multi-Function button A to confirm. Press Up/Down button to select “Yes” to format or “No” to exit if you select OK. Press Menu button to confirm. -
Page 19: Playback Mode
Note: The file you recorded will be saved as AVI format. When the camera's memory is full, the “Card Full” message will appear on the LCD screen when you attempt shoot more videos. Download the test file from the internal memory to the PC or delete them to shoot more videos. - Page 20 Operation for still photos Select a still photo (an icon will show on the LCD) you can rotate, protect, delete, crop or print. Rotate Press Menu button in playback mode . Press Right/Left button to select the icon Press Up/Down button to select:90°/180°/270°/Cancel Press Menu button or Multi-Function button A.
- Page 21 Press Up/Down button to select: This image/This Video (depends on your file selection): delete current photo you selected; ALL: delete all unprotect photos; Cancel to exit. Press Menu button or Multi-Function button A to confirm. Press Up/Down button to select “Yes” or “No”. Press Menu button to confirm deletion.
-
Page 22: Install Photags Express Software
Press Menu button or Multi-Function button A to enter Pictbridge mode and the LCD will show: “Please connect to device”. Connect your camera to compatible printer with USB cable correctly for printing. Operation for AVI file Select an AVI file you want to play. Press Menu button. - Page 23 And then the installer window will be shown as below. After you click “Install PhoTags Express” button, there will be showing some windows that help you to finish the installing. You are only required to follow the description and click the buttons that it’s defaulted by the software.
-
Page 24: Everything You Need To Get The Most From Your Photos
After this step, the main window will appear on the screen. Everything you need to get the most from your photos 1. Select photos Select the photos that you download from your camera. And edit it in the software. 2. Edit photos Click the “Enhance photos”, “Add captions”... -
Page 25: Download Photos To Your Pc
Create “Calendars”, two sides “Greeting cards” and “Postcards” on standard photo paper. You can purchase “Album” and “Video CD”. Two additional workshop project online at any time and create Photo Album and slide shows on CD that can be viewed on your PC and VCD for viewing on your TV using your DVD player. Download photos to your PC Turn on your camera, connect your camera to the computer correctly with USB cable, a “MSDC”... - Page 26 1. Download photos directly from windows Choose “copy pictures to a folder on my computer” on the Removable Disk (H:) window. After you click “OK”, there will be shown some windows on the screen step by step, you are only required to follow the description and click the buttons that are defaulted by the system to finish transferring.
- Page 27 This mode is used to manually select the photos you wish to copy to your computer. The “Device selection” mode will appear. Both your camera and the memory card will each appear in the “Active Devices” list Select “Custom copy” click “Next” to continue. Note: At this moment, you can select “Express”...
- Page 28 Choose a position where you want to place the photos. Click “Finish” to copy the photos to the location you selected. Note: All of the picture you imported will appear in the “Select Photos” main window. And now, you can edit your photos per your idea, and then download it to your computer.
-
Page 29: Photags Express Software Owner Manual
PhoTags Express software owner manual You can edit, printing, sharing photos with PhoTags Express. You can operate it as following step to know how to use PhoTags Express: Launch the PhoTags Express. Click “tour” button on the main window to view how to use the photags Express in detail. Attention：... - Page 30 NOTE: Now you can download the photos and videos to your computer with two methods as below: 1. Download photos directly from windows Choose “copy pictures to a folder on my computer” on the Removable Disk (F:) window. After you click “OK”, step by step instructions will appear.
-
Page 31: Transferring Photos And Videos To Your Mac Manually
Transferring photos and videos to your MAC manually The Vivitar Experience Image Manager software is not compatible and will not install on a Mac. In order to transfer photos and videos from your camera to your Macintosh computer: Plug the camera into an available USB port A new drive should mount on the desktop which stores any photos or videos that have been taken. -
Page 32: Appendix B: Troubleshooting
Self-timer Off/2s/5s/10s File Format JPEG / AVI Anti-shake Flash Auto/Force/Off/Red eye reduction PictBridge Face Detection Smile Capture Continue Shot YES (VGA 6PCS) Microphone Optical Viewfinder TV out Interface USB 2.0 System Requirements Windows XP/VISTA/7/MAC Battery Li-ion Battery 0-40 ℃ Working Temperature Appendix B: Troubleshooting Q: I have taken photos but my computer does not recognize my camera. - Page 33 Secondly, always use the USB cable that came together in the package with the camera. The USB cable needs to be inserted in a free USB slot on your computer. Thirdly, give your computer time to recognize that the device is inserted. If need be, refresh the device options list until you see the removable device appearing.
