The FA-1 LED Strobe Trigger triggers underwater strobes and

flashes to fire in sync with the camera using fiber optic cables.

Using the LED Strobe Trigger eliminates the need for the

camera built-in flash to fire, thereby extending camera battery

life and allowing for longer shooting sessions. Eliminating the

camera built-in flash also keeps the camera from heating up,

resulting with less condensation in humid conditions. The LED

Strobe Trigger's super quick recycle time allows for rapid

shooting and triggering of the strobes without having to wait

for the camera built-in flash to charge.

COMPATIBILITY

The FA-1 LED Strobe Trigger can be connected to any camera featuring a hot-shoe connection. It can be

installed inside any camera housing offering sufficient space, anywhere inside the housing, for the main

unit to be placed. For LED Strobe Triggers specially designed for Fantasea housings, please visit the

Fantasea website –

www.fantasea.com

The FA-1 LED Strobe Trigger is capable of triggering most underwater strobes available in the market. Note

that when using the LED Strobe Trigger, strobe output is controlled manually only.

SPECIFICATIONS

 LED type: Ultra bright white LED

 LED ports: 2

 Voltage: 3.7 V

 Power consumption: 5 milliwatt

 Battery: 110mAh Lithium Polymer battery

 Charging time: 1.5 hours

 Flash capacity: 10,000 (when fully charged)

 Battery life: Up to 72 hours (when fully charged)

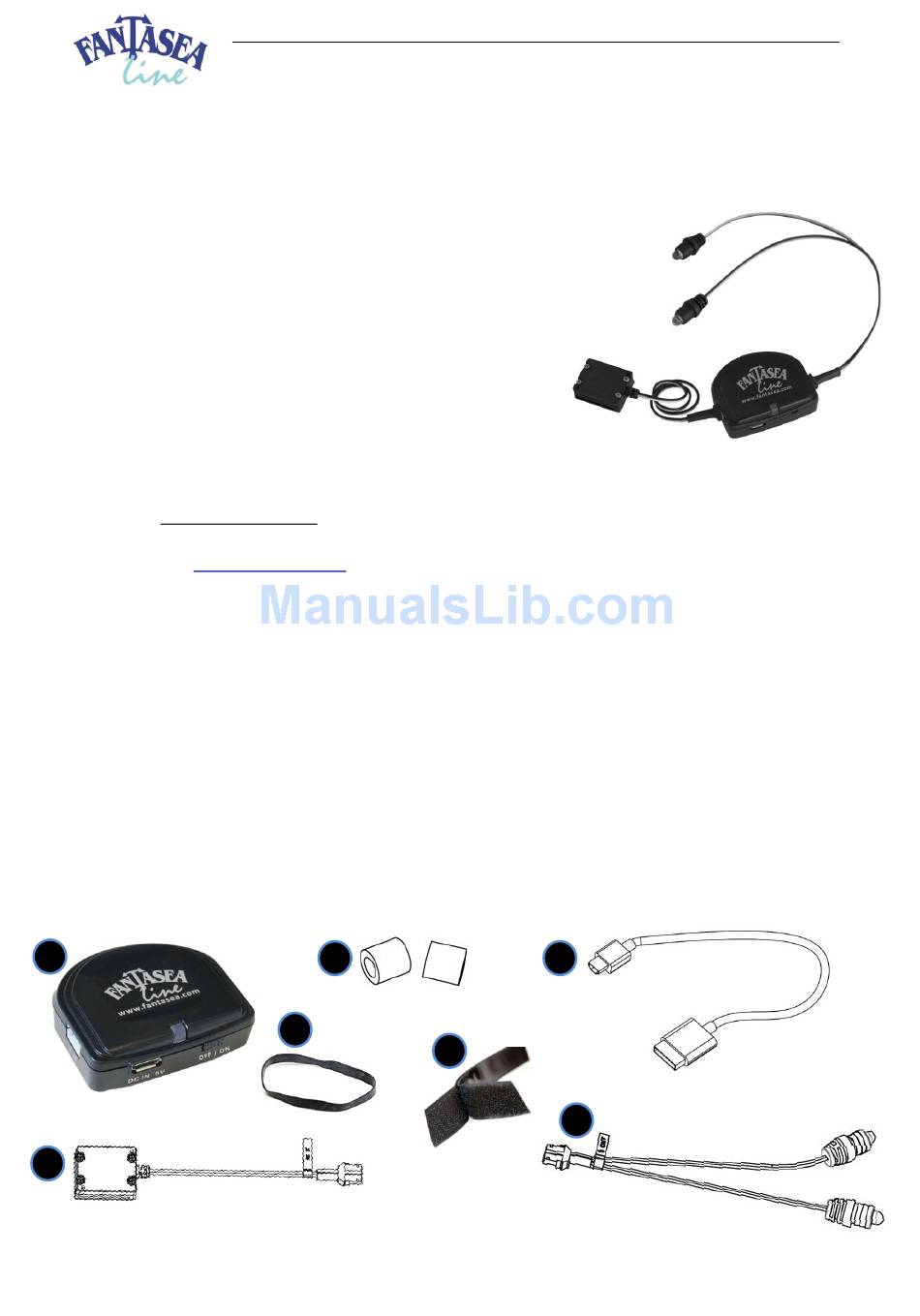

INCLUDED IN PACKAGE

Fantasea Line

FA-1 LED Strobe Trigger

Instruction Manual

(Cat. No. 6551)

 Auto power-off time: 3 hours



Dimensions:

40.5 x 45 x 13 mm / 1.6 x 1.77 x

0.51 inch

 Weight: 16.8 g / 0.51 oz

 Included in package: LED Strobe Trigger main

unit, LED cable, Hot-shoe cable, Spongy LED

trigger ports, Velcro sticker, Rubber band and

USB cable

FA-1 LED Strobe Trigger Instruction Manual 20170613

Table of Contents

Need help?

Do you have a question about the FA-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fantasia line FA-1

Page 1 COMPATIBILITY The FA-1 LED Strobe Trigger can be connected to any camera featuring a hot-shoe connection. It can be installed inside any camera housing offering sufficient space, anywhere inside the housing, for the main unit to be placed.
Page 2 3. 5V DC port INSTRUCTIONS FOR USE 1. Charging the FA-1 LED Strobe Trigger main unit: a. Connect the micro-USB end of the USB cable to the main unit’s 5V DC port (Fig.1). b. Connect the other end of the USB cable to a USB port or USB charger (Fig.2).
Page 3 LED’s (Fig.7 on the following page). If depressing the camera shutter release and capturing an image doesn’t flash the LED’s, reinstall the LED Strobe Trigger following the steps above or refer to section 4 - “Troubleshooting”. FA-1 LED Strobe Trigger Instruction Manual 20170613...
Page 4 Spongy LED Trigger Port ii. If your housing features a transparent window against the camera built-in flash instead of fiber optic cable ports, it is best to attach the fiber optic cables to the transparent window FA-1 LED Strobe Trigger Instruction Manual 20170613...
Page 5 Once all components have been installed inside the housing, use the rubber band to bundle excess length of the LED cable in order to ensure it doesn’t interfere with camera operation or housing seal. Fig.10 FA-1 LED Strobe Trigger Instruction Manual 20170613...
Page 6 LED’s) or by sliding the power switch to “OFF” and then back to “ON” again. k. To prevent the strobe from overheating as a result of being frequently triggered, please refer to the strobe instruction manual for guidelines and precautions. FA-1 LED Strobe Trigger Instruction Manual 20170613...
Page 7 Do not store the FA-1 LED Strobe Trigger in presence of chemicals, solvents or fuels. To prolong battery life of the FA-1 LED Strobe Trigger, it is important to fully charge the main unit prior to long periods of storage. Recharge the main unit every 3-6 months during storage in order to avoid battery over-drain.
Page 8 Please register your product on line at this URL: http://www.fantasea.com/registration. For further information, please contact us at info@fantasea.com or visit our website www.fantasea.com FA-1 LED Strobe Trigger Instruction Manual 20170613...
