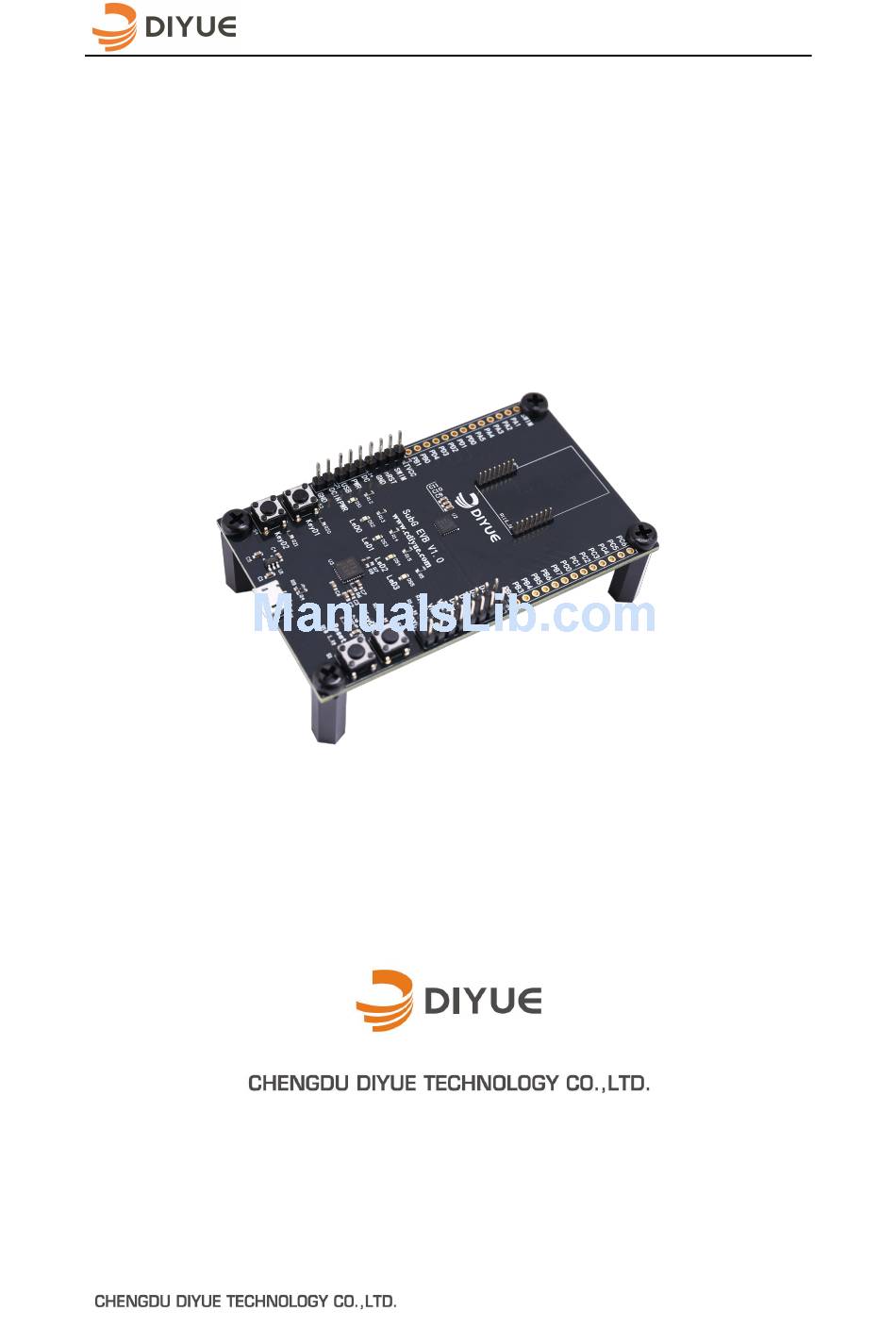

SUB-1G DVK development kit product manual SUB-1G DVK Development Kit Product Manual SUB-1G DVK PM (Rev1.0)...
Page 2
SUB-1G DVK development kit product manual Development Kit Features Low-cost SUB-1G wireless communication module evaluation platform Can quickly set up a SUB-1G module communication. DIYUE Terminal can be downloaded for free. The 3th party serial terminal software also can be used.
3 Electrical Characteristics of the SUB-1G EVB................ 2 3.1 Power Supply of the SUB-1G EVB.................2 3.2 SUB-1G Wireless Communication Module...............2 4 SUB-1G DVK Development Kit Overview................3 5 SUB-1G EVB Development Board.................... 3 6 Driver Installation and Operation....................6 7 Use & Configure of DIYUE Terminal..................9 7.1 SUB-1G AT Command......................9...
SUB-1G DVK development kit product manual 1 Absolute Maximum Ratings of the SUB-1G EVB Parameters Environment Supply voltage 1 -0.3V 6.5V Powered by USB2.0 Supply voltage 2 -0.3V 3.8V External power supply Supply current 1000mA IO extended interface voltage -0.3V 3.8V...
SUB-1G DVK development kit product manual 3 Electrical Characteristics of the SUB-1G EVB 3.1 Power Supply of the SUB-1G EVB SUB-1G EVB development board can be powered through two power supply modes: Power Mode 1: USB port in compliance with the IEC60950-1 standard.
SUB-1G DVK development kit product manual 4 SUB-1G DVK Development Kit Overview The SUB-1G DVK development kit is used to evaluate the functionality and performance SUB-1G series wireless communication modules and provide peripheral reference design circuits during application development for SUB-1G series modules.
Page 7
SUB-1G DVK development kit product manual 1 x SWIM debug port (P6) 1 x Micro-USB Interface (P1) Two power modes: USB and external power supply Fig. 5-1 SUB-1G EVB Development Board Power indicator: DS1 (POWER) is the power indicator.When the power supply is normal, the LED will be lighted all the time.
SUB-1G DVK development kit product manual 6 Driver Installation and Operation The SUB-1G EVB board is a platform for you to evaluate the SUB-1G series modules. Therefore, if you want to achieve the accurate function&performance of these module, it is necessary to ensure that SUB-1G EVB board works stably.
Page 11
SUB-1G DVK development kit product manual Fig. 6-4 Driver installation Completed 5. Please open the Device Manager under the Windows Computer Management screen (see Fig. 6-5) and click on the Ports (COM&LPT) section where you may find out the new COM port that means the hardware’s driver has been successfully installed.
Manual which is available from www.cdiyue.com. 7.2 DIYUE Terminal DIYUE Terminal is used to configure the SUB-1G AT Command when you are going to develop&design your customized application product based on SUB-1G series modules, as shown in Fig. 7-1. This tool has the following functions: Com setting, Receive options, Send options, Receive Zone, Send Zone, Common Instructions and so on.
SUB-1G DVK development kit product manual 7.2.1 Com Setting The UART configuration includes COM Port, Baud Rate, Parity Bit, Data Bit, and Stop Bit, as shown in Fig. 7-2. COM Port: the tool can automatically detect the serial port which connects to the computer and is not used by other tools when it is opened.
Page 14
SUB-1G DVK development kit product manual Fig. 7-3 Command Zone b. Click the common command button directly to send the SUB-1G AT command, see Fig. 7-4. If you want to modify the common command, please select the Cmd Mgr button, and...
SUB-1G DVK development kit product manual Fig. 7-6 Timing Sending 7.2.3 Data Receiving The Receive Zone will display the lasted sending or receiving data as shown in Fig. 7-7. The displayed data can be saved or cleared. Fig. 7-7 Data Receiving Zone 1.
SUB-1G DVK development kit product manual Fig. 7-8 Saving the Displayed Data 2. Clear the displayed data Press the Receive Clear button to clear the displayed data in the Receive Zone, as shown in Fig. 7-9. If there are key data in the Receive Zone, please do remember to save it because it can not be recovered after removing Fig.
Page 17
SUB-1G DVK development kit product manual Fig. 7-11 Common Command Buttons 1. Add command a. First you should go into the Command Management interface, and then click the Add Cmd button, there will be pop out an Edit Cmd window as shown in Fig. 7-12e.
Page 18
SUB-1G DVK development kit product manual c. Click the OK button on the Cmd Mgr window, you will see a new command button in the Common Instruction zone as shown in Fig. 7-14. Fig. 7-14 The new Common Command Buttons 2.
Page 19
SUB-1G DVK development kit product manual c. Click the OK button after editing it as shown in Fig. 7-17. Fig. 7-17 Post-editing in Cmd Mgr d. Click the OK button on the Cmd Mgr window, you will see the modified command button in the Common Instruction zone as shown in Fig.
Page 20
SUB-1G DVK development kit product manual b. Click the Del Cmd button, the Cmd Mgr window is as shown in Fig. 7-20. Fig. 7-20 Cmd Mgr Window after Deleting Commands c. Click the OK button on the Cmd Mgr window, you will see that the Router button in the Common Instruction zone as shown in Fig.
We reserve the right to modify or improve the product, company name and LOGO at any time without prior notice. In addition, Chengdu Diyue Technology Co., Ltd. does not convey any license under its patent rights or assume any responsibility for the use of the...
