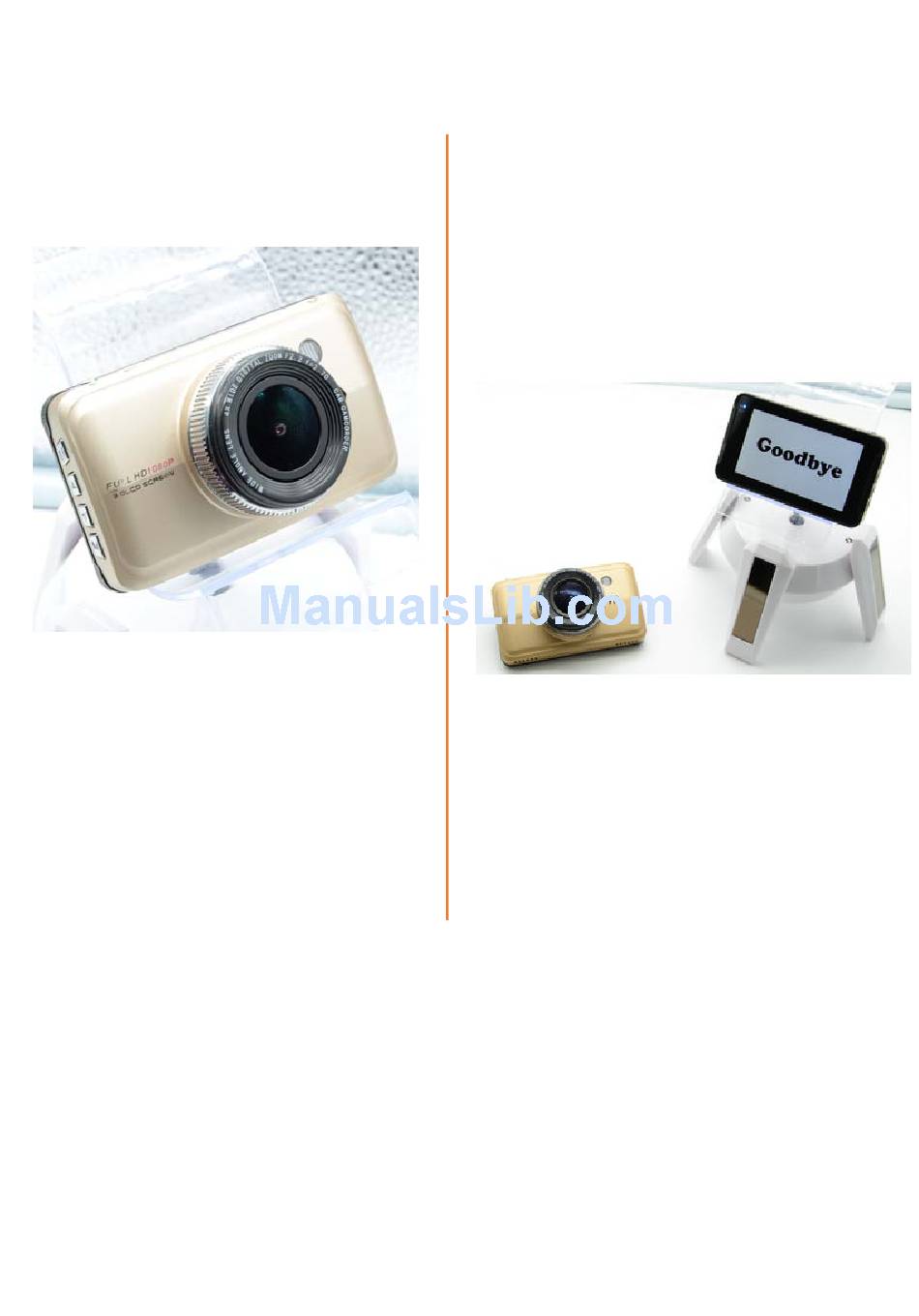

  • Page 1   CG‐CPN    BLACK BOX    Resolution 12M   ...
  • Page 2 Preface Thank you very much for purchasing our brand products, the product is specially developed for difficult evidence in accidents; it also meets the needs of other occasions, such as meeting recording, monitoring evidence, location shooting, video and other evidence, Multi-functional DVR can make your life more colorful.
  • Page 3 Installation The Recorder should be installed closed to the mirror to get best view. Confirm that if the lens is within the scope of windshield wipers to ensure a good view, even in the rain environment. Do not touch the lens with your fingers, because the oil from your fingers may be left on the lens, which maybe resulting in the unclear recording or photography, please clean the lens periodically.
  • Page 4     The keys and interface specifications Name Operating Instructions In standby mode, short press can popup setup menu; Menu continuously pressing the key can switch among setup menu; In menu options, upward function; In standby or recording state, the digital zoom magnification function; In menu options, upward function;...
  • Page 5 Power / The indictor light will on when energized or working. work instructions Recorder Installment 1. Insert a memory card: Please insert the memory card correctly according to the instructing direction of the slot, press the card until a click is heard. Since the recording speed is fairly high, the card must be high-speed card (CLASS6 above).

  • Page 6: Initial Settings

    start the car engine. Note: when wiring, the wire can be laid along the windshield edge, as showing above. On/Off (1) Auto On / Off: Once the car engine launched, the device will start automatically. After the device turning on, the recording start automatically. Once the car flameout, the device will save the video automatically and power off within 10 seconds.

  • Page 7: Recording Operation

    Recording operation: When the car engine starting, the device will turn on automatically and start recording. When the engine flameout, it will stop recording automatically. Or press the OK button to stop recording manually. Note: Some car charger interface usually supply power, when the engine stalled, the power supply will continue to work.

  • Page 8: Special Functions

    show on the left top corner of the screen. 2, short press the OK button to take pictures, the screen flashes once to indicate the completion of photographs. Video / photo playback operations 1, In recording mode, press the OK button to stop recording. 2, short press M button to switch to playback mode, it will show playback icon on the top left corner of the screen.
  • Page 9 3, Parking Guarding function (high version) (1) Open the parking guard, when the vehicle flameout, the device will enter automatic shutdown procedures. If car receives external vibrations, the Recorder will start to record. It will record 10-15 seconds and shutdown automatically.
  • Page 10 5, USB mode Connect the USB cable to a computer, the Recorder will pop up the USB menu automatically, it will appear the following options: (1) Memory In this mode, video files or photo files can be accessed . (2) Camera Selecting this mode, the USB video device will be popped up, and can be used as a PC camera, such as real-time camera or video chatting.
  • Page 11 If the device shows abnormally or crashes while using, press the RESET button to reset the machine system by a tiny needle. 10   ...
  • Page 12 1、 ： Recording icon， indicates the recording mode; ： Camera icon, indicates the photographing mode. ： Playback icon, indicates the playback mode. 2、 ： Red flashing indicates the device is recording. 3、 ： G-sensor icon This icon will show on the screen after opening the G-sensor; it indicates that in the recording process, when an external collision exceeds the set value, the device will lock the current video and save it as an undeletable file and the file can not be overwritten;...
  • Page 13 current video is locked. 6、 ： Recording Open icon ： Recording close icon In setting menu, turn on/off recording function, the icon will show on the screen, it indicates the recording on/off. During recording, short press the Menu key can turn on/off the recording quickly. 7、00:00:00 ：Yellow font - memory card remaining recording time / Red font - current segment recording time;...
  • Page 14 exposure parameters; 15、 ： Wide dynamic icon, when the icon showing on the left screen, it indicates the function is activated. We advise open this icon. Wide dynamic indicates the image will automatically adjust according to brightness, to make the dark place see clearly. Wide dynamic range is the ratio of the image which can distinguish the brightest luminance signal value and which can distinguish between the darkest light signal value.
  • Page 15 Date label To watermark videos date G-sensor the video of collision will never be overwritten Camera Functions and Menu Menu Choice Explanation shooting mode Manual or time lapse Resolution Image's quality and size Continuous shooting Continuous shooting settings Image quality Image quality adjustment Acutance Image's brightness adjustment...

  • Page 16: Specifications

    shutdown Key Sound To set key sound during operation Language settings The language of Menu TV mode Light frequency Lights flicker frequency Sreen protection to set screen protecting time 1M, 3M, 5M, off Light setting Fill light in the dark state by IR On/Off When car flameout, it will start recording when Parking guard...
  • Page 17 12MP Picture pixel JPEG Picture format TF card(up to 32GB) Memory card Support Microphone Support Built-in speaker Support Night Vision PAL/NTSC Video format 50HZ/60HZ Light frequency 1：USB-Disk 2：PC-Camera 5V 1A Power port Built-in 300mAh Battery 16   ...

  • Page 18: Troubleshooting

    Troubleshooting: Under normal operation, such as abnormal problem, please refer to the following solution: Check whether the recorder connect to the car charger correctly. If manually turn on, please check whether the power is low. If it caused by the procedures, please press the Reset button to restore to the factory setting.
  • Page 19 The effect of the video files sometimes good sometimes bad: Camera effects have great relationship with the shooting light conditions, such as backlighting, smooth light, the strength of the light, which will result in different video effects. Stripe interference in image: This is due to set the wrong "source frequency", the frequency rate in China is "50HZ".
