aperta APKITBLK User Manual

aperta APKITBLK User Manual

Colour video door entry system

Advertisement

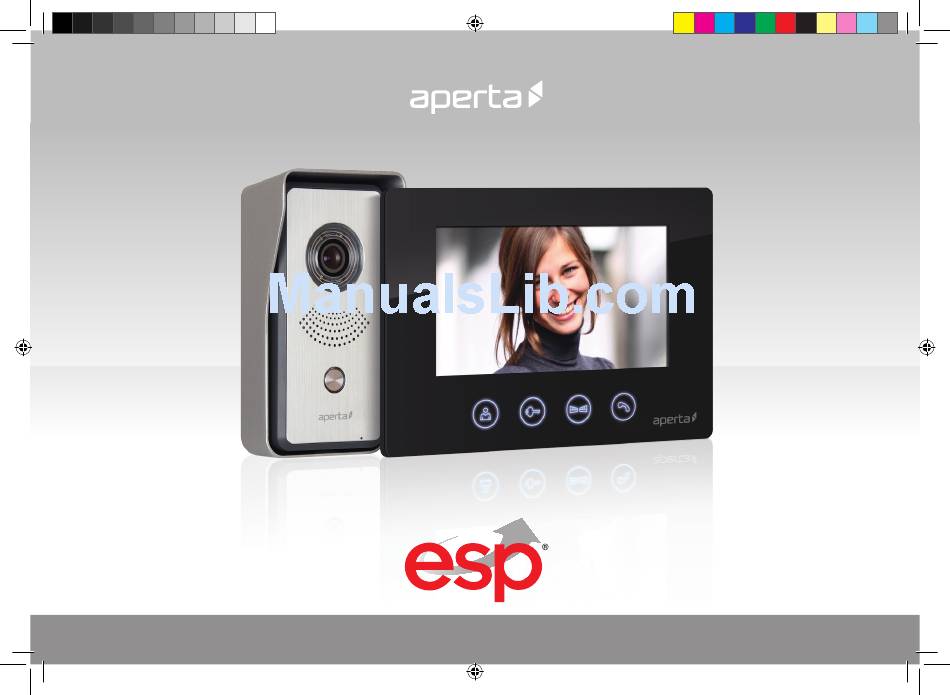

A P K I T B L K | C O L O U R V I D E O D O O R E N T R Y S Y S T E M
U S E R M A N U A L
w w w . e s p u k . c o m
APKITBLK Manual.indd 1
26/04/2017 09:39:55

Advertisement

loading
Need help?

Need help?

Do you have a question about the APKITBLK and is the answer not in the manual?

Questions and answers

Summary of Contents for aperta APKITBLK

  • Page 1 A P K I T B L K | C O L O U R V I D E O D O O R E N T R Y S Y S T E M U S E R M A N U A L w w w . e s p u k . c o m APKITBLK Manual.indd 1 26/04/2017 09:39:55...
  • Page 2: Table Of Contents

    All system cabling (excluding mains 240vAC supply) has been tested with Cat5E UTP PVC cable. Part Number - A8NFORCE5EUTP Find this product online: elandcables.com | Cables & Accessories | LAN Cable | Cat 5E UTP PVC Cable APKITBLK Manual.indd 2 26/04/2017 09:39:55...
  • Page 3: System Components

    System Components Door Station Monitor System Power Supply Optional Accessories EVBPSBB EV-EXIT EV-EBG EV-ML-250/500XT ENTERD Lock Power Supply Push To Release Emergency Release Electro-magnetic Lock Electric Lock APKITBLK Manual.indd 3 26/04/2017 09:39:57...
  • Page 4: Installation

    Surface mount the bracket of the monitor or if required onto a 1-gang mount box (not supplied). Make the system connections to the back of the monitor and then slide the monitor onto the bracket using the hooks to hold firmly in place. APKITBLK Manual.indd 4 26/04/2017 09:40:01...
  • Page 5: System Connections Example 1

    Dip switch 6 set to ON when device is at the end of system line. Dip switch 7 set to OFF to select monitor as the ‘Master’ Only one monitor on the system can be the ‘Master’ APKITBLK Manual.indd 5 26/04/2017 09:40:01...
  • Page 6: System Connections Example 2

    Last monitor on system line has dip switch 6 set to ON END OF LINE= When using di erent style monitors on the same system, please refer to supplied instruction to con gure Master , Slave and End of line position. APKITBLK Manual.indd 6 26/04/2017 09:40:02...
  • Page 7: Lock Connections Example 1

    N.O for Electronic lock At the rear of the door station LOCK1 ensure that the jumper links cover pins 1 and 2, on both J3 and J2 positions J1 J2 System Wiring Image of jumper link APKITBLK Manual.indd 7 26/04/2017 09:40:02...
  • Page 8: Lock Connections Example 2

    Volt-free Volt-free Image of Image of jumper link jumper link Volt-free Volt-free 12vDC300mA 12vDC300mA Jumper 1 gives the option to set the release time; Please refer to the operation guide for release instructions sec. sec. APKITBLK Manual.indd 8 26/04/2017 09:40:03...
  • Page 9: User Guide

    Press the ‘Lock’ button Press the ‘Gate’ button Press the ‘Talk’ button to release lock and press to release lock 2 and press to end call ‘Talk’ to end call ‘Talk’ to end call APKITBLK Manual.indd 9 26/04/2017 09:40:04...
  • Page 10: Installer's Guide

    C All system cabling is secured and properly connected. check the following; D All system cabling is clear of breaks or short circuits. E On the rear of the door station, ensure the lock output is switching when activated by the monitor. APKITBLK Manual.indd 10 26/04/2017 09:40:04...
  • Page 11 APKITBLK Manual.indd 11 26/04/2017 09:40:04...
  • Page 12 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 email: info@espuk.com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted. D17 w w w . e s p u k . c o m APKITBLK Manual.indd 12 26/04/2017 09:40:04...
